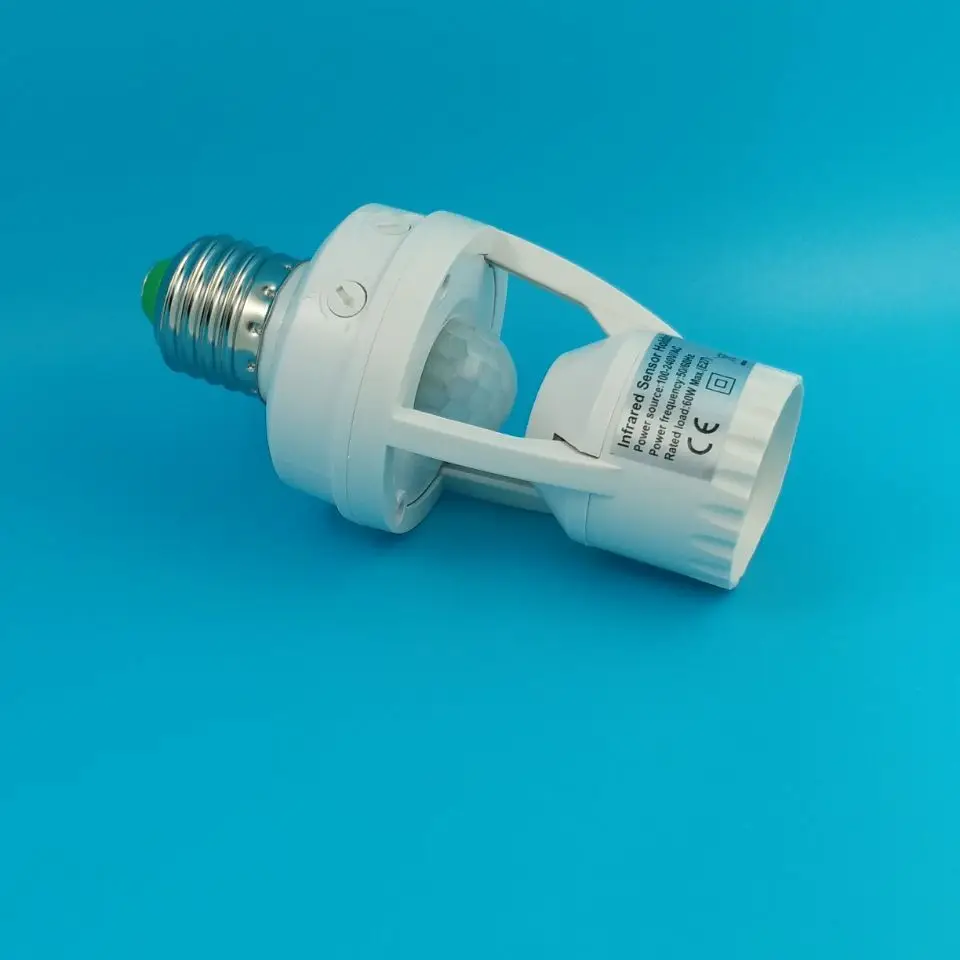

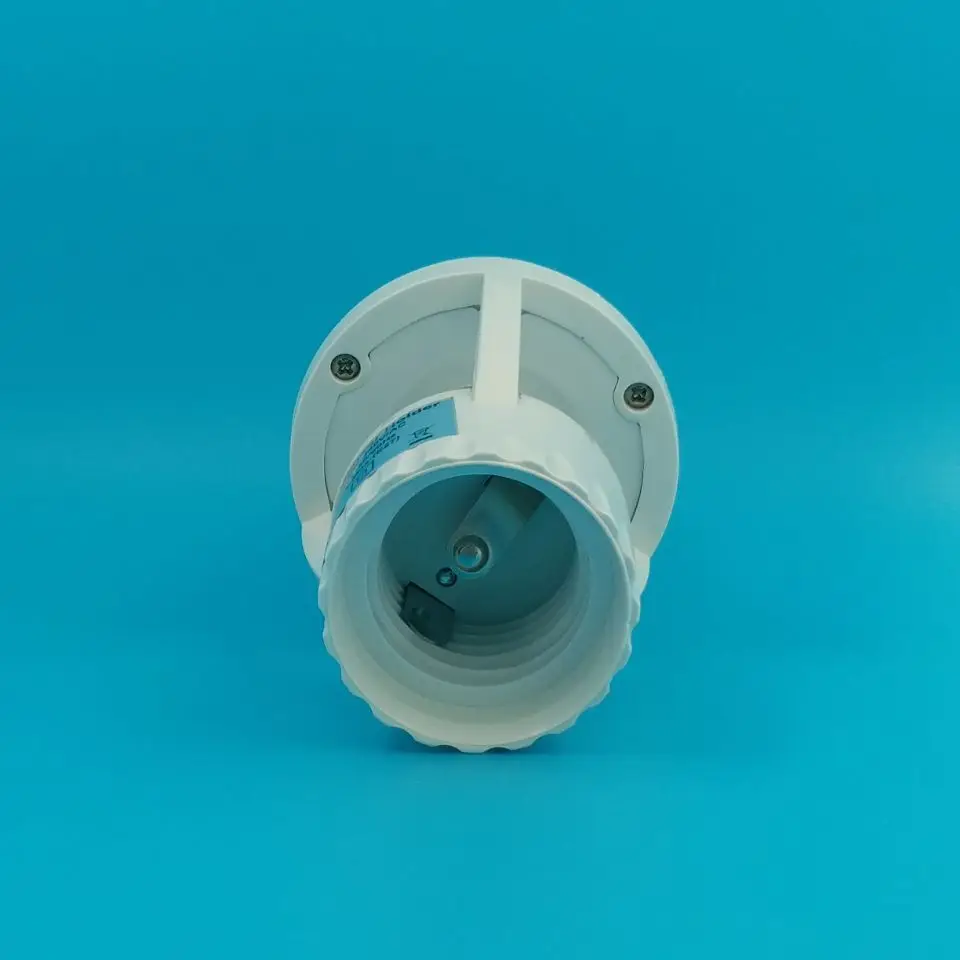

220V E27 PIR motion sensor lamp holder sensor light holder Lamp Base Adjustable time and sensitivity

Product Overview

Description

PIR Sensor Lamp Holder Instruction





Welcome to use PIR sensor lamp holder!

The product adopts good sensitivity detector, integrated circuit. It gathers automatism, convenient safe, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection feld. It can identify day and night automatically. It is easy to install and used widely.

SPECIFICATION

Detection Range: 360*

Power Source: 100-240V/AC

Power Frequency: 50/60Hz

Rated Load: <60W Max. E27

Detection Distance: 6m max (<24C)

Time-Delay: min. 10sec+3sec

Max.300sect60sec

Ambient Light: 3-2000LUX (adjustable)

Working Temperature: -20~+40C

Installation Height: 2m-3.5m





INSTALLATION

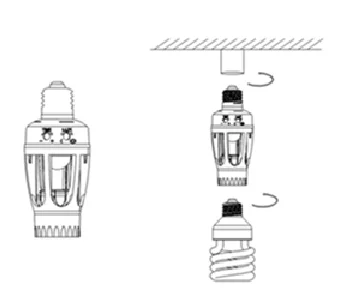

Fix the holder in the place where you will want to install according to right figure.

After installation of the sensor, connect with lamp, then you could test it.

TEST

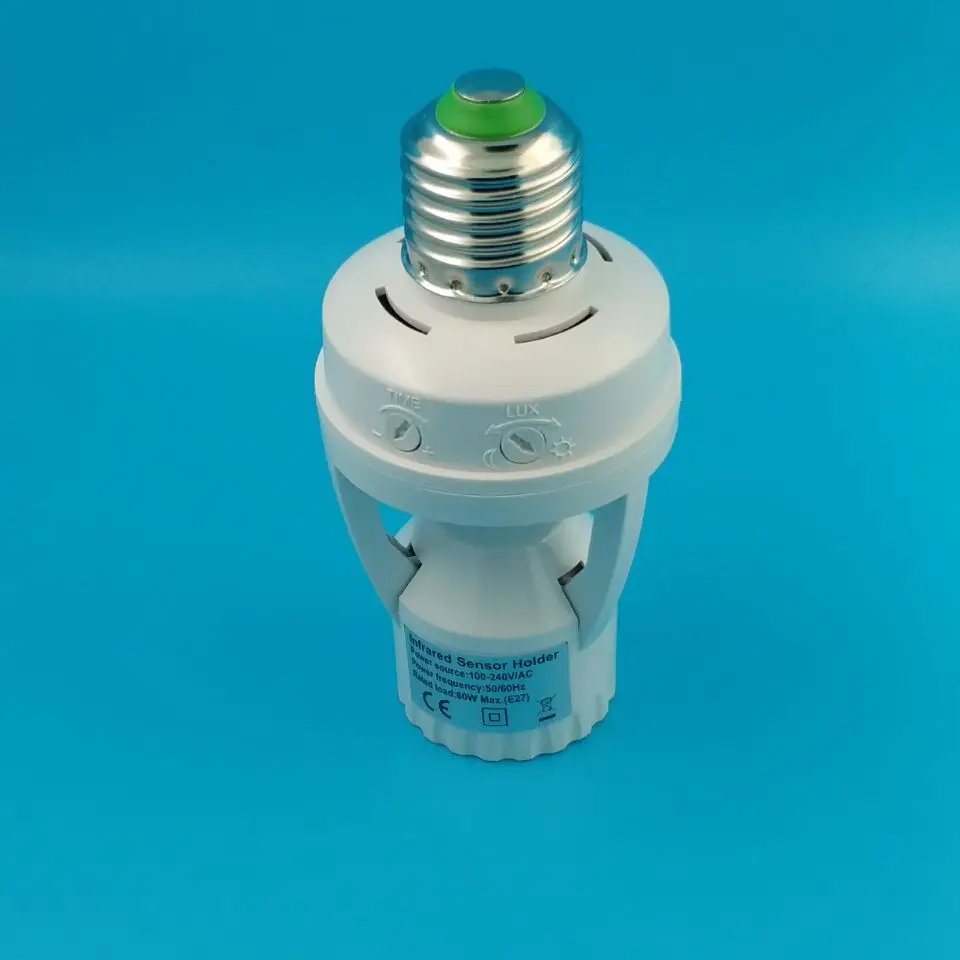

After installation, Turned LUX knob clockwise te the maximum (SUN), Turned time knob anti-clockwise to the minimum (-).





Tum on the power, the sensor will be electrify and warm-up, 30 sec later, the item will be entered into working estate. 5~10 seconds after the light goes out for the first time and then sensing, the load should be worked.

Tums LUX knob anti-clockwise to the minimum. If it is tested under the circumstance below 3LUX, load should not work after induction load stop working; but if you cover the detection window with opaque objects (towel etc), the load works. Under the condition of no induction signals, the load should stop working within 5-15 sec.



Note: when testing in daylight, please turm LUX knob(SUN) position,

otherwise the sensor lamp could not work.
