Мини Мотор портативный Электрический резьбонарезной станок m10 m12 m24 m48 гибкий Рычаг Резьбонарезной Станок по металлу на складе
- Category: Grain Product Making Machines >>>
- Supplier: Henan Wadley CNC Machinery Co. Ltd.
Share on (60769480576):
Product Overview
Description
Production Description

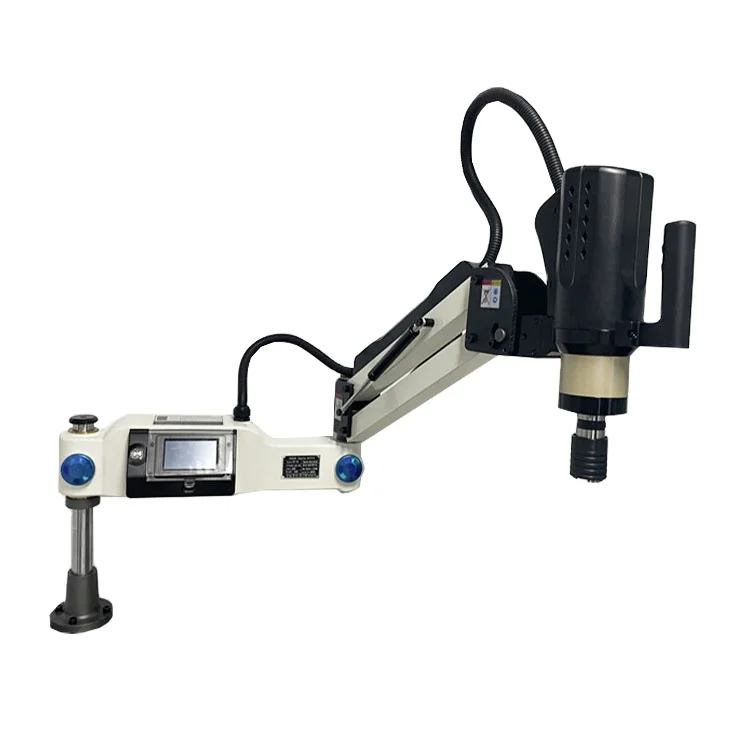

Servo electric tapping machine for metal hole
Instruction for flexible arm electric tapping machineThis machine is suitable for all machinery manufacturing industries. Now mainland customers cover machine tools, mold (factory) machinery, plastic machinery, printing machinery, packaging machinery manufacturers, construction machinery, automobile and motorcycle parts, aero engines, rolling stock, tobacco machinery and general machinery industries.
Features for flexible arm electric tapping machine
1, The machine adopts servo drive control, with intelligent torque protection, instead of the traditional lathe, drilling machine or manual tapping limitations.
2, Advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong, durable, non
deformation, beautiful appearance.

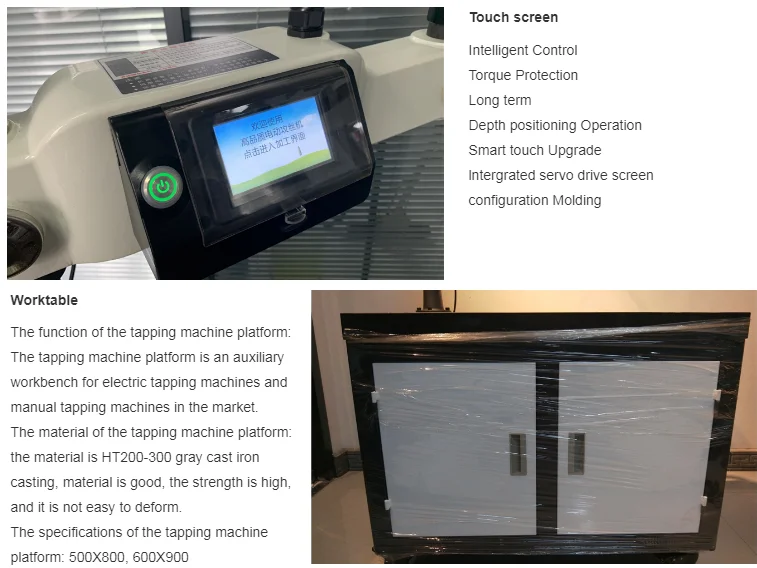

3, The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of complex and heavy workpiece, locate quickly, and process accurately.
4, Stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.
5, Automatic mode can effectively control the depth of tapping, without the operation button, automatic control by depth
controller.
6, Repeated positioning fast, tapping speed, high production efficiency.
Product Paramenters

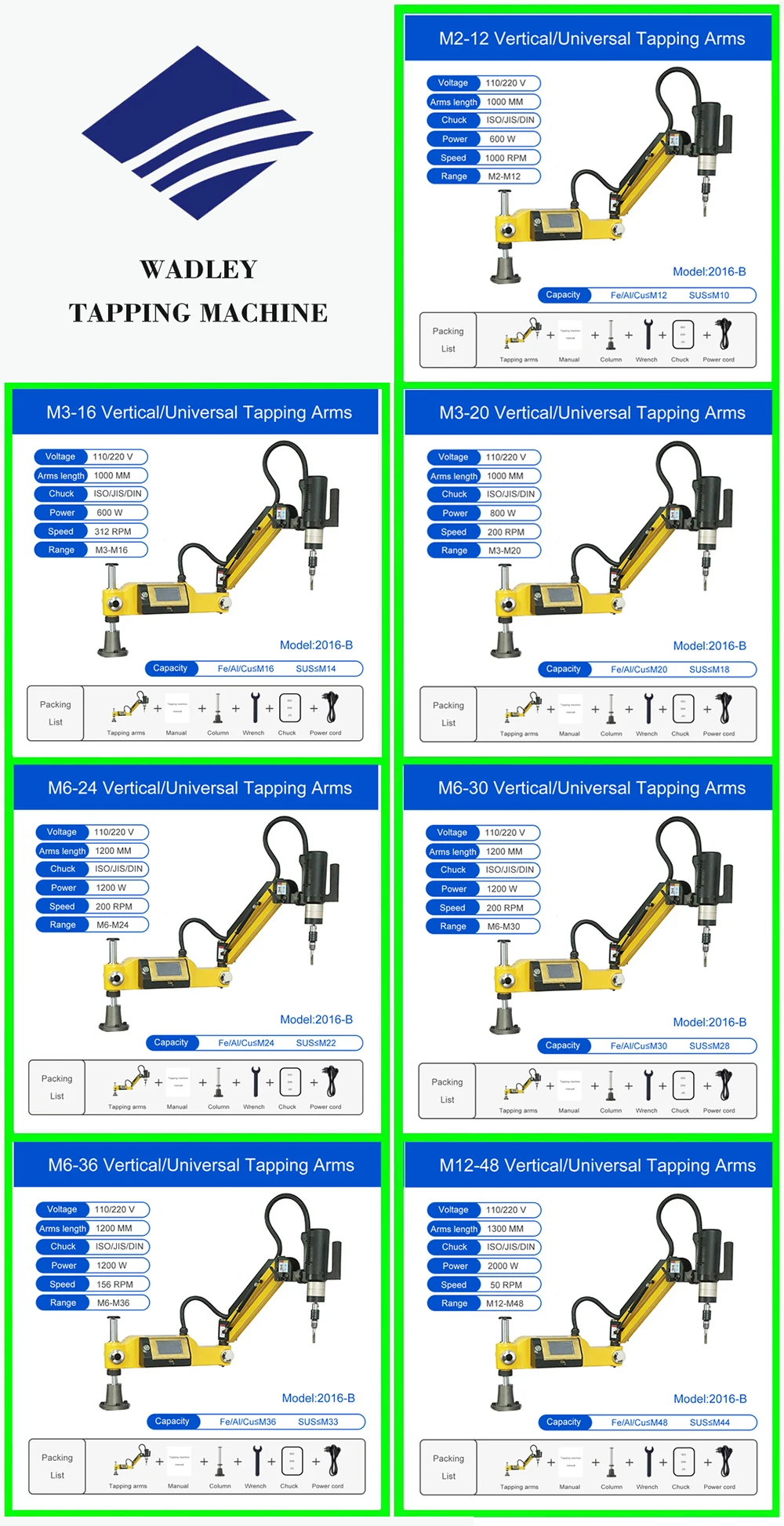

Model | M3-12 | M3-16 | M6-24 | M6-30 | M6-36 | M16-48 | |||||
Tapping Range | 3-12mm | 3-16mm | 6-24mm | 6-30mm | 16-36mm | 16-4mm | |||||
Power | 600w | 600w | 1200w | 1200w | 1200w | 1200w | |||||

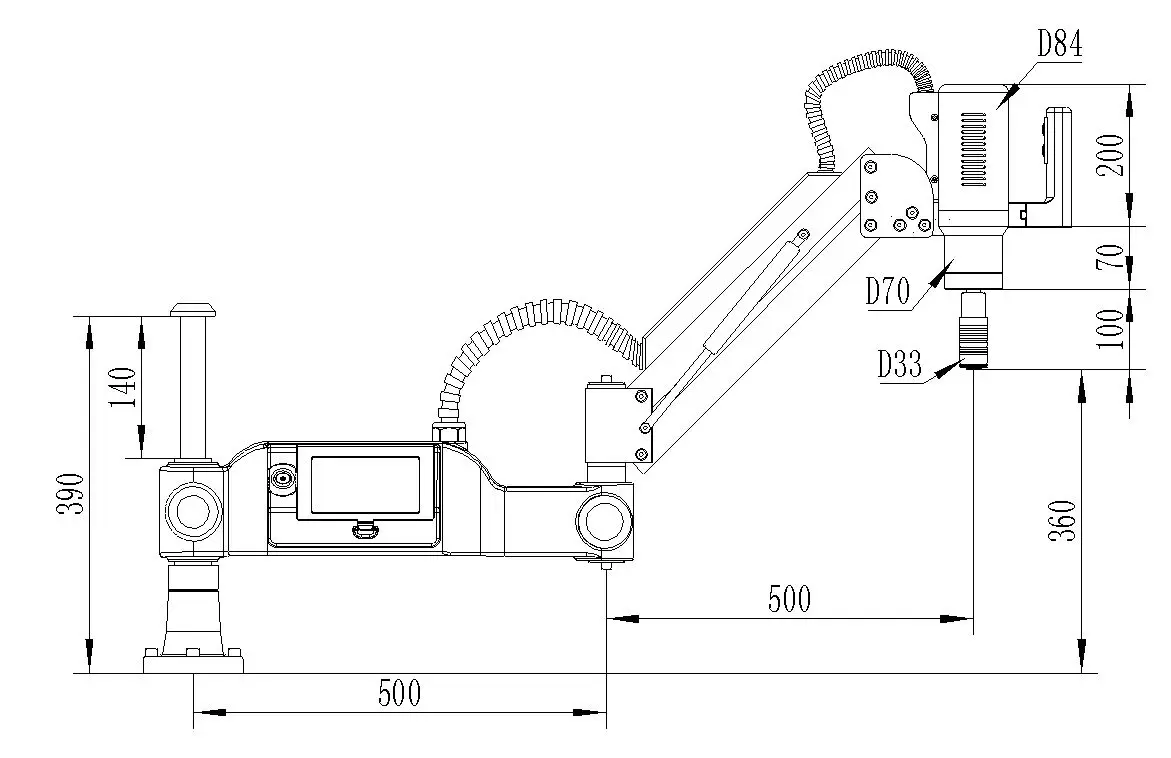

Arm Length | 1100/1500mm | 1100/1500mm | 1200/1500mm | 1200/1500mm | 1300/1500mm | 1300/1500mm | |||||
Max speed | 0-1000rpm | 0-375rpm | 0-200rpm | 0-200rpm | 0-156rpm | 50-200rpm | |||||
Power | 180-250v | ||||||||||
Collet | ISO/DIN/JIS | ||||||||||

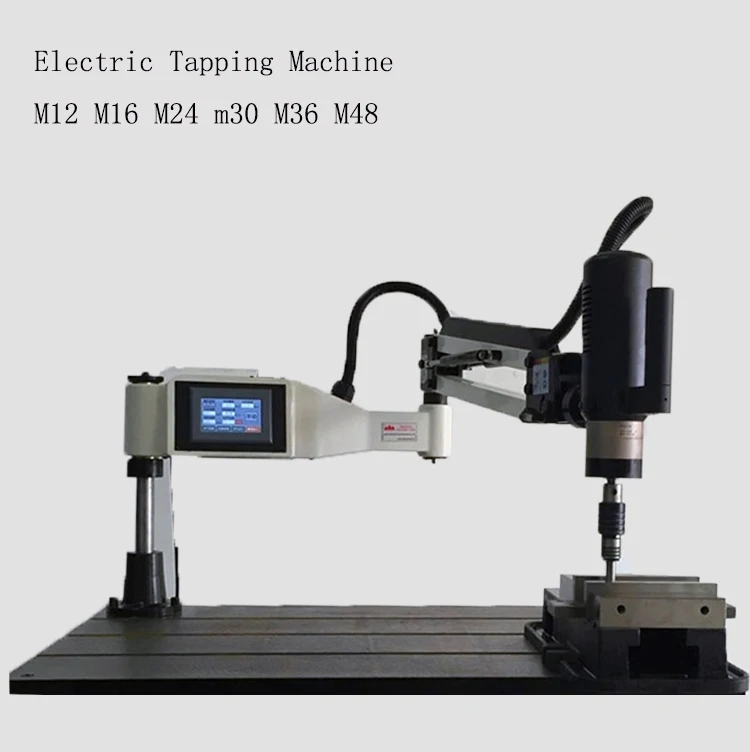

Details Images

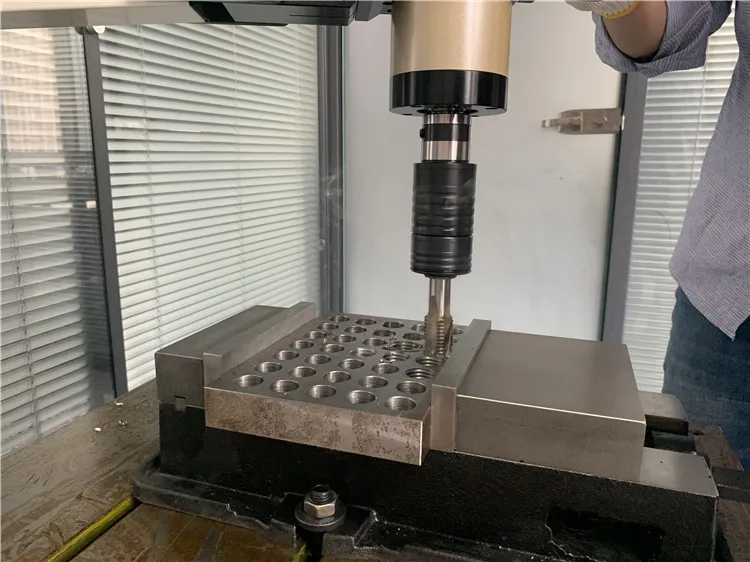

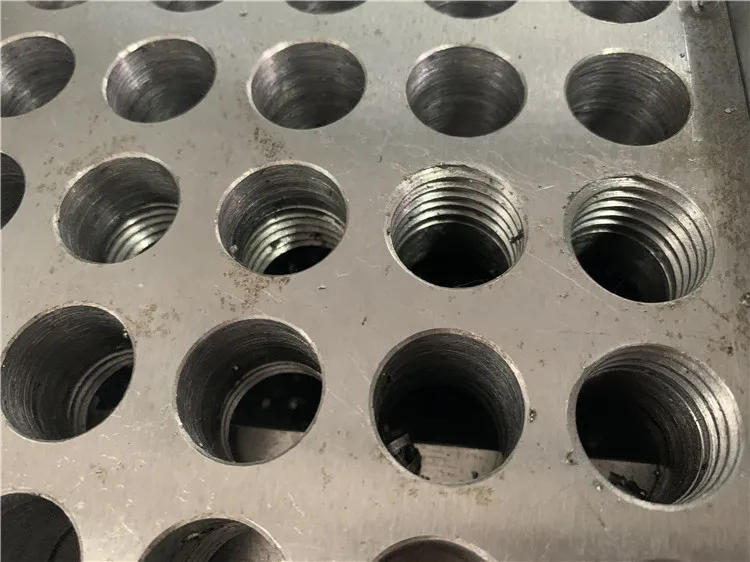

Effect Display

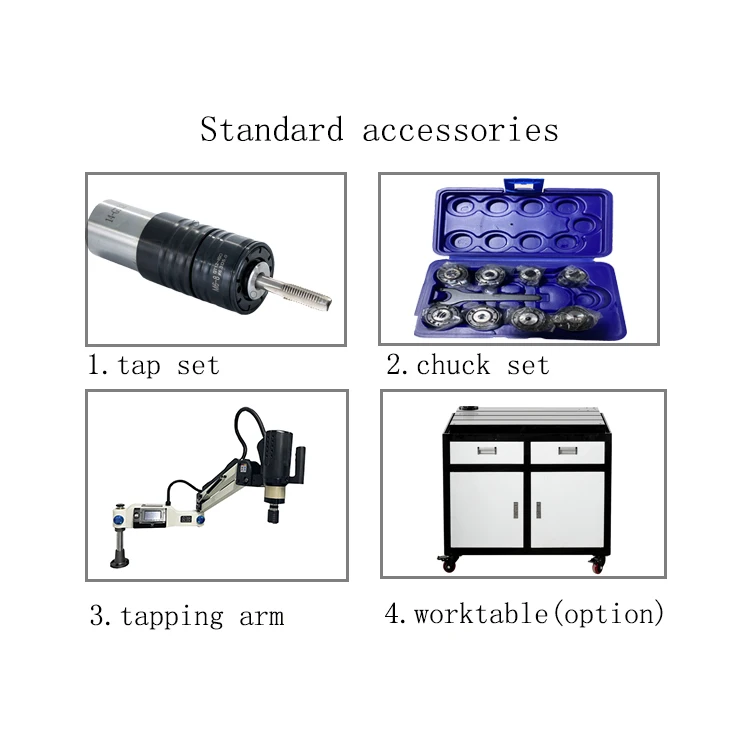

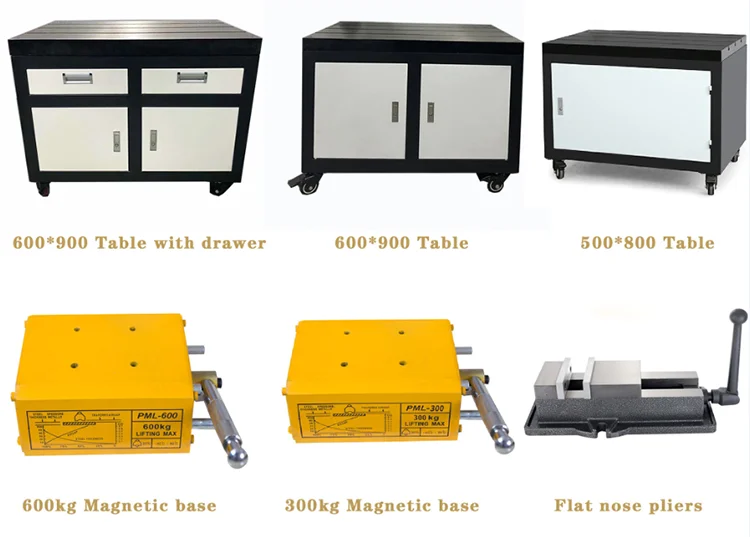

Accessories display

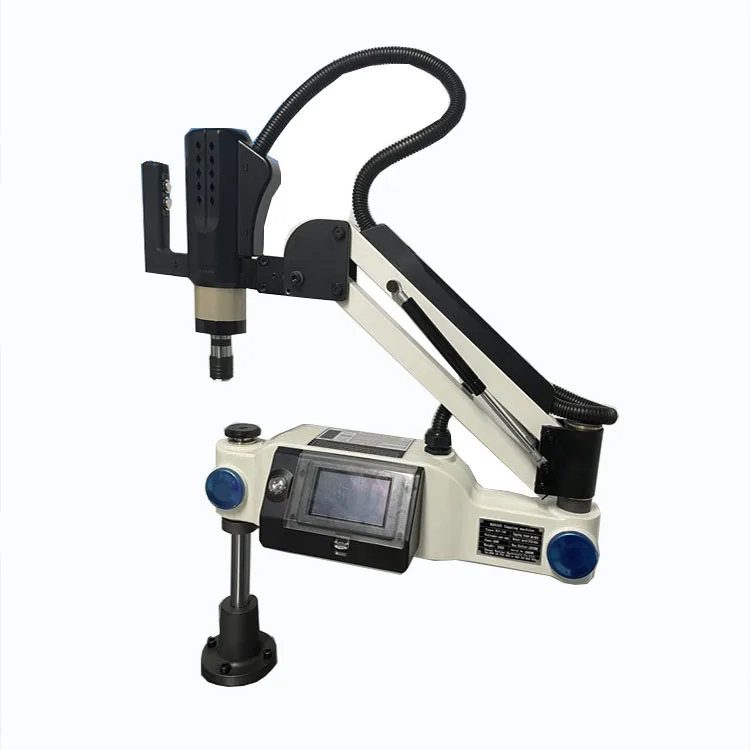

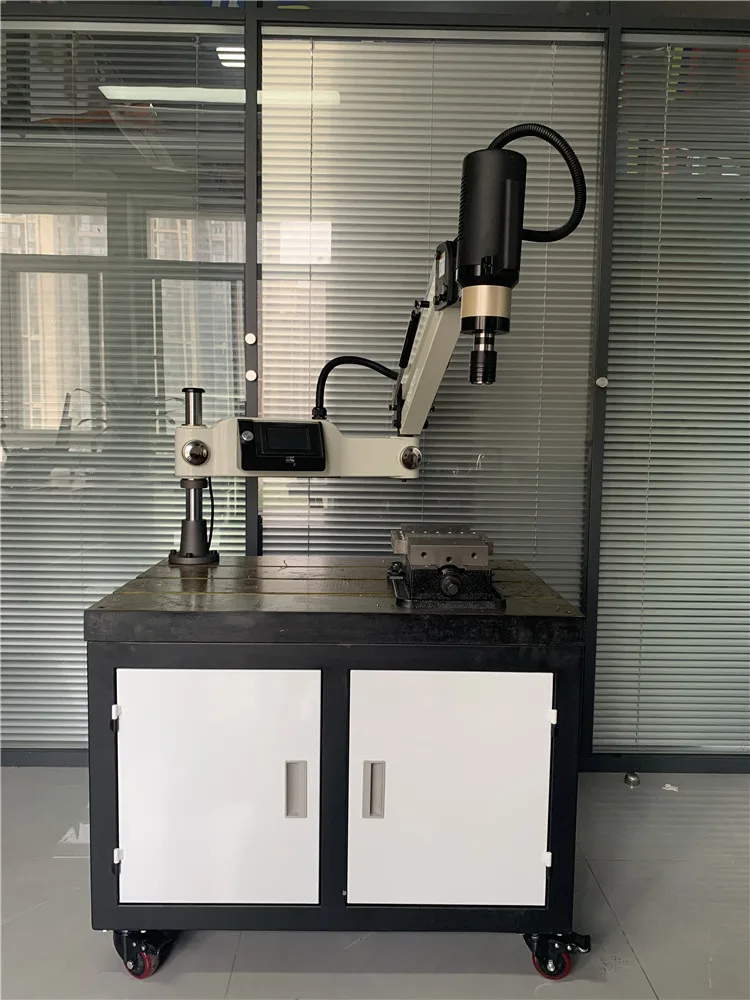

Details Display

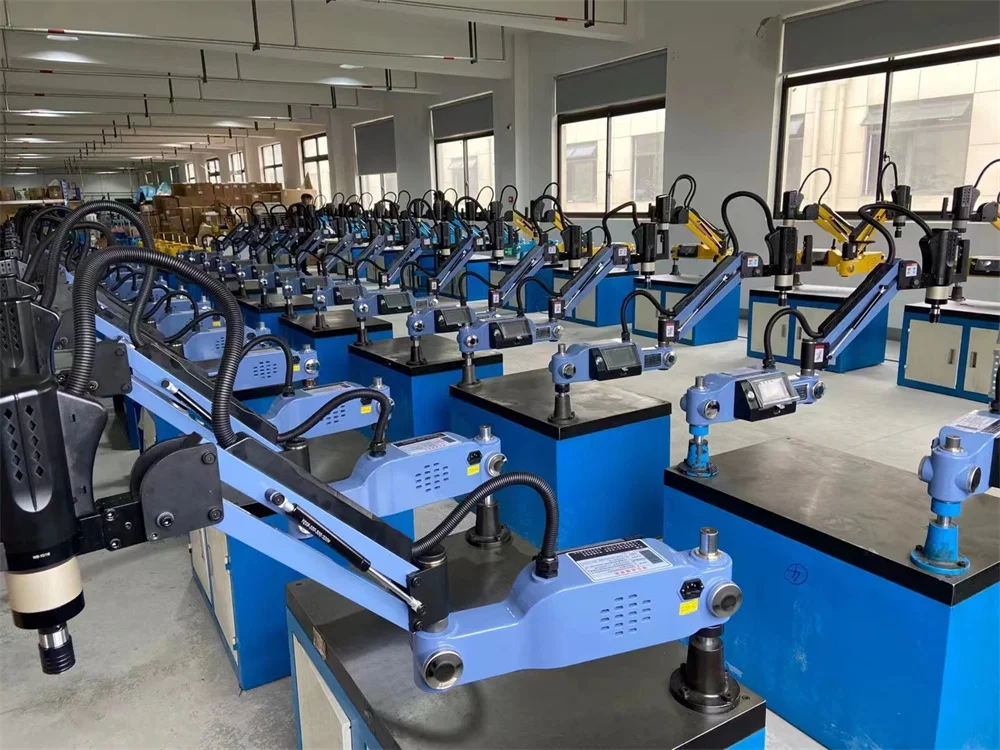

Company Profile
Henan Wadley CNC Machinery Co.,Ltd..is specialized in the production of CNC machine, lathe machine, machine tools and roll forming machine.Our company was established in 2017, it is located in the capital of Henan Province - Zhengzhou, which is the center of the business and economy. Our products have passed the international ISO9001: 2008 quality management system certification. We have established good relationship with our customers from more than 100 countries .
Main products: the company operates various types of products with various specifications, including cold bending forming equipment and other mechanical equipment, such as tile pressing machine, machine tool, tapping machine, slotting machine, boring machine, air hammer, gear hobbing machine, nail making machine, marking machine, etc. Wide range of products, welcome to buy.
Main products: the company operates various types of products with various specifications, including cold bending forming equipment and other mechanical equipment, such as tile pressing machine, machine tool, tapping machine, slotting machine, boring machine, air hammer, gear hobbing machine, nail making machine, marking machine, etc. Wide range of products, welcome to buy.
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure, Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for food machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name
for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
A1: Whole structure, Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for food machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name
for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
