Bare Steel Reinforced Overhead ACSR Conductor

Bare Steel Reinforced Overhead ACSR Conductor

Category: Power Cables >>>
Supplier: Henan Jinshui Wire& Cable Co. Ltd. [Henan China]Henan

Price:RUB 26.78 - RUB 267.79

Quantity:

Product Overview

Description

Product Description

ACSR(Aluminum Conductor Steel Reinforced) is widely used in the overhead power distribution system of our country.
We can supply this conductor according to different recognized standards, such as IEC61089, BS215, ASTM B232, CSA C49, DIN48204, JIS C3110, customer special specification also can be satisfied.

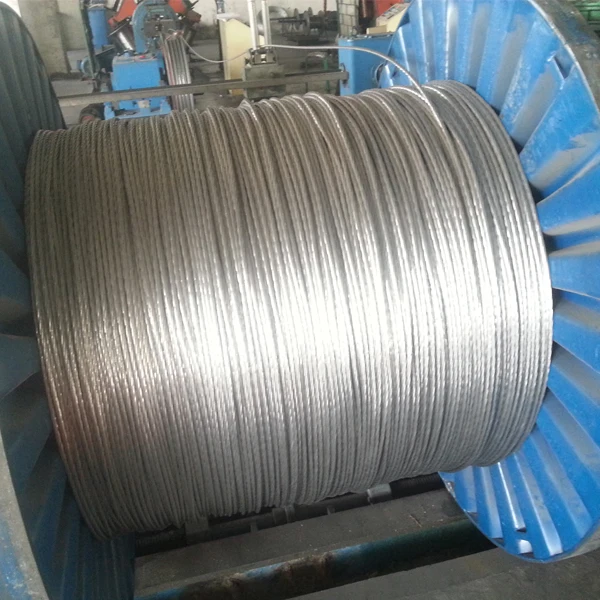

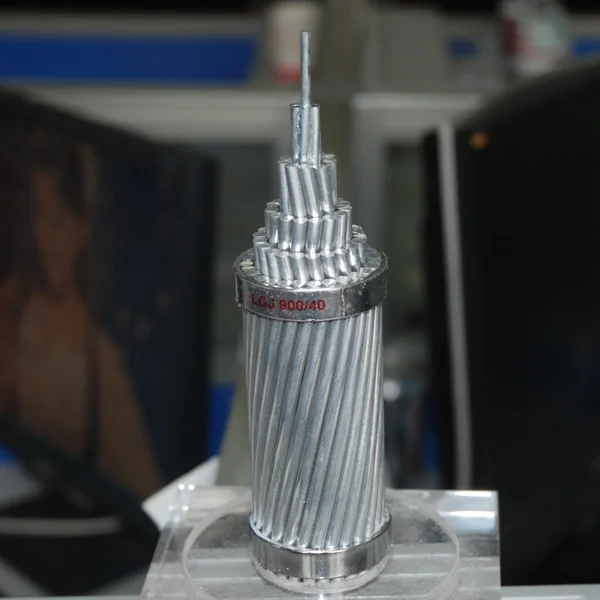

Detailed Images

Code Number	ApproxStranding&Wire Diameter		Approx	Sectional Area			Approx Weight	Breaking Load	DC Resistance
	AL	Steel	Overall	Al	Steel	Total	Approx Weight	Breaking Load	DC Resistance
	AL	Steel	Diameter	Al	Steel	Total
	mm	mm	mm	mm 2	mm 2	mm 2	Kg/km	KN	Ohm/km
16	6/1.84	1/1.84	5.53	16	2.67	18.7	64.6	6.08	1.7934
25	6/2.30	1/2.30	6.91	25	4.17	29.2	100.9	9.13	1.1478
100	6/4.61	1/4.61	13.8	100	16.7	117	403.8	34.33	0.2869
125	18/2.97	1/2.97	14.9	125	6.94	132	397.9	29.17	0.2304
160	18/3.36	1/3.36	16.8	160	8.89	169	509.3	36.18	0.18
250	22/3.80	7/2.11	21.6	250	24.6	275	880.6	68.72	0.1154
400	54/3.07	7/3.07	27.6	400	51.9	452	1510.3	123.04	0.0723
450	54/3.26	7/3.26	29.3	450	58.3	508	1699.1	138.42	0.0643
500	54/3.43	7/3.43	30.9	500	64.8	565	1887.9	153.8	0.0578
560	54/3.63	19/2.18	32.7	560	70.9	631	2103.4	172.59	0.0516
630	54/3.85	19/2.31	34.7	630	79.8	710	2366.3	191.77	0.0459
710	54/4.09	19/2.45	36.8	710	89.9	800	2666.8	216.12	0.0407
800	72/3.76	7/2.51	37.6	800	34.6	835	2480.2	167.41	0.0361

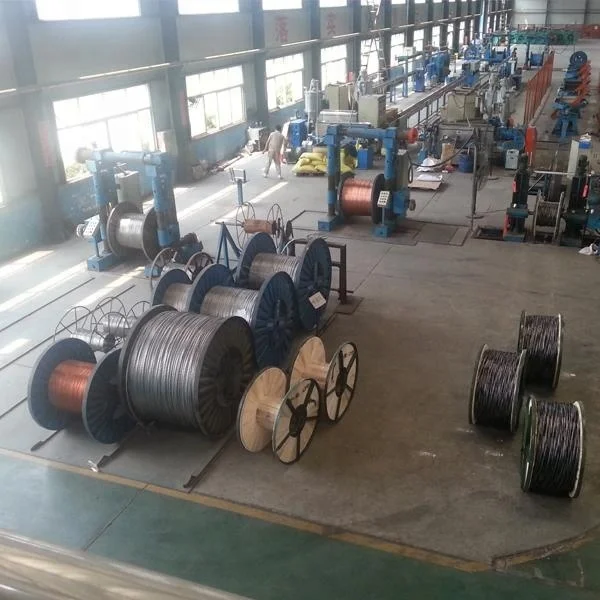

Factory

HENAN JINSHUI CABLE GROUP CO.,LTD

Henan Jinshui Cable&Wire Co.,Ltd, Belongs to Jinshui Cable group with 35 years manufacture experience and management system certificate ISO 9001, ISO 14001 ,OHSAS 18001, Mainly Specialized in cable R&D, manufacture and distribution,and contributes to promoting Chinese excellent wire & cable product with competitive price in the worldwide market. Welcome friends from all of the world and gain a mutual progress together in the prosperity future!
