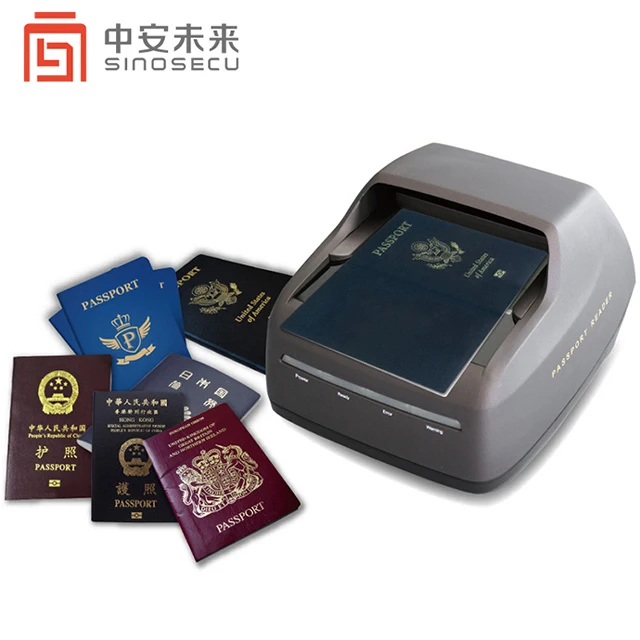

Sinosecu Passport Reader




Car rental ID Card and Passport Reader





Sinosecu Passport Reader is a multi-purpose document scanner based on high-precision OCR algorithm. It consists of a unique hardware device and advanced OCR SDK/API. It can automatically capture data from ICAO compliant and Non-ICAO travel documents, including passport, e-passport, visa, ID card and driver license. It provides and ideal solution for fast identity verification.





This machine combines three operations into one device. In a simultaneous single action, the reader decodes the 2-line and 3-line MRZ code from passport, keep a copy of identification on file, and verify the authenticity of various documents. These machines are manufactured using the best quality components and modern technology. Apart from this, our software systems are severely tested by our technicians, so as to deliver a durable product at our client's end.





Key Features

1. A single-step reading technique
Using a unique single-step reading technical, Sinosecu takes less than one second to capture and display a full page with light and infrared imaging.

2. faster lay-on type scanning
For speedy processing, Sinosecu coverless lay-on type design ensures seamless, faster and accurate document scanning.

3. ICAO Doc 9303 Compliance
Sinosecu Document Readers processes RFID data of ICAO Doc 9303 compliant with security protocols of BAC and EAC

4. UV& IR illumination imaging
Sinsoecu document scanner is equipped with a UV&IR illumination features to support high-security applications. Under UV illumination light, invisible security threads, in various colors, appear that are not visible in normal lighting conditions

Applications:

1. Hotel check-in Kiosk machines
2. Smart gate for border control and airports
3. Access control management system
4. Tax Refund & Money Exchange
5. Car Rental information registration
6. Visitor management
7. Passport and Visa Insurance
8. Banking self-kiosk machines and desktop use
9. Casino and retail shops (Age verification)
10. Hospitals & Clinics patients registration
















Recognition Process

Recognition Process








The Passport Reader device captures white, infrared image and ultraviolet image from various kind of documents. In a simultaneous action, the passport reader also decodes the machine readable zone (MRZ) and processes eData, including name, data of birth, gender, document number, date of expiry, the holder's image etc, from the chip.

Generally Speaking, it will take about 2 seconds to capture the images and extract the printed data through OCR technology and read the chip data from contactless RFID chip. Its unique design makes it ideal for integration with self-serve type kiosks at airports, hotels, banks, transportation terminals.







Specification

Specification



























































































































Machine Readable Zone


ICAO 9303 standard compliant document


ID-1 (Identity Card)





ID-2 (Passport, Visa)





ID-3 (Passport)


Visual Inspection Zone


Customization based on clients' requirements


RFID


Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B)





Read smart card according to ISO/IEC 7816


Support e-passport Basic Access Control (BAC) & Extended Access Control (EAC)





Support active/passive authentication


Barcode


1D & 2D Barcode


Resolution


400 DPI


Illumination


Visible, IR and UV


Color Depth


24 bits/pixels


Sensor


CMOS, 3.0Megapixels (2048x1536)


Image Format


JPG, BMP, TIFF


Field of View


127mm*96mm


Supported Operation System


Windows 7,8,10, Vista, XP (32/64 bit WHQL certified)
Windows Server 2003 & 2008 (32/64 bit)
Linux Ubuntu, CentOS, RedHat


SDK


Complete OCR SDK including DLLS,
OCXs, WebSocket, Samples and Demo program


Programming Languages


C#, C/C++, JAVA, Delphi, Visual Basic 6.0, VB.NET

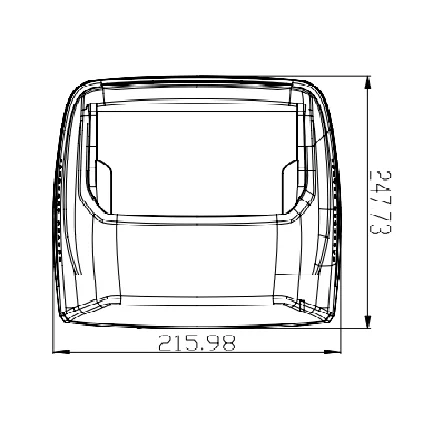

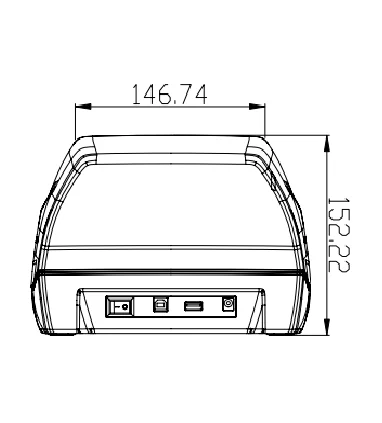

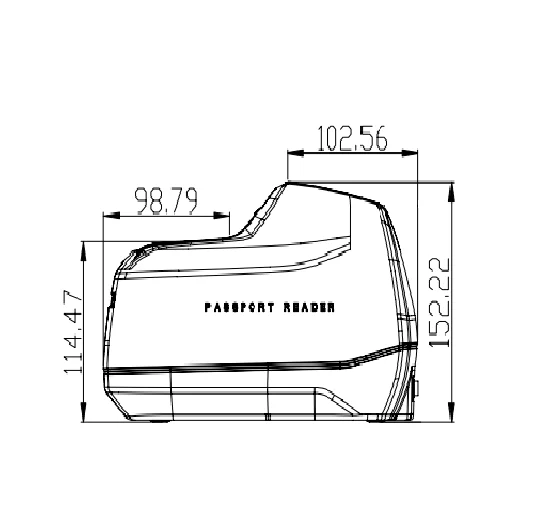

Dimension


235x250x148mm


Weight


2.10-2.20kg (Net)


2.60-2.70kg (Cross)


Interface


USB2.0


Status LEDs


Power, Ready, Error and Warning


Power


100-240 V, 50-60Hz, 0.8A input 12V, 2A output


Case


ABS plastic


Operating humidity


20%-95% (Non-condensing)


Package


400x289x258mm


Warranty


1 year







Certifications

Certifications

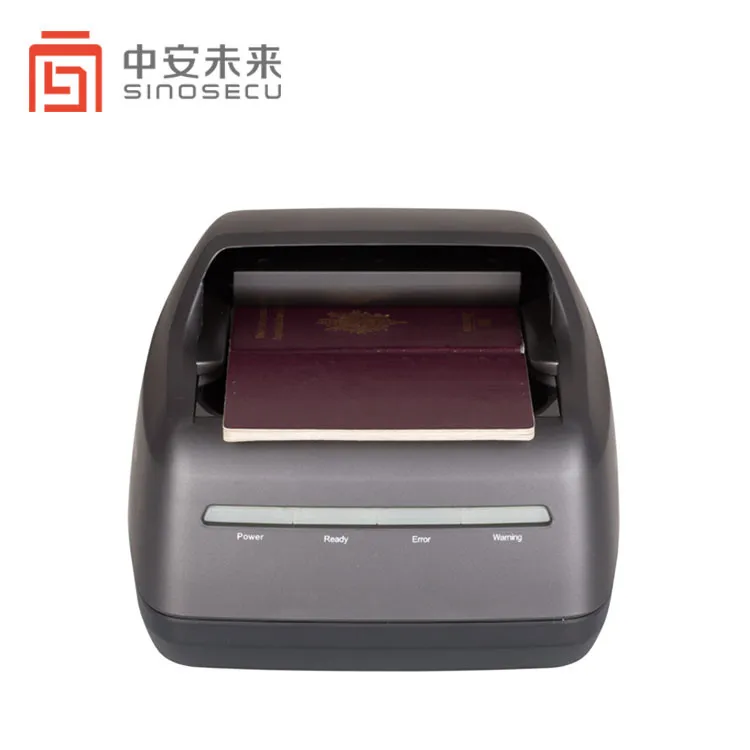

Detailed Images

Detailed Images
























About US

About US
























FAQ

FAQ



Q1. What types of document can I scan?
A: We currently support all ICAO compliant documents such as passport, e-passports, visas, government issued ID cards and driver license.

Q2. Do you have the items in stock?
A: Yes, the most of our products are in stock. We can send the goods out within 3 days after payment received.

Q3. Can you make OEM for products?
A: Yes, OEM products are available for customers as long as customers meet the MOQ.

Q4. What warranty and after-sale service do you offer?
A: We provide one-year warranty. During warranty period, we will be responsible for the damage caused by non-human factors. If it is over the warranty period, we will continue to provide service at reasonable price.

Q5. How about the shipping way?
A: There are DHL, FedEx, TNT, UPS, air cargo, by sea (we also can ship goods by your shipping account or other agent you provided).

Q6. What kind of operating system does Sinosecu Passport Reader support?
A: Sinsoecu Passport Reader can support most Windows and Linux systems.

Q7. What’s the application of Wintone passport reader?
A: Our Passport Reader could be widely used in embassies, border crossings, public securities, airports, Train terminals, bus terminals, hotels, banks, and travel agencies etc.

Q8. Do you offer other relevant items?
A: Yes, we do. We are offering mobile OCR SDK and cloud OCR SDK, Bank card reader etc.

Q9. How can I get samples?
A: We don't provide customer with free sample. After we receive the payment, we can start the delivery from our stock. The sample unit will be shipped out via air express.

Q10. Does this machine extract photos from passports?
A: Yes, Wintone Passport reader can extracts photo from the scanned passport, ID cards and visa and etc.

Q11. Does this machine come with software?
Yes, it does. The Sinsoecu Passport Reader is an all-in-one solution for ePassport reading and checking. Both hardware and software are included.
