DW75NC Single head mandrel stainless steel hydraulic pipe bending machine for tube bender

Product Overview

Description

DW75NC Single head hydraulic mandrel stainless steel pipe bending machine for tube bender

Specification

1) PLC control with touch screen, imported electric and hydraulic elements.

2) Direct Acting Hydraulic clamping.
3) Easy Operator Interface and Easy Data Input by English.
4) Large Program Storage Capacity.
5) Automatically lock angle and the bending accuracy is high.
6) Angle changing is controlled by coder.
7) The foot-switch with multiple-function:automatic start,emergency stop and resuming,The safety is high.
8) Self Diagnosis and Error Messages

9) Suitable materials:Steel pipe,Stainless steel pipe,copper pipe,aluminum pipe,iron and others.

Technical parameter

Specification/Model	Unit	DW75NC	Remark
Max bending capability	mm	Φ75×3t	1. The Minimum bending radius based on the pipe diameter 2.The Max bending radius can according to the customer’s requirement 3.The Max length of mandrel can according to customer’s requirement
Max bending radius	mm	R300
Min bending radius	mm	R25
Max bending angle	Degree	185
Max effective distance of mandrel	mm	2700
Control System		PLC Control
Max elbow bend pipe	Unit	16
Max storable sections	Unit	16×16
Motor power	KW	7.5
Max. Hydraulic Pressure	Mpa	14
Hydraulic System Control		Electromagnetic Valve
Oil Tank Capacity	L	150
Size	Cm	450×108×123
Weight of Machine	Kg	≈2680

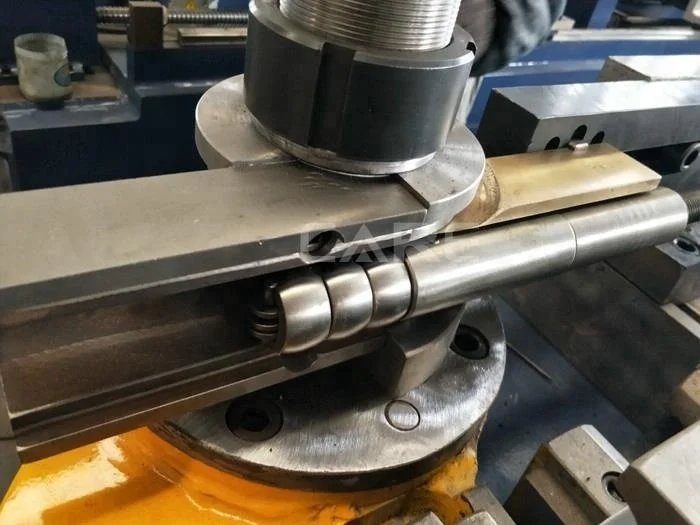

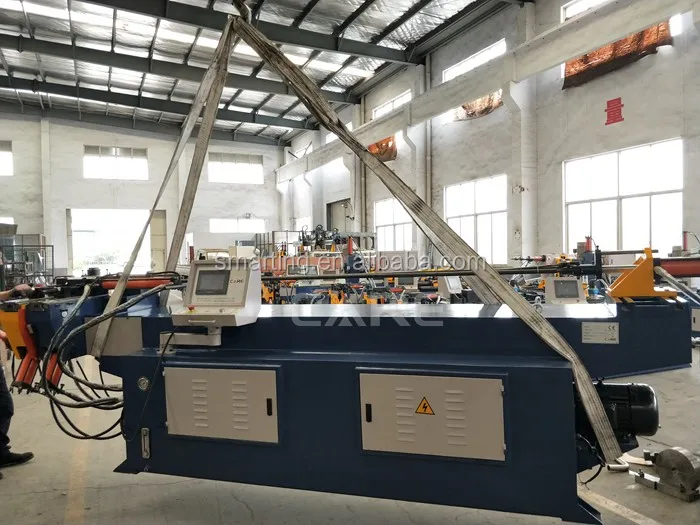

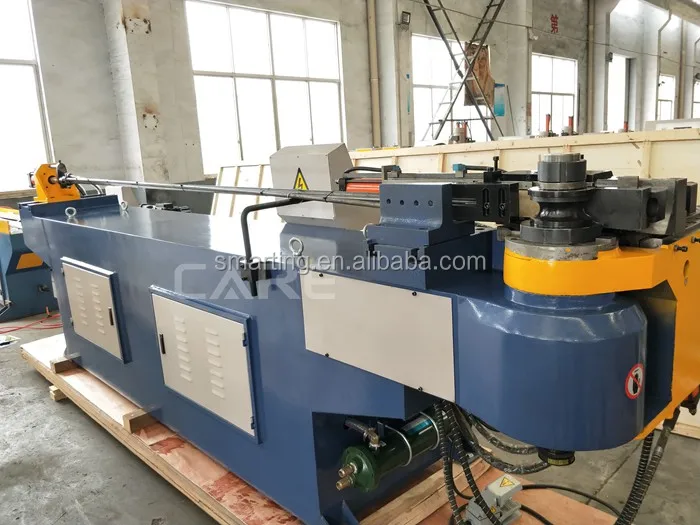

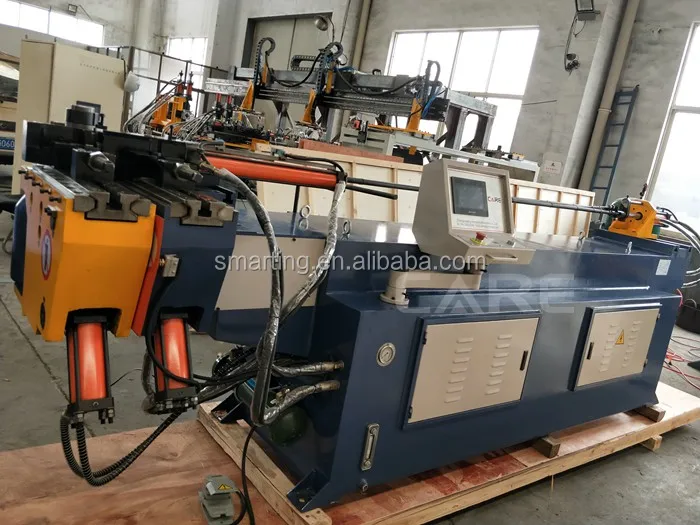

 Machine photo

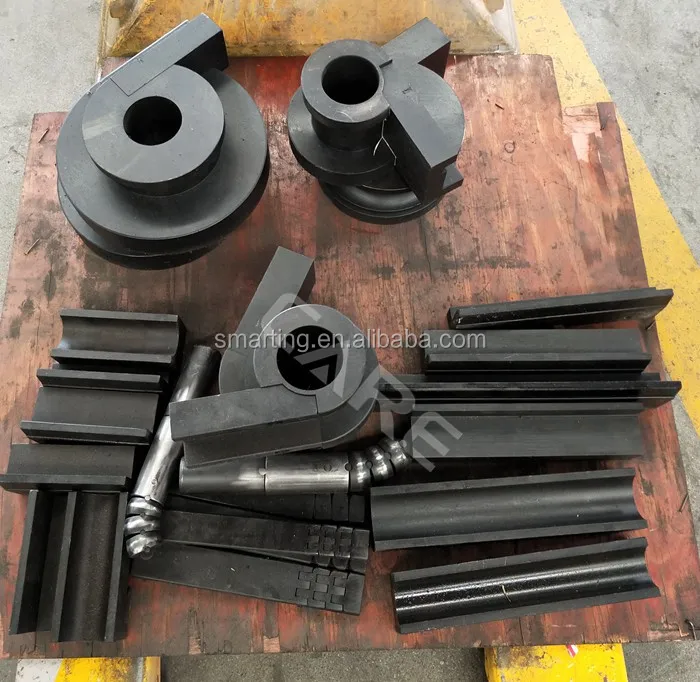

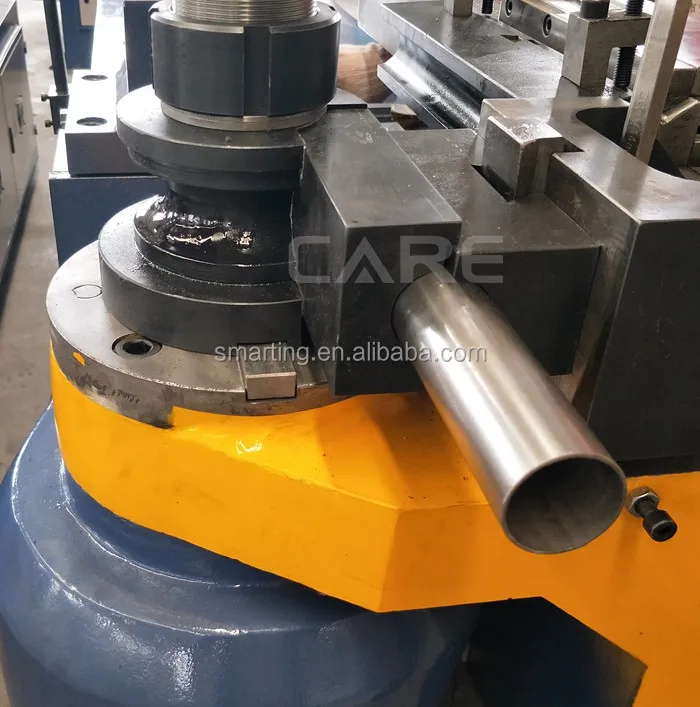

Bending molds

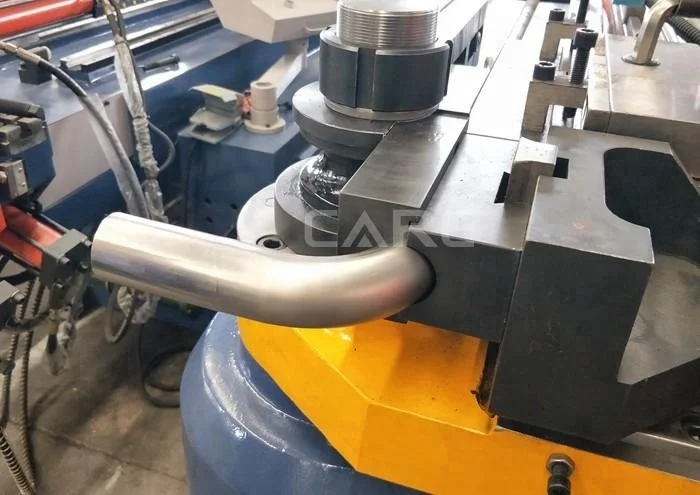

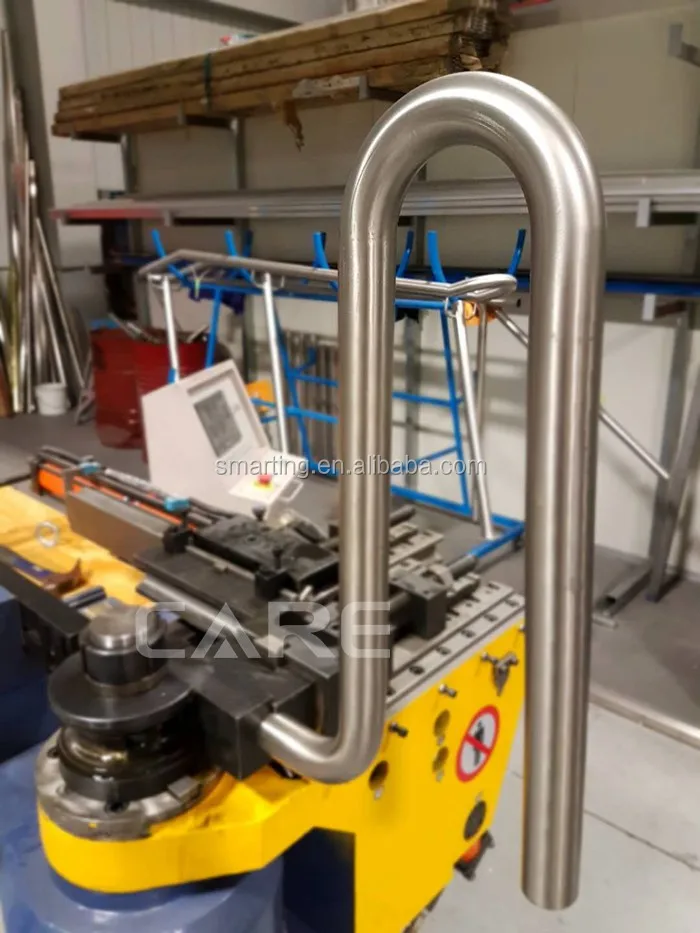

Pipe samples

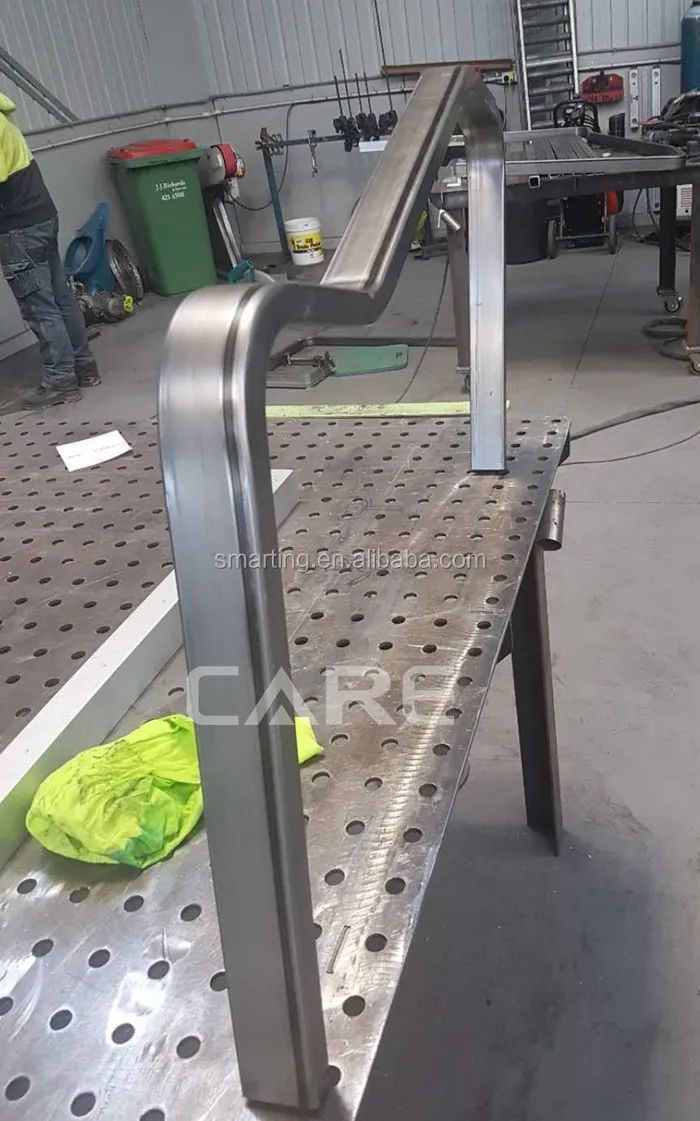

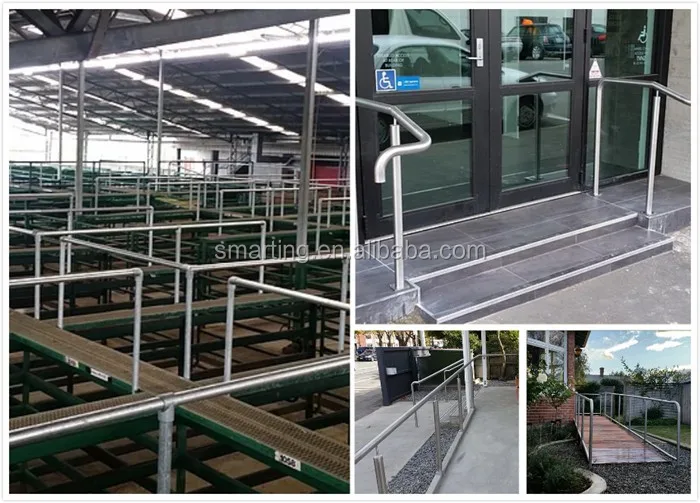

Handrail photos

Tranction details
