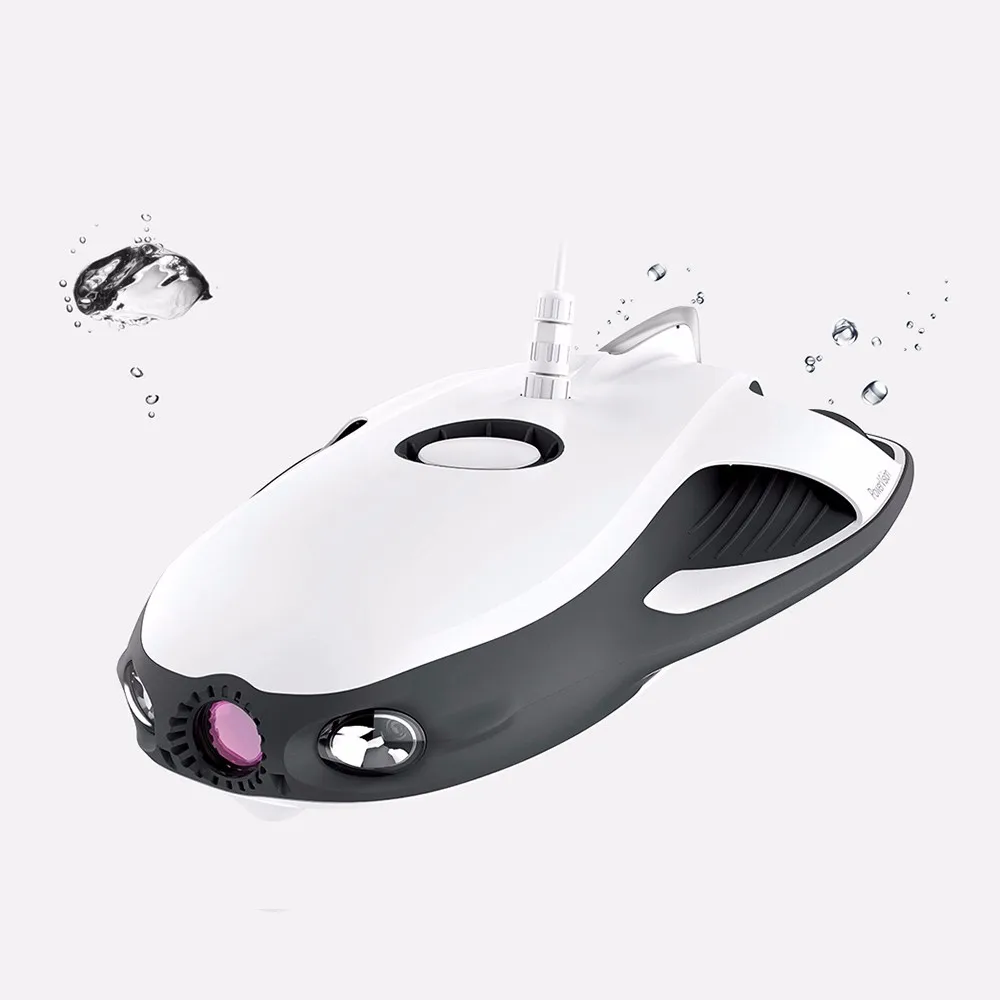

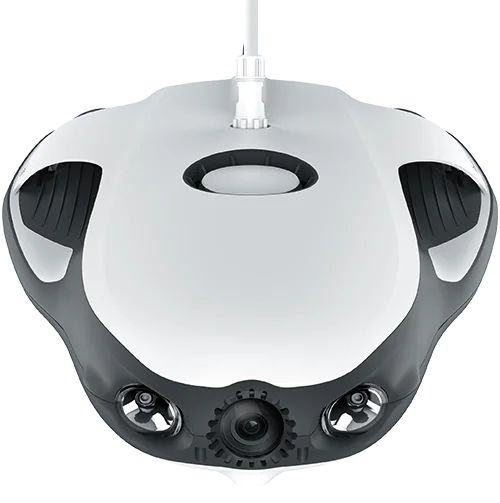

High Quality Underwater Robot| Underwater Robots Oberserved Remote Operated

Share on (60772069346):


Price:RUB 117,236.54

Quantity:


Product Overview

Description

Ontology
Size
465x270x126mm
Weight
~3.8kg (In air)
Operating Temperature
32° ~104° F (0~40℃)
Depth Capacity
30m
Depth Accuracy
±10cm
Max Cruise Speed
3Kn(1.5m/s)(Still water)
Max Sailing Time
4h (Still water,light use)
1.5h(Still water,L speed mode cruise)
0.5h(Still water,H speed mode racing)
Charging Time
≤2.5h
Thruster Configuration
3 thrusters (2 horizontal ,1 vertical)
Battery
94.72Wh(14.8V 6400mAh) LiPo
Battery Cycle Time
≥100

Remote Controller
Operating Frequency
2.4~2.483GHz
EIRP
≤20dbm
Max Transmission Distance
10m
Battery
3000mAh LiPo 1S
Operating Time
≥20h
Charging Time
≤3.5h
Operating Temperature
0~40℃
Supported Mobile Device Size
length: 41~175mm
Camera
Lens
FOV 95°(In air) F2.8
Lens
1/2.3 inch CMOS,Effective pixels:12M
Image Size
12M: 4000x3000 4:3 (default)
8M: 3840x2160 16:9
5M: 2560x1920 4:3
Video Resolution
4K: 3840x2160 25fps (default)
1440P:2560x1440 50fps
FHD:1920x1080 30/60fps
ISO
Auto / 100 / 200 / 400 / 800 / 1600
Burst Shooting
1/3/5 frames
Storage
32G/64G
Base Sation
Operating Frequency
2.4~2.483GHz
EIRP
≤20dbm
Battery
3000mAh LiPo 1S
Operating Time
≥3h
Charging Time
≤2.5h
Communication Cable
Diameter
4.2mm
Length
50m/70m
Working Strength
30kg
Charger
Input
AC100-240V 50/60Hz 1.6A
Output1
16.8V/4.5A(M16 waterproof connector)
Output2
5.0V/2.0A(M12 waterproof connector)
Output3
5.0V/2.0A(Micro USB)
Output4
5.0V/0.2A(USB)

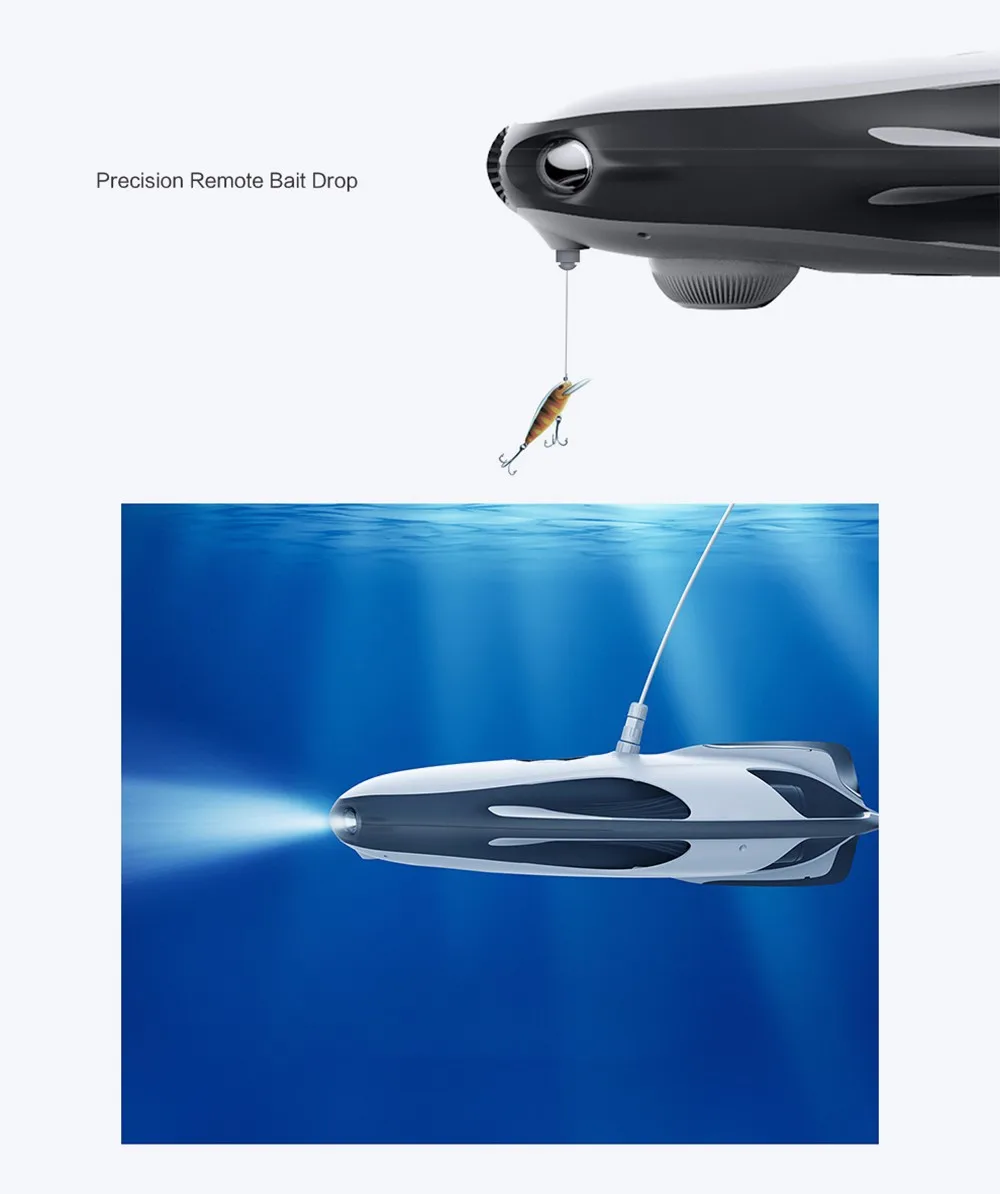

Bait Drop
Weight
8g
Supported Weight
≤120g(in the water)
Live View
Live View Quality
720P 25fps/1080P 30fps
Max Transmission Distance
≥10m
Operating Frequency
2.4~2.483GHz
EIRP
≤20dbm
Latency
≤300ms

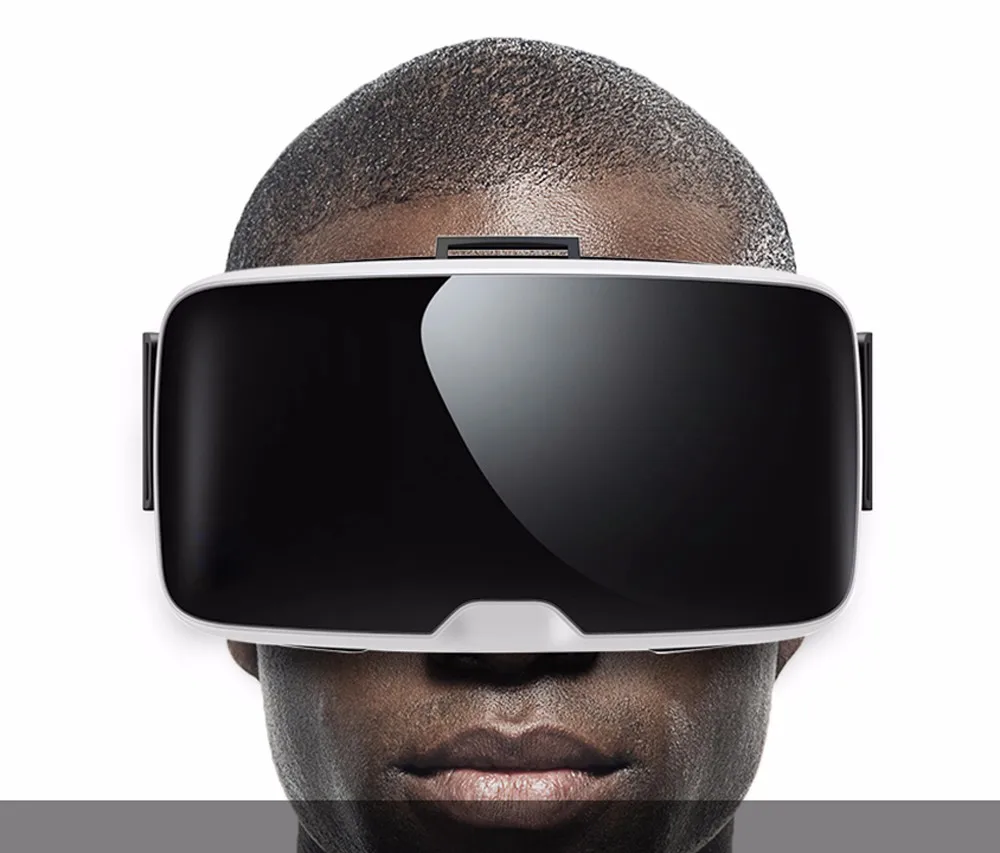

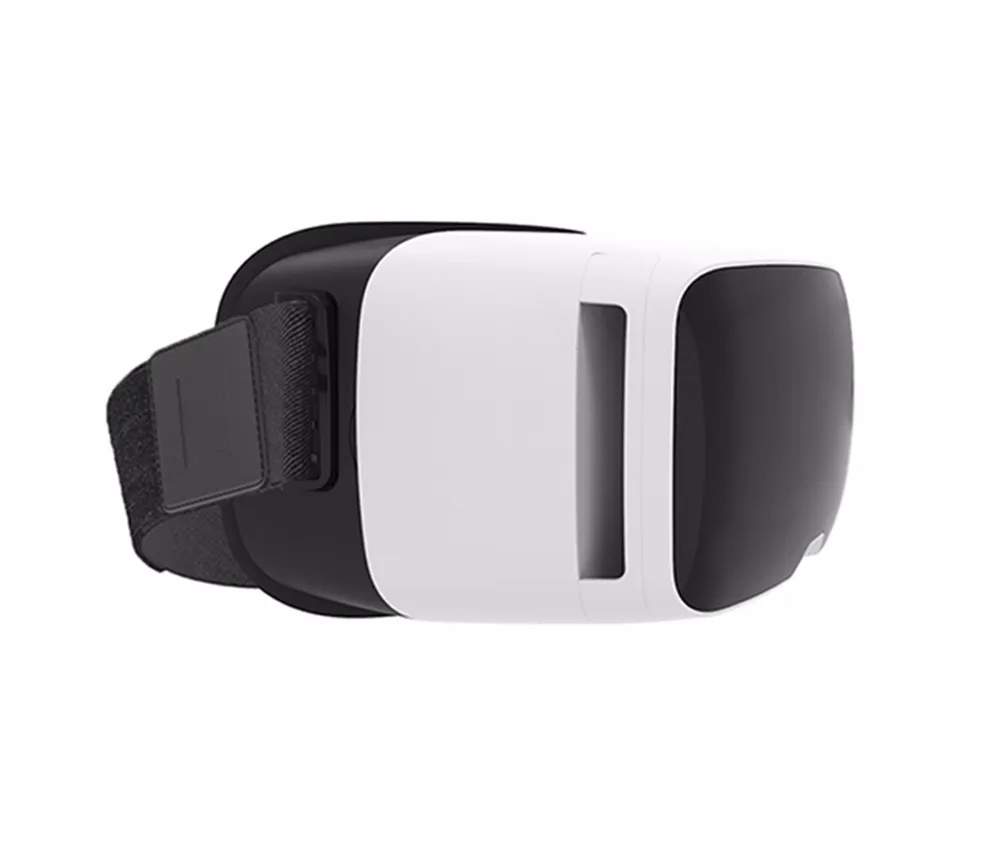

VR Goggle
FOV
100°
IPD
53~77mm
Supported Mobile Device Size
4.7'~5.5'
Wear Glass
support

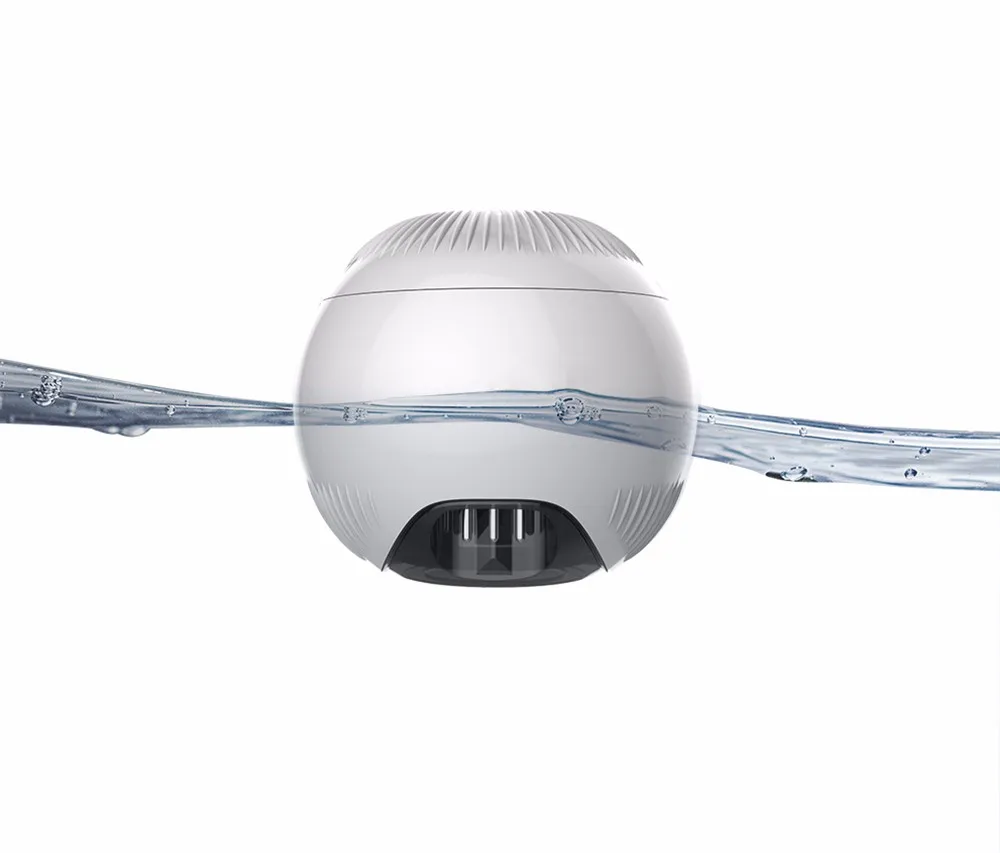

Fishfinder
Operating Frequency
125KHz
Track Angle
30°
Track Depth
0.6-40m
Operating Temperature
0~40℃
Wireless
WIFI 2.4~2.483GHz
EIRP
≤20dbm
Wi-Fi range
90m
Resolution
0.1m
Operating Time
≥2h
Charging Time
≤3h
APP
iOS
iOS 8.0 or later
Android
Android 4.2 or later
Supported Mobile Device

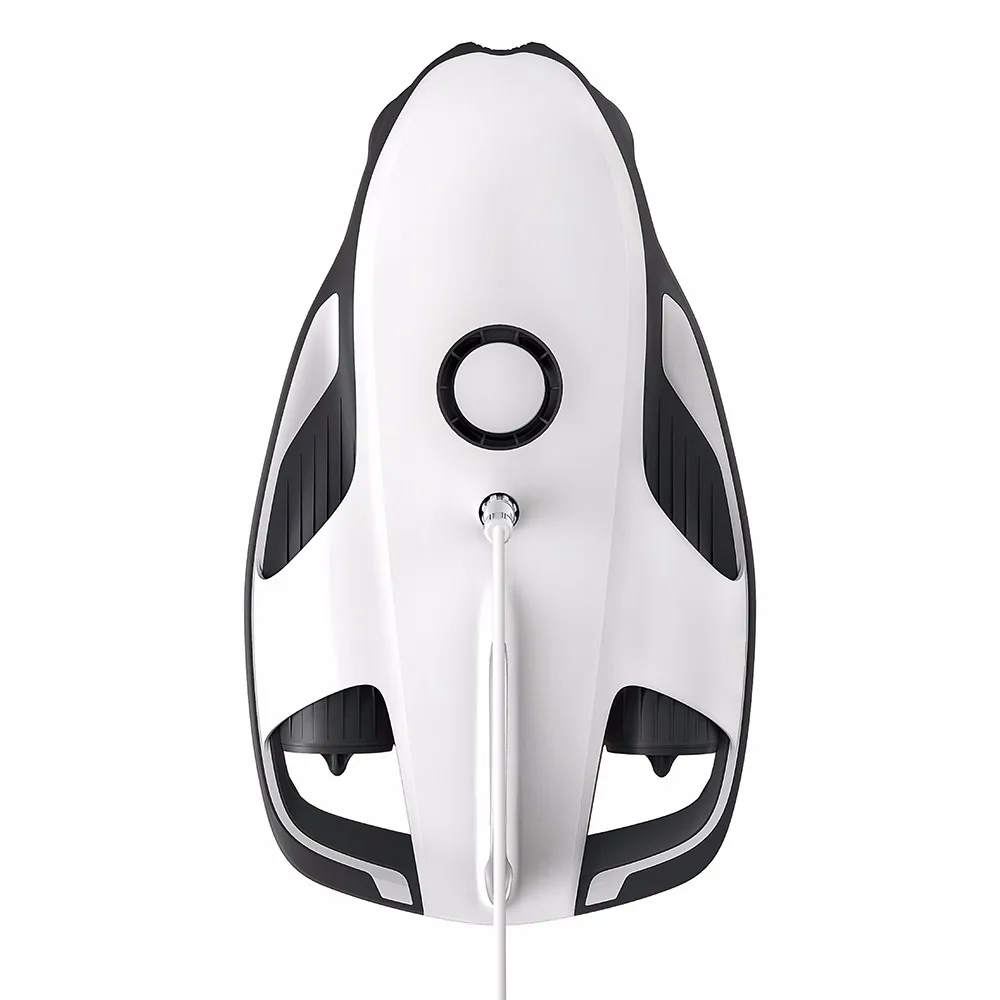

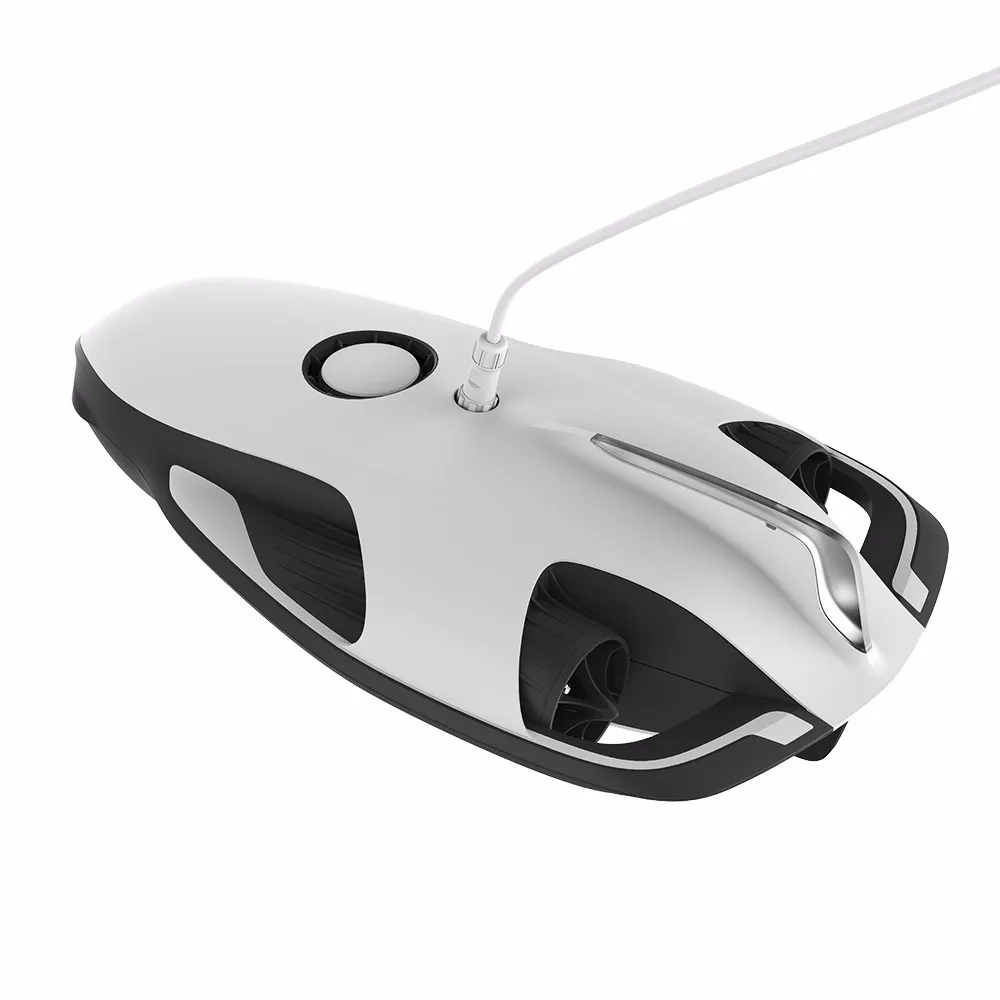

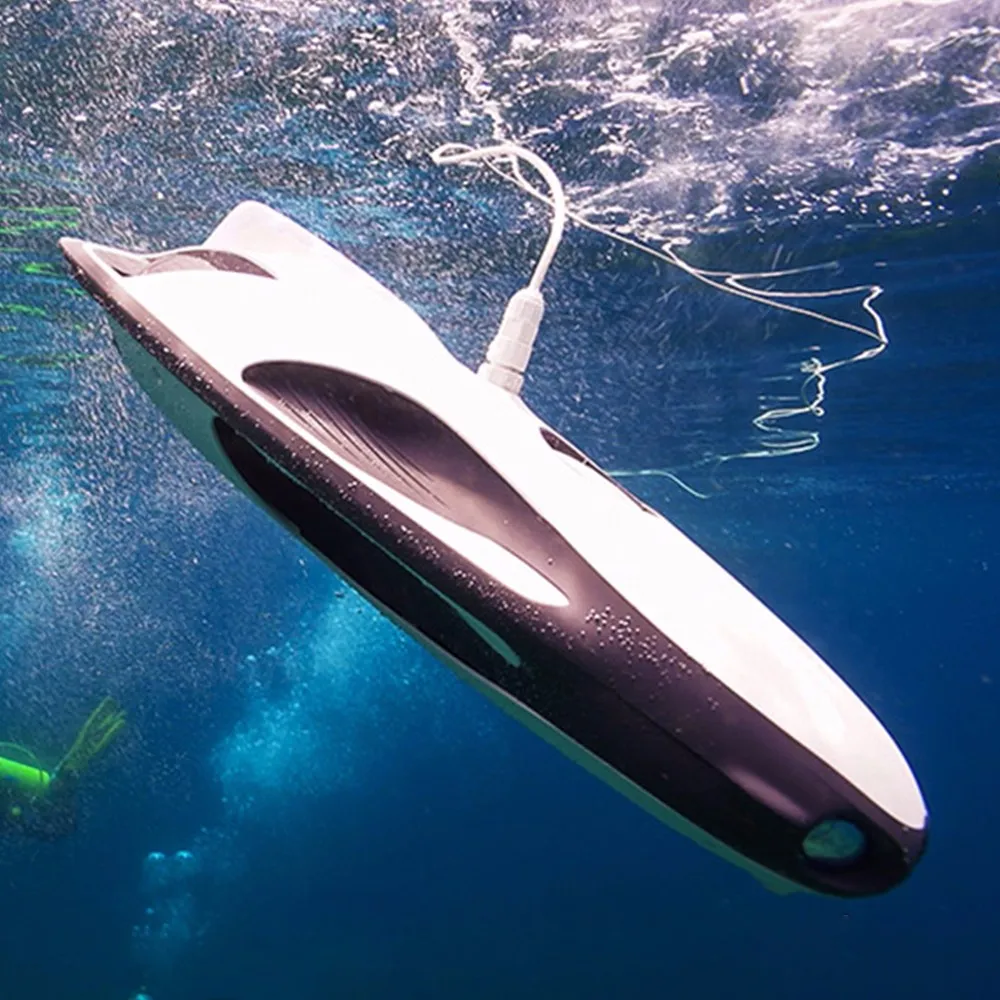

Detailed Images
Packing & Delivery

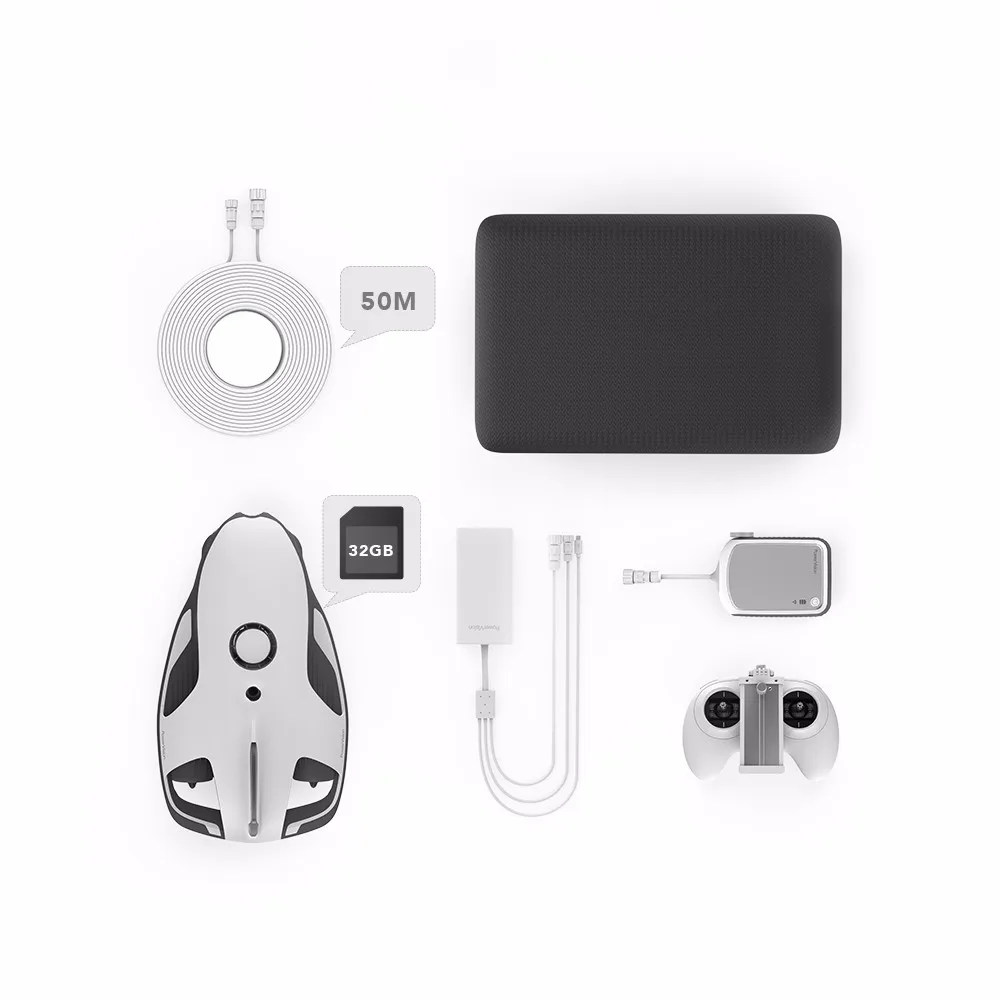

    32G

Small sea otter host (32G memory)
Base station*1
Remote control*1
Charger*1
Communication line (50 meters)*1
Mobile device bracket*1
Storage box*1

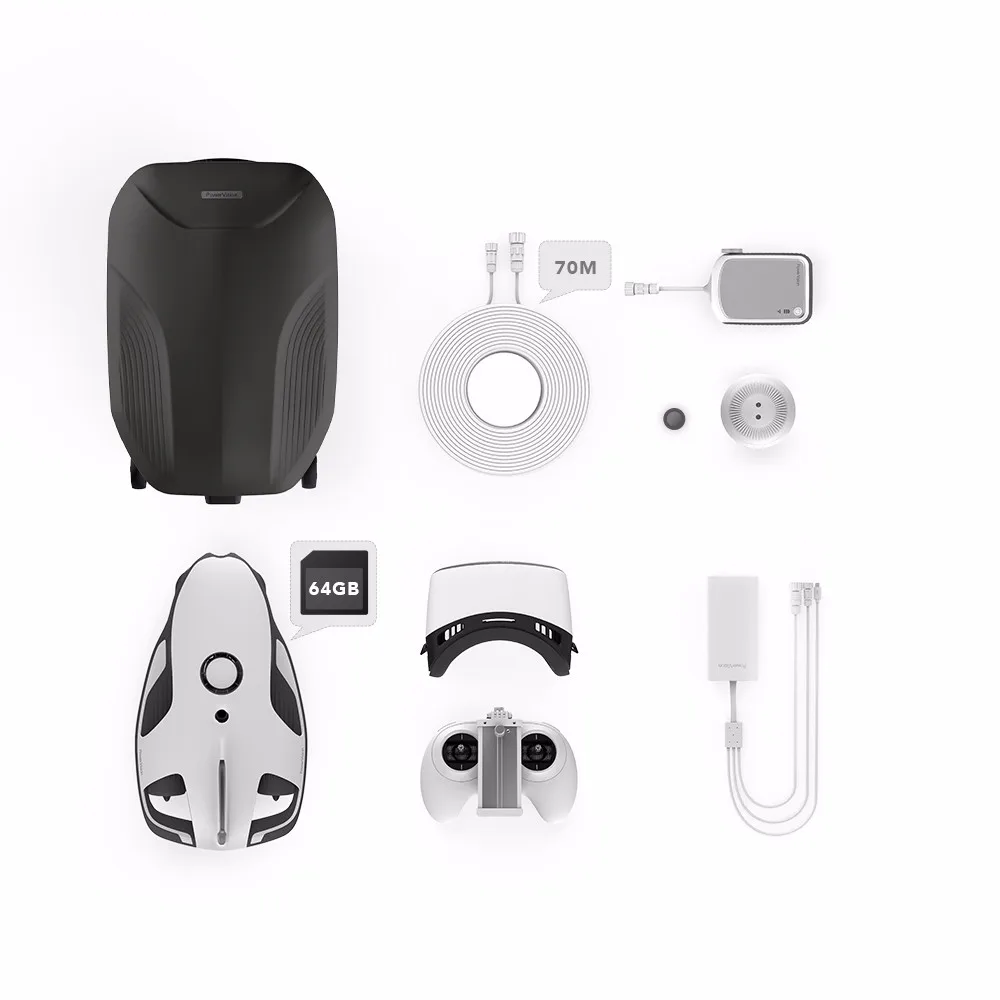

  64G

Small sea otter host (64G memory)
Base station*1
Remote control*1
Charger*1
Communication line (70 meters)*1
Mobile device bracket*1
Trolley case*1
Fish finder*1
Towline group*1
VR glasses*1
