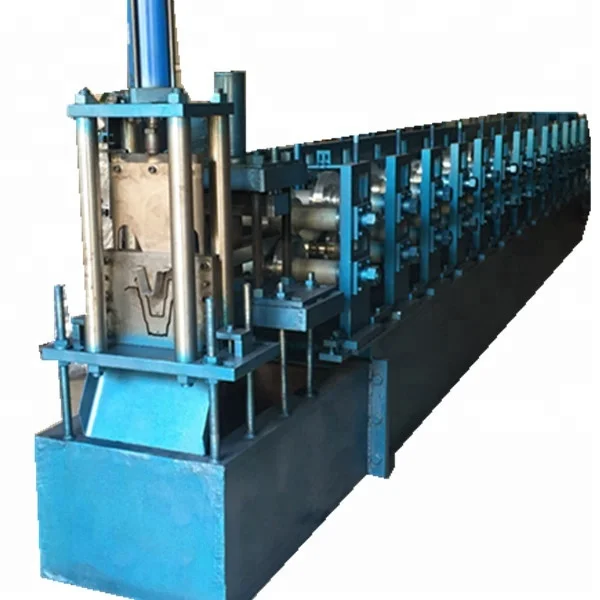

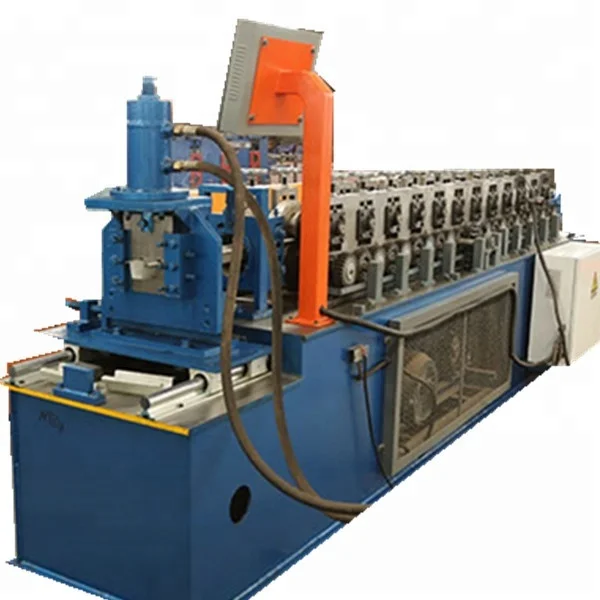

Metal Profile/Drywall Metal Stud roll forming machine

Metal Profile/Drywall Metal Stud roll forming machine

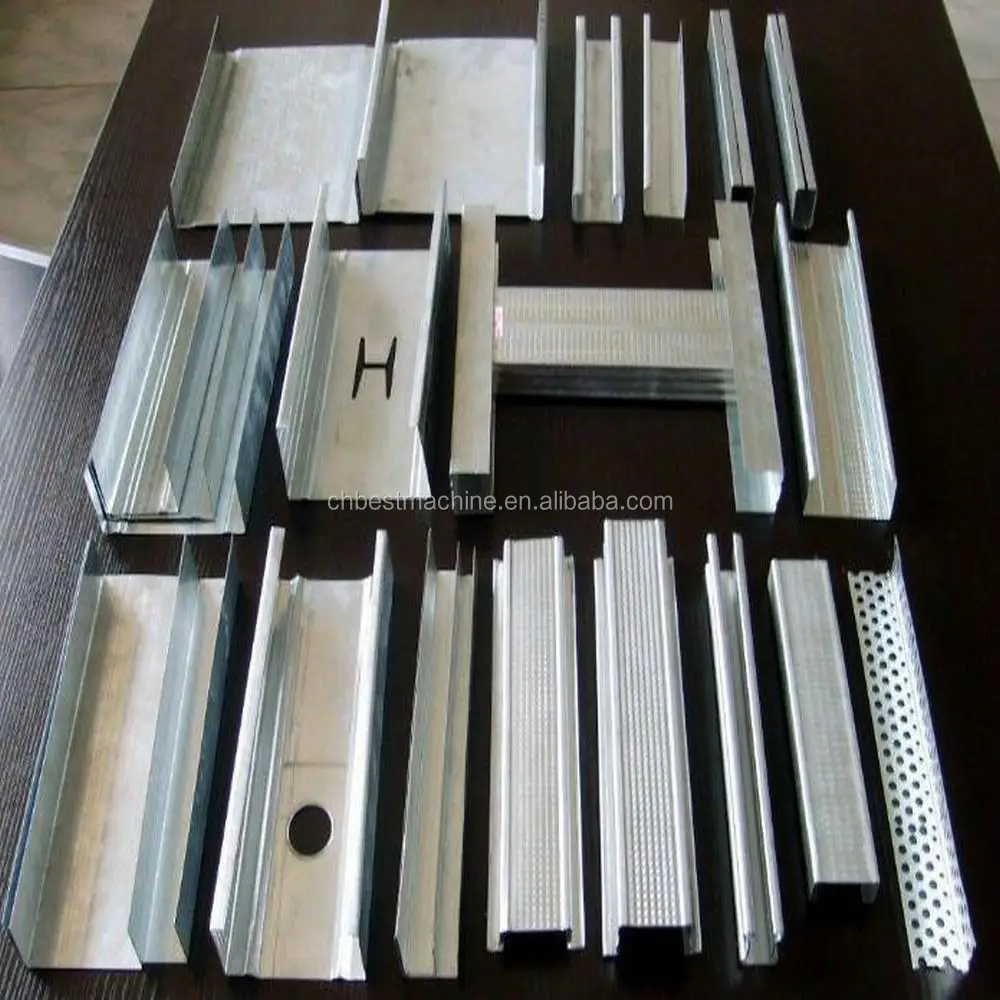

Metal Steel Keel Roll Forming Machine also called Light Steel keel Equipment , this Custom Hat Channel Light Keel Roll Forming Machine is used for producing light steel keel, we design 14 stations roll forming. Light steel keel is popular used in construction area for ceilling decoration support and steel construction for wall or roof ceiling, such as hotel, train station, factory and office building, it is light but strong, easy for installation.

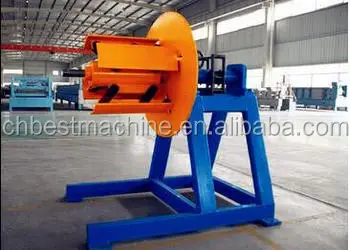

DECOILER

Brand: CHBEST
Original: China
Capacity: 5000kg
Inner Diameter: 450-550mm
Outter Diameter: 1500mm

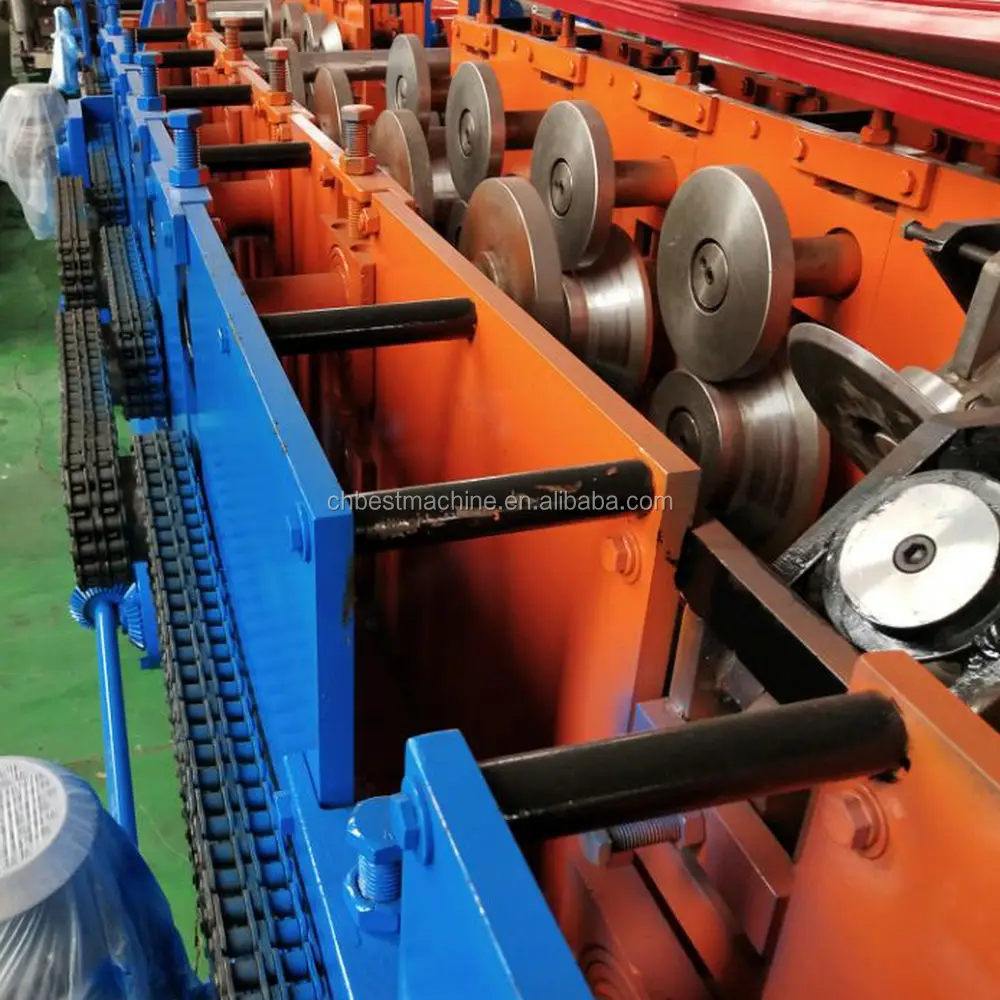

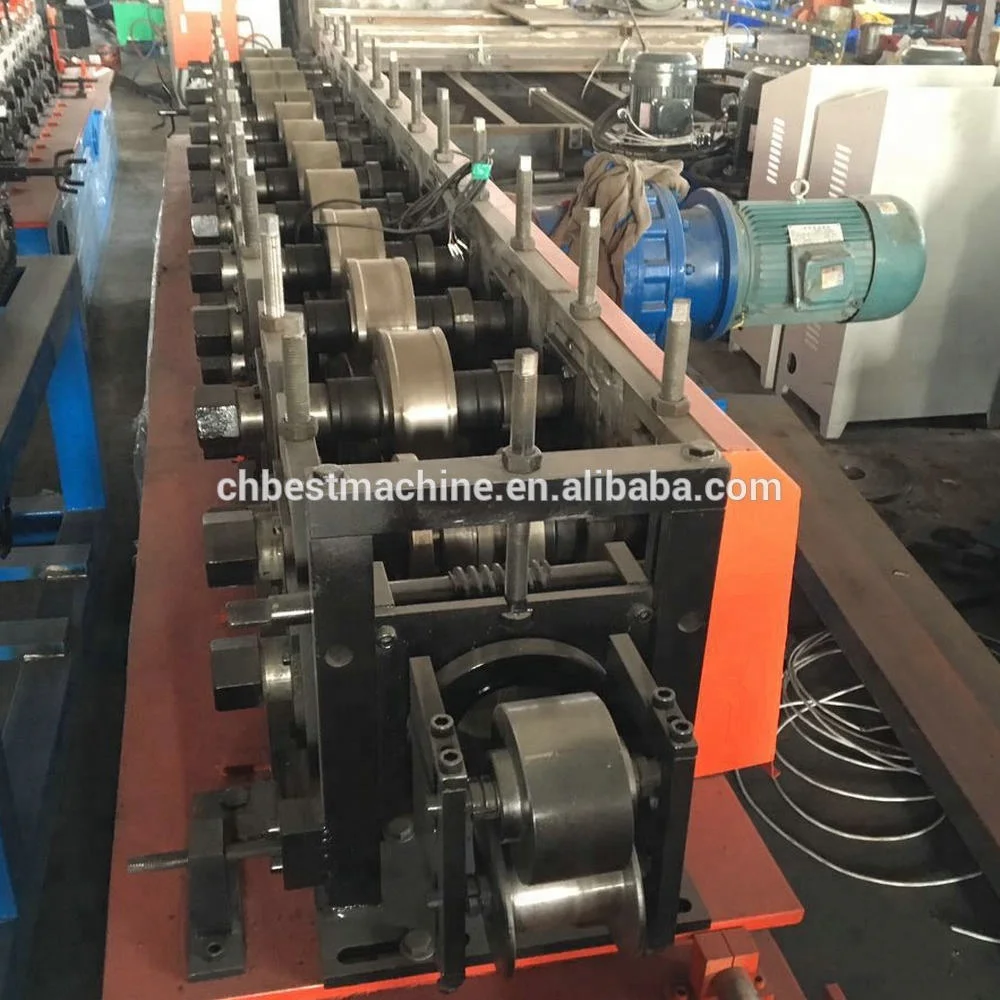

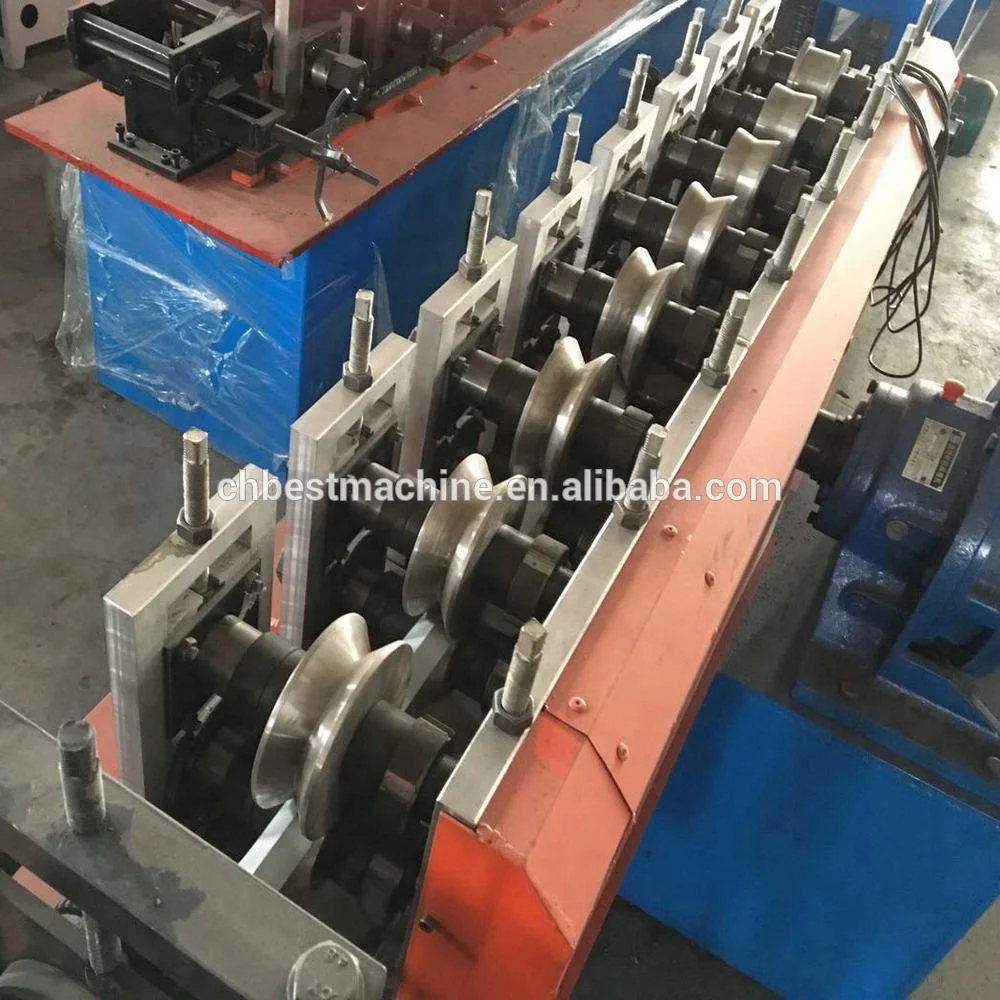

ROLL FORMING MACHINE

(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 14 groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
(4) Diameter of shaft: 70mm
(5) Frame panel thickness: 20mm
(6) Bottom frame: 36# H-section steel
(7) Motor Power: 5.5kw
(8)Driven type: 1＂Chain

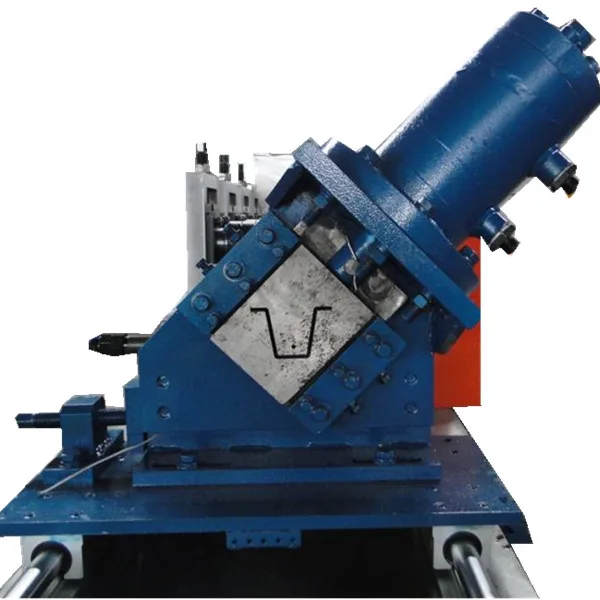

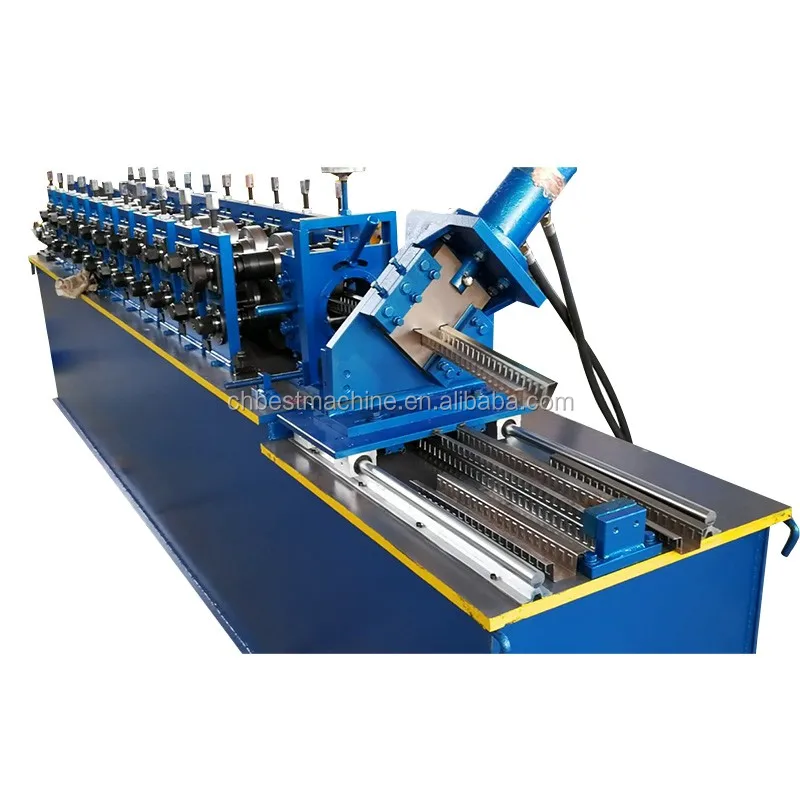

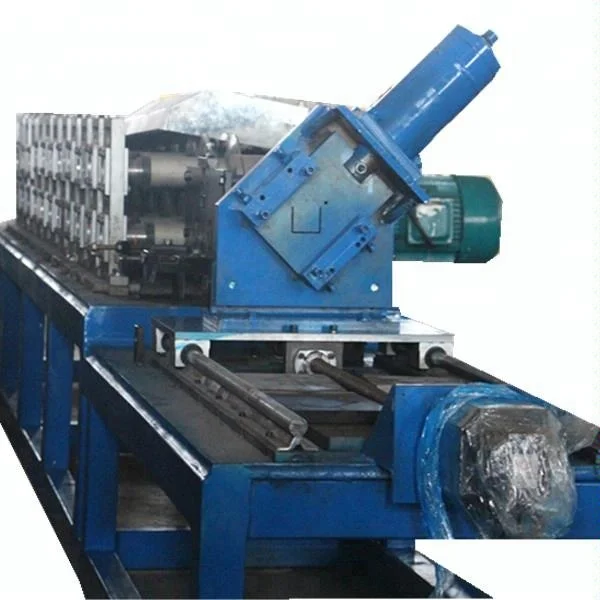

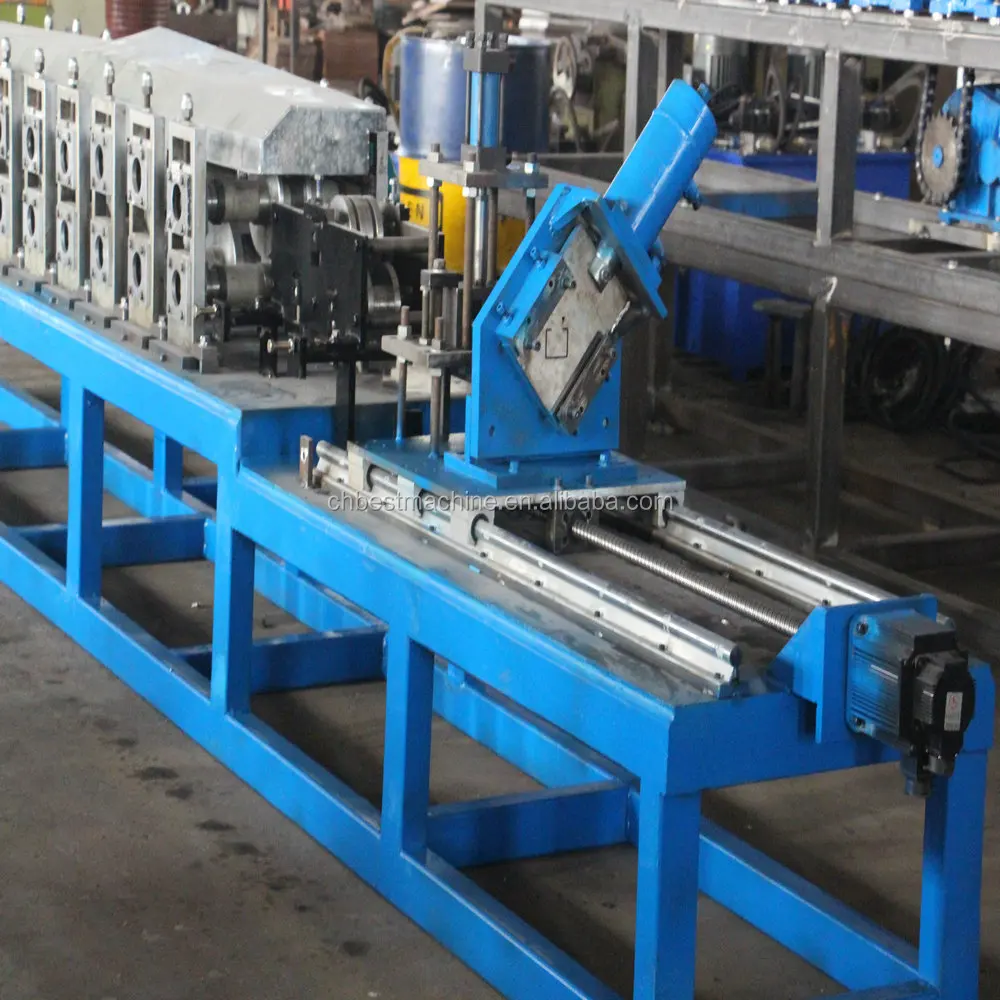

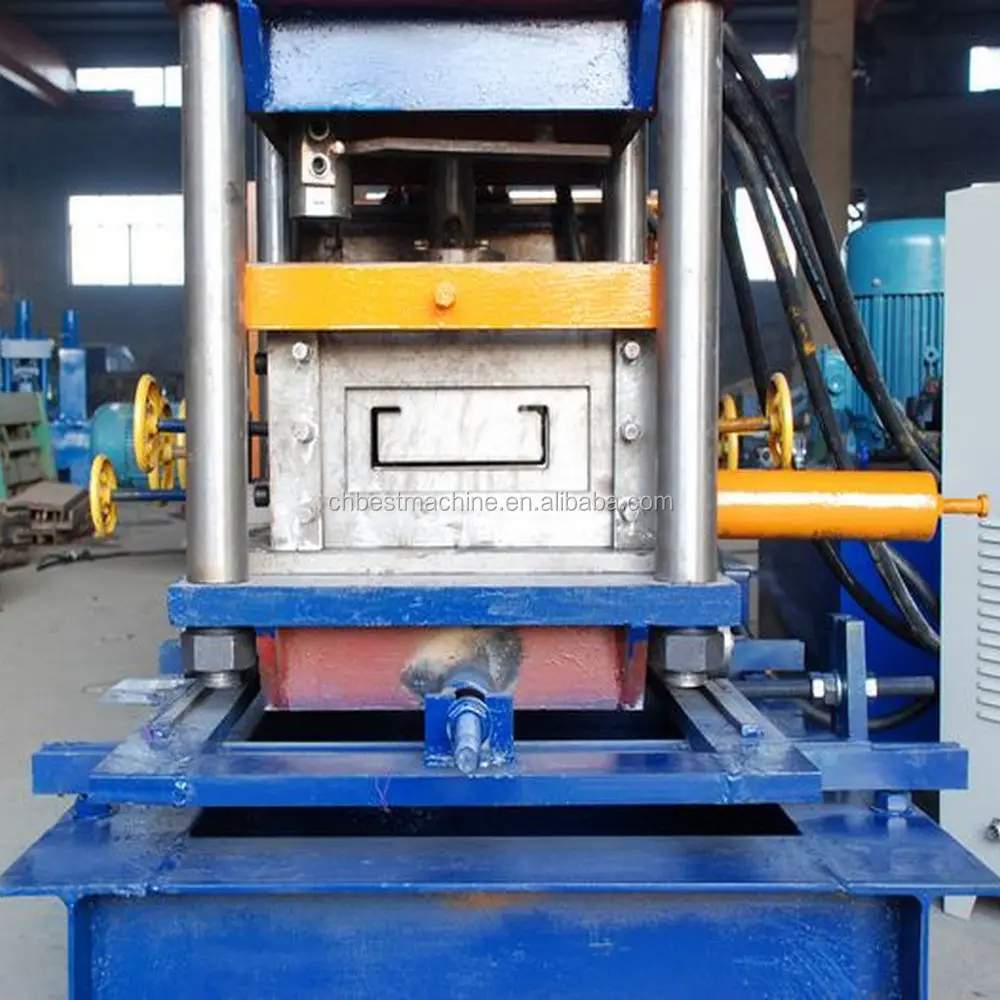

PUNCHING AND CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel
(2)Hardness for Heat Treatment:HRC55 – 60
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4)Cut-Off Modular:1 set
(5)Motor for Hydraulic Stand: 3 kw
(6)Material for punching die: Cr12 steel

ELECTRONIC CONTROL SYSTEM

(1) Type: PLC Frequency Control System with double touch screen
(2) PLC Brand:  FATEK made in Taiwan
(3) Encoder Brand: Omron
(4)Length Error: ±2mm

(5)Voltage: 380v/50HZ, 3Phases (it depends on customer requirement)
