china EPS rock wool or Polyurethane pu sandwich panel machine
- Category: >>>
- Supplier: Botou Mingtai Roll Forming Machinery Co. Ltd.
Share on (60772631706):
Product Overview
Description
Alibaba china EPS rock wool or Polyurethane pu sandwich panel machine
Product Description
(1). Brief Introduction
The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
ancient architectures and modern villas.
(2). Working Flow of Roll Forming Machine
Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter
(3).Technical Detail
No | Alibaba china EPS rock wool or Polyurethane pu sandwich panel machine | |
1 | Dimensions (L*W*H) | 36*2.25*2.5m |
2 | Power | Main motor power: -4kw Flying saw power: -2*0.75kw |
3 | Total power | 30kw |
4 | Rows of forming rollers | 13 rows |
5 | Rows of glue rollers | 23 rows |
6 | Weight | 10.0Tons |
7
| Voltage | 380V/50—60Hz |
8 | Capacity | 4m/min |
9 | Control system | PLC Control |
10 | Operating staff | 6 (4-5 staff for key process) |
4)Parameters of the panel
No |
| |

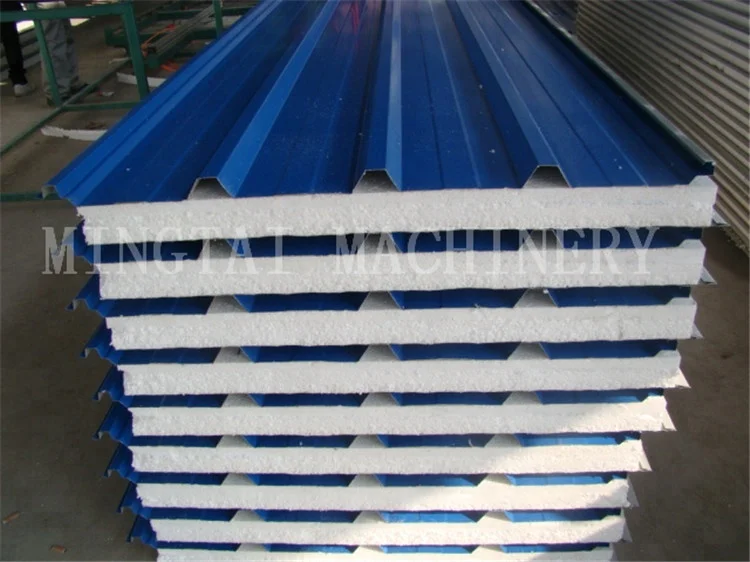

1 | Finished sandwich panel | EPS sandwich panel |
2 | Steel Coil Width | 1000mm, 1200mm, 1250mm |
3 | Thickness of the panel | 50-300mm |
4 | Thickness of steel | 0.28-0.8mm |
5 | Panel length | 1000-12000mm, adjustable |
6 | Capacity | >=600,000m2 per year |
5)Our advantages
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

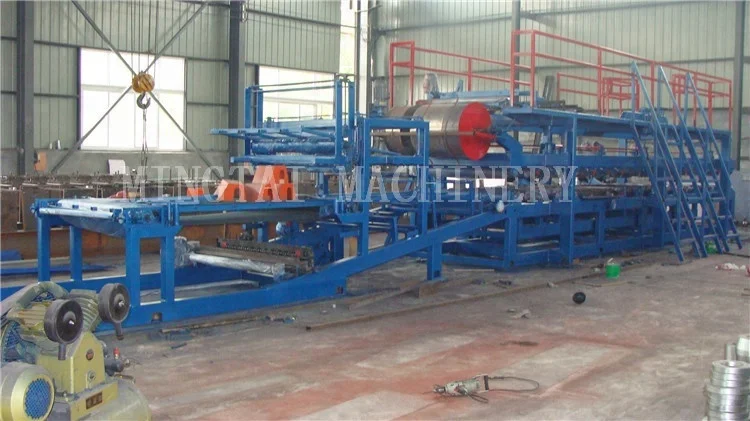

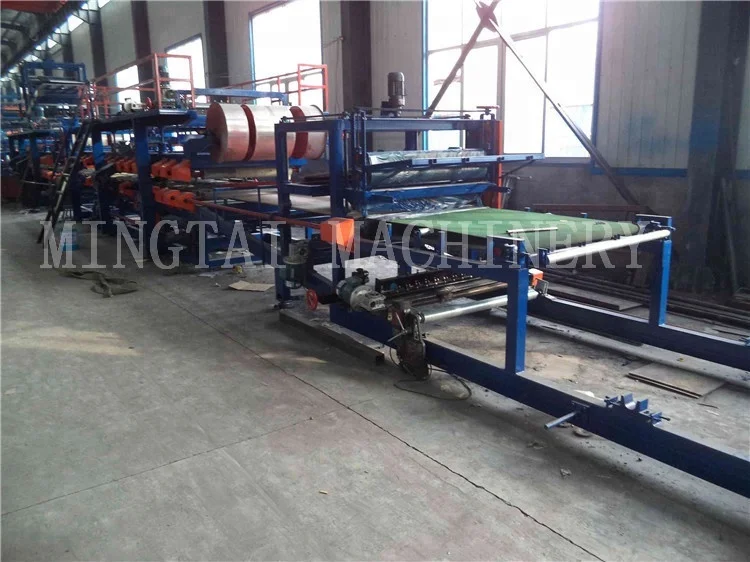

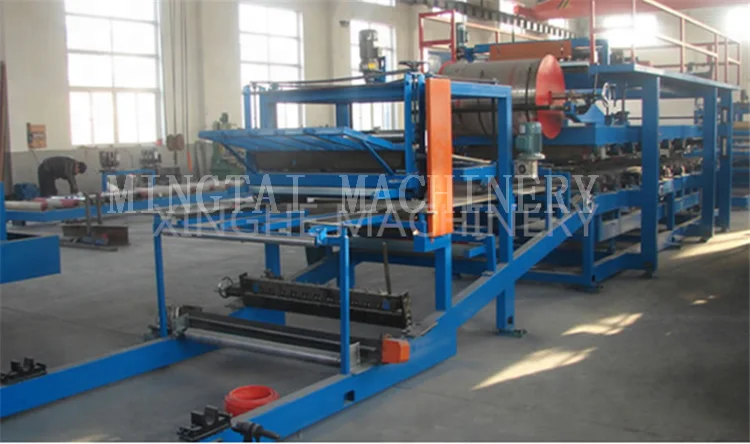

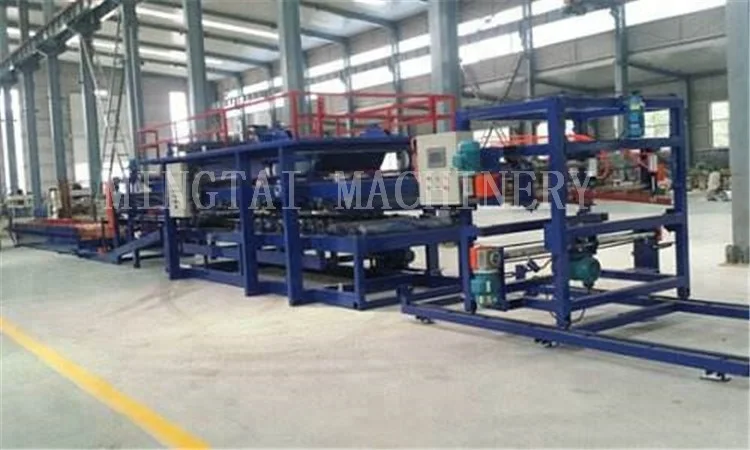

Machine Show
Packaging & Shipping
Packing
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Company Information
Botou Mingtai Roll Forming Machinery Co.,Ltd is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions' customers. We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request, and we also have experts, skilled workers offer precision work. Satisfactory solutions were provided to customers and established a long-term strategic partnership.
Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
Our Services
1). Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
2). Delivery Time: The seller guarantees the equipment will be ready for shipment within 30working days after receipt of deposit from the buyer. This machine is in stock now
3). Service: We could send the technician to your country to fix the machine if you need.
4). Warranty: 12 months During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.We will also send one set CD and specification(Chinese and English) to you with the machine, they can teach you how to operate the machines.
