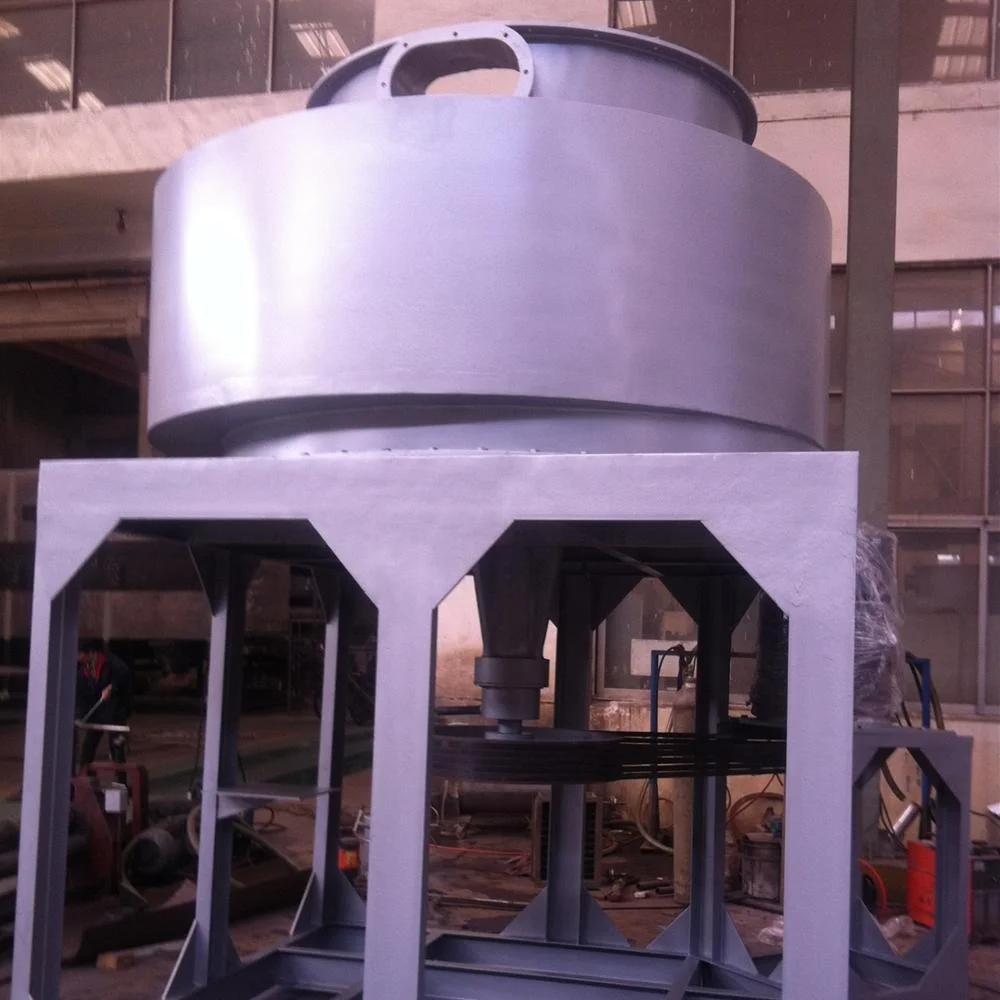

Air Flash Dryer

Product Overview

Description



The Flash dryer drying machine is a new and high-efficiency fIuidified drying equipment which is researched and deveIoped for the sake of overcrning the low-efficiency and high- consumed Static drying by our companyWe have joined the characteristics of ordinary fIuidified drying such as air stream drying and so on in designing process, and have developed advantage and reduced shortcoming with the advantageous usage function. All this really realizes the target of the consuuming and high efficiency of the fluidfied drying, The drier is wide used fOr drying of rubber and plasticizer, agrochemcial. Pigment, dyestuff, chemical industry, animal feed, medicine and kinds of intermediates.

Hot air enters into stirring and crushing and drying charnber frorn the bottorn of drier with suitable atomizing speed. Lt exerts strong Shearing. BIowing, fIoati ng and rotating effect to raw mate riaI, Therefore raw material is g ran u lated th RO ugh centrifug e, sh eari ng. Impacting and friction effeCt. Lt strengthens the process of heat exchange, At the bottom of drier, the Iarge and damp granule is crushed under the action of stirrer and the granule that is small in partical and contain less rnoisture will litt accompainied with revolving air stream. Durling the period of litt. It is dried further. Because gas and solid two phases flow in heat exchange. TherefOre the rnachine has Strong drying capacity.



model\item	interior diameter of main machine(mm)	air handing volume(m3/h)	evaporated capacity(hg/h)	equipped power(kw)	max. height(m)	occupied area(m²)
XSG-4	400	1600-2500	40-60	25	4.6	19
XSG-6	600	4000-5500	80-120	37	5.5	26
XSG-8	800	6000-7500	150-240	48	6.0	34
XSG-10	1000	10000-12000	250-400	75	6.5	45
XSG-12	1200	15500-18000	450-610	85	7.5	58
XSG-14	1400	20000-24000	650-750	98	8.0	76







"Xianfeng Drying" as the first company of New three board listing Contracting enterprise in drying field, also known as a drafting unit of Drying Equipment Industry Standards and national level high-tech enterprise, have the self-supported import and export right. Being a large-scale production enterprise in China drying industry with a registered capital of 50,000,000 RMB,owning two manufacture plants and one research center.

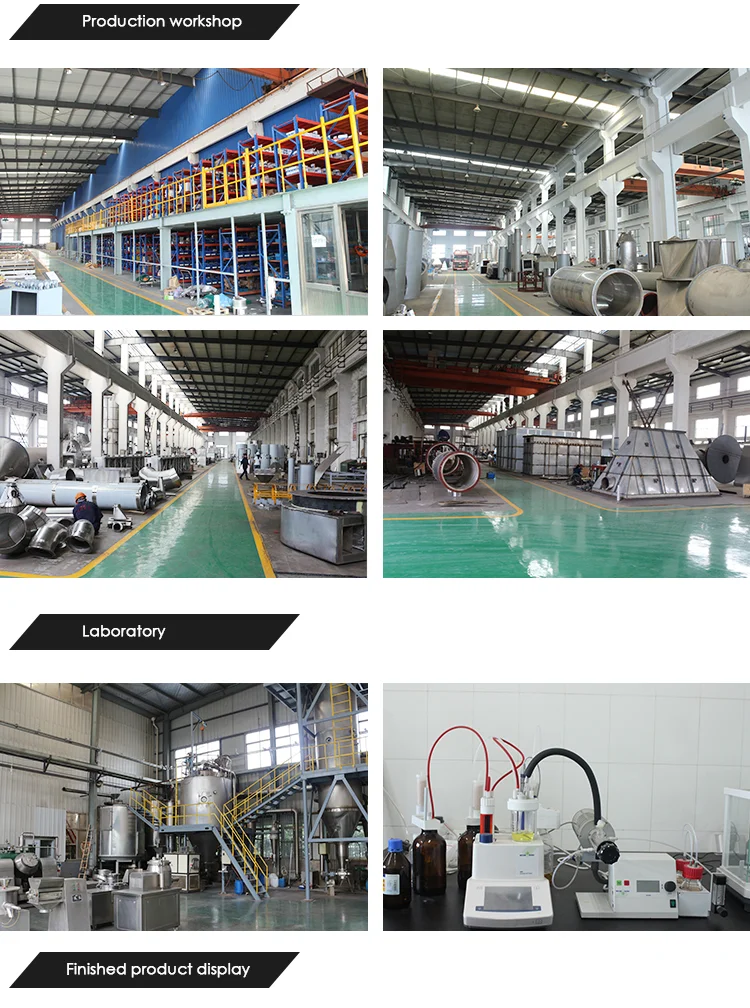

Xianfeng has an area of over 40,000m2, owns over 28,000m² heavy workshops and realizes sales of over 100,000,000RMB  for consecutive years. Now Xianfeng has been the largest drying equipment production enterprise in East China.
In the past twenty years, Xianfeng Drying mainly engaged in further research and developing of drying machinery;also do a further study for burdening, transferring, weighting and packing system, with a great design, manufacturing& engineering capability for non-standard machinery, so get remarkable achievement. Now Xianfeng’s machinery not only widely used in domestic,also export to USA, Brazil, Japan, Korea, Turkey, Malaysia, Singapore, Indonesia and Philippines etc.

l What price terms you offer?

We can offer FOB, CFR, CIF, EXW and other price terms based on your requirement.

l What payment terms you take?

We prefer T/T, but other terms also workable for us.

l Will you help with installation and stuff training?

Yes, we can send our engineers to your place to guide installation and train if need. But the buyer should bear our technician's all the expenses incurred in the trip of the Seller's delegation for erection, commissioning and training, including air tickets, meal, hotel accommodation and local transportation, and include subsidiary USD100/day/person.

l How can I visit and check your company?

Our factory is located in Changzhou and it takes one hour from Shanghai by train.
