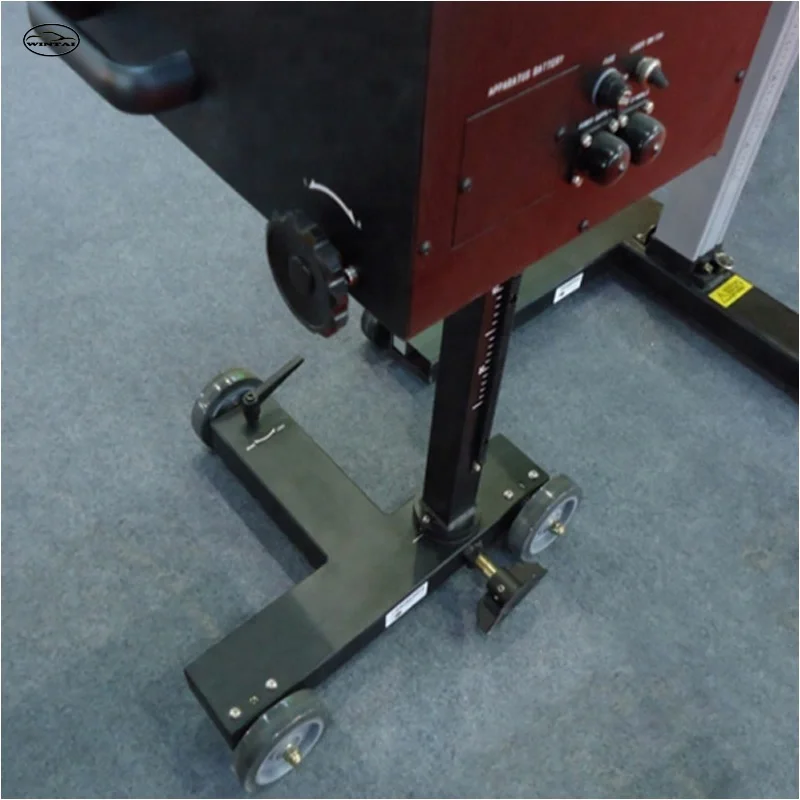

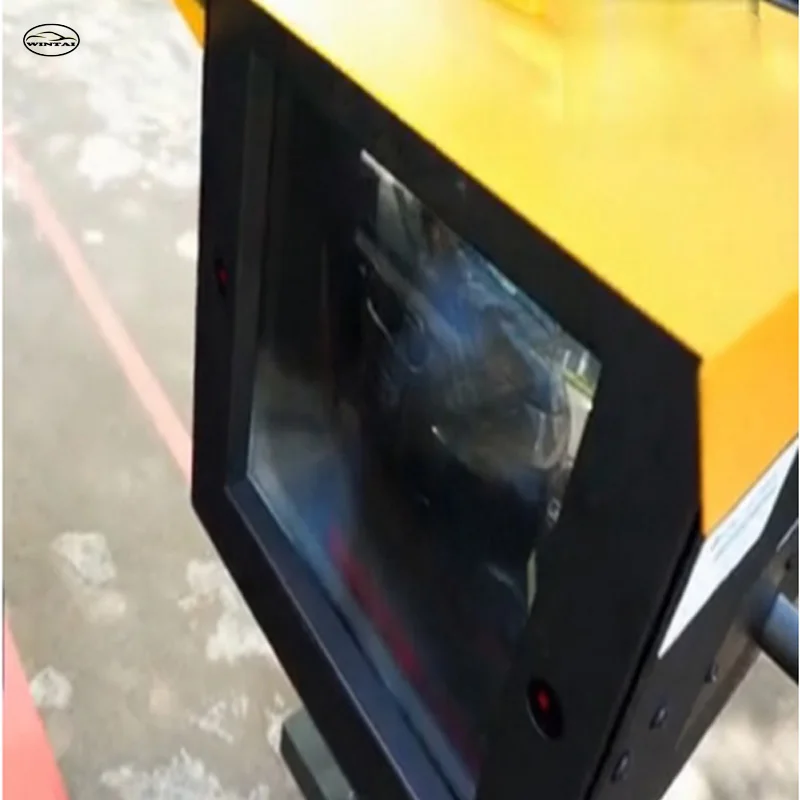

NHD 8101 Auto Headlight Tester car headlight testing machine
- Category: >>>
- Supplier: Guangzhou Wintai Car Tools Co. Ltd.
Share on (60773724763):
Product Overview
Description
Product Description
NHD-8101 Auto Headlight Tester car headlight testing machine

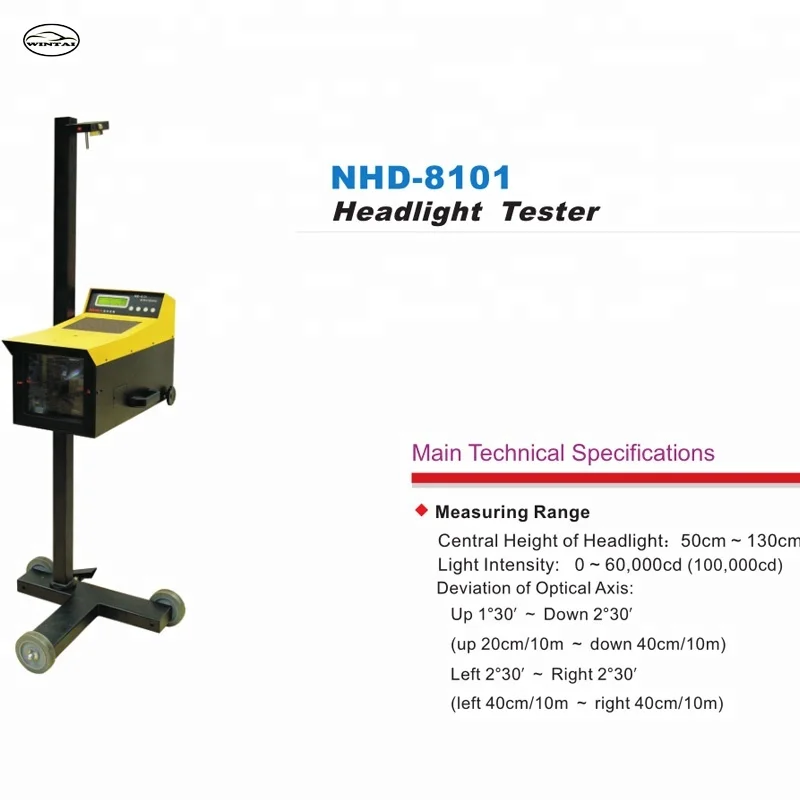

Main Technical Specifications
Measuring Range
Central Height of Headlight:50cm ~ 130cm
Light Intensity: 0 ~ 60,000cd (100,000cd)
Deviation of Optical Axis:
Up 1°30 ~ Down 2°30
(up 20cm/10m ~ down 40cm/10m) Left 2°30′ ~ Right 2°30′
(left 40cm/10m ~ right 40cm/10m)
General Features

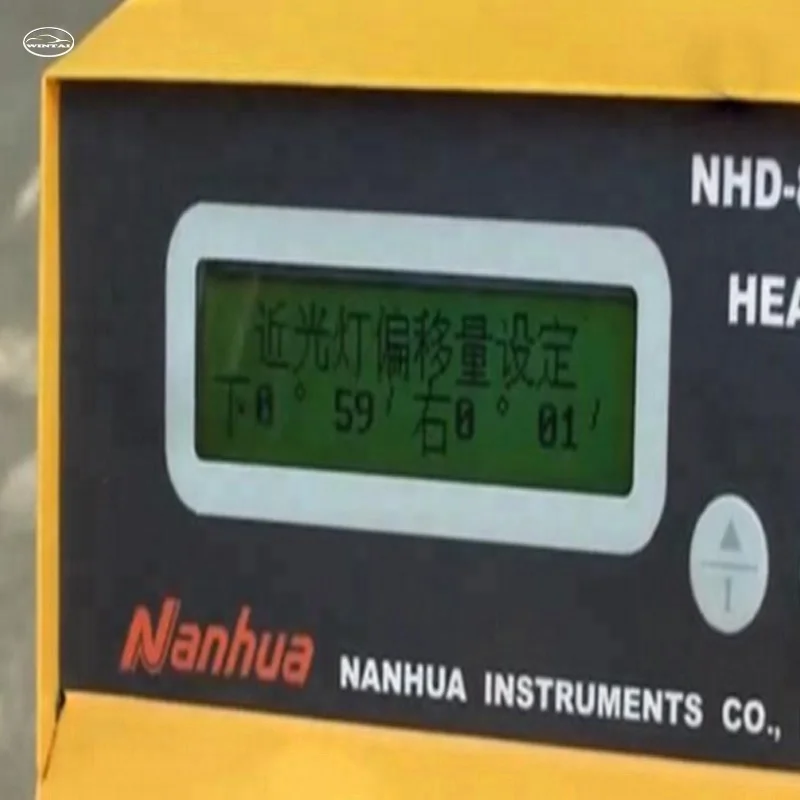

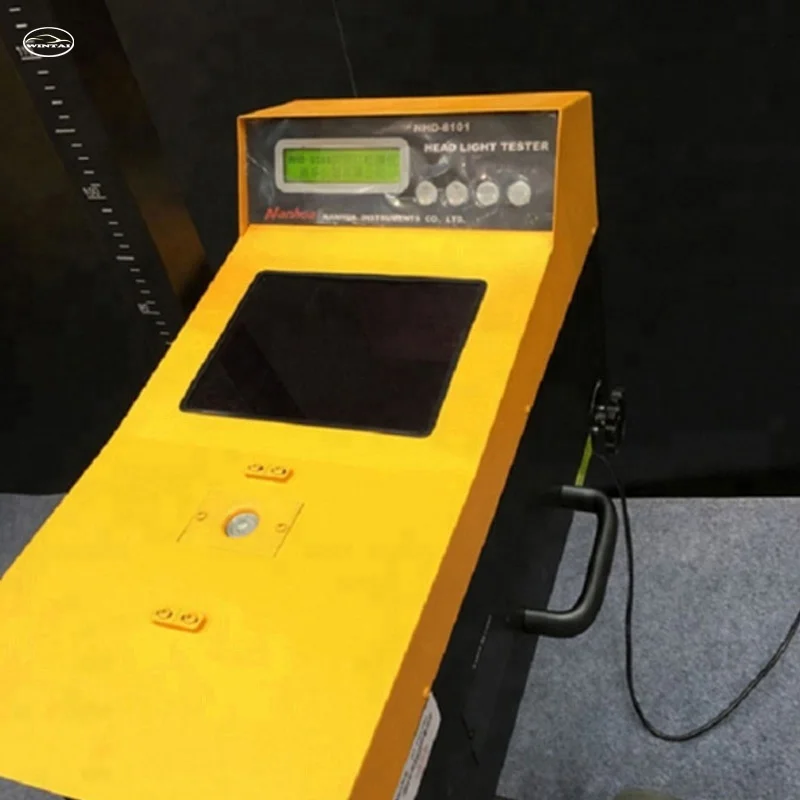

1NHD-8101 Headlight Tester is for testing the luminous intensity, light height and optic deviation of the headlight of automotive and motorcycle. It is equipped with Chinese or English LCD display, standard RS-232C interface, analog data output interface and battery-operated in low power consumption mode. Assembly and disassembly are fast, it is very easy to move.
2 With the advantages of easy operation and accurate measurement, it is suitable for use in vehicle inspection stations and mobile inspection lines for headlight inspection. It is also suitable for use in vehicle repairing and maintenance shops for adjusting and testing the illumination position of the headlight beams. 3Provide auxiliary angular calibration to headlight testers. (The instrument automatically indicates the adjustment direction of
the headlight tester)
Measurement Accuracy
Light Intensity of High Beam: ±12%
Central Height of Headlight: ±1cm
Optical Deviation: 12
Power Supply:
AC220V ±10% 50Hz ±1Hz or 1 DC9V battery/ 6 DC1.5V batteries (for laser)
Power Consumption: <2W (for complete set)
Weight: 30Kg
Dimension of The Rail Guide:
100mm × 3,000mm(length)
Outer Dimension:605mm(W) × 1,600mm(H) × 595mm(D)
Main Technical Specifications
Measuring Range
Central Height of Headlight:50cm ~ 130cm
Light Intensity: 0 ~ 60,000cd (100,000cd)
Deviation of Optical Axis:
Up 1°30 ~ Down 2°30
(up 20cm/10m ~ down 40cm/10m) Left 2°30′ ~ Right 2°30′
(left 40cm/10m ~ right 40cm/10m)
General Features
1NHD-8101 Headlight Tester is for testing the luminous intensity, light height and optic deviation of the headlight of automotive and motorcycle. It is equipped with Chinese or English LCD display, standard RS-232C interface, analog data output interface and battery-operated in low power consumption mode. Assembly and disassembly are fast, it is very easy to move.
2 With the advantages of easy operation and accurate measurement, it is suitable for use in vehicle inspection stations and mobile inspection lines for headlight inspection. It is also suitable for use in vehicle repairing and maintenance shops for adjusting and testing the illumination position of the headlight beams. 3Provide auxiliary angular calibration to headlight testers. (The instrument automatically indicates the adjustment direction of
the headlight tester)
Measurement Accuracy
Light Intensity of High Beam: ±12%
Central Height of Headlight: ±1cm
Optical Deviation: 12
Power Supply:
AC220V ±10% 50Hz ±1Hz or 1 DC9V battery/ 6 DC1.5V batteries (for laser)
Power Consumption: <2W (for complete set)
Weight: 30Kg
Dimension of The Rail Guide:
100mm × 3,000mm(length)
Outer Dimension:605mm(W) × 1,600mm(H) × 595mm(D)
Specification
item | value |
Type | headlight tester |
Voltage | 220v |
Power | W |
Applicable Models | universal |
Combination | SDK |
Place of Origin | China |
Guangdong | |
Brand Name | NANHUA |
Model Number | NHD-8101 |
Warranty | 12Months |
Product name | NHD-8101 Auto Headlight Tester |
Power Supply | AC220V ±10% |
Power Consumption | <2W |
Weight | 30Kg |
Dimension of The Rail Guide | 100mm x 3,000mm(length) |
length | 3,000mm |
Outer Dimension | 605mm(W) x1,600mm(H) x 595mm(D) |
Central Height of Headlight | 50cm ~ 130cm |
Light Intensity | 0 ~ 60,000cd |
Deviation of Optical Axis | Up 1°30~ Down 2°30 |
Packing & Delivery
standard export packing
