AV4992A Handheld 2MHz~1GHz Communication Cables and Antennas Radio Test Set

Product Overview

Description

Overview

AV4992A Radio Test Set, which integrates multiple meters with the functions including RF transmission and receiving analysis, audio source and analysis, can measure various performance of radios, interphones and audio equipment at the range of 2MHz~1GHz, and test standing wave of communication cables and antennas. It is a comprehensive radio testing meter enjoying overall functions at a small size.



Featured with strong environment adaptability and rechargeable battery, the tester can be used for simple lab application, production and debugging of communication equipment, field on-site installation, repair and maintenance in the sectors of civil communication, public security, military information technology construction, etc.



Small size, light weight, on-site application can be easily accomplished

Implementing light plastic for shell, AV4992A Radio Test Set is the smallest and exquisite radio multimeter compared with other meters of the same performance. The built-in rechargeable battery with high capacity is easy for replacement. You can enjoy the performance of desktop equipment but with handheld convenience brought by the small size, large-capacity battery and multi-function working backpack. The tester is extremely suitable for on-site usage.





Super powerful capabilities of environmental adaption and dust-sand proof, handy for tests in sundry environments

AV4992A applies the excellent design of low power consumption and heat radiation, which meets the third-class equipment standards regulated in GJB3947A, which are surpassed by the tester in several aspects in terms of the performance, such as usage in the outside temperature at -10℃~+50℃. It can maintain the high performance no matter how extreme the temperature is. Caps are used for protection of sensitive parts like connectors, which enables free operation.

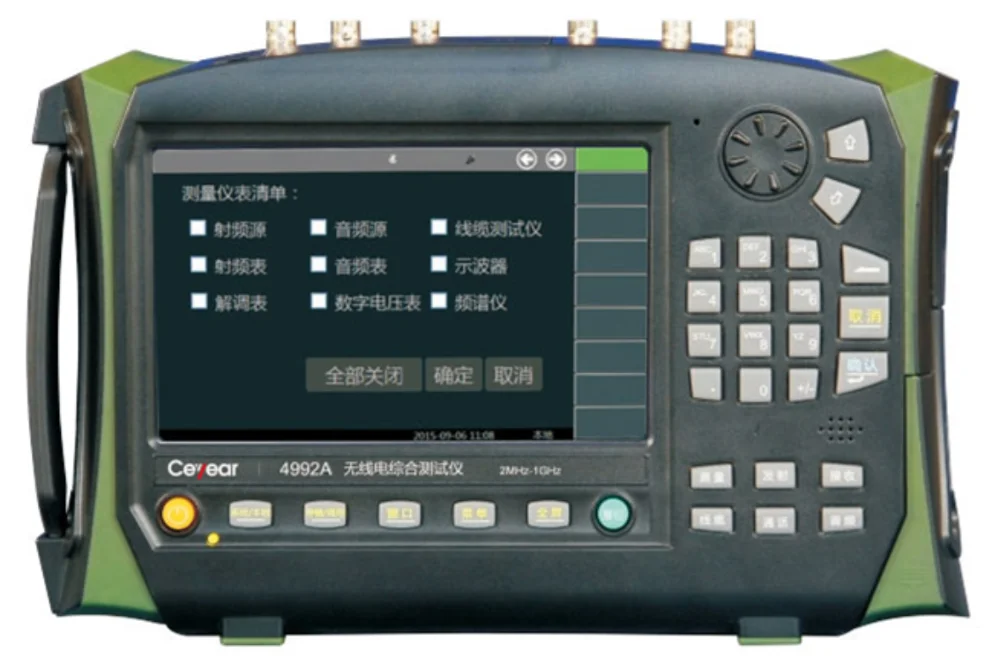

A colorful touch screen with back-light sensors

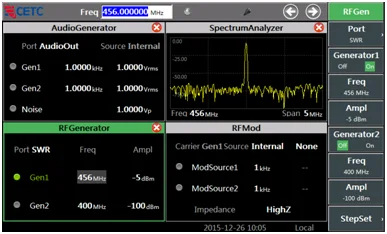

AV4992A employs a 7” colorful touch screen to follow the latest testing demands and trends. One window supports simultaneous display of multiple meters in rolling. The windows can be zoomed as per your needs. Touch parameters to update parameter setting. The built-in back-light sensing can adjust display light intensity automatically according to environmental light, so that operation comfort is largely enhanced.



Complete testing functions give you outstanding and comprehensive testing results

AV4992A integrates numerous meters containing RF source, audio source, cable tester, RF meter, audio meter, oscilloscope, demodulation meter, digital voltmeter, spectrum analyzer, etc, which can perform tests on over 20 parameters. As an engineers’ right-hand equipment, it can satisfy almost all testing demands from measurements on universal radio transmission and receiving devices.





Flexible operation due to one-key integration/menu customization, provides you convenient testing experience

AV4992A is capable of one-key integration to meet various testing needs of customers. You can configure it freely to eliminate complicated setting steps in relatively fixed testing parts or conditions. Instead, you can have a direct view on testing results.



The built-in diagnosis “doctor”, offers you more direct and clear testing outcomes

AV4992A sets up corresponding qualified testing ranges against many testing items based on application conditions. Once the testing alarm function is on, the back-light color won’t change if the result fits in the range, the back-light turns to blue if the result fails the lower limit and turns to red if the result is higher than the upper limit. Users can get clear and direct views of existing testing results.





Chinese/English operation menu, on-line testing support and breakdown analysis are available

The default menu of AV4992A is in Chinese. English version can also be set. Many shortcut keys lead you to the selection menu directly, which is simple for comprehension and operation. Without special training, users can master the tester through the rich functions of on-line support and trouble inquiries.



Manifold interfaces, handy for control

AV4992A Radio Test Set has a SD card slot besides RF and audio signals testing interfaces. Micro SD can extend the memory or copy internal data and documents. The interfaces available are LAN(local area network), Mini USB and USB A-type. They can enable remote control over the whole equipment, data transmission and connection to SB peripheral devices, like USB storage devices, USB mouse, USB keyboards, etc.







Major functions

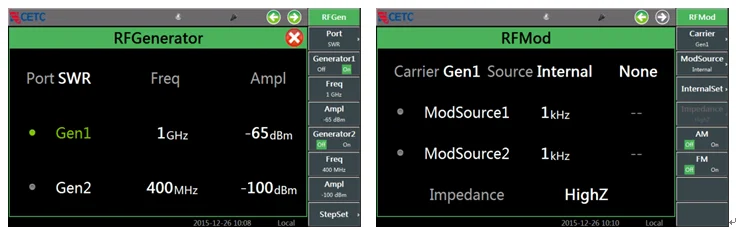

It offers fantastic solutions for performance and specification tests on equipment including radio, interphones and so on using the highly qualified RF source.



Ø  Integrates double RF sources and supplies a convenient integral testing approach for evaluation of specifications covering inter-modulation of complete equipment, impedance, out-of-band suppression, etc.

AV4992A owns two RF sources, 2MHz~1GHz and 2MHz~400MHz, to respectively control output power in the modes of single output and combined output. Complexity and cost of tests can be greatly decreased when dual-source tests are required. Meanwhile, testing set-up is facile.





Ø  Terrific spectrum purity, provides signal spur with high quality for pertaining equipment tests

The signal phase noise output by AV4992A RF source is as good as signal source of desktop equipment. -105dBc/Hz can be achieved at the phase offset of 20kHz.

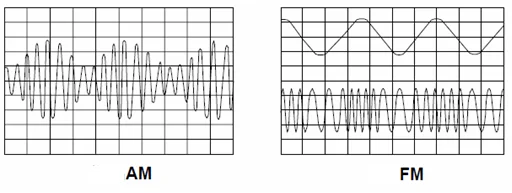

Ø  The built-in standard modulation source enables FM/AM modulation.

AV4992A RF source can input modulation signals from outside and an internal modulation source is also accessible. It is equipped with AM and FM required by analog communication. Certain noise output can also be added to the internal modulation signals, to simulate actual signals more vividly and detect equipment performance.

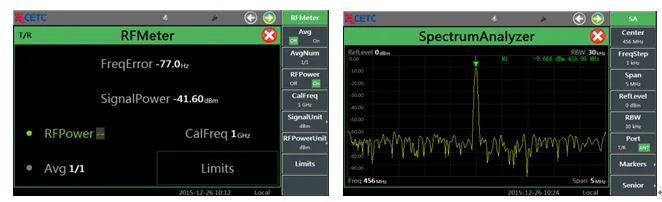

Ø  Effective RF signal analysis provides assessments over transmitter signals in several aspects.

AV4992A RF analysis can carry out evaluation on transmission performance of your equipment in every aspect, such as monitoring and examination on transmission frequency error, RF power, signal receiving intensity, spectrum characteristics, etc. RF signal measurement and analysis as well as spectrum monitoring are also available.

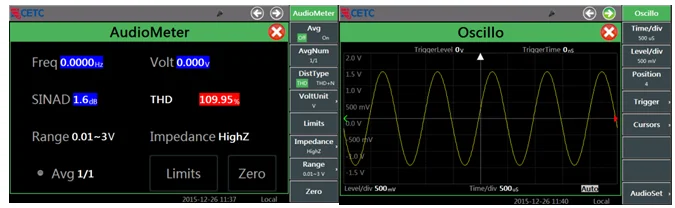

Ø  Accurate audio analysis, simple for overall analysis on LF signals

The complete analysis of AV4992A on audio can accurately analyze audio frequency, voltage, SINAD, THD, etc. The embedded DVM meter can measure signals containing DC component. We offer audio oscilloscope options for your direct observation and analysis on various signals under test.





Ø  Multiple cable specification testing functions, quickly locate breakdowns

The antenna feeder testing of AV4992A can examine performance of cable voltage-SW ratio, insertion loss, and return loss through measurement on SW ratio at SWR port. The ability of distance-to-fault (DTF) localization helps further isolate breakdowns during radio system repair.



Typical Application

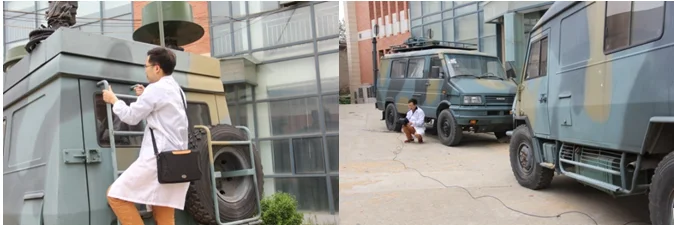

Out-field installation, debugging and maintenance of radio equipment

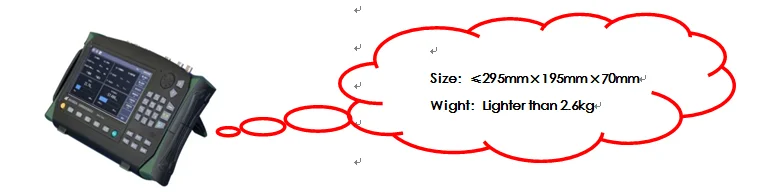

Highly integrated in design, AV4992A Radio Test Set intensively combines functions of several meters with the max. size of 295mm(W)×195mm(H)×70mm(D)and the total weight even lighter than 2.6kg. The rechargeable battery with large capacity is imbedded to give you a longer working duration. It is especially suitable for out-field installation, testing and maintenance of radio transmission/receiving equipment. As a multimeter for RF measurement, the tester will surly become a necessity for radio engineers.



Examination on performance and mass production of radio stations/interphones

As the extensive application of radio communication, various military and civil stations and diversified communication tools , different testing equipment is required for development and mass production, for instance, signal generators, spectrum analyzers, power meters, frequency meters, oscilloscopes and audio meters. A complete radio/interphone consists of a transmitter and a receiver. Users need to switch frequently between multiple devices to accomplish tests on whole performance and specifications, which consumes manpower, resources and a great amount of time.



AV4992A Radio Test Set gathers multifold meters for performance examination on various vehicle/commercial stations and wireless interphones. Testing processes are simplified, which lowers cost and improves working efficiency. The built-in “Doctor” establishes corresponding qualified ranges against certain objectives under test; the back-light of data displayed will turn to different colors based on the limits set beforehand. The ability behaves a big advantage for mass production and routine maintenance of meters.



Maintenance of antenna feeders

Learning from the routine maintenance of radio stations, many breakdowns are caused by feeders and antennas rather than stations. The value of VSWR manifests the high return loss which is the result of cables, connectors or antennas. Hence, it is quite necessary to perform SWR tests on feeders and antennas so as to isolate breakdowns at feeders, connectors or antennas. AV4992A Radio Test Set implements the built-in SWR module to test SW performance of cable ports, and locate DTF using actual transmission rate of diversified cables. Our tester frees your stations from unnecessary downtime.



Universal characteristics

Ø  Working characteristics

Working temp.		-10℃~+50℃
Storage temp.		-40℃~+70℃
External size		295mm(W)×195mm(H)×70mm(D)
Weight		≤2.6kg
Power consumption		≤25W(exclude battery recharging)
Power input form	AC, standard adapter	Input of the adapter:100~240V, DC of 50/60Hz
	DC	Voltage:12V~18V(without the battery) 15V~18V(with the battery) Current:4A(min.)
	Built-in standard battery	Nominal voltage:10.8V Nominal capacity:≥7000mAh

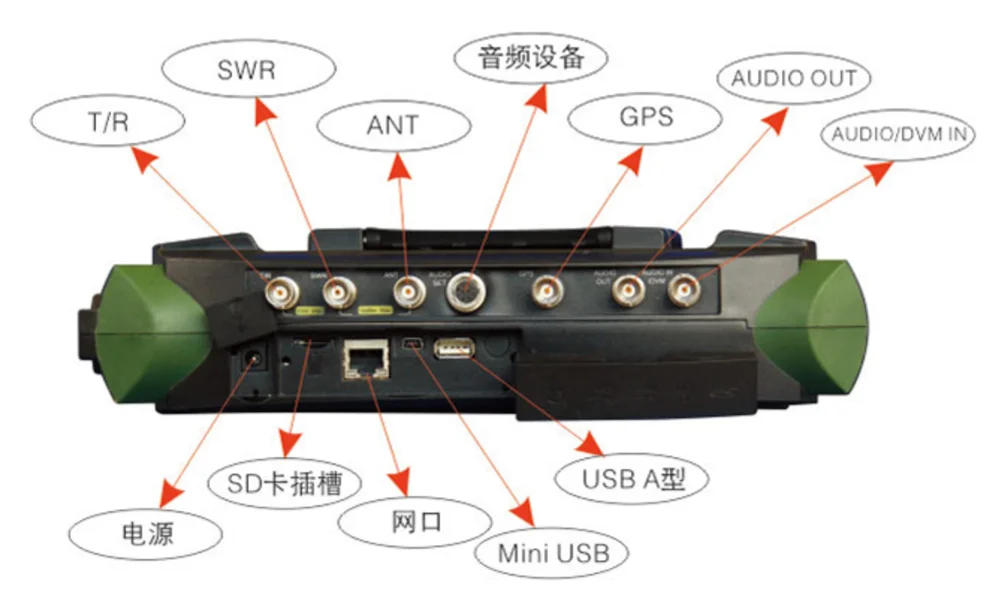

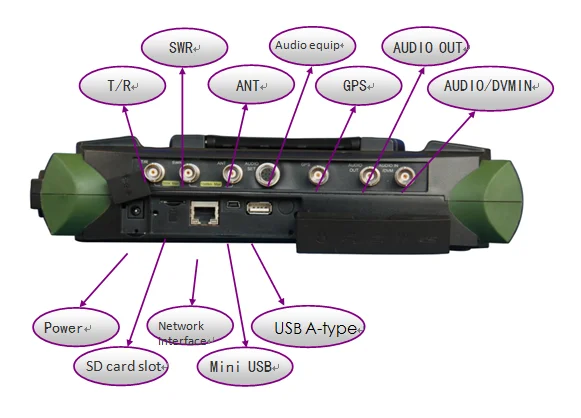

Ø  Input and output ports
Name	Sign	Interface type
RF input /output interface	ANT	BNC
	T/R	BNC
RF output interface	SWR	BNC
Audio output interface	Audio Out	BNC
Audio/DVM input interface	Audio In/DVM	BNC
GPS signal input interface	GPS	BNC
Audio cassette interface	Audio set	Special 10-core interface
