IP network public address system server and software (Broadcast system server)

Product Overview

Description

IP network public address system server and software (Broadcast system server)

Standard SSD solid state drive has the characteristics of anti vibration, anti dropping, fast reading and writing, low power consumption and so on.
Support DHCP, compatible with routers, switches, bridge gateways, Modem, Internet, 2G, 3G, 4G, multicast, unicast and any other network structure.
Easy to use touch screen manipulation, built-in 5 wire industrial reinforcement touch screen, 15 inch LED LCD screen.
Industrial class special motherboard design, dual core four threads ultra low power embedded industrial processor, faster processing speed, more operational performance, and can work steadily for a long time.
Built in 6 sets of industrial asynchronous transmission interface, built-in 4 sets of universal serial bus, the highest 480M transmission rate.
It has a short circuit to trigger the opening operation interface. It is used for the timing drive to open the machine and realize the unattended function. It supports the 4 channel sound card, supports the dual development card, and can be connected with the largest FullHD display device.
Technical parameters:

model	XBPA-5000B
The screen size	15 inches [customized size according to requirements]
Chassis color	Black/iron grey/optional one-piece touch keyboard.
Screen color	TFT262144 color true color.
Manipulation of the way	1024 x 768 resolution LCD resistive (five-wire) touch screen.
The work environment	Ambient temperature: 5 ℃ ~ 50 ℃;
	Relative humidity: 20% ~ 80% relative humidity, no condensation.
The main board	Intel NM10 chipset, X86 architecture.

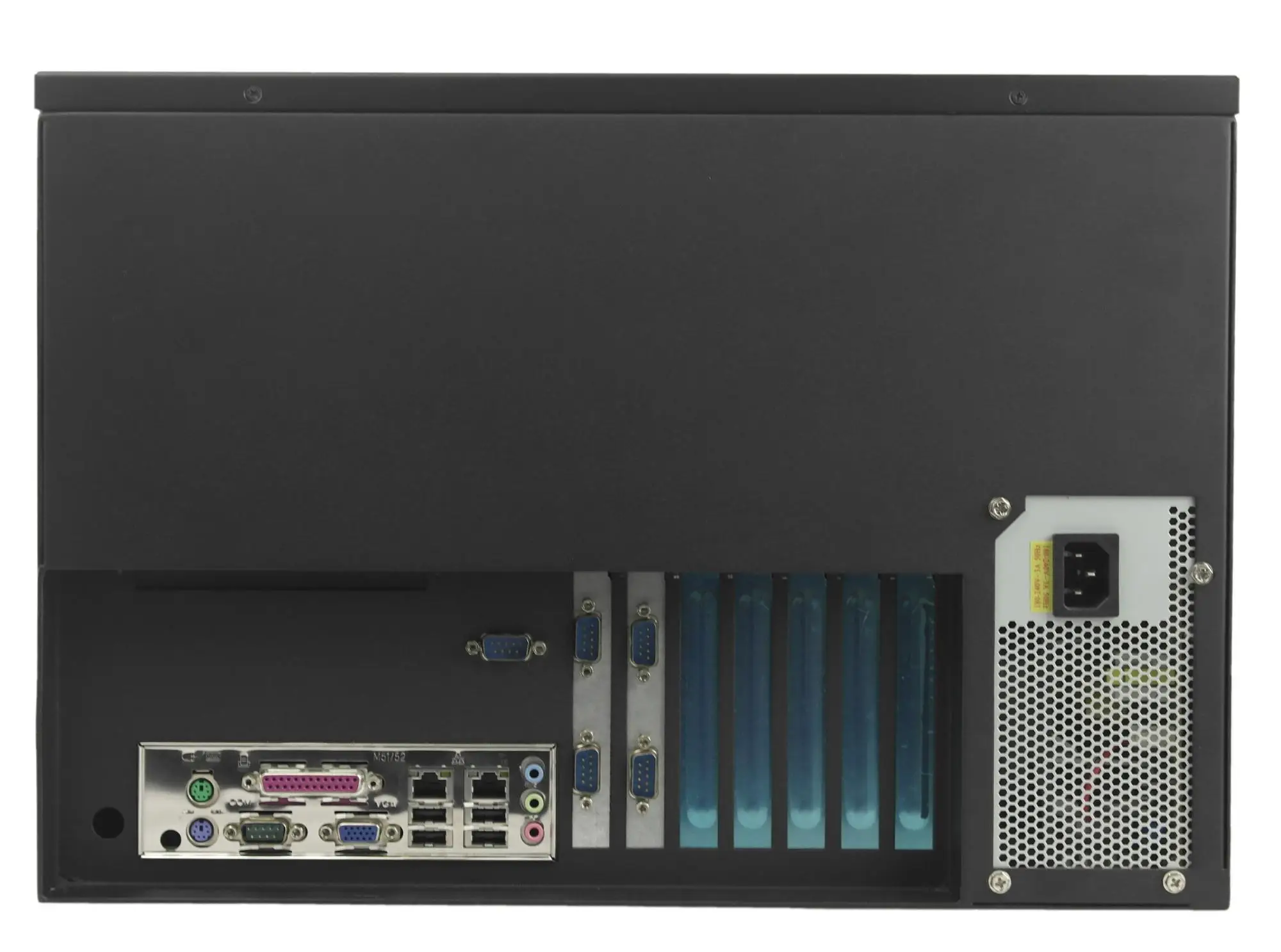

Standard interface	1 x PS / 2 interface; 6 x serial port; 1 x parallel; 1 x VGA
The hard disk	SSD SSD
memory	DDR3 800MHZ 2G (increased capacity due to continuous upgrading of products)
The network card	Realtek RTL8103EL, 1000 m
The CPU	Intel ATOM D525, dual core five threads, 1.8GHz.
System audio signal to noise ratio.	The LINE: 70 db; MIC: 60 db
System audio signal distortion degree.	1 KHZ < 0.5%
System audio signal standard input level.	The LINE: 300 mv.   MIC: 5 mv
System audio signal standard output level.	0 DBV
Power consumption	AC ~ 220 v / 50 hz / 300 w
Software platform	Windows 2003 server

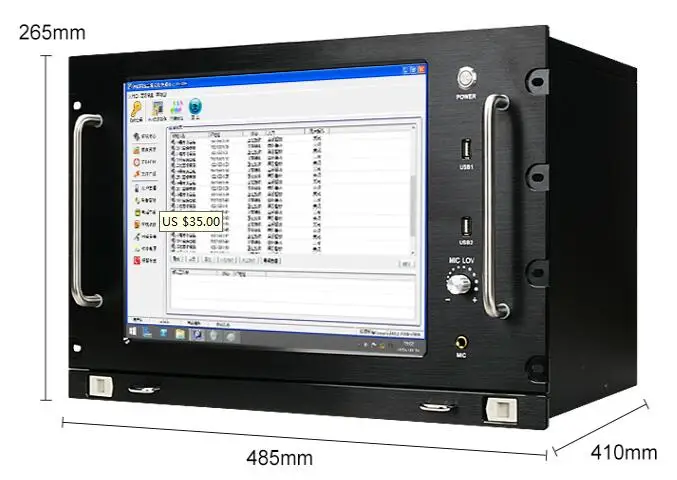

size	484(width) x 300(depth) x 310(high)
The weight of the	14.28 Kg
