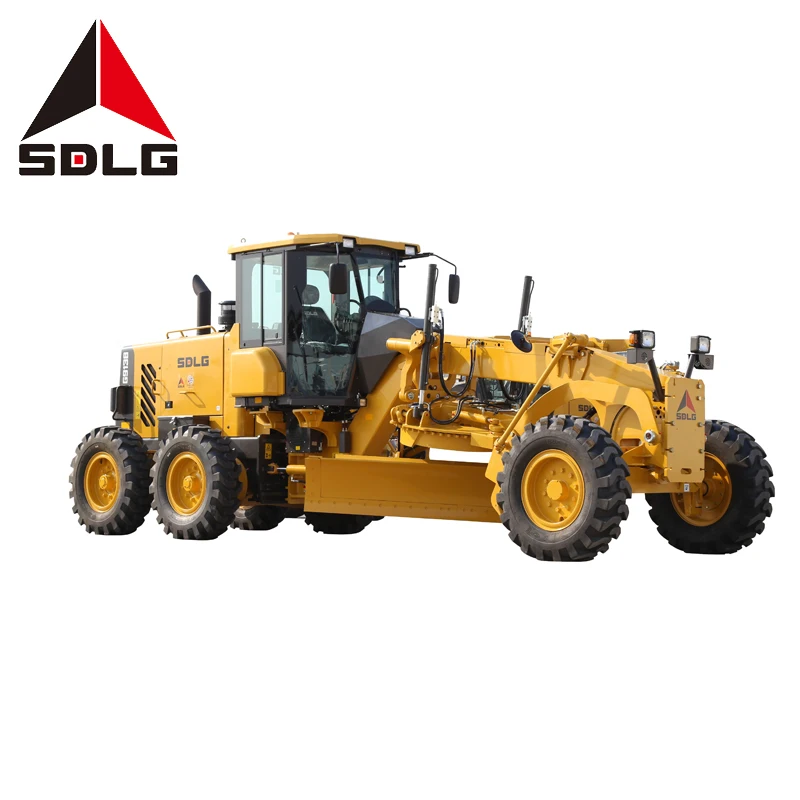

SDLG G9138 Road Building machinery mini motor grader for sale 100hp with best price
- Category: Motor Graders >>>
- Supplier: Shandong Lingong Construction Machinery Co. Ltd.
Share on (60775697644):
Product Overview
Description
SDLG G9138 Road Building machinery mini motor grader for sale 100hp with best price
Product Paramenters
L*W*H | 8120*2410*3235mm | |||||||||
Min ground clearance of front axle | 590mm | |||||||||
Ground clearance of rear axle | 400mm | |||||||||
Wheelbase | 6040mm | |||||||||
Wheel tread | 2070mm | |||||||||
Balance box center distance | 1538mm | |||||||||
Overall parameters | ||||||||||
Overall working weight | 12100kg | |||||||||
Max. inclination angle of front wheel | 18° | |||||||||
Max. swing angle of front axle | 16° | |||||||||
Max. steering angle of front wheel | 50° | |||||||||
Steering angle of articulated frame | 25° | |||||||||
Cutter diameter | 1375mm | |||||||||
Cutter size | 3048*580*16mm | |||||||||
Swing angle of blade | 360° | |||||||||
Lift height of blade | 380mm | |||||||||
Cutting depth of blade | 575mm | |||||||||
Blade cutting angle | Front 47/rear 5° | |||||||||
Blade lateral distance | 500/500mm | |||||||||
Max. tractive force | 75.4kN | |||||||||
Engine | ||||||||||
Model | BF4M1013-15T3R/2 | |||||||||
Type | Four-stroke, Inline, water-cooled, direc injection | |||||||||
Rated Power@Revolution Speed | 2100r/min | |||||||||
Displacement | 4764mL | |||||||||
Cylinder bore × stroke | 108*130mm | |||||||||
Emission standard | Tier3 | |||||||||
Max. torque | 680 | |||||||||
Transmission system | ||||||||||
Transmission type | Fixed shaft power shift | |||||||||
Torque converter | Single-stage single-phase three-element, integrated with gearbox | |||||||||
Gears | Forward 6 reverse 3 | |||||||||
Hydraulic system | ||||||||||
Type | Open-type system | |||||||||
System pressure | 18MPa | |||||||||
Fill capacity | ||||||||||
Fuel | 210L | |||||||||
Hydraulic oil | 80L | |||||||||
