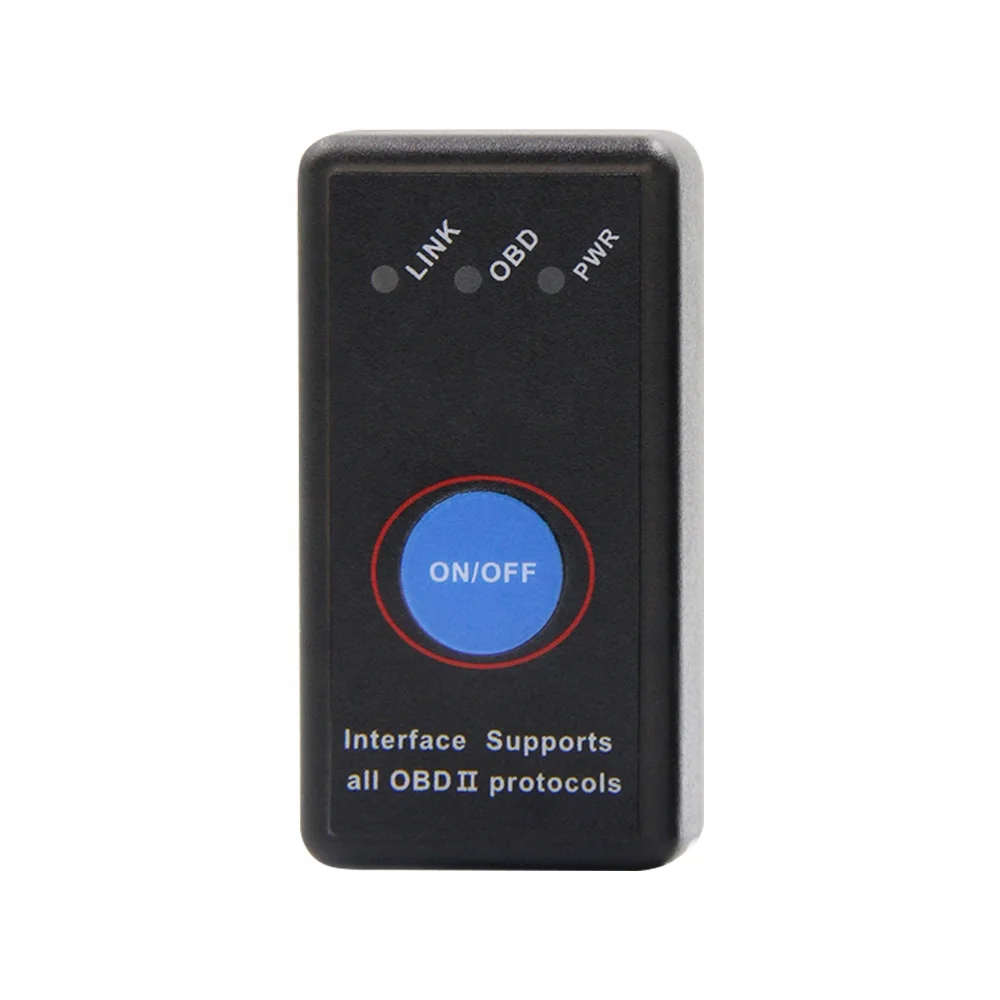

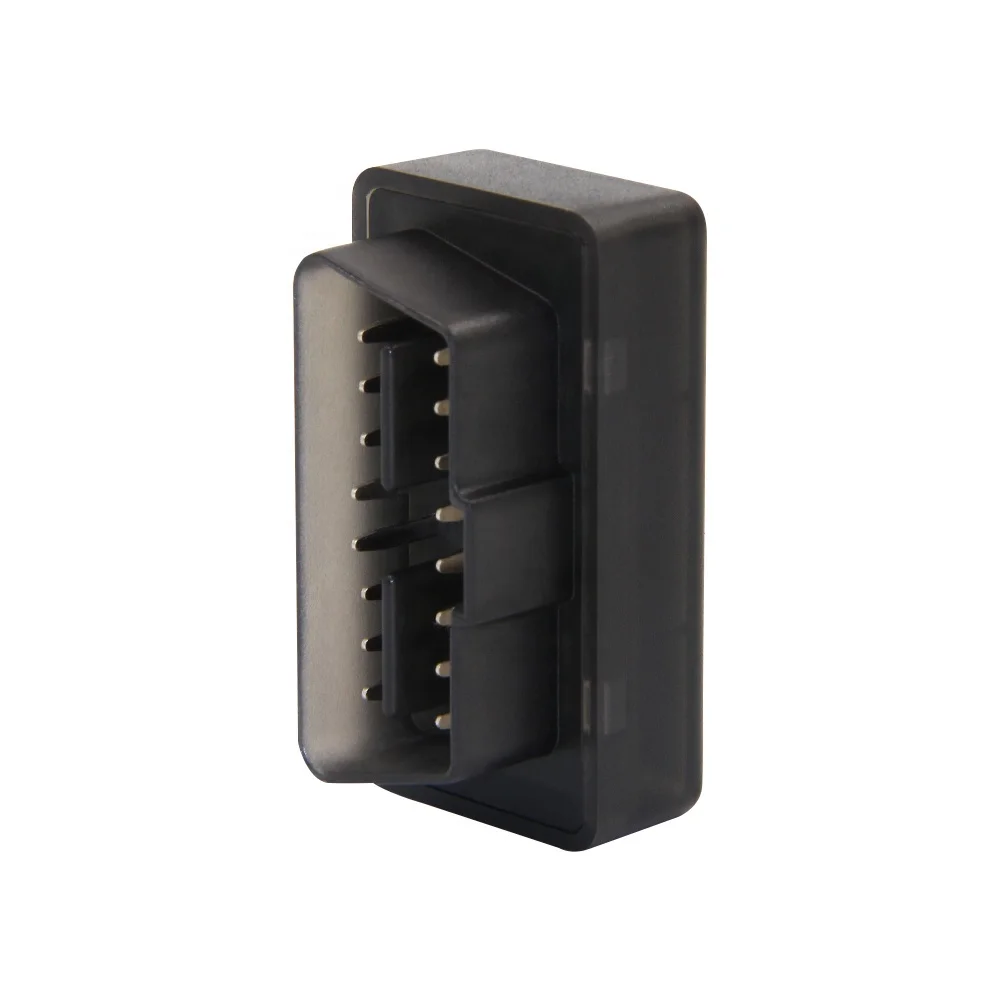

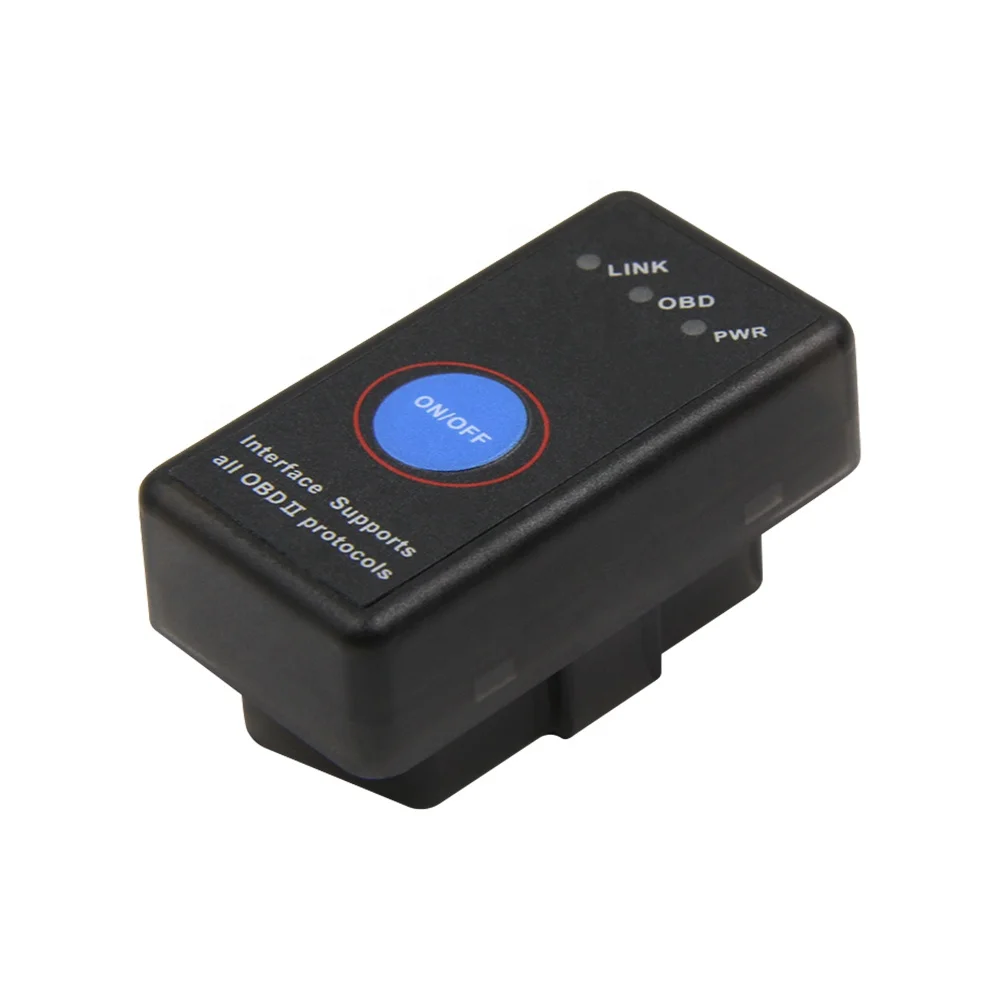

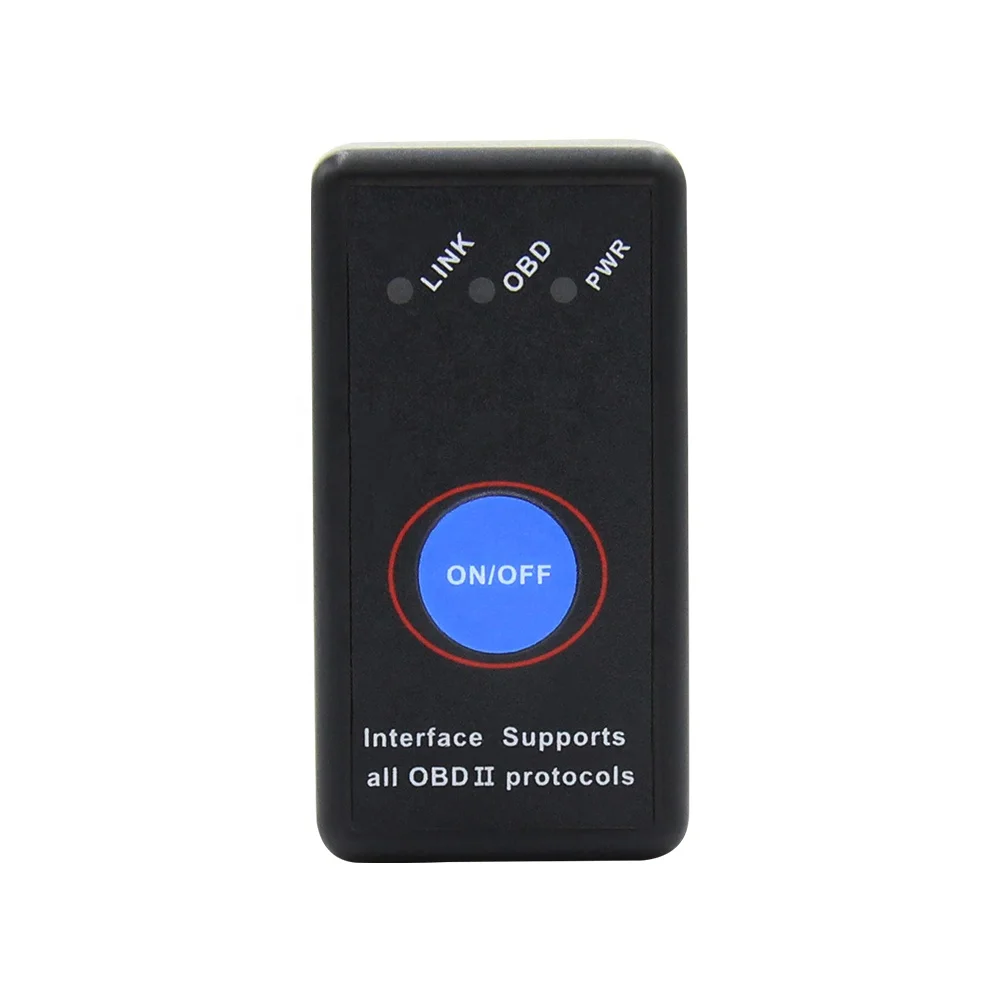

MINI ELM327 V1.5 PIC18F25K80 Chip With Switch Button OBD2 wireless connection Scanner Supports All OBD II Protocols

MINI ELM327 V1.5 PIC18F25K80 Chip With Switch Button OBD2 Wireless BT Scanner Supports All OBD II Protocols

Top 5 Reasons To Get Super MINI ELM327 Wireless BT

1. Software Version: V2.1

2. Hardware Version: V1.5

3. Works with all OBD-II compliant vehicles

4. Wireless (Wireless BT)

5. Software included for Palm, PDA, Windows PC, Windows Smartphone

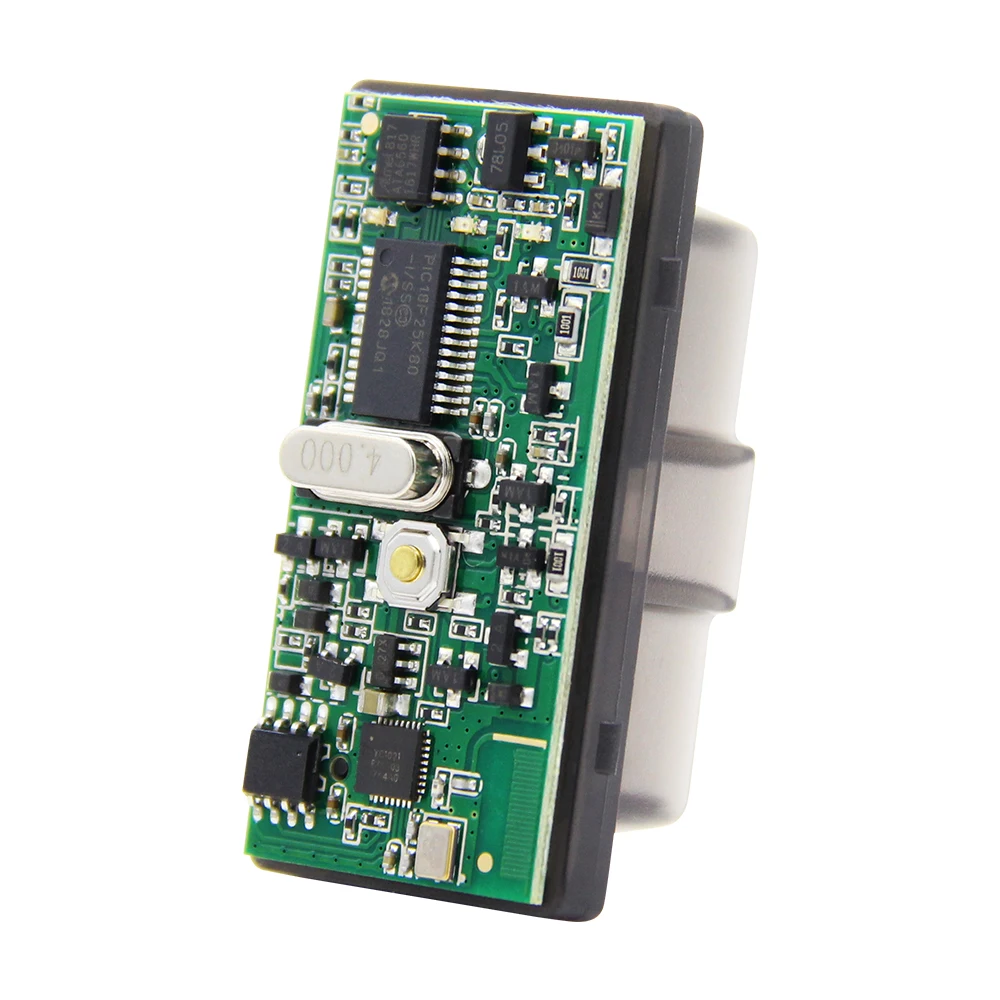

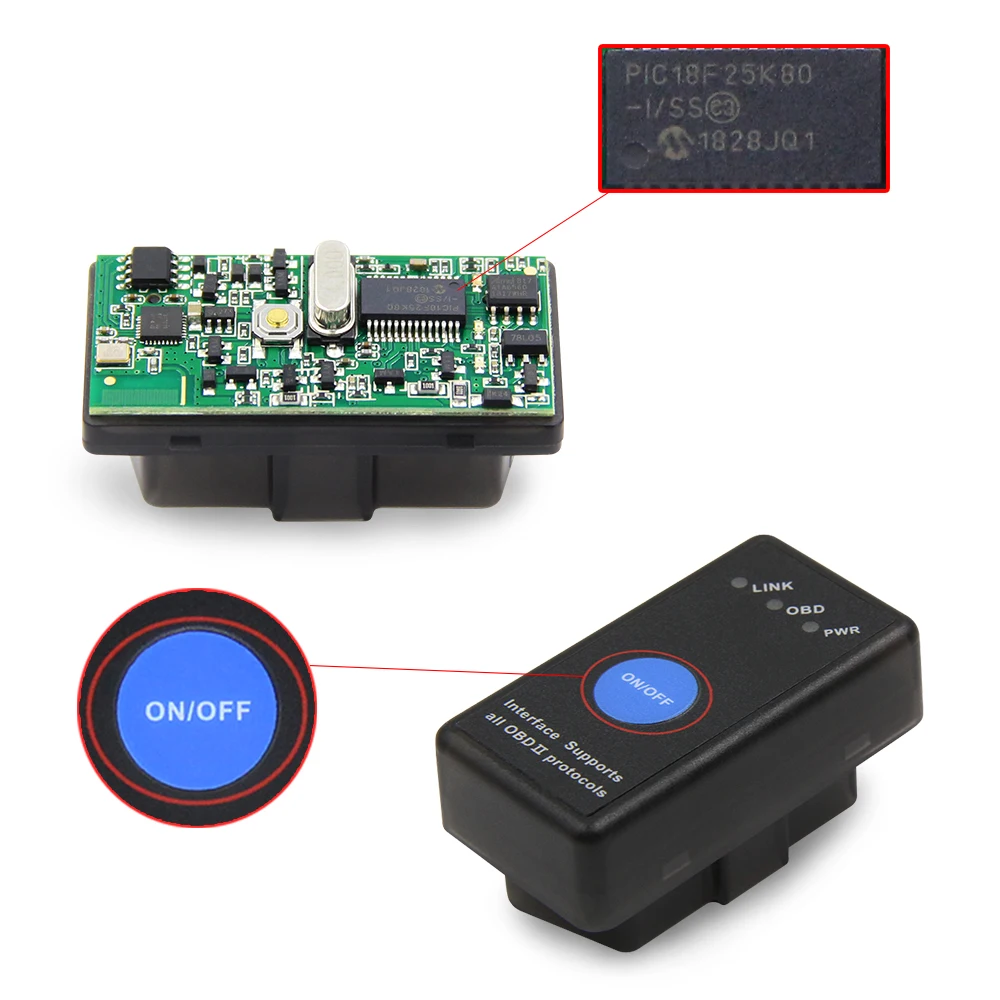

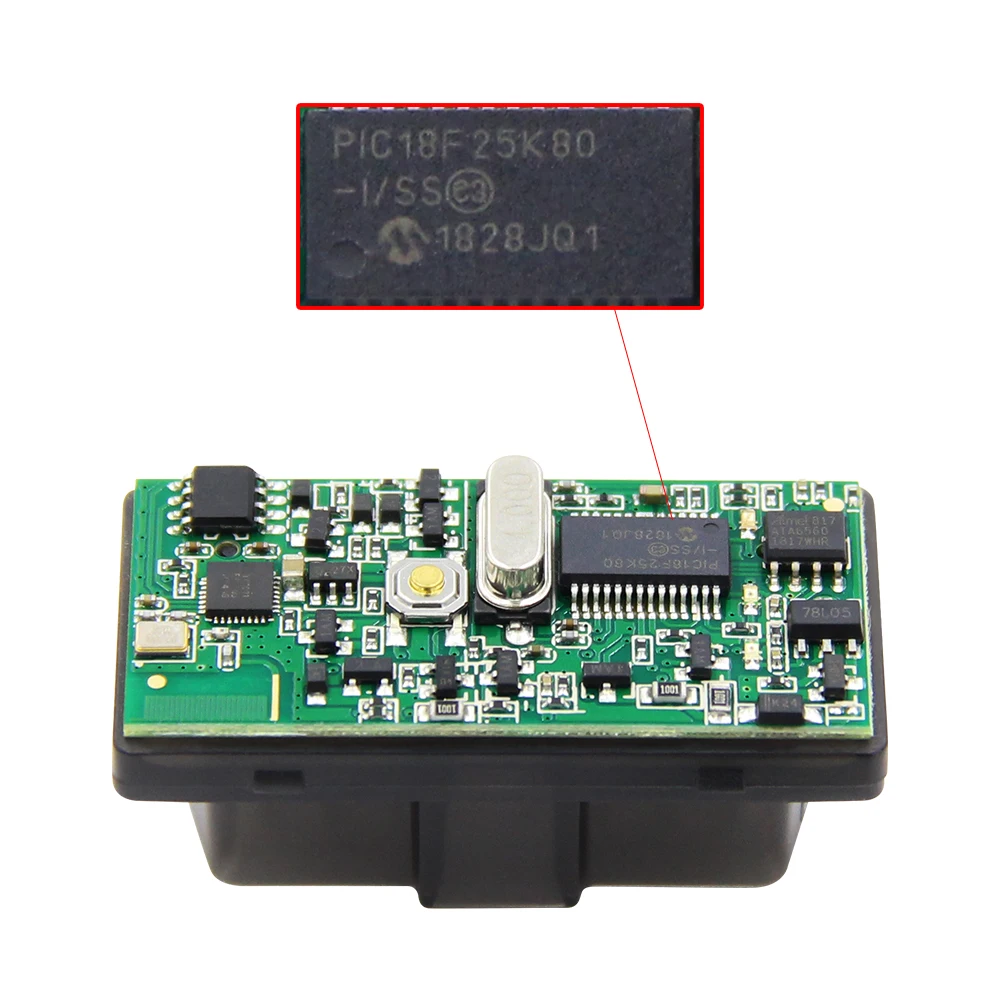

6.PIC18F25K80 Chip:

Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Mini OBD2 Wireless BT Scanner Specifications:

Communication: Wireless BT 2.0

Main Chip: PICI8F25K80

Support System: Android and Windows

Working Voltage: 9v ~ 16v

Working Current: 35mA

Standby Current: 25mA

Operating temperature: -40 ℃ ~ 85 ℃

Working Humidity: less than 60%

Size: 43mm * 25mm * 30mm

Compatible systems:

Software support platform: Windows XP, Windows 7/8, Android, Symbian .

Compatible software:

Window : ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

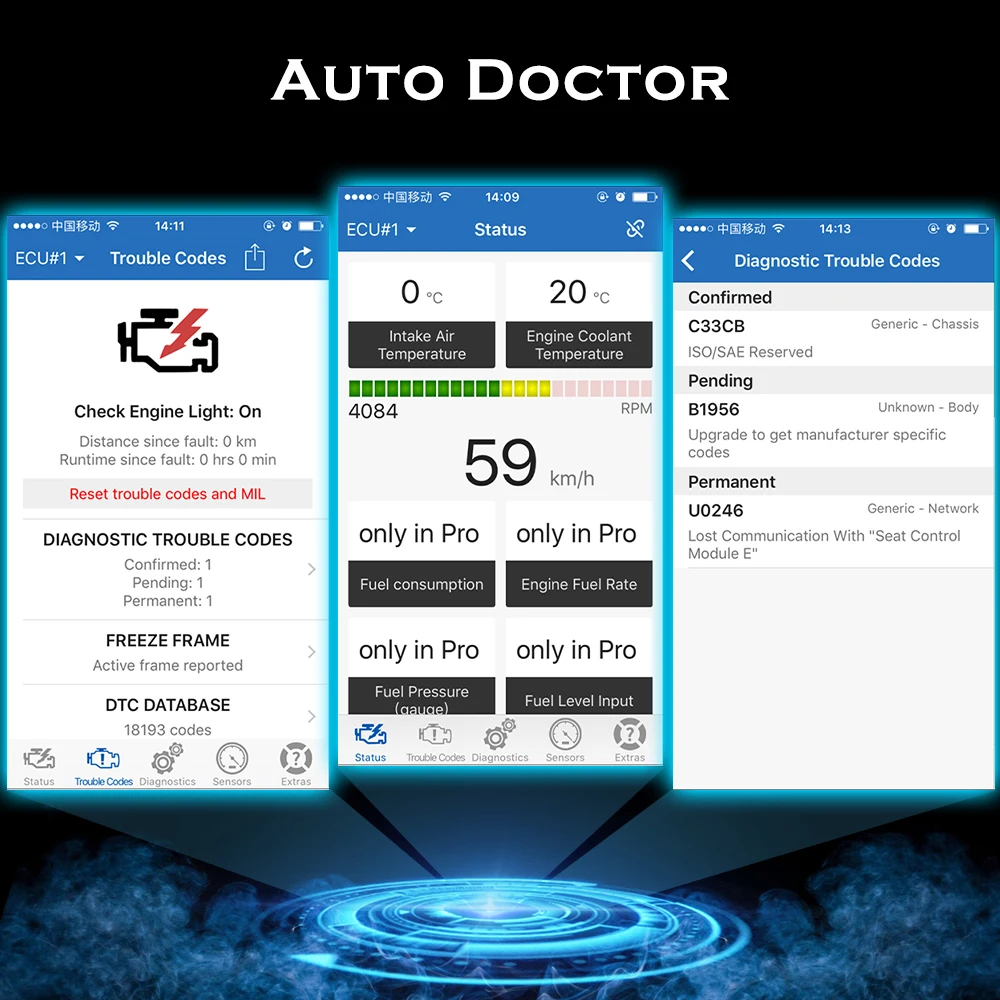

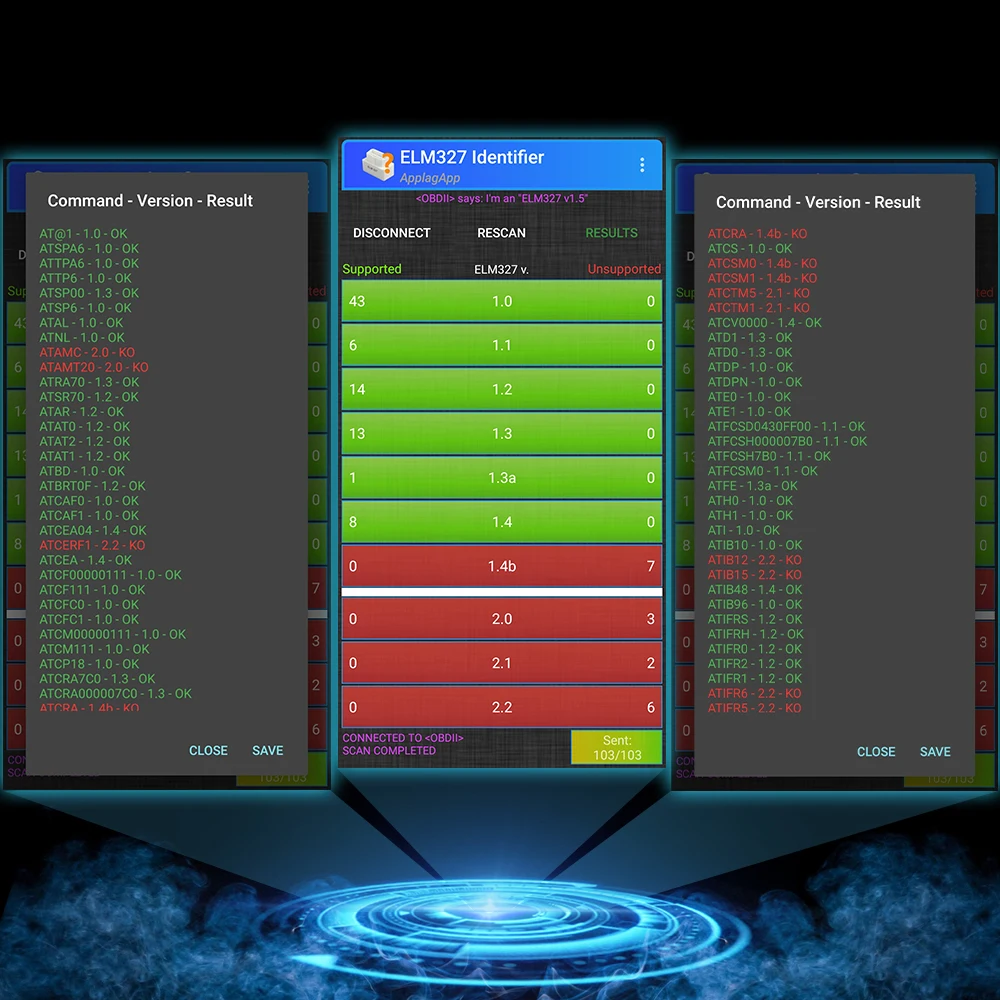

Android : Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, ELM327 Identifier, ELM327Chat etc.

Symbian : OBDScope

Super Mini ELM327 Wireless BT Functions:

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ( "Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure

19: Many others

Software download:

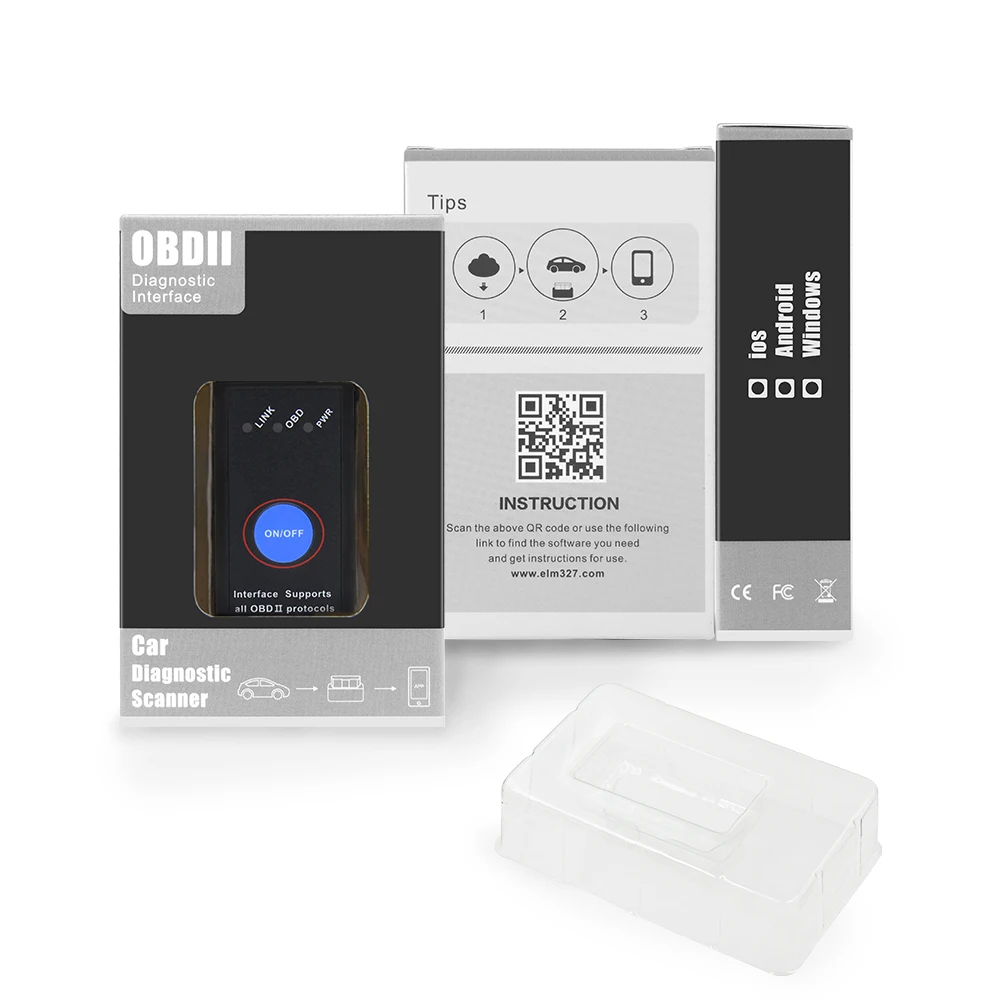

Package List:

1pc x Mini OBD2 Wireless BT Scanner with Switch button

Package:

box + carton box, or OEM as your request

Delivery Time:

3-7 working days for samples; 7-30 working days for bulk goods.
