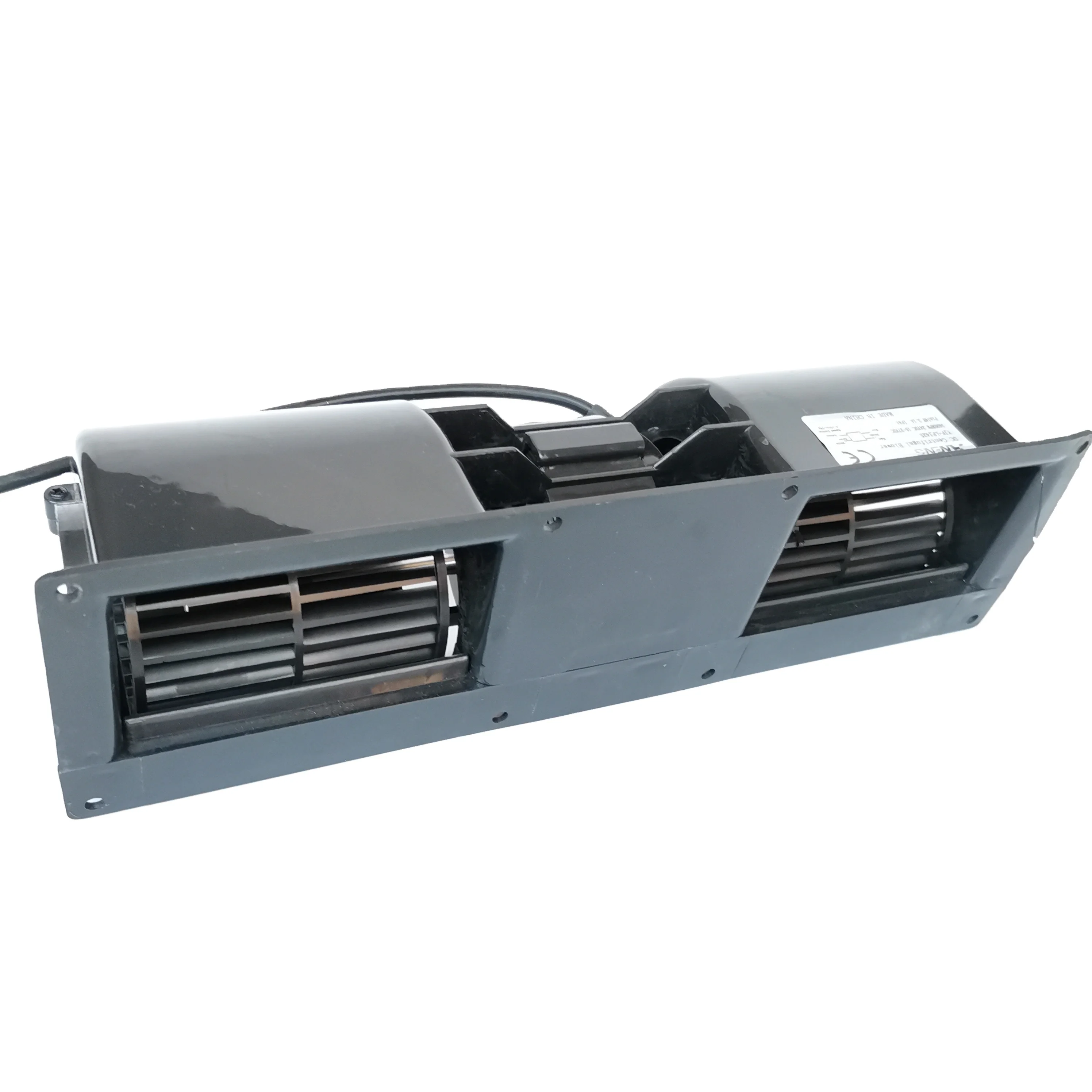

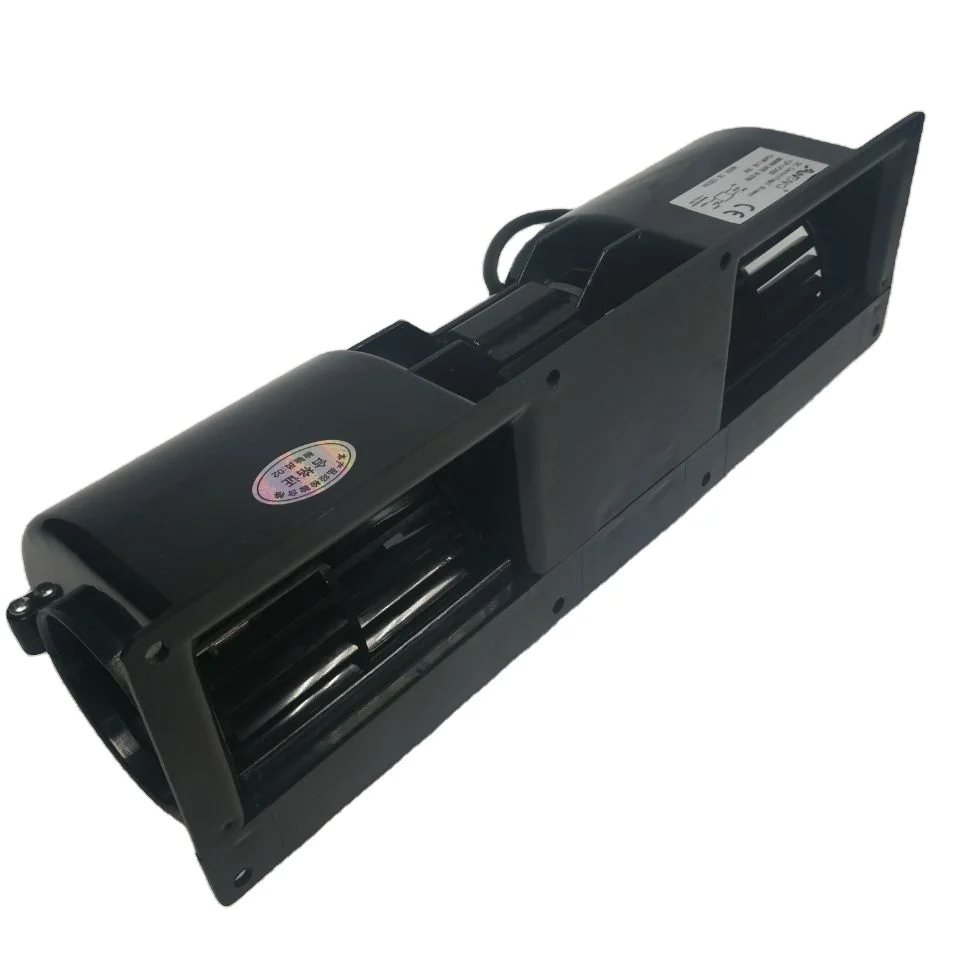

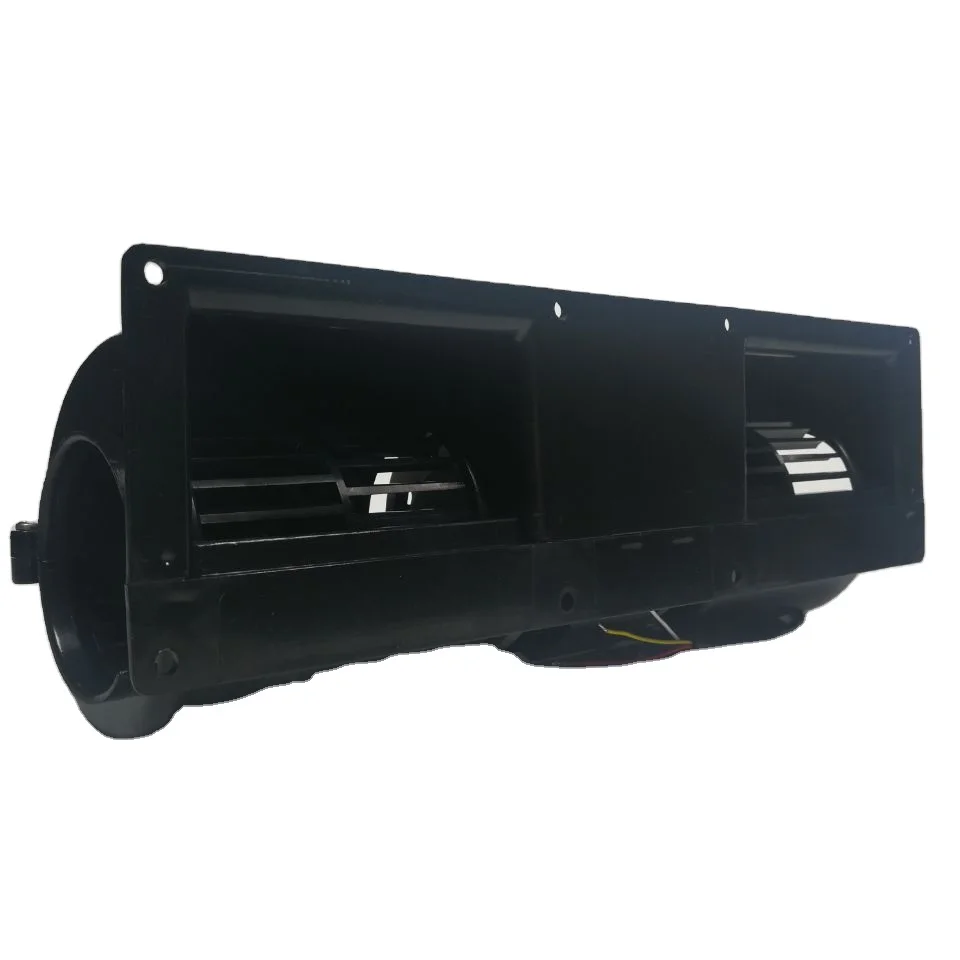

24v dc exhaust ventilation fan blower for air circulation
- Category: Centrifugal Fans >>>
- Supplier: Shanghai Anneng Fan Co. Ltd.
Share on (60776295908):
Product Overview
Description
Type: YJF-LFJ42SDC

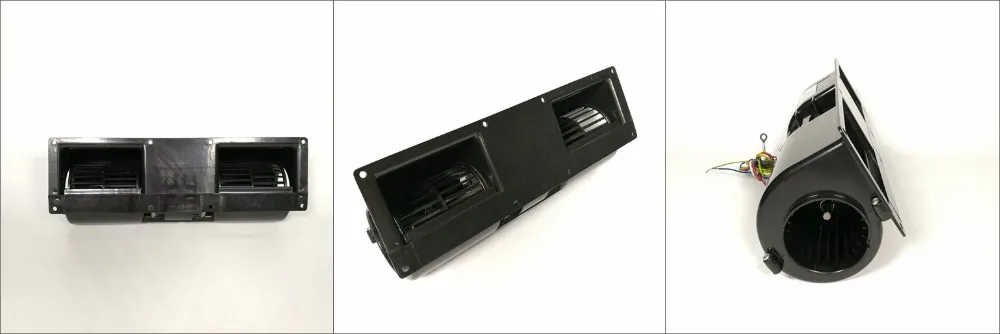

Product Pictures
(PS: ANNENG Reserved, Pirates Must Investigate.)
Product Datasheet
| Specification | |||||||
| Model Type: YJF-LFJ42SDC | |||||||
| Rated Voltage | Frequency | Rated Current | Input Power | Speed | Air Flow | Air Flow | Static Pressure |
| (VDC) | (Hz) | (A) | (W) | (RPM) | (CFM) | (m3/h) | (Pa) |
| 24 | 3.7 | 88 | 3400 | 351 | 597 | 335 | |
| Details Description | |||||||
| Current Leakage | <=3.5mA | ||||||
| Operation Mode | continuous operation S1 | ||||||
| Direction of Rotation | clockwise, seen on rotor | ||||||
| Mounting Position | at will | ||||||
| Insulation Class | "F" | ||||||
| Cable Length | 450mm | ||||||
| Bearing | ball bearing | ||||||
| Net weight | 2.5kg | ||||||
| Motor Protection | Thermal overload protector (TOP) brought out | ||||||
| Number of Blades | / | ||||||
| Type of Protection | IP44 | ||||||
| Approval | CE | ||||||
| Operate Life | >=40,000hours | ||||||
| Characteristic Curves | |||||||
 | |||||||

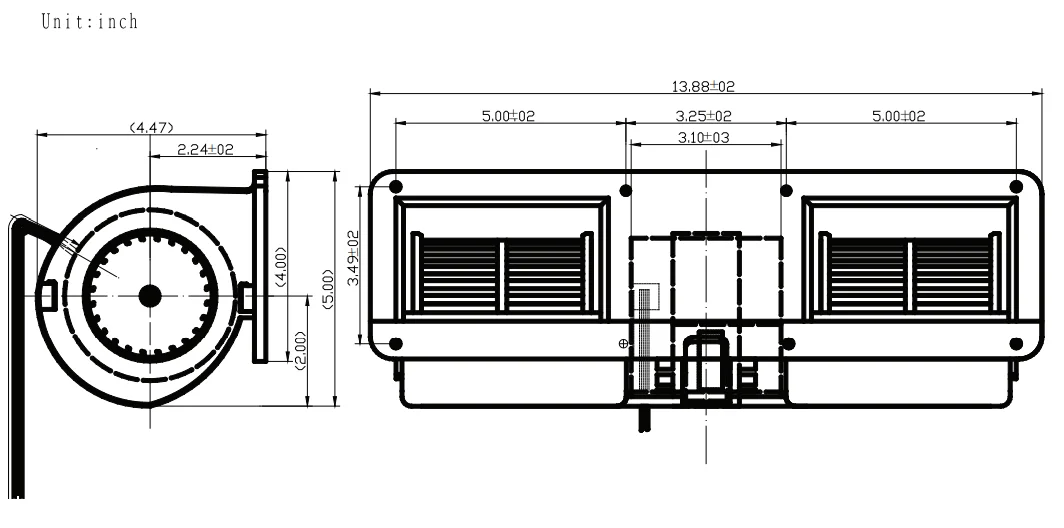

| Drawing | |||||||
| |||||||
Factory Display
Production Line
Packaging
1. for Sample, packing individually by foam carton; 2. for Mass, pallet package 120x100x120CM. |
 |
