TvbTech Pipe Drain Sewer Inspection Camera with 23mm Self Leveling Camera
- Category: Surveillance Products >>>
- Supplier: TVBTECH (Shenzhen) Co. Ltd.
Share on (60778257921):
Product Overview
Description
Product Description
Brief Introduction

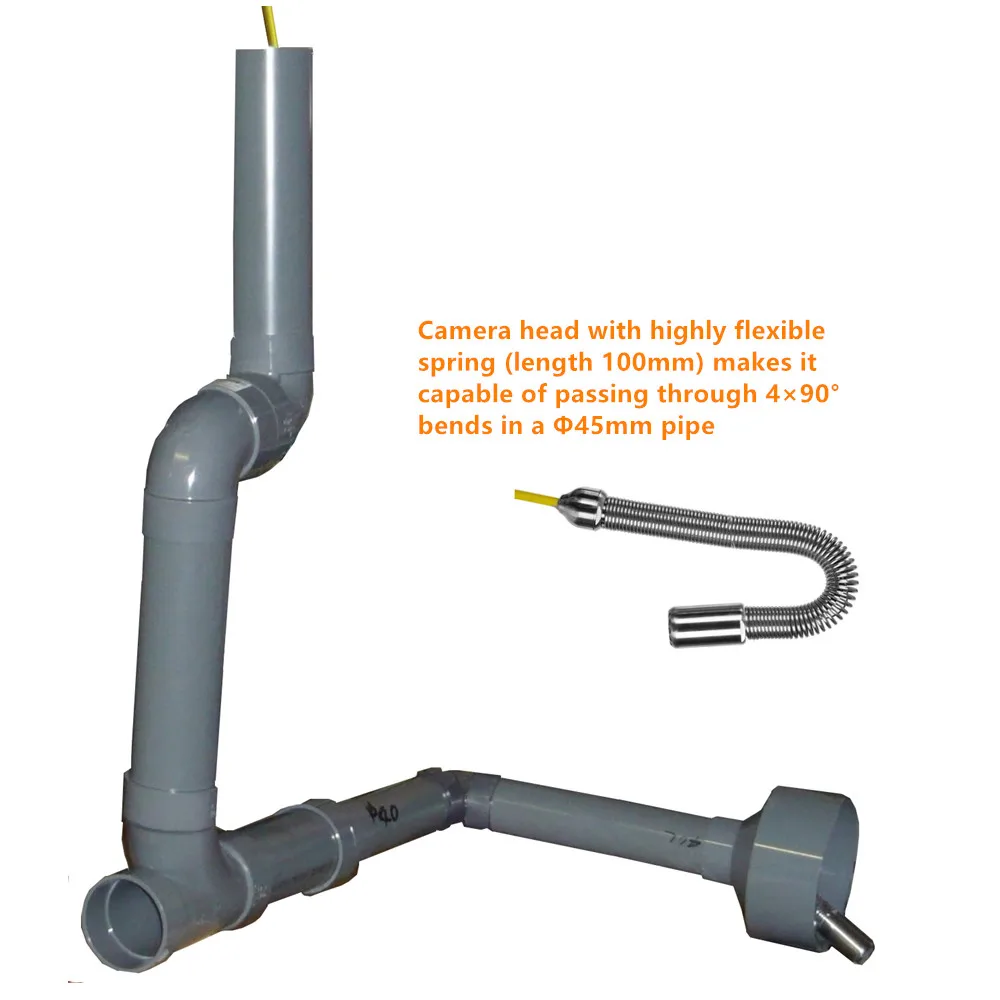

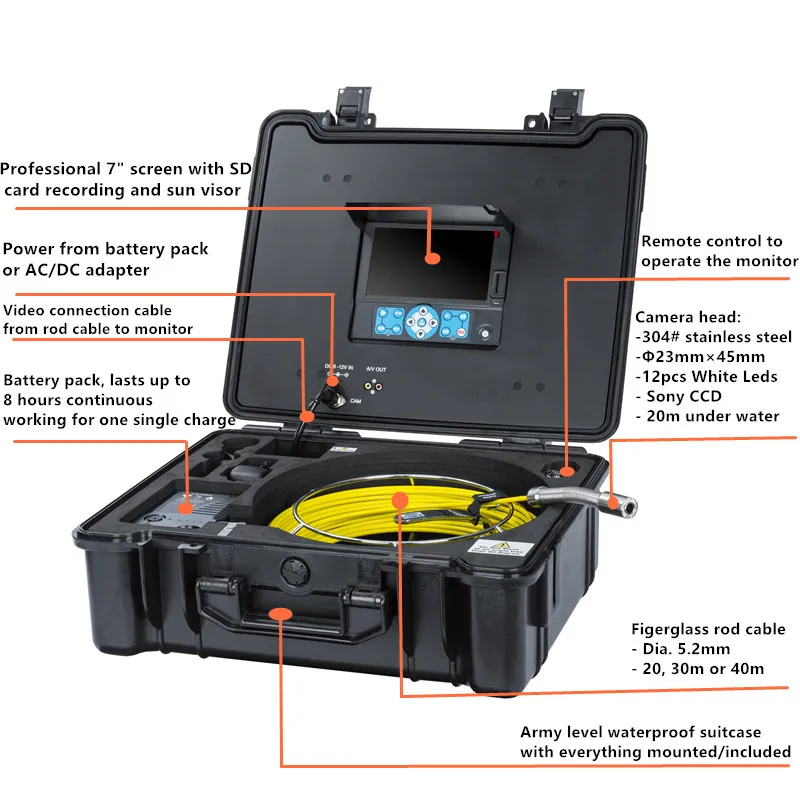

This is a Drain/Pipe Inspection Camera that comes with 23mm camera head, a 7inch LCD monitor with DVR, a 40m cable reel that is rotatable itself in the case, a heavy duty case that all parts included, etc. It can be easily pushed into a 45mm pipe and pass through 90 degree bends in a pipe. A best option for pipe DN 50-150mm
It’s widely used in Pipeline, Drain, Sewer, Duct, Chimney, Machinery and Building Inspection;
Main Features
1/3" Sony CCD camera, 120°wide vision angle, 752H * 582V pixels
- Camera Size Φ23mm×45mm（head only）
- Sapphire glass lens cover, 12 white LEDs
- Diameter of camera:23mm, Focus Distance 20cm (approx)
- Water proof level, 20m underwater (camera fix on cable)
- Push cable dia. 5.2mm
- 7” LCD color monitor
- SD Card slot to store still pictures or videos
- One push record button
- LED brightness control buttons
- Video image rotate button
- With microphone for audio recording
- Rechargeable battery lasts up to 8 hours
- On-Screen date and time
- 40m fiberglass push rod
- Rotatable cable reel mounted in case for convenient operation
- Waterproof ABS suitcase with all parts included
- Camera Size Φ23mm×45mm（head only）
- Sapphire glass lens cover, 12 white LEDs
- Diameter of camera:23mm, Focus Distance 20cm (approx)
- Water proof level, 20m underwater (camera fix on cable)
- Push cable dia. 5.2mm
- 7” LCD color monitor
- SD Card slot to store still pictures or videos
- One push record button
- LED brightness control buttons
- Video image rotate button
- With microphone for audio recording
- Rechargeable battery lasts up to 8 hours
- On-Screen date and time
- 40m fiberglass push rod
- Rotatable cable reel mounted in case for convenient operation
- Waterproof ABS suitcase with all parts included
Specs of Parts

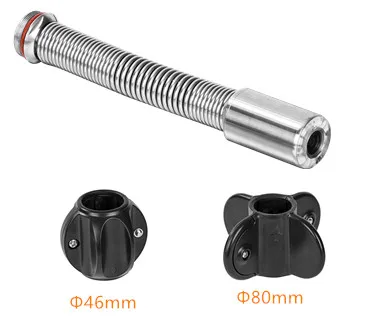

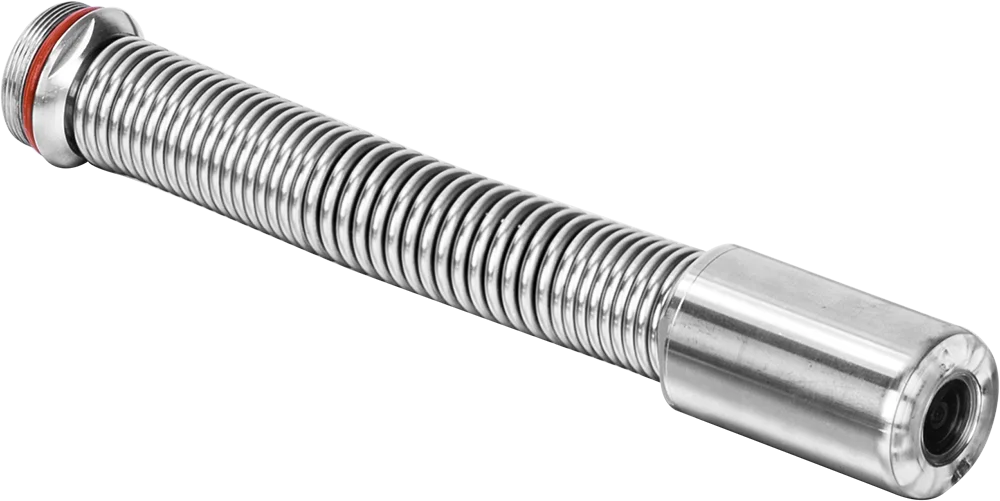

Camera Head
Camera Size: Φ23mm×45mm (head only)
Camera Total Length: 150mm（with spring)
Sensor: 1/3" Sony CCD, 480 TV-Line
Pixel: 752H * 582V
View Angle: 120°
Focus Distance: 20cm (approx)
Depth-of-Field: 100cm(approx)
Optional: Self-leveling, 512Hz sonde
Lens Cover: Sapphire glass
Water-Proof: 20m Under Water(Camera fix on Cable)
Shell Material: #304 stainless steel
Lighting: Built-in 12×LED(White)
Camera Total Length: 150mm（with spring)
Sensor: 1/3" Sony CCD, 480 TV-Line
Pixel: 752H * 582V
View Angle: 120°
Focus Distance: 20cm (approx)
Depth-of-Field: 100cm(approx)
Optional: Self-leveling, 512Hz sonde
Lens Cover: Sapphire glass
Water-Proof: 20m Under Water(Camera fix on Cable)
Shell Material: #304 stainless steel
Lighting: Built-in 12×LED(White)

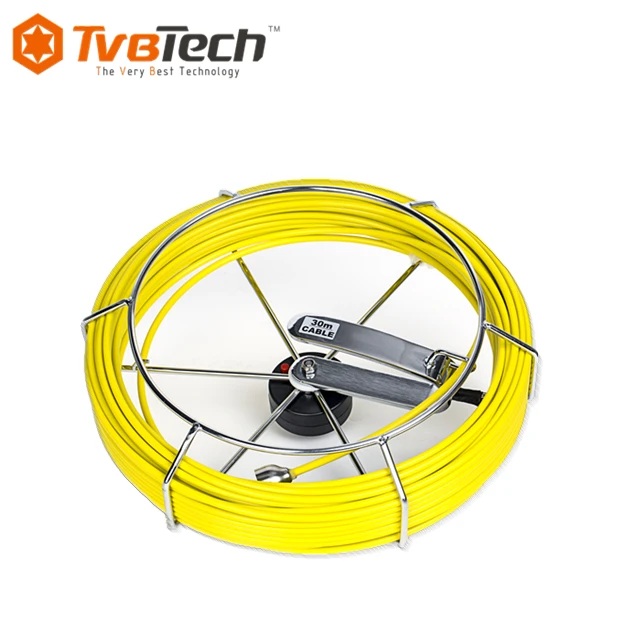

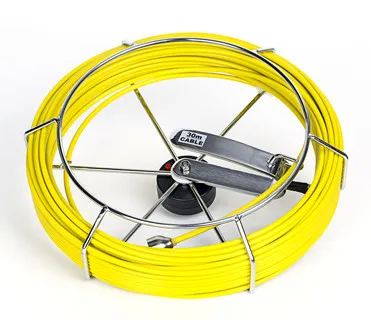

Cable Reel
Length: 20m, 30m or 40m
Dia. of push cable: 5.2mm
Material of cable: Fiberglass covered by PP
Optional Features: Meter Counter and Keyboard
Operation: Mounted and rotatable in the case

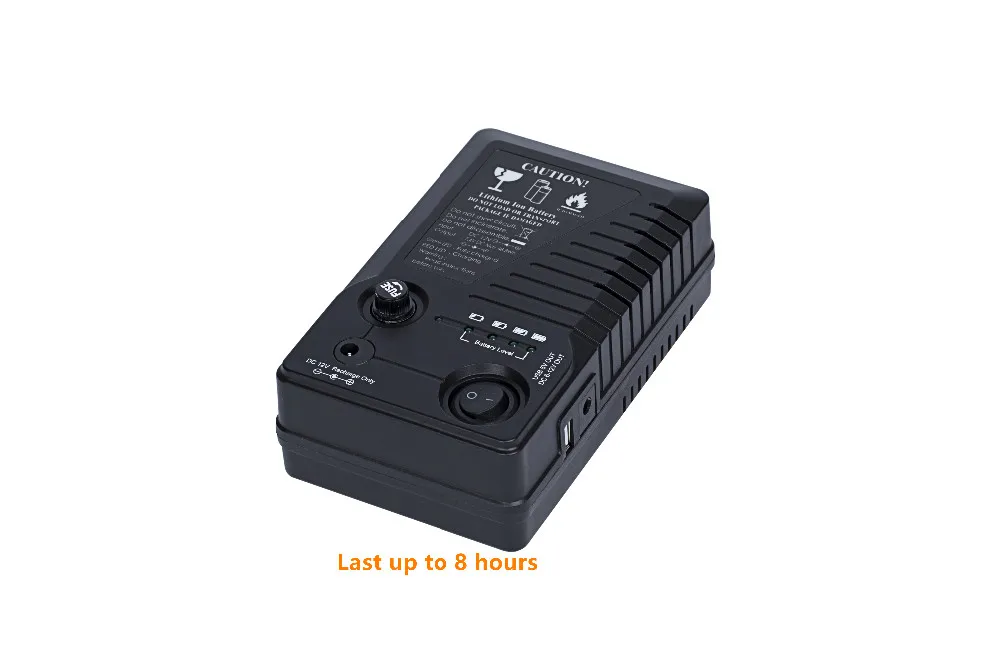

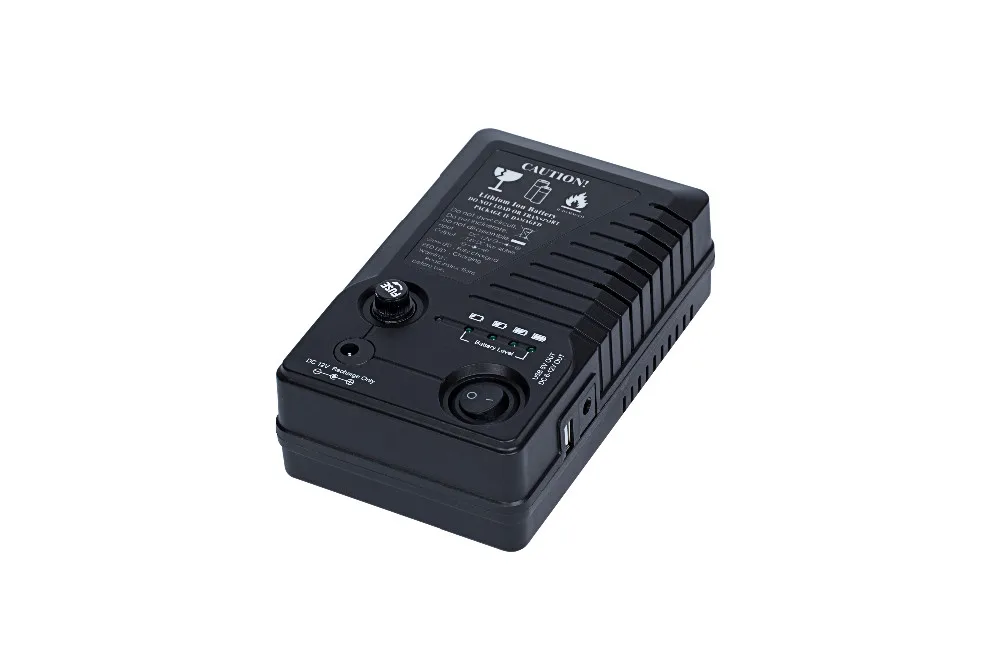

Battery Pack
Power Input: DC 9V-12V
Battery Capacity: 7.4V 6600mAh Li-on Battery
Power Output: 6-12V DC, USB 5V
Work/Charge time: 8 hours

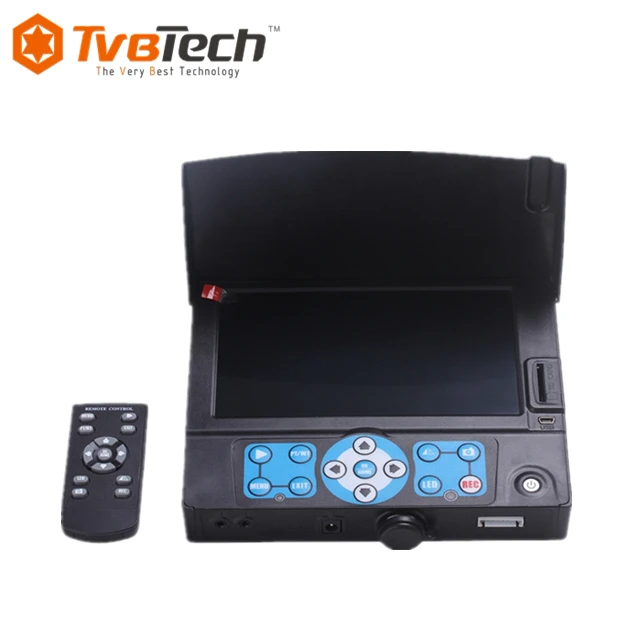

LCD Monitor
Screen: 7-inch 16:9 Super bright HD color LCD screen
Video Resolution: PAL 720*576 25fps Max.
Photograph: 720*480/720*576
External memory: support SD memory card up to 32GB
Audio Recording: local sound record
On-screen date and time
On-screen meter/ft. distance display(optional)
Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguses
Packing & Delivery
Packaging | ||
Size | 55 (L) * 26 (W) * 49 (D) | |
Weight | 10kg (approx.) | |
Packaging Details | One unit in one suitcase One suitcase in one maston carton | |
Our Advantages
Sony CCD Sensor
Sony CCD Sensor has higher resolution
picture quanity then Sharp CCD or CMOS
sensor used by our competitors.
Better quality rod cable then competition
Not so easy to be snapped when bending to an angle.
Welcome to test and verify.
Battery pack lasts longer hours
Our battery pack lasts up to 8hrs, compared with 4-5hours of competitor's camera
Welcome to test and verify.
Slip Ring
We use real Slip Ring for cable reel rotation
Our competitors are still using gold pins
Slip Ring is much much more durable
Cable reel is sit and rotatable in the case
You don't have to take out and hold the cable reel with your hands
More convenient operation
Operation Buttons
Professional and easy to use push buttons
on LCD monitor; compared with one row hard to recognize buttons of competition models
About Us
About TvbTech
Established in 2008, TvbTech Co., Ltd. is an expert in designing, R&D, manufacturing and exporting of Inspection cameras. Our main products
are pipe inspection cameras, camera locators, articulating video borescopes, etc. Everything we produce is in compliance with all FCC, CE, and
RoHS & WEEE Directives.

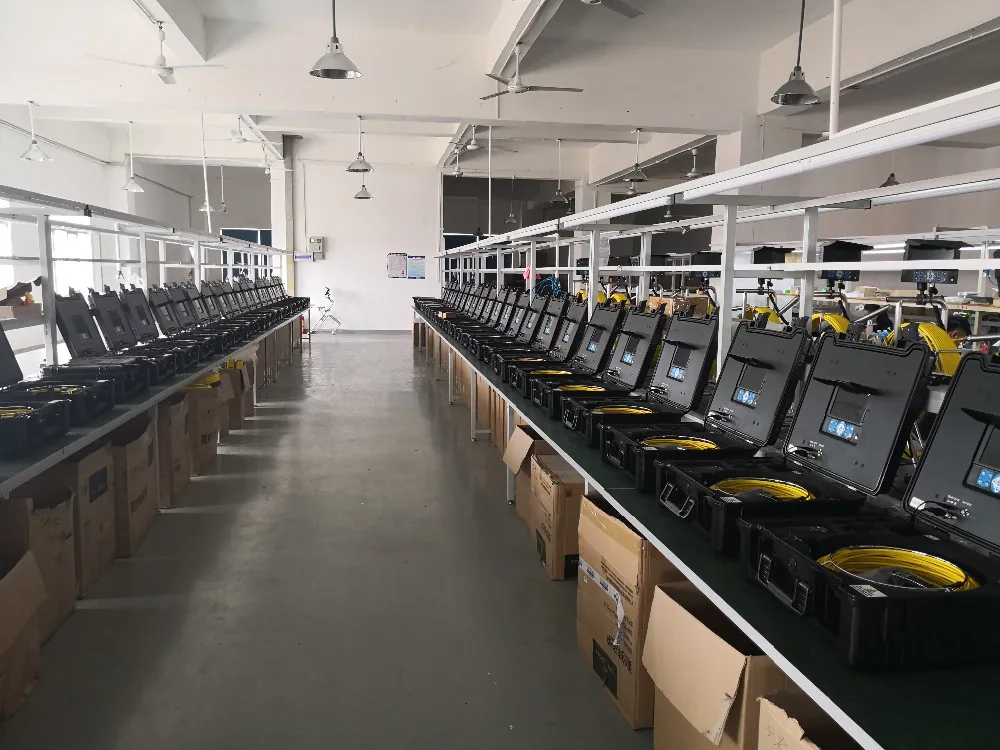

As the leading manufacturer in this industry on Mainland China, we operate in a 1500 m2 factory located in Shenzhen. We aim to become a first-class provider of pipe inspection cameras with world renowned quality and stability products, which strives us to keep investing and focusing on product quality control.
TvbTech has also already been recognized as a strategic partner of many OEM/ODM businesses. We have highly experienced team to work on
your OEM/ODM projects. Our experience and great service have won us good business relationships with many international buyers and
suppliers.
Our products are sold to many countries across the world including Europe, North America, Japan, Korea, Australia, etc. We welcome you to
become our next reseller, or agent in your country.
We take part in many trade shows located in North America, Europe, Etc, here are some of the images.
