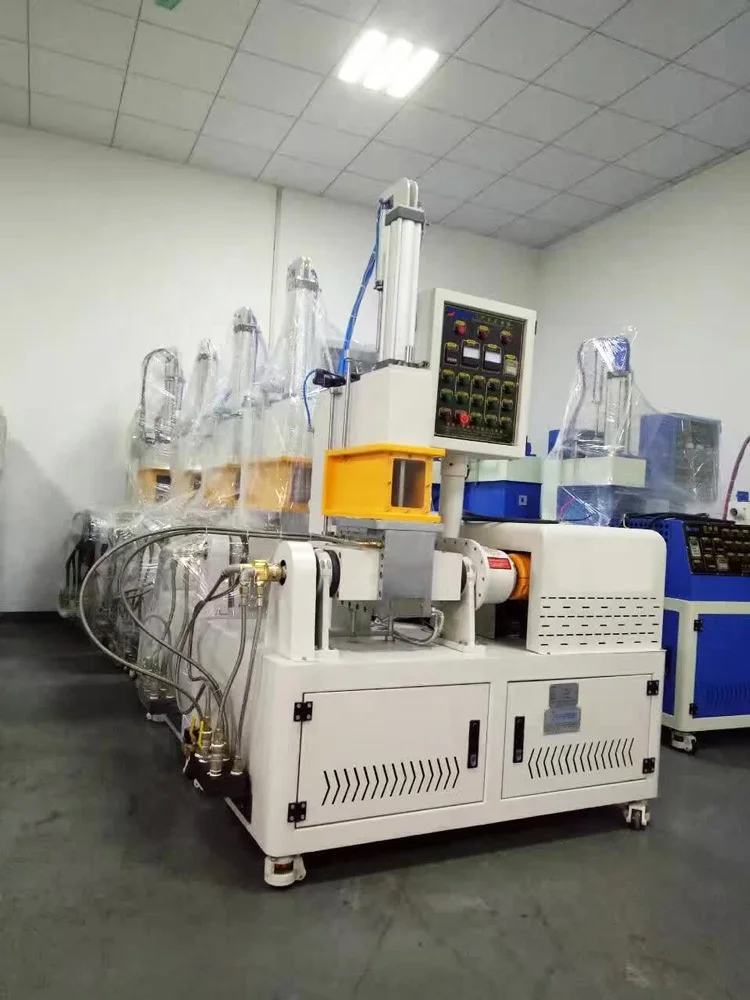

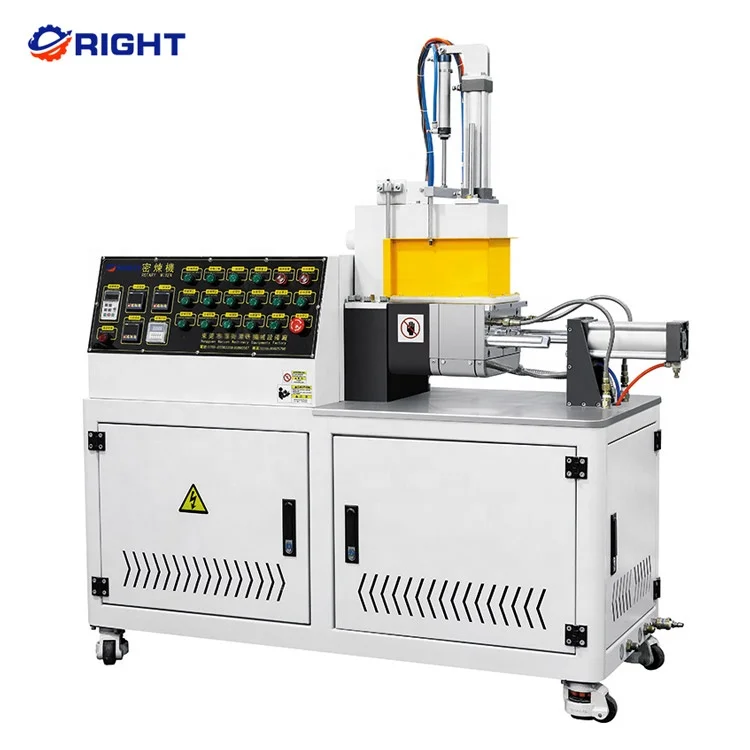

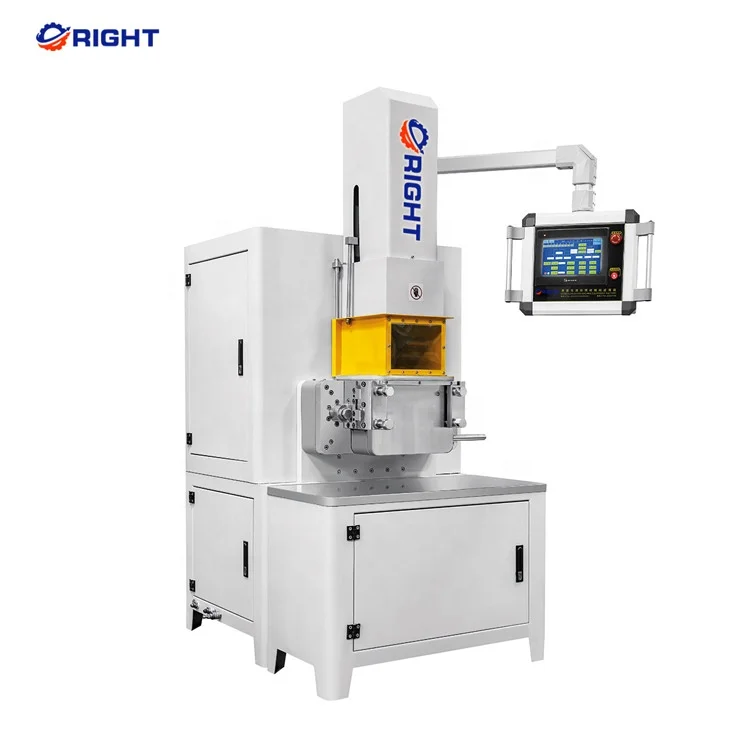

Lab Rubber Mixer Dispersion Kneader Mixer
- Category: Internal Mixers >>>
- Supplier: Dongguan Right Instrument Co. Ltd.
Share on (60778472785):
Product Overview
Description
Product Description
RT-120 Lab Banbury Internal Mixer 0.5L/1L/3L/5L/10L/20L mixer
Features and USES :
(special for laboratory)Test out the quality and color that meet the requirements, and then use the experimental results and formulas in the production line.
This sealed mixing tank can not only ensure the mixing items, but also prevent environmental pollution;
The machine is durable, low failure rate, easy installation, operation and maintenance, electricity saving.
Applicable products:
can automatically control the temperature and time system, the operation is accurate and simple, mixing can achieve the best dispersion and uniformity;
The mixing tank can be poured, and the mixing shaft adopts dry mechanical shaft seal to prevent leakage, which makes the cleaning and color changing simple and easy.
The mixing tank can be poured, and the mixing shaft adopts dry mechanical shaft seal to prevent leakage, which makes the cleaning and color changing simple and easy.
This sealed mixing tank can not only ensure the mixing items, but also prevent environmental pollution;
The machine is durable, low failure rate, easy installation, operation and maintenance, electricity saving.
Applicable products:
ceramic powder, metal powder, EVA foaming sole.
Rubber sole.TPR sole.
Rubber roller. Rubber sponge.
Tires. Sports balls, etc
Product use:
Rubber sole.TPR sole.
Rubber roller. Rubber sponge.
Tires. Sports balls, etc
Product use:
electronic products, rubber, plastic and chemical raw materials mixed refining processing, lightweight, energy conservation and environmental protection of modern rubber refining, plastic refining equipment.
Specification
Product Name | Laboratory Banbury Rubber Internal Mixer |
Volume | 1L/3L/5L/10L/20L |
Drive motor | 3.75KW |
Turning motor | 0.2KW |
Turning angle | 110° |
Air compressor | 2.2kw |
Water cooling | 0.2-0.4Mpa |
Electric heating | 1kw |
Power | 50HZ, ~220V±10% |
Product Details
Speed reducer: adopts helical hard tooth surface reducer, with high torque, low noise, and a forced lubrication circulation system
Unloading: Driven by turning brake motor. 400W adopts brake motor
Flip angle: 110°~135°
Front and rear speed ratio: 1: 1.17
Front rotor speed: 47 revolutions per minute
Rear rotor speed: 34 revolutions per minute

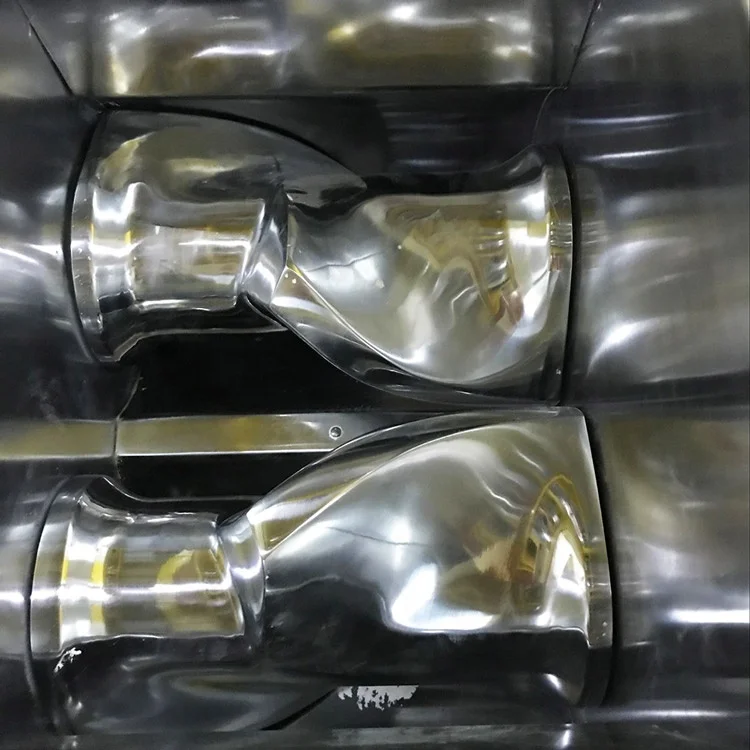

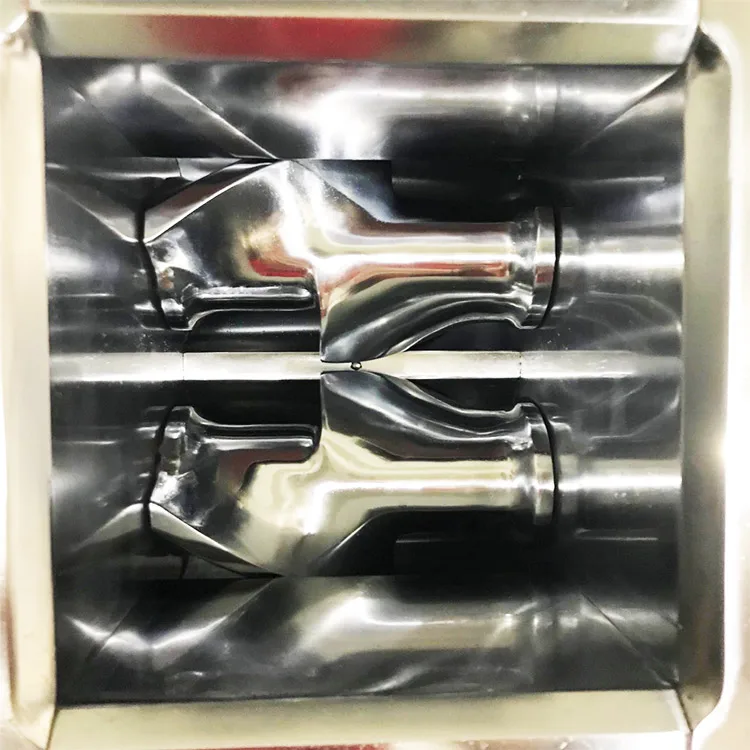

Rotor: Four-sided
Heating temperature control range: room temperature ~ 300℃
Anti-powder leakage device: Adopting secondary corner design, sealing ring adopts imported resin fiber, the mixing tank is made of alloy steel with hard chromium plating on the surface.
Rotor material: alloy steel-high precision polishing-carburizing-hard chromium plating on the surface.
Rotor axis: 38CrMoALA nitriding surface treatment hardness HRC 58~65.
Pour gear and gear shaft: use alloy copper, and secondary treatment.
Heating part: The electric heating tube is imported from Taiwan, heating power: 6kW, the maximum temperature is 300℃, and the temperature is set according to the material requirements.
Cooling method: Tap water circulating cooling, the rotor, mixing chamber, all have water cooling to assist in cooling.
Face wall: The surface of steel structure drilled hole is surfacing welded, hard chrome plated and polished.
Bracket: Steel structure, inner surface surfacing welding, hard chrome plating and polishing treatment
Top bolt: Cylinder drive, hard chrome plated on the surface
End face seal: The sealing ring is made of high wear-resistant material, no powder leakage
Feeding method: According to the needs of the compound, it can be divided into multiple feeding, manual and automatic control. Control mode: manual operation, semi-automatic, and automatic operation;
Unloading: Driven by turning brake motor. 400W adopts brake motor
Flip angle: 110°~135°
Front and rear speed ratio: 1: 1.17
Front rotor speed: 47 revolutions per minute
Rear rotor speed: 34 revolutions per minute
Rotor: Four-sided
Heating temperature control range: room temperature ~ 300℃
Anti-powder leakage device: Adopting secondary corner design, sealing ring adopts imported resin fiber, the mixing tank is made of alloy steel with hard chromium plating on the surface.
Rotor material: alloy steel-high precision polishing-carburizing-hard chromium plating on the surface.
Rotor axis: 38CrMoALA nitriding surface treatment hardness HRC 58~65.
Pour gear and gear shaft: use alloy copper, and secondary treatment.
Heating part: The electric heating tube is imported from Taiwan, heating power: 6kW, the maximum temperature is 300℃, and the temperature is set according to the material requirements.
Cooling method: Tap water circulating cooling, the rotor, mixing chamber, all have water cooling to assist in cooling.
Face wall: The surface of steel structure drilled hole is surfacing welded, hard chrome plated and polished.
Bracket: Steel structure, inner surface surfacing welding, hard chrome plating and polishing treatment
Top bolt: Cylinder drive, hard chrome plated on the surface
End face seal: The sealing ring is made of high wear-resistant material, no powder leakage
Feeding method: According to the needs of the compound, it can be divided into multiple feeding, manual and automatic control. Control mode: manual operation, semi-automatic, and automatic operation;
