12PSB III DIESEL PUMP TEST BENCH
12PSB-III DIESEL PUMP TEST BENCH
12PSB-III DIESEL PUMP TEST BENCH

12PSB III DIESEL PUMP TEST BENCH

Share on (60778522041):


Price:

Quantity:


Product Overview

Description


Product Description

Main function:

1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.
10. Checking the sealing of injection pump body
11.Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.
12. Checking the travel of stroke (on request) USD150.00
13. Advance angle checking.



\t
SPECIFICATIONS OF DIESEL PUMP TEST BENCH
\t

Engine
\t
Engine model
\t
Kw/rpm
\t
7.5, 11, 15, 18.5 22/4000
\t
No. of cylinders
\t
cylinders
\t
12
\t
Power of fuel pump motor
\t
KW
\t
0.75
\t

Main performance parameters
\t
Stroke Counting
\t
RPM
\t
0-9999
\t
Standard injectors
\t
\t
PB55ST42
\t
Height of principal axis center (mm)
\t
MM
\t
125
\t


\t
Volume of big and small volumetric cylinder（ml）
\t
ML
\t
150  45
\t
Volume of fuel tank(L)
\t
L
\t
40
\t
DC power supply
\t
V
\t
12, 24
Characteristics:

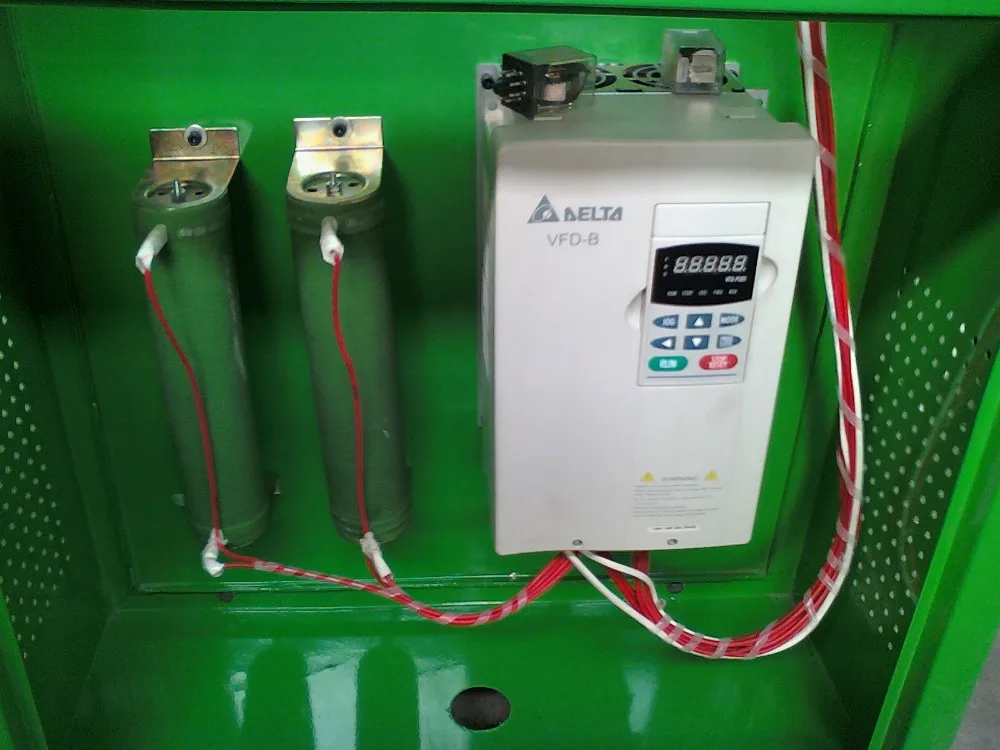

1. Changing frequency changing rotational speed
2. Low fall of rotational speed and high output torque
3. High measurement precision;
4. The functions of over voltage, overload and short circuit protection;
5. Ten classes Rotation speeds presetting;
6. Constant temperature controlled;
7. Ultra low noise;
8. Operating position: arbitrary side of the two work sides of the test stand;

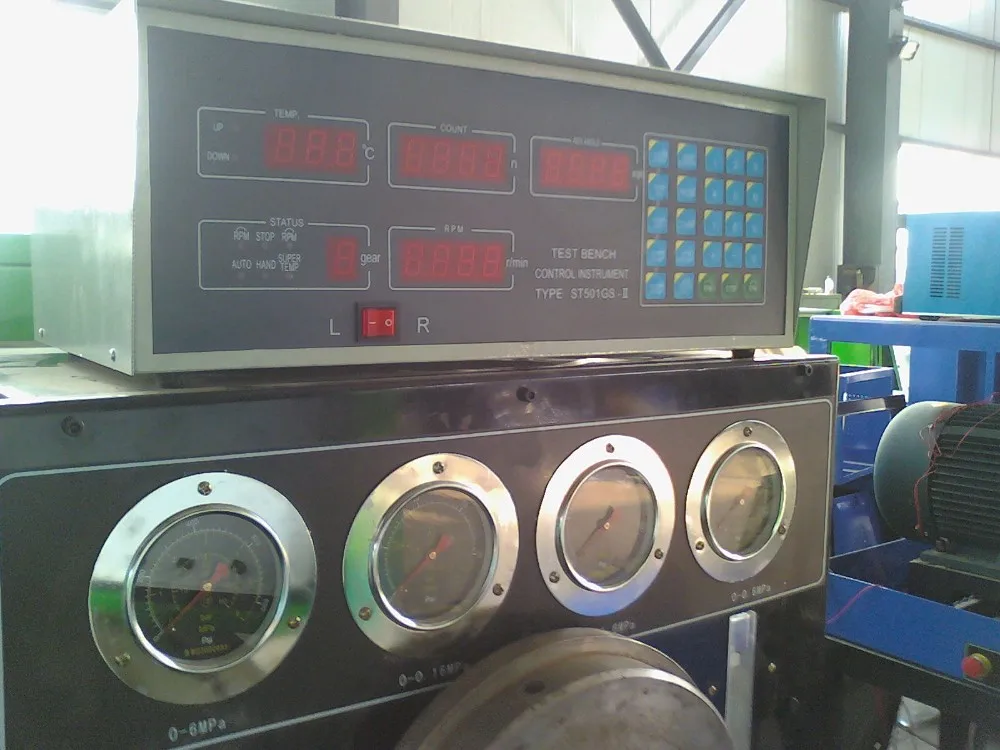

9. Rotation speed, count, temperature, air pressure, advance angle are measured and controlled by computers in real time, then displayed by 17″CRT or on request (17 LCD touch screen).
10. Built-in air resource;\t
11. All data can be made into reports and printed;
12. Automatically generating and displaying speed characteristics curve; ( tooth bar stroke function on request)
13. The data of the pumps can be saved, modified and obtained pump database;
14. It is very easy to find the data of the pumps in pumps database;


Details
Detailed Images

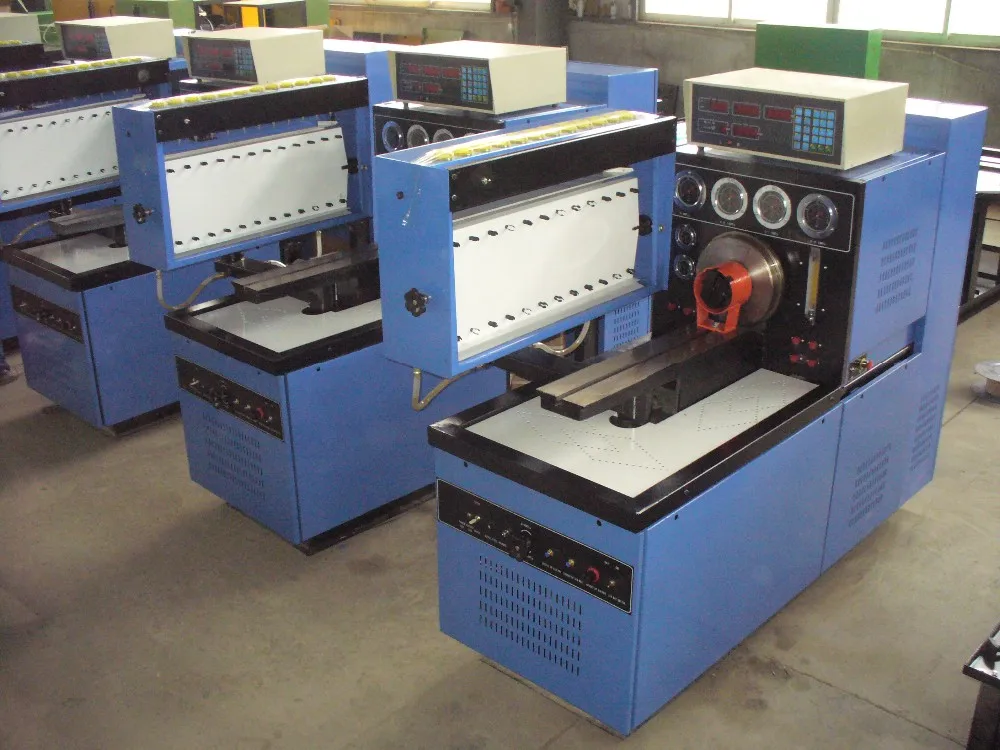

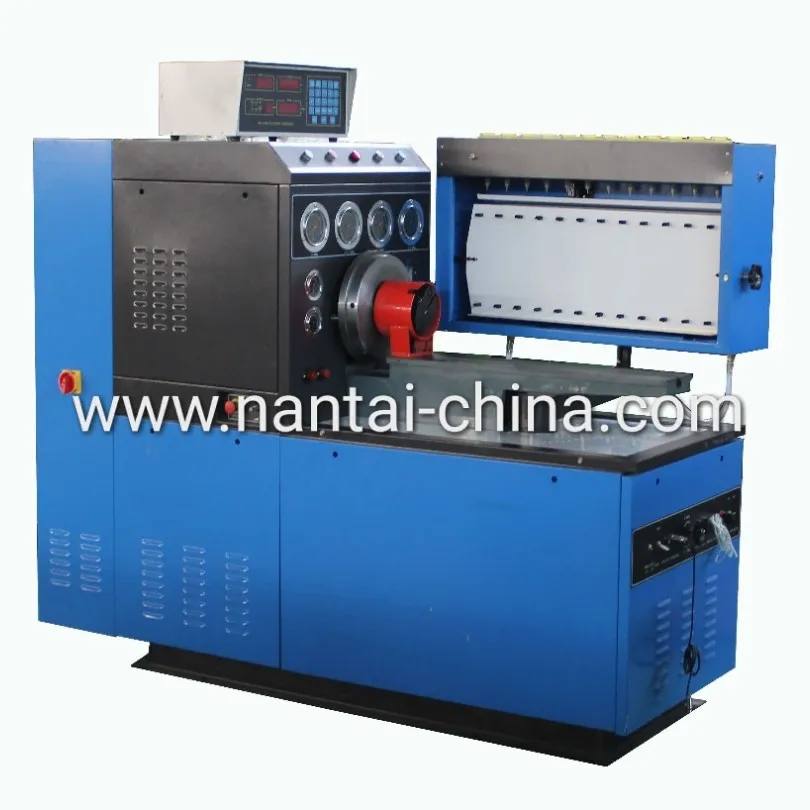

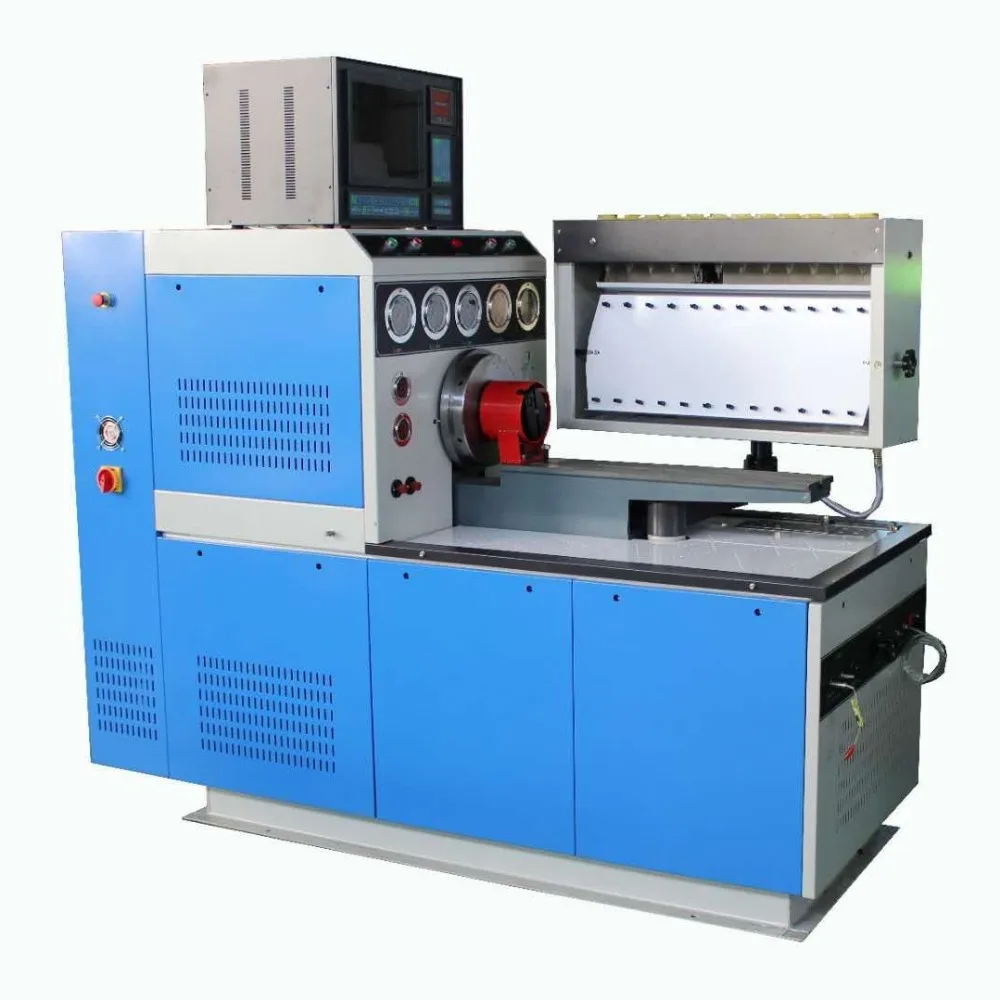

COLOR: BLUE

12PSB-III

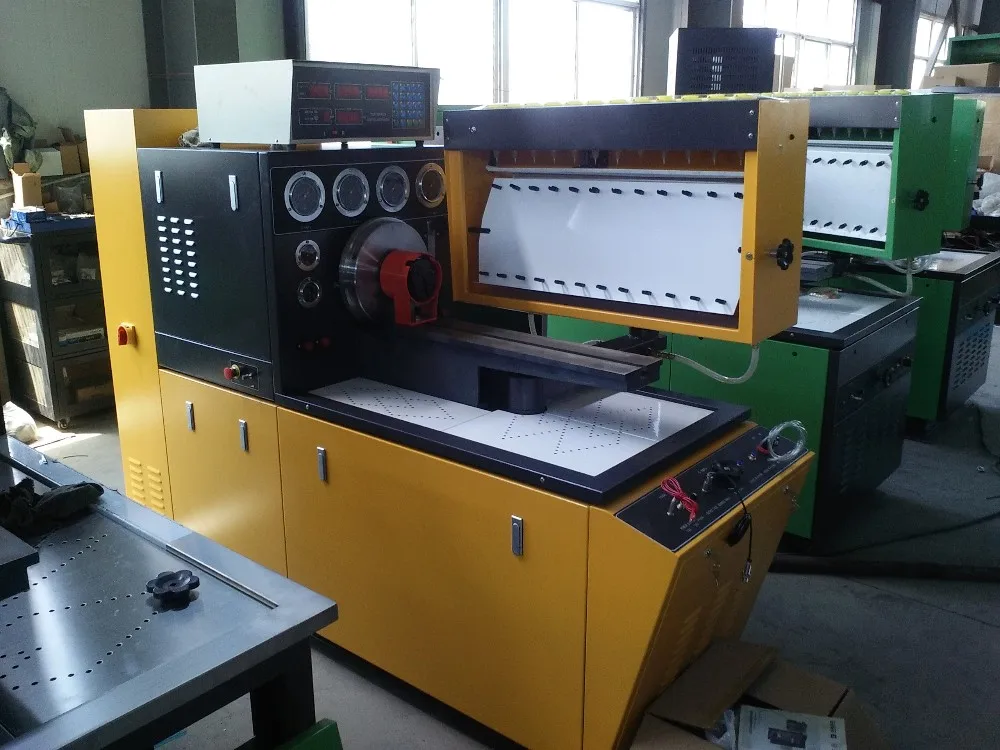

COLOR: YELLOW

12PSB-II

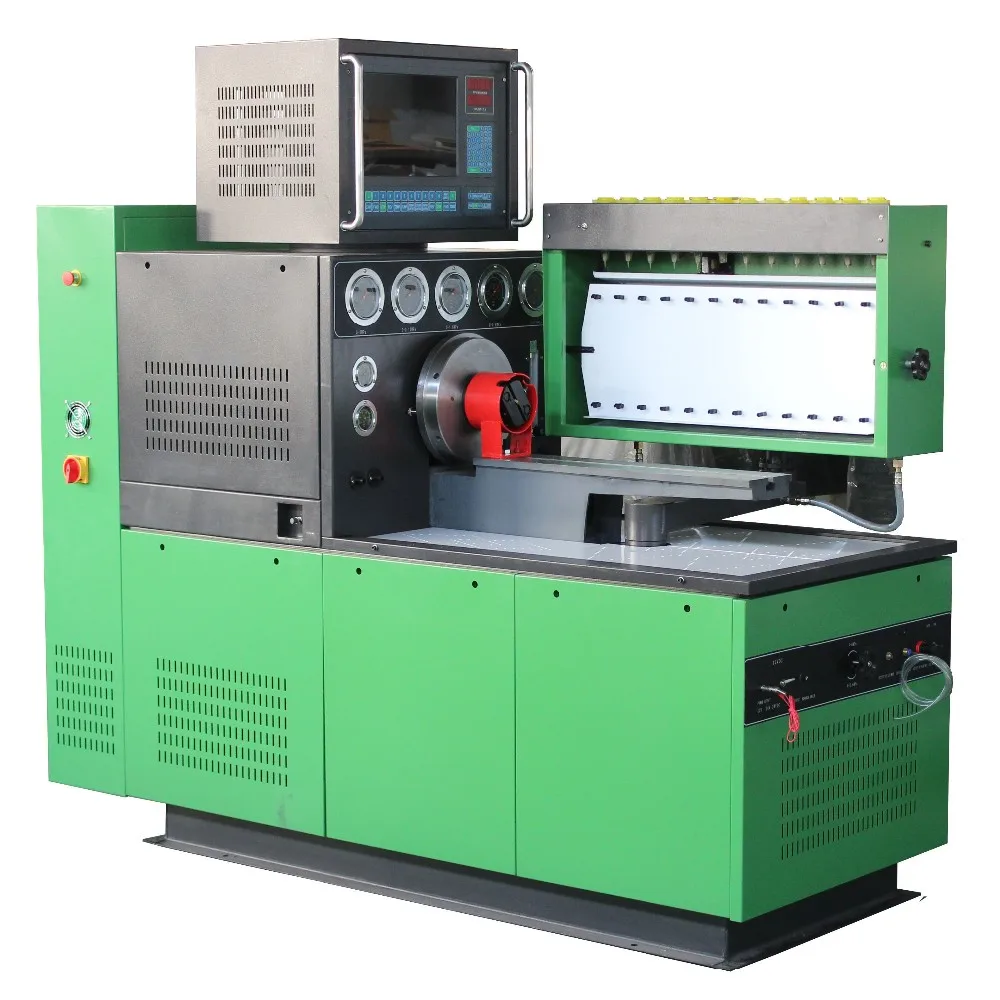

12PSDW

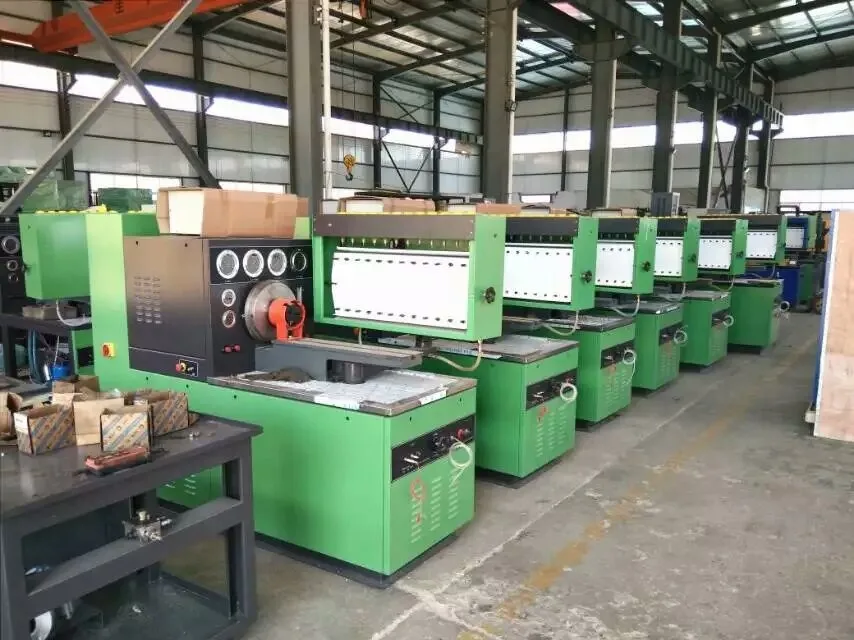

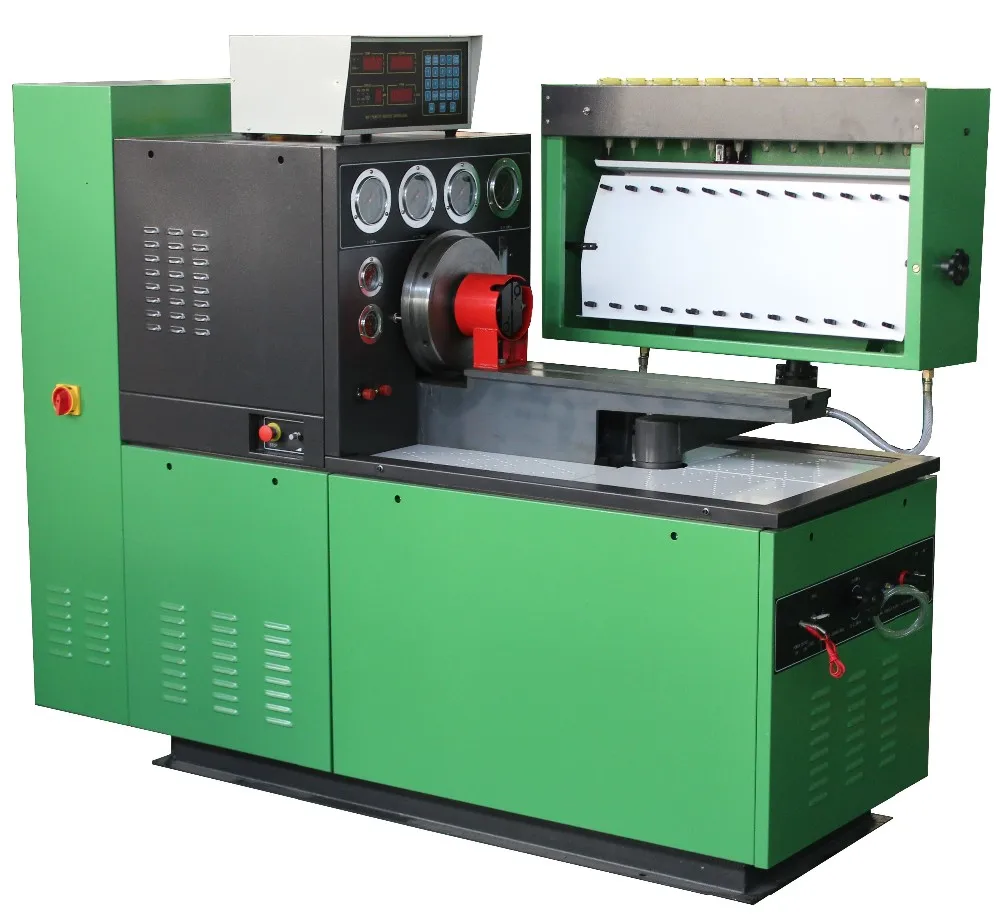

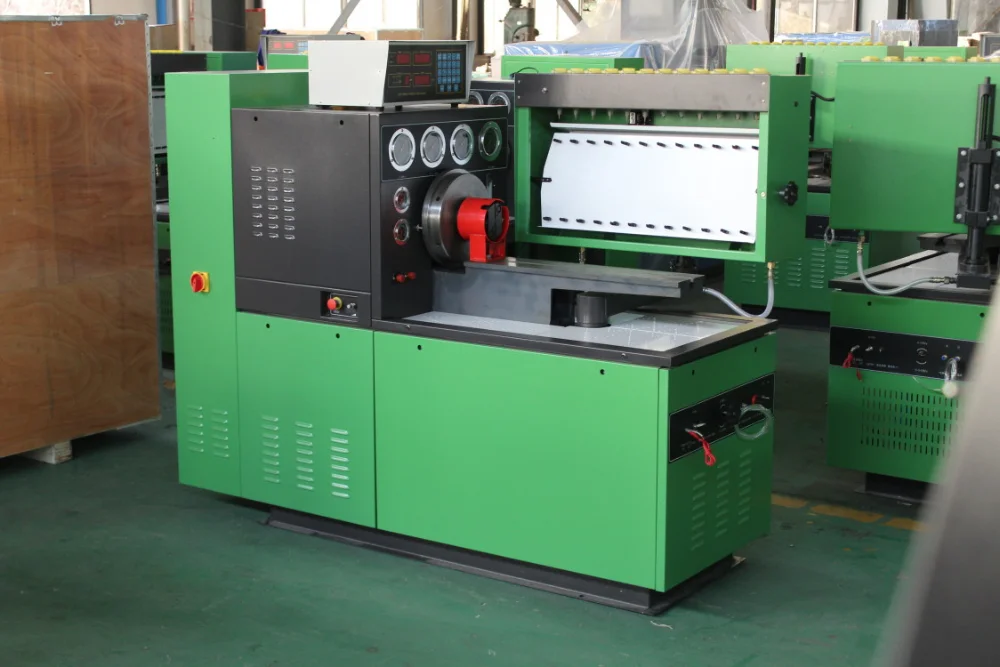

COLOR: GREEN

12PSB-III


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

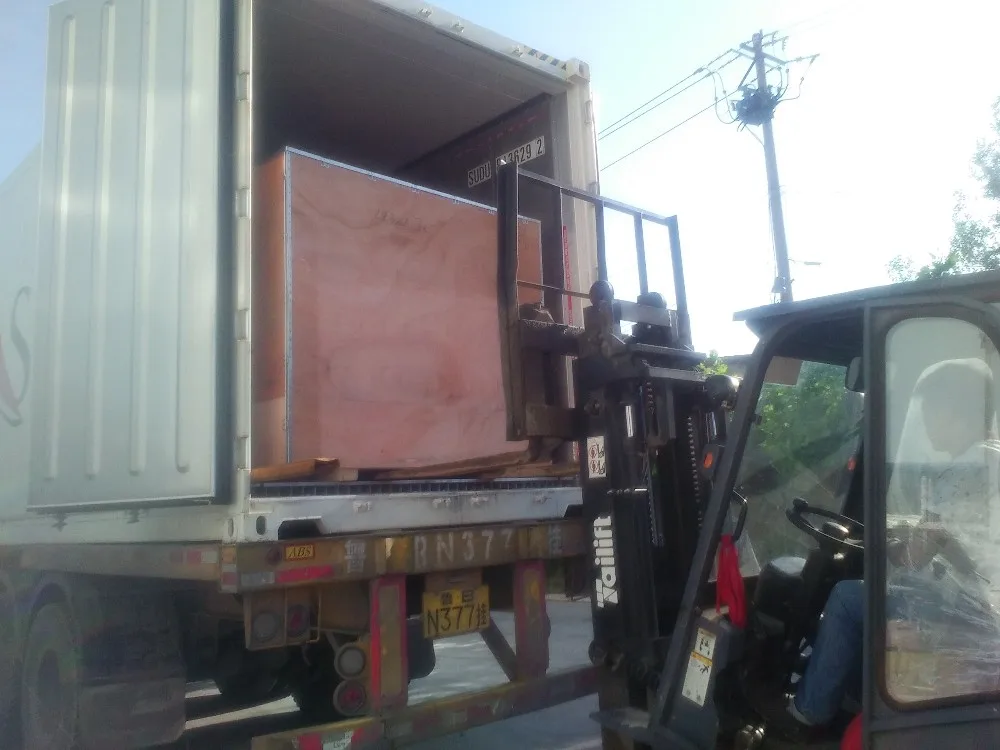

Packing & Delivery
\t
Packaging
\t
Size
\t
2.1(L) * 1.1 (W) * 1.72 (D)
\t
Weight
\t
700-900KGS
\t

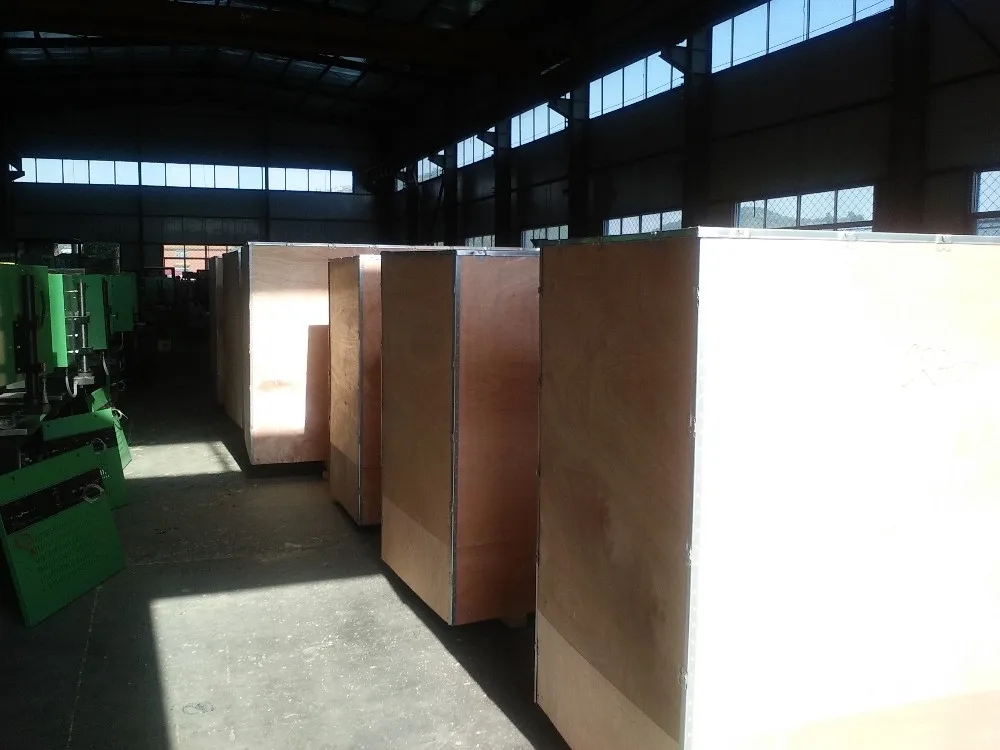

Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
20FEET CONAINER =6SETS
\t
Weight
\t
4200-5400KGS
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
