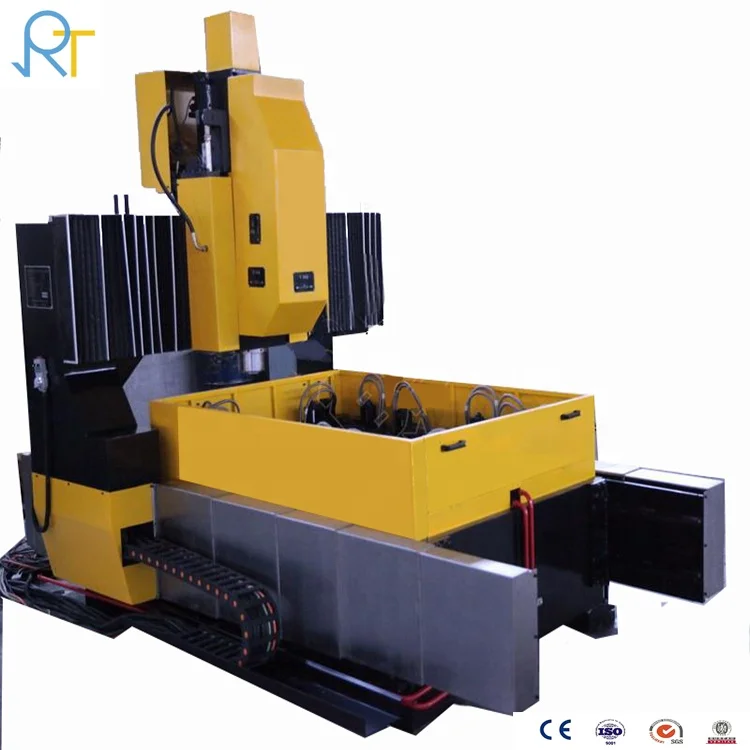

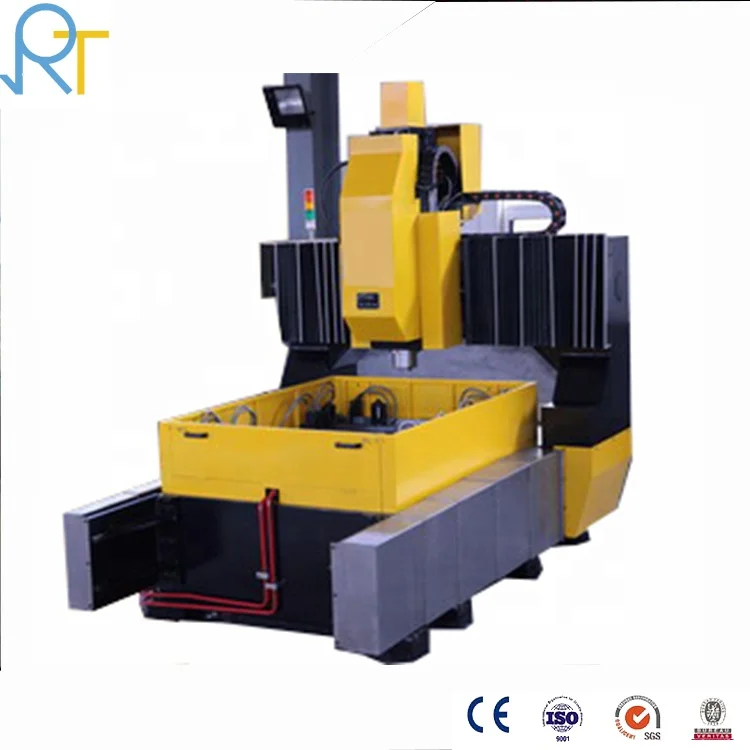

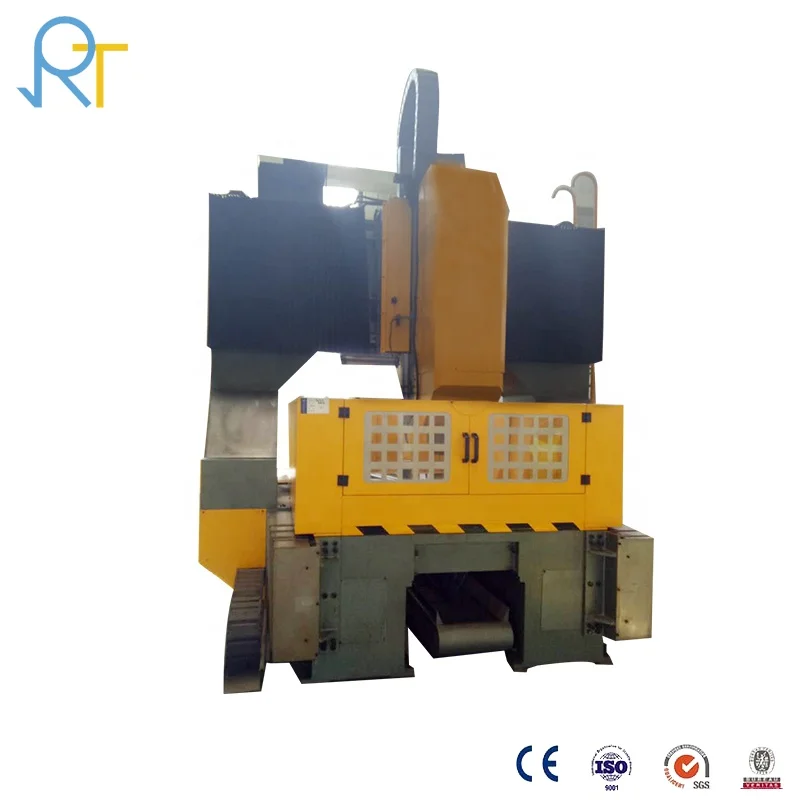

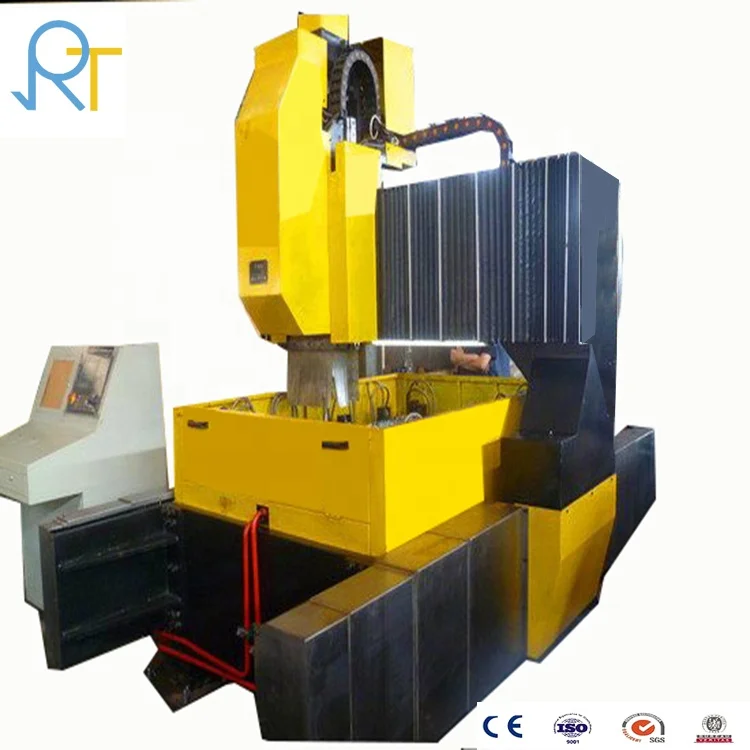

High Speed Drilling Machines for Deep Holes

Application:

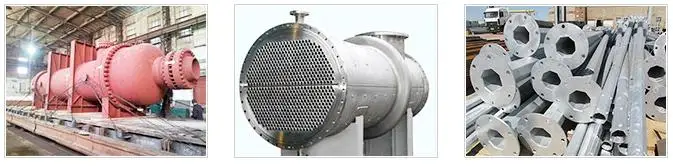

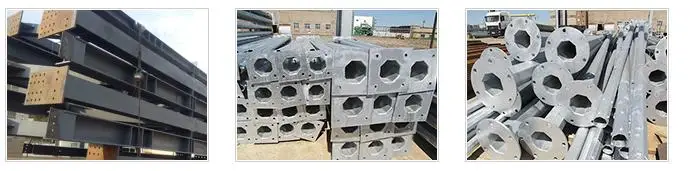

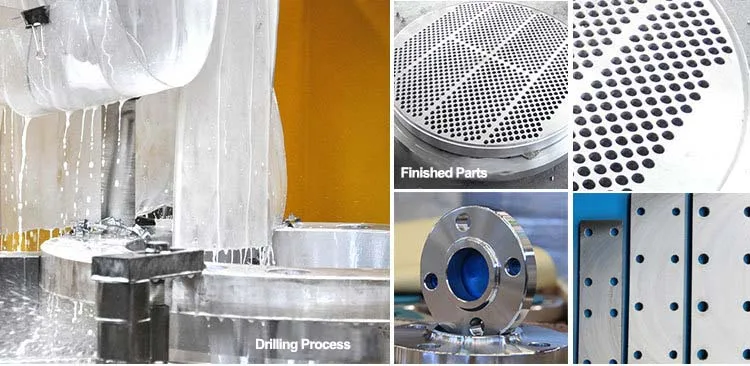

PHD series drilling machine mainly used for the drilling and milling process of the plates which used in construction, bridge,steel tower, steel structure industries,and also can be used for the tube plates, baffle plates, and round flanges in  connection boards and base plates of steel structure, tower, bridge and other industries.

Product feature:

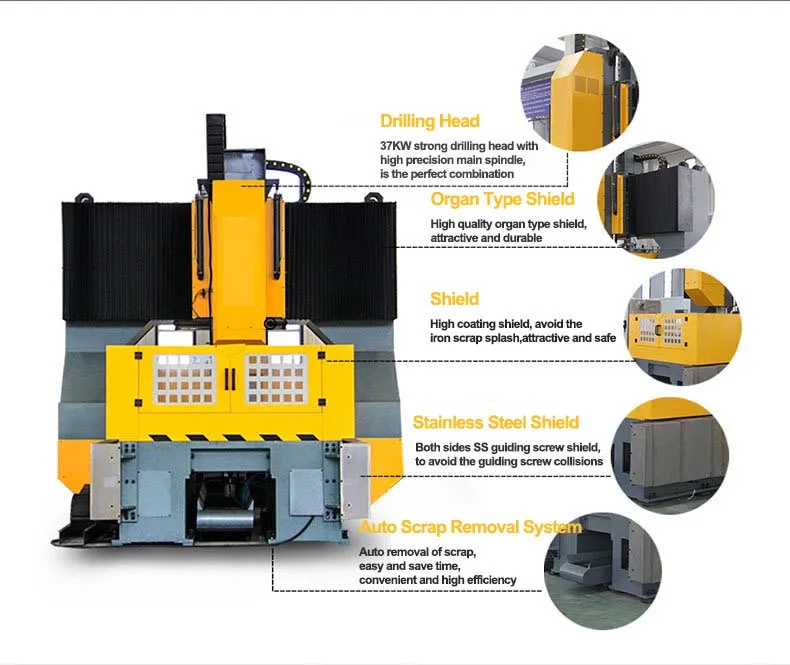

1. CNC slider and drilling unit head, can control depth of holes, with function of drilling blind hole, reaming, chamfer angle.

2. Can automatically find holes to drill at X.Y axis.

3. Four processing position, 12 rapid hydraulic clamps, capable of clamping four sets of work pieces, and downloading work pieces when drilling simultaneously.

4. CNC, PLC systems, CRT display.

5. Programming software based on WINDOWS platform with CAD connection, fast and convenient programming, and visual previewing.

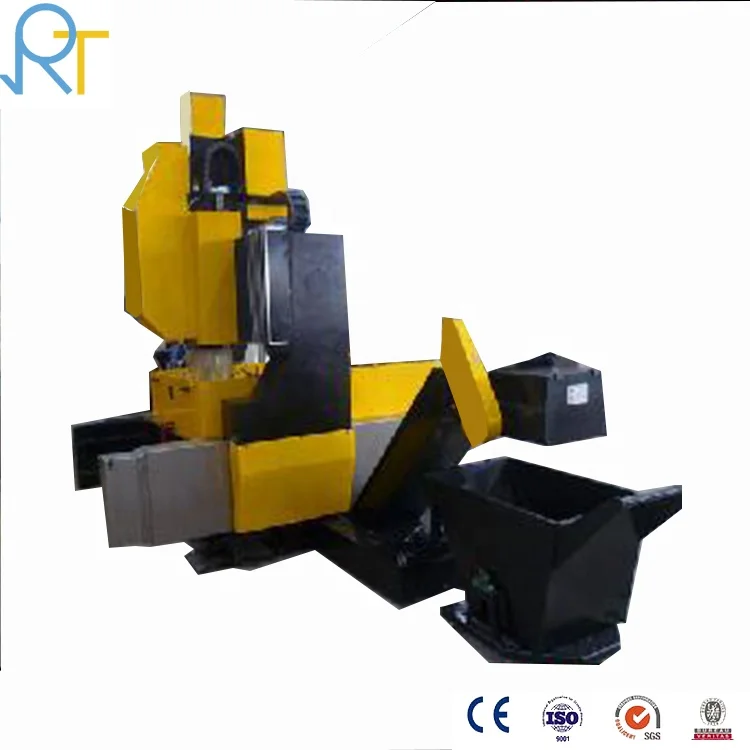

6. Automatic chip removal, coolant circulation cooling.

7. Key machinery, hydraulic pressure, electric components are chose from famous cooperation domestic and abroad.

8. Optimized integration design for complete machine, no foundation requirements.



Model	PHD1616	PHD2016
Max. Workpiece Size(L x W)mm	Plate:1600 x 1600  Flange:Φ1600	Plate:2000 x 1600  Flange:Φ1600
Max. Thickness of workpiece (mm)	120mm
Drilling Unit Type	Sliding table, servo motor control
Drilling Head Quantity	One
Maximum Drilling Diameter(mm)	Φ40
Morse Taper of Main Spindle	BT40
Main Spindle Rotating Speed	30-3000r/min
Spindle vertical stroke(Z axis)	300mm
Servo Motor Power for X axis	2.0KW
Servo Motor Power for Y axis	1.5KW
Servo Motor Power for Z axis	2.0KW
Scrap Cleaner Motor Power	0.75KW
Clamping Type	12 Hydraulic Clamps & T Slot
Electrical Control	Siemens 808D
Positioning Precision	0.08mm
Overal Size(mm)	4500*3900*3200	4900*3900*3200
Net Weight	12000kg	14000kg
