CNC Drilling Machine Milling Machine

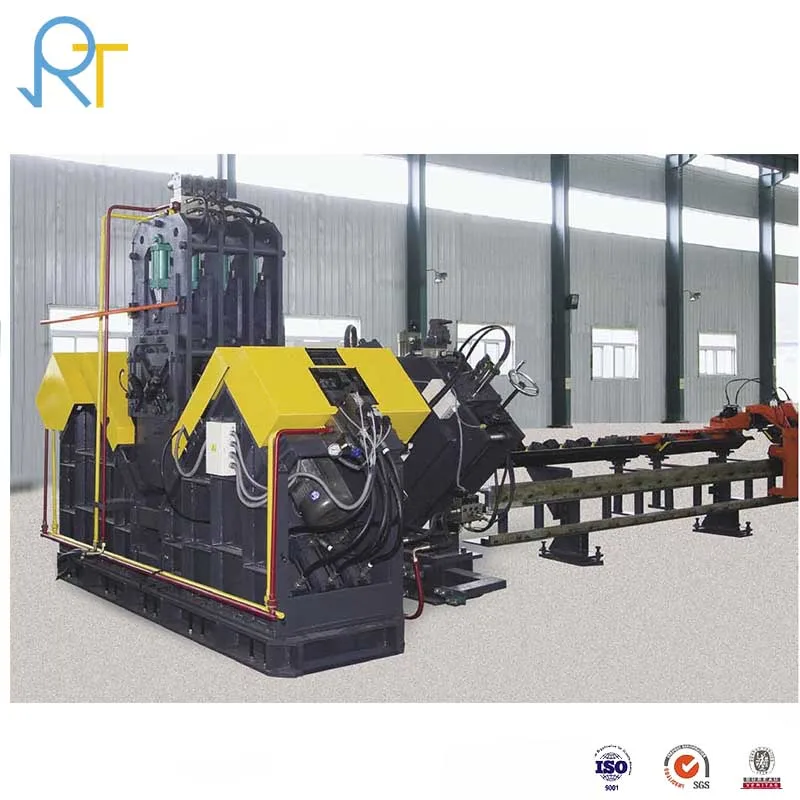

CNC Drilling and Marking line for angle steel
Product Application
PD series CNC plate drilling machine mainly do the drilling process of the junction plate and base anchor which used widely in steel structure, iron tower, bridge, and machining industries etc., and also used widely for flange drilling process.
Main Features

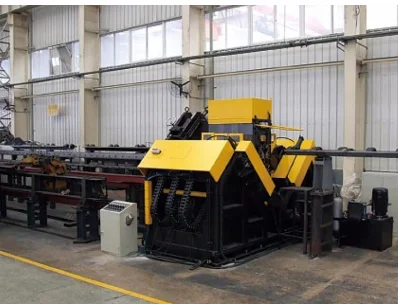

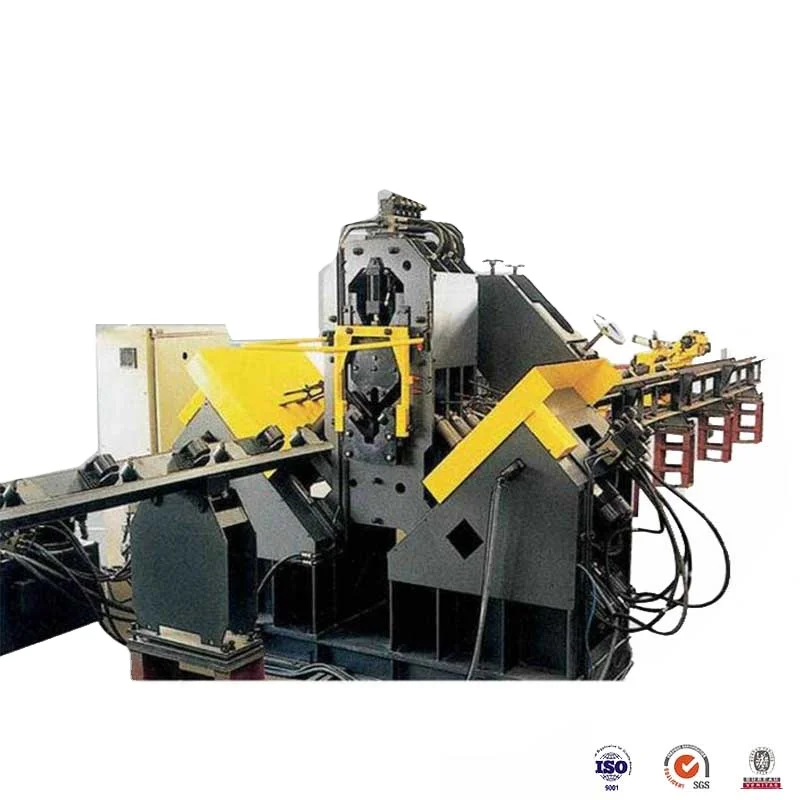

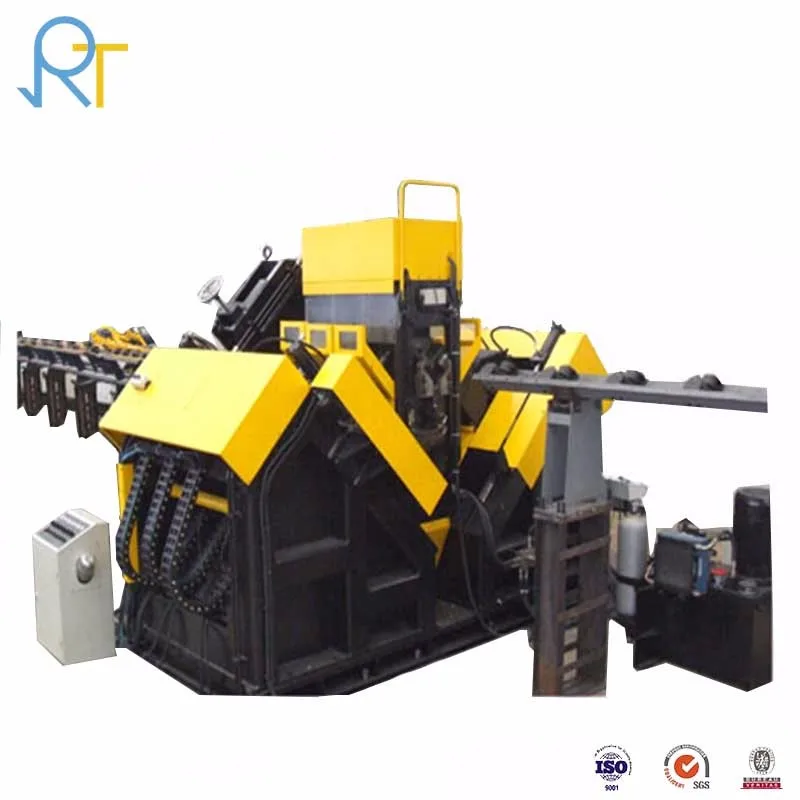

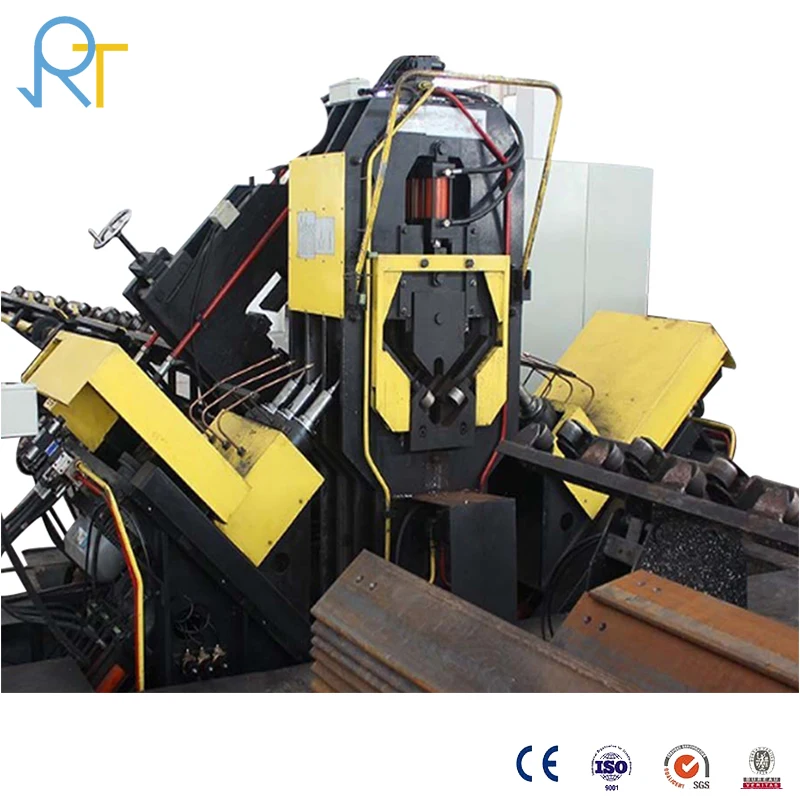

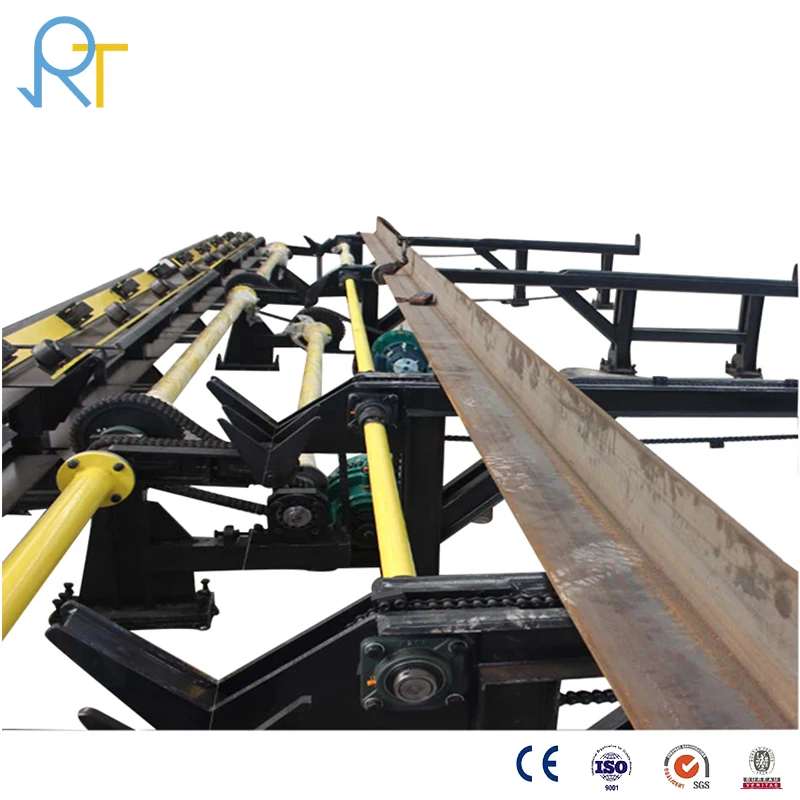

1. This processing line is composed of transverse conveyor, overturn conveyor, infeed conveyor, CNC infeed carriage, two sets of drilling units, one set of marking unit, automatic unload conveyor and corresponding hydraulic station, electric cooling system.
2. Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.

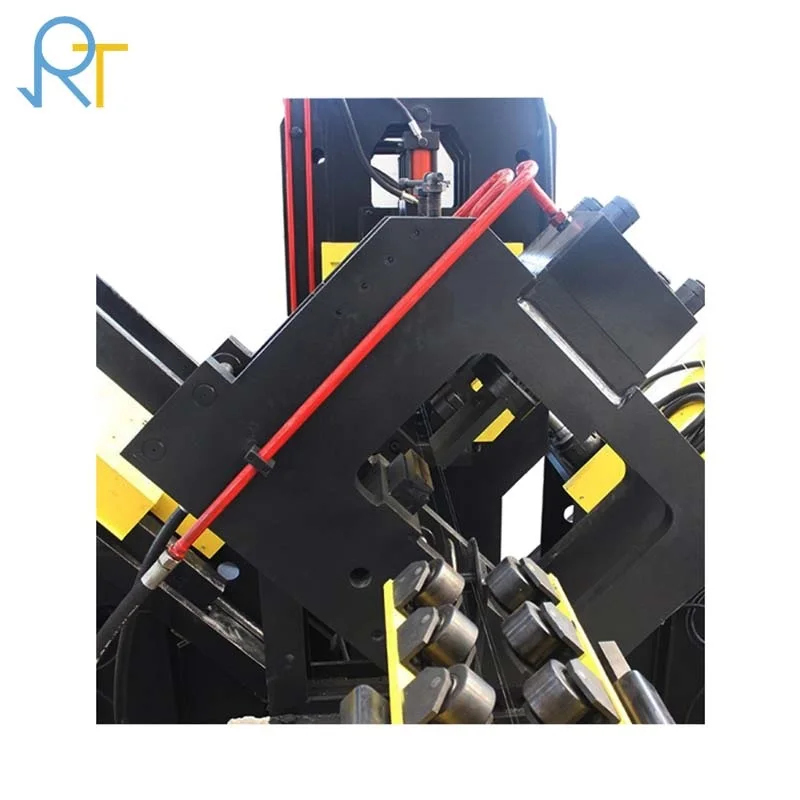

3. There is one set of drilling unit on each side. Every drilling unit can be installed with three drills of different dimensions. The drilling unit can realize the CNC movement holistically for change of drilling stadia, therefore to ensure the accuracy of holes.
4. Rotation speeds of all spindles are stepless adjustment realized by transducer, and feeding speeds are also stepless adjustment realized by speed regulating valves. Transform of the rapid feeding, work feeding, and rapid withdrawing of spindles all are finished automatically.
5. One marking unit in the drilling line. Marking stadia can be preset conveniently. Marking, clamping of the workpiece and infeed of the drilling are driven by the hydraulic system. Main components are imported. Circulate cooling system is applied so as to prolong the life of drills.
6. The control system consists of the host computer, servo motor, PLC, external monitoring switch, etc. Just input the dimension of the workpiece, the processing program will be generated automatically. Besides, the program can be saved, selected, displayed and communicated as per the workpiece No.
7. The machining line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.

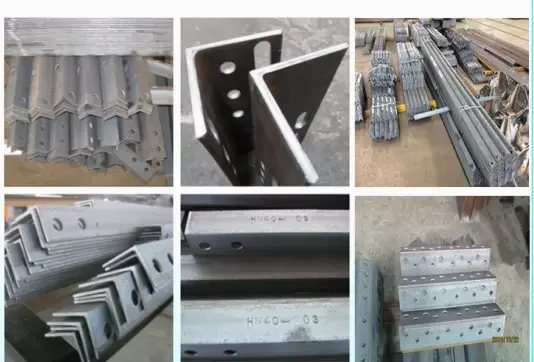

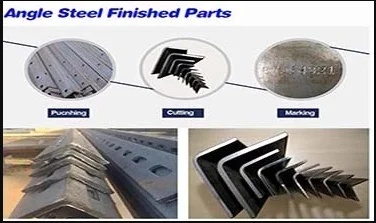

Work Piece
Specifications
SPECIFICATIONS | ||||||
Model | HADM2532 | HADM3635 | ||||
Angle Size(mm) | 140*140*10-250*250*32 | 140*140810-360*360*35 | ||||
Max. Length of Raw Material(m) | 14 | 14 | ||||
Marking Force | 1030KN | |||||
Morse Taper of Main Spindle | BT40 | |||||
Max.Drilling Diameter | 26mm | |||||
Marking Unit Type | close Type | |||||
Back Marking (mm) | 50-220stepless | 50-330stepless | ||||
Qty. of character Group | 1 | |||||
Character Qty. | 15 | |||||
Character Size | 14*10*19mm | |||||
Max. Moving Speed(m/min.) | 40 | |||||
Overall Dimension(L*W*H)(M) | About 30*7.5*3 | About 33.3*8.9*3 | ||||
Net Weight(kg) | About 30000 | About 34000 | ||||
Detailed Images
Machine Parts
Name: Lubrication System
Brand:Herg
Original: China
Domestic famous brand name of lubrication system, the lubrication is automatically
Electrical Configuration
Name: Electrical Parts
Brand: World Famous Brand
Original: Japan, China Tawin etc.
We adopts world famous brand name key electrical parts to assure the high quality and stability of the machine, long-life usage.
Machine Parts
Name: Main Spindle
Brand:Taiwan famoius brand
Original: Taiwan china
BT50
Main Features

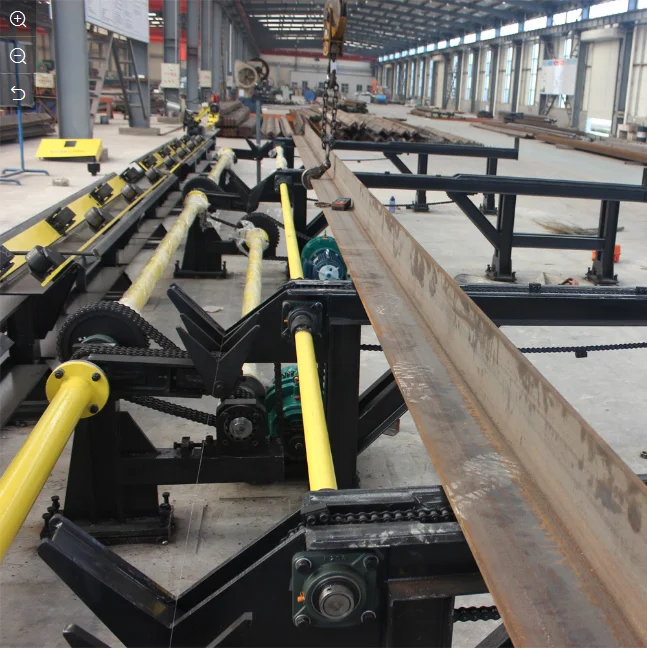

Name: Feeding Carriage
Brand: Domestic
Original: China
Automatic CNC Feeding system
