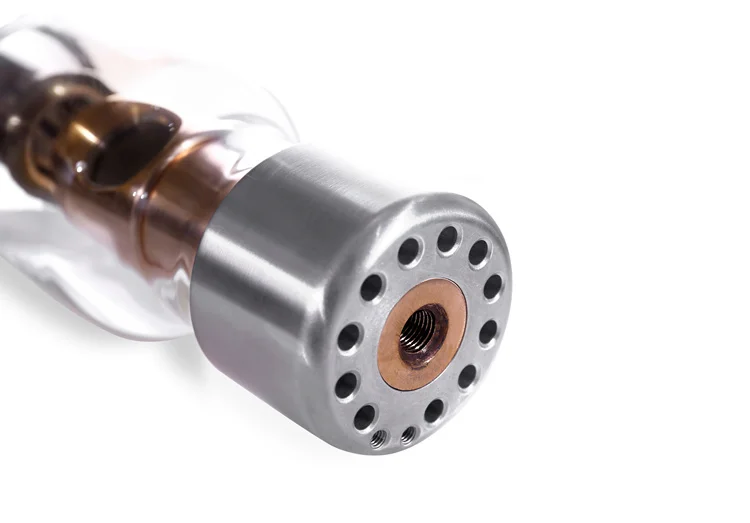

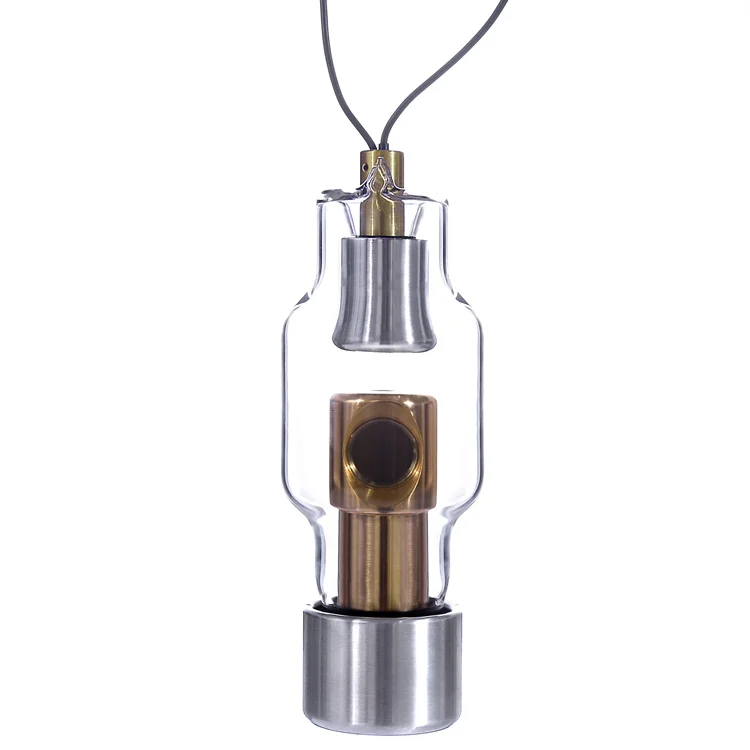

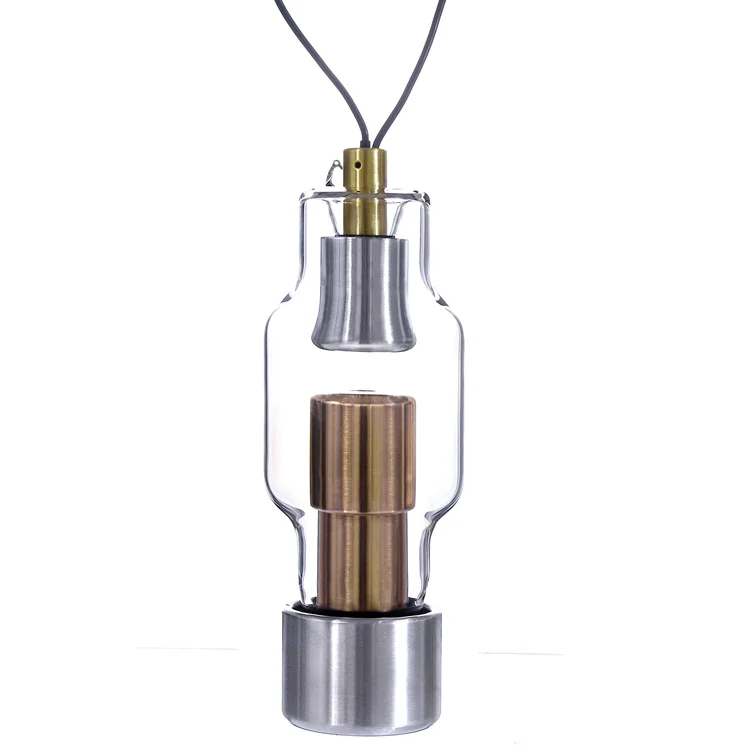

sensor xray Industrial Electronics Baggage Scanner Security Inspection System Assembly high frequency 140 160KV X ray Tube
- Category: Other Security & Protection Products >>>
- Supplier: Zhengzhou Hebeijin Electronics Co. Ltd.
Share on (60779183071):
Product Overview
Description
Models 160 and 160A are the same product

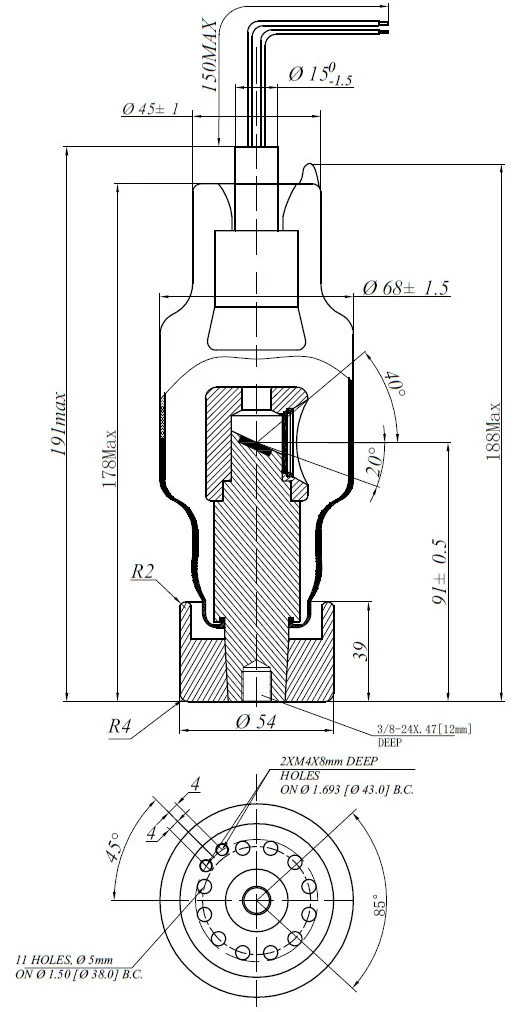

Technical data Type:160A
| Property | Specification | Standard |
| Nominal x-ray tube voltage | 160KV | IEC60613-2010 |
| Operating tube voltage | 50-160KV | |
| Max tube current | 2mA | |
| Max anode input power | 320W | |
| Max filament current | 3.7A | |
| Filament voltage | 3.5±0.2V | |
| Focal spot size | 0.8mm | EN12543-1999 |
| Inherent filtration | 0.8/mm Be,1.5-2.0mm glass | |
| Target material | Tungsten | |
| Axial maximum radiation angle | 60° | IEC/TR 60788-2004 |
| Radial maximum adiation angle | 80° |
|
| Cooling method | Oil immersed(70℃ Max)and Convection oil cooling | |
| Weight | 1100g |
| Limits | Operation Limits | Transport and Storage Limits |
Ambient temperature
| From 10°C to 70°C | From -40°C to 70°C |
Relative humidity
| / | From 10% to 90% |
Barometric pressure
| From 70kPa to 106kPa | From 50kPa to 106kPa |
We offer customized x ray tube as customer request
