BC6063 формирователь машина цена формирователь резки металла активное снаряжение Автоматическая формировальная машина

Share on (60779801974):


Price:

Quantity:


Product Overview

Description



DTMC


1





Product Description


Features:


1.BC6063 Mechanical Metal Shaping Machine with The tool post can rotate with more angle in the vertical plane,
2. Manual feeding is available. For tool post.
3. For slotting shaping more economic machining equipment.
4. worktable feeding on cross and vertical specially for swallow tail machining and channel machining.
5. suitable for single piece or small match production.










































































Model



BC6063



Max. shaping length



630mm



Max. range of the horizontal movement of the table



385mm



Max. distance between the ram bottom and table



630mm



Max. length of the vertical movement of table



360mm



Dimension of the table top (LxW)



630x400mm



Max. stroke length of the tool head



120mm



Max. swivel angle of the tool head



±60°



Max. section of tool (WxT)



20x30mm



Number of ram reciprocation per minute



14,20,28,40,56,80 No/min



Range of table feed



Horizontal feed



0.2-2.5 mm/recip



Vertical feed



0.08-1.00 mm/recip



Width of T-slot for center positioning



18 mm



Power fo the main motor



3kW



N.W./G.W.



1750/1870kg



Overall dimensions(LxWxH)



2342x1225x1480mm

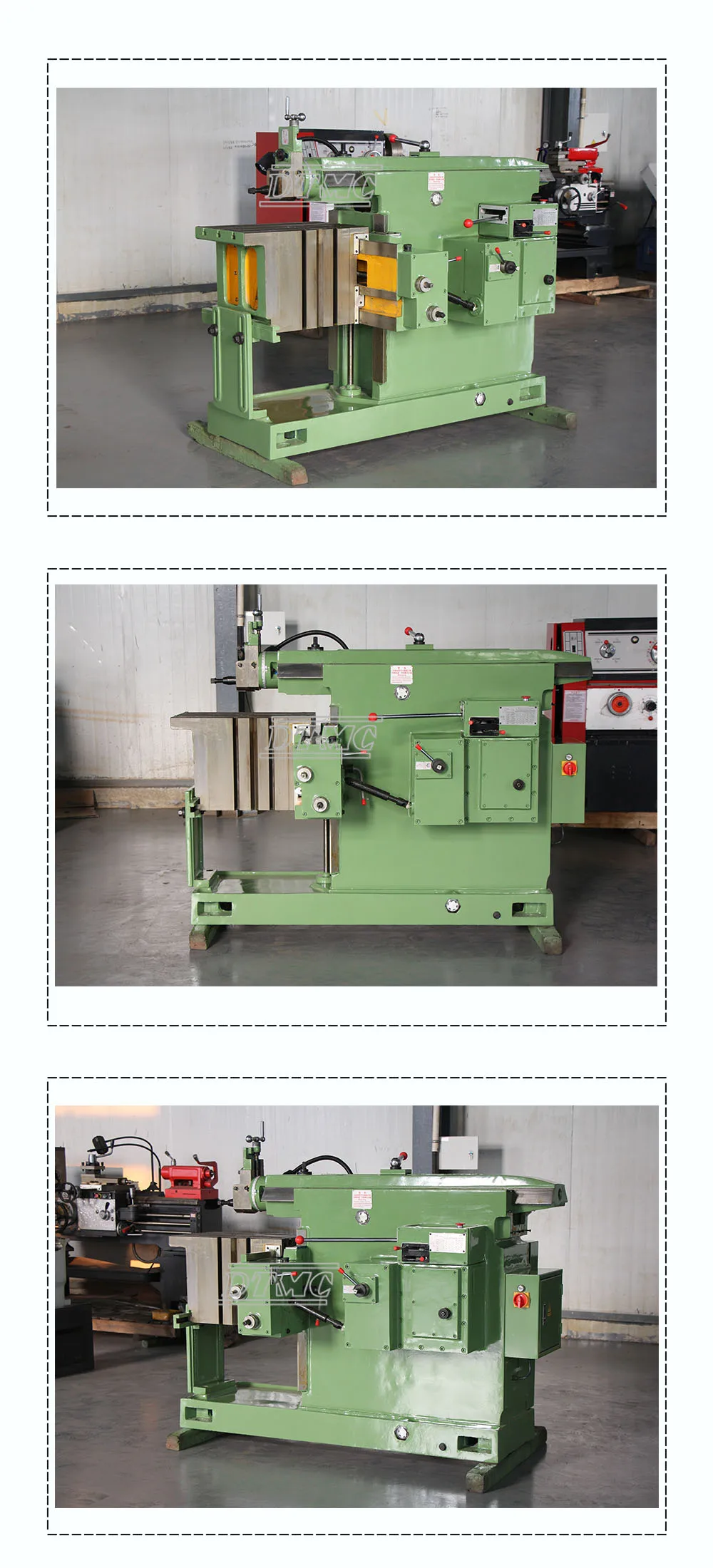

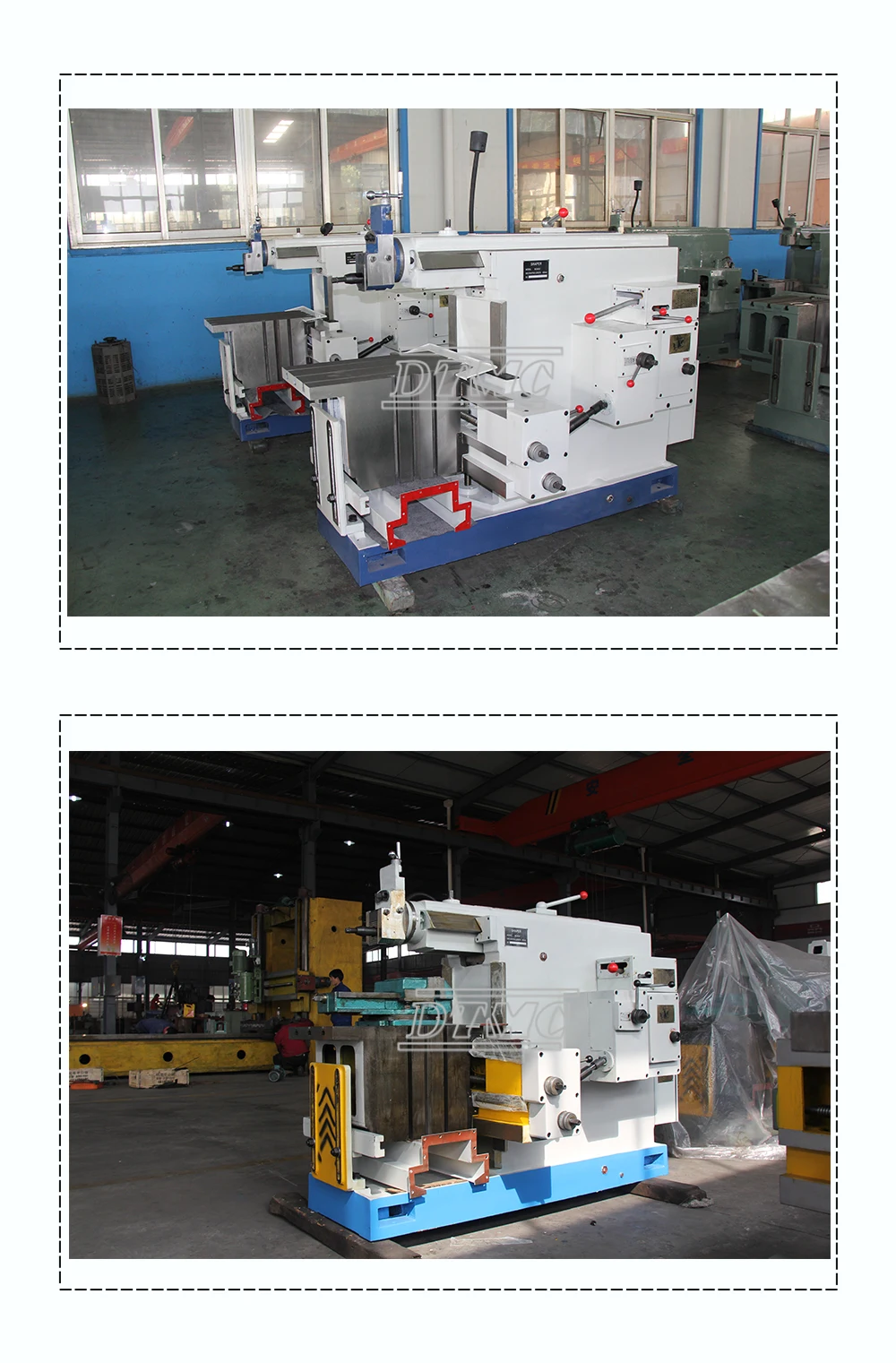

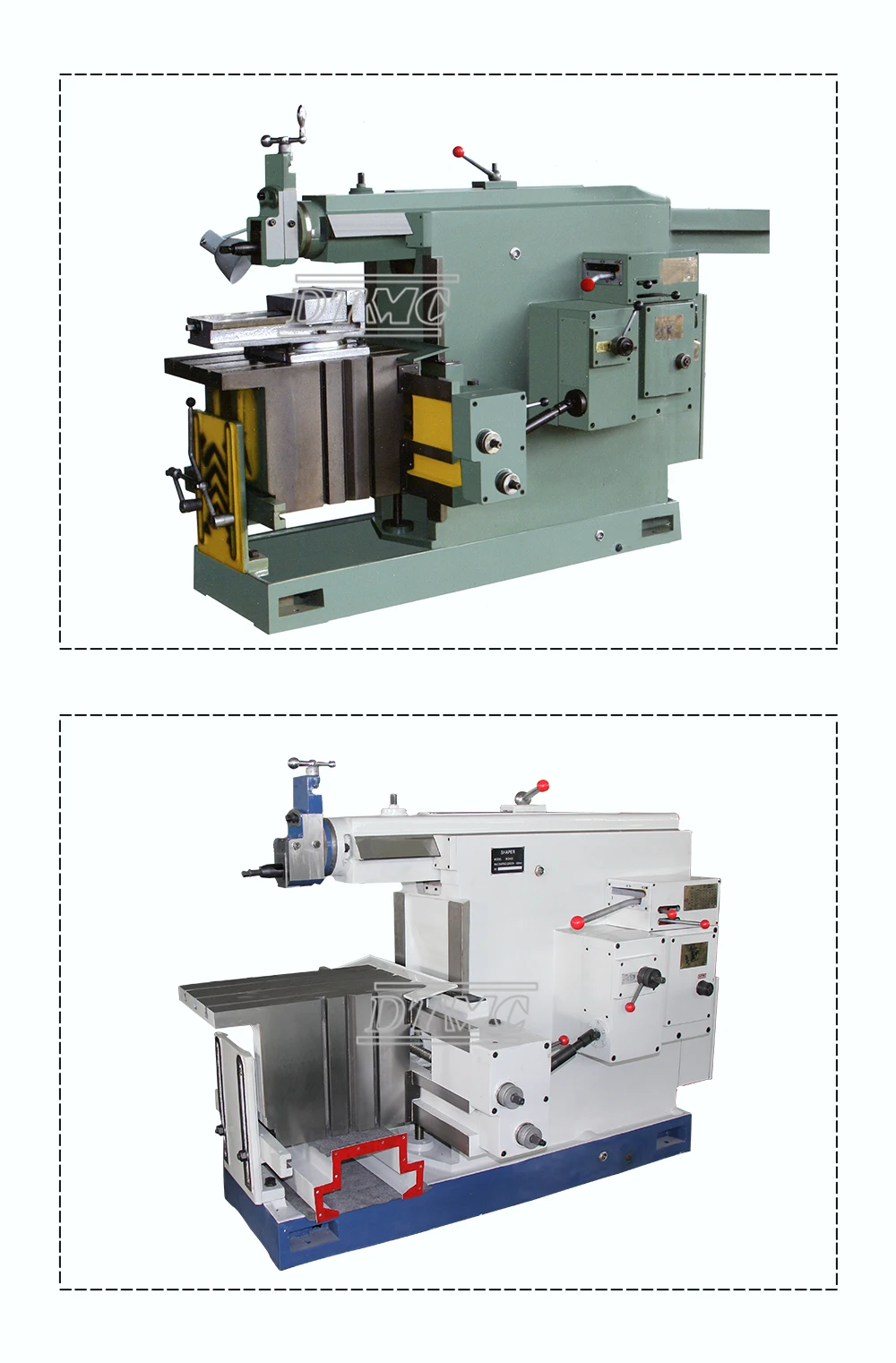

Product show


 21 22





Company Information


2





  Tengzhou Datong Machine Tool Co., LTD (DTMC) is a joint stock enterprise founded in 2000, we are the integration company in R&D, manufacture and export machinery. Our main products lines are 1) CNC machine tools, 2) Precision metal cutting band saws, 3) Precision sheet metalworking machines,4) Lathe Machine, 5)Milling Machine 6) Drilling Machine 7)Grinding Machine,8)Drilling Machine; total eight lines and we can provide more than 600 types products.

Our Factory is located in No.566 Tengfeixi Road,Tengzhou Industrial area.Head office is located in Rm. 805, Floor 10, Wentian Plaza, Tengzhou city, Shandong Province.We are grouped by eight branch factories with around 270,000 square meter workshops and 800 employees (including 220 technicians and management people). We established complete manufacturing systems, covering the casting, punching&pressing, CNC machining, painting and assembling. The advanced casting technology and complete production-chain, give our company very strong competitive ability.

We has approved the ISO9001:2008 Quality management system, ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system and Social Accountability 8000 (SA8000). Most products of ours have been approved the Europe and American safety standard, including CE, GS, EMC & UL. In 2009, the company finished turnover of more than 10 billion US dollars. 90% products were exported to more than 60 countries and regions around the world, especially to Europe and Amercia market and win high reputation always.
With the principle of "Quality First, Credits Foremost", DTMC provides the customers of domestic and abroad with superior products and professional services. We sincerely welcome you to visit our company, to establish business relationship on mutual benefit with us for mutual development !
