double layer metal roof panel corrugated shape tile and wall use roll forming machine

Product Overview

Description

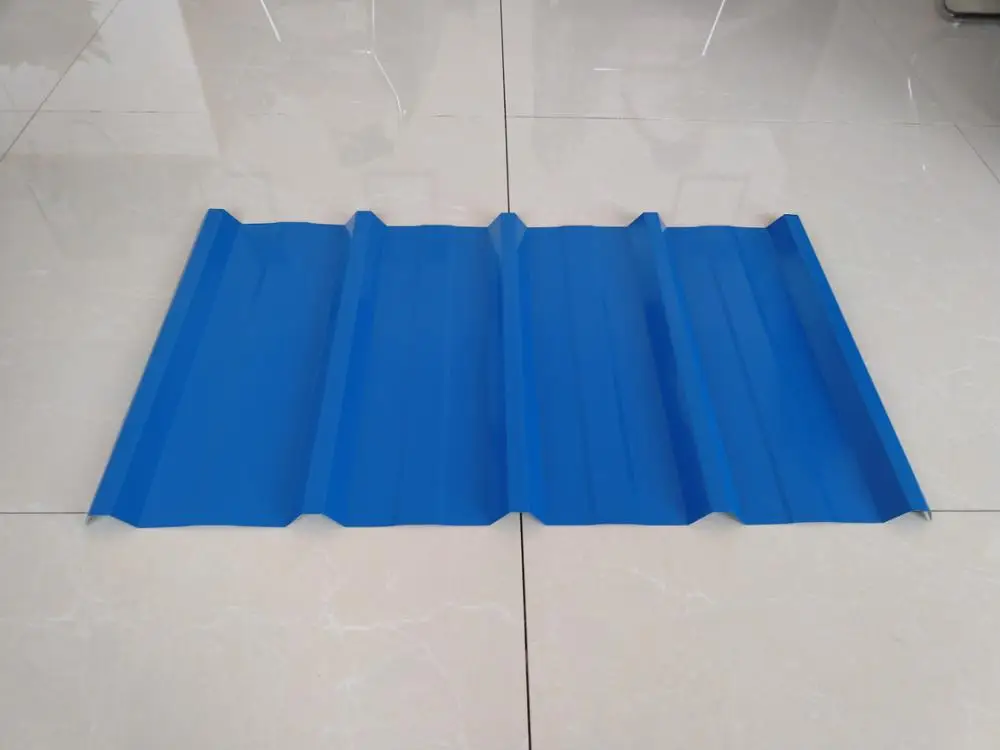

double layer metal roof panel corrugated shape tile and wall use roll forming machine

Product Application

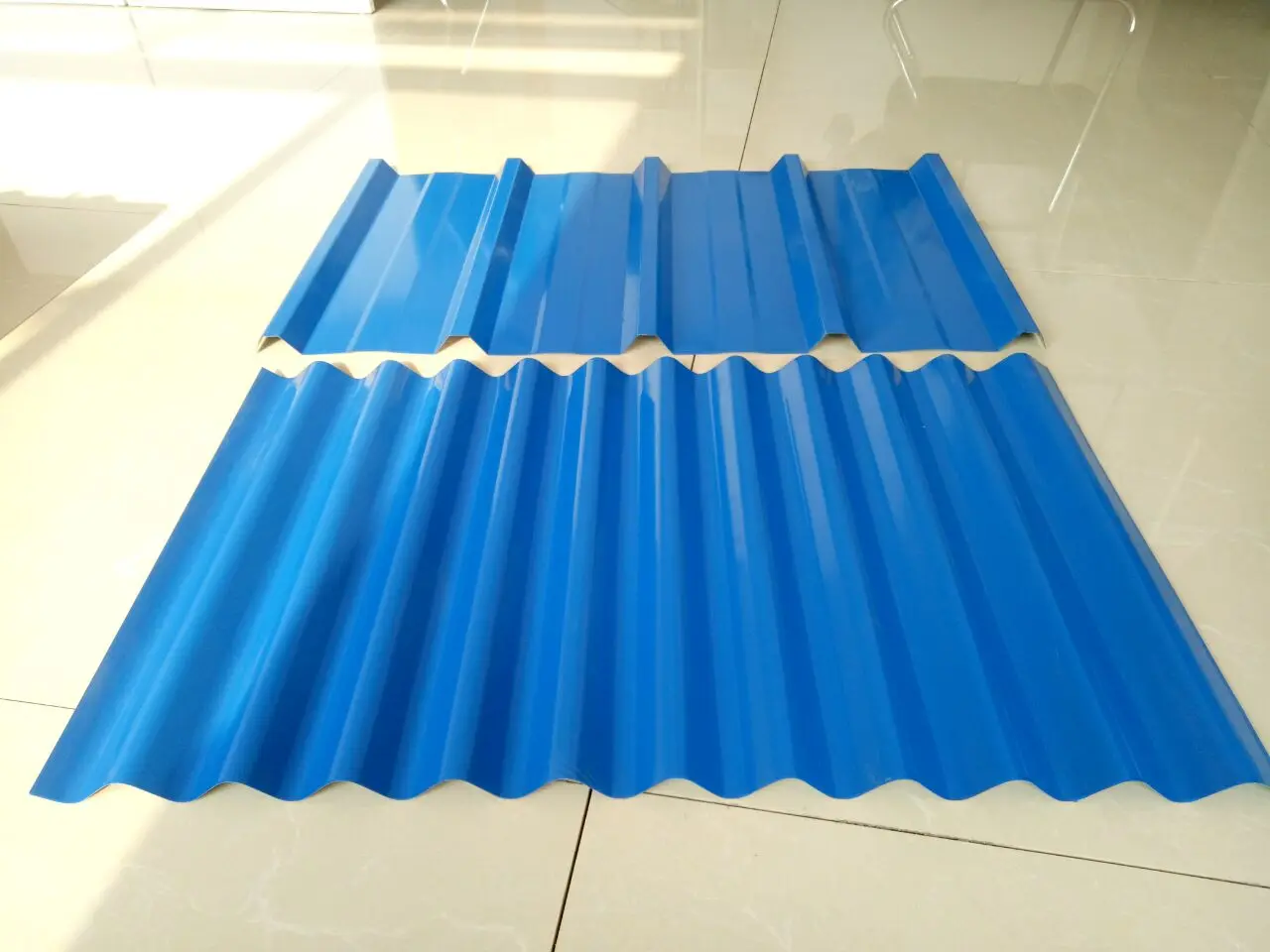

This type of roof sheet has advantage including beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

Parameter

material	colored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet	0.3-0.8 mm
material expand width	1000mm
Efficiency width	835/840mm

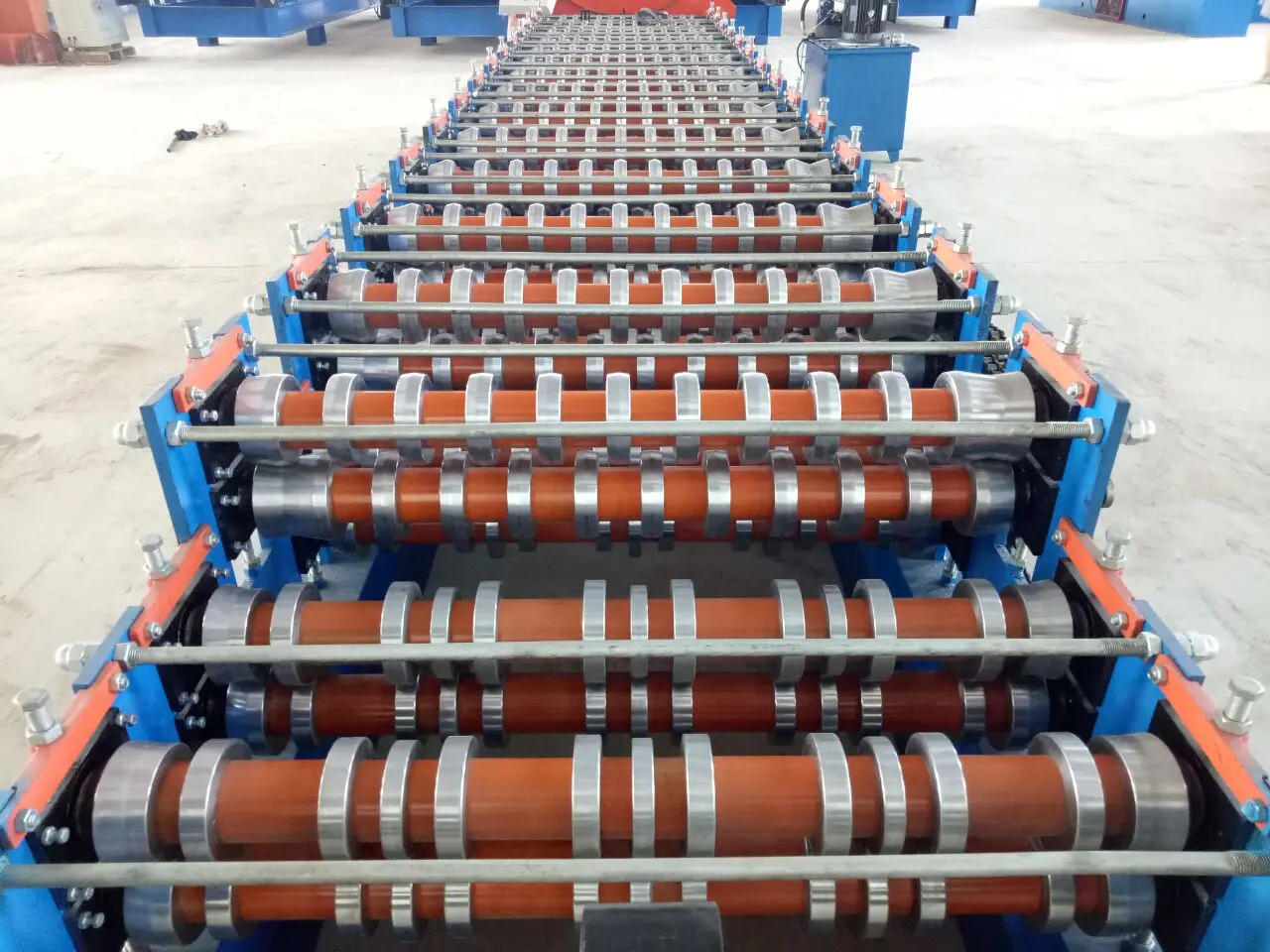

Machine details

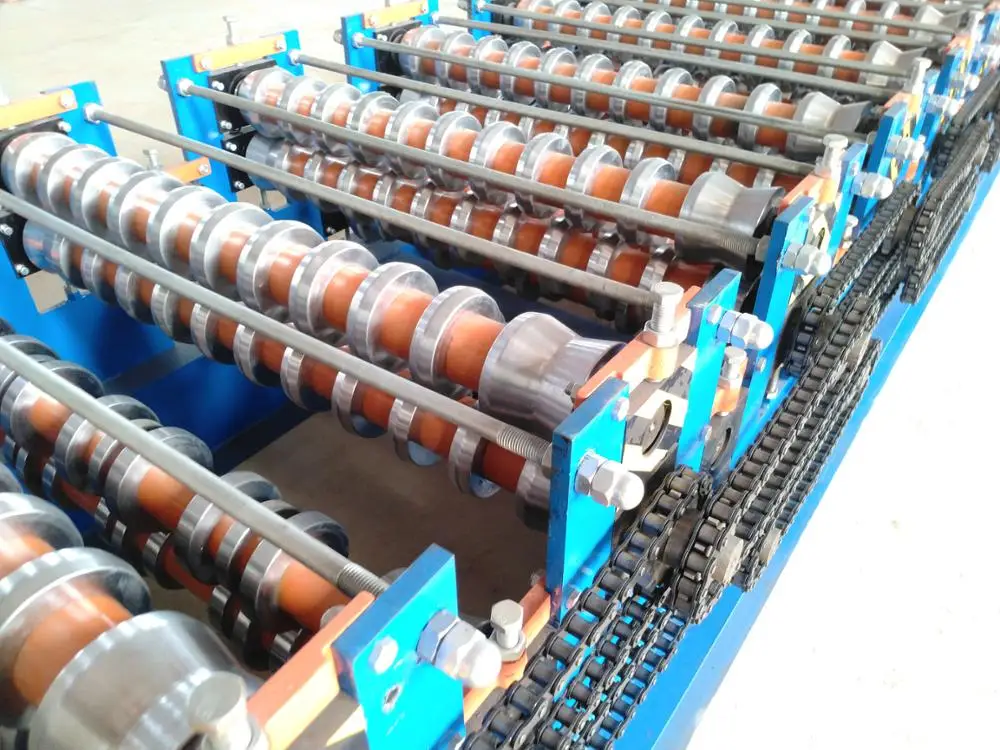

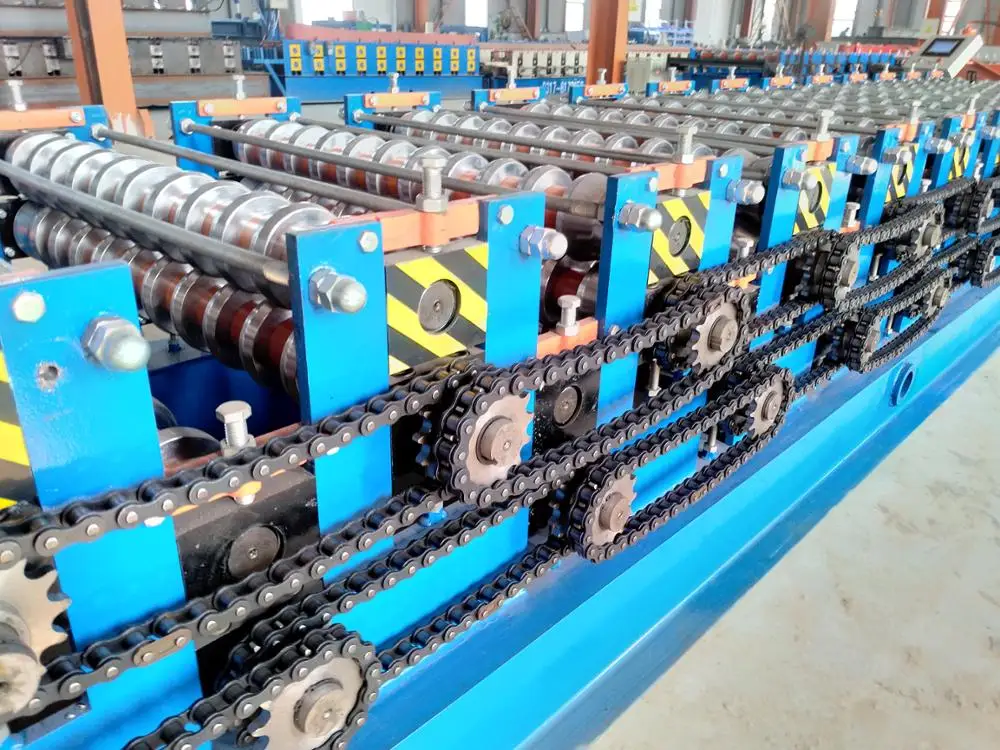

roller material	high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material	high grade NO. 45 carbon wrought steel
cutting blade	Cr12 mould steel with quenched treatment
diameter of shaft	70mm or as your requirement
main frame	300 H steel

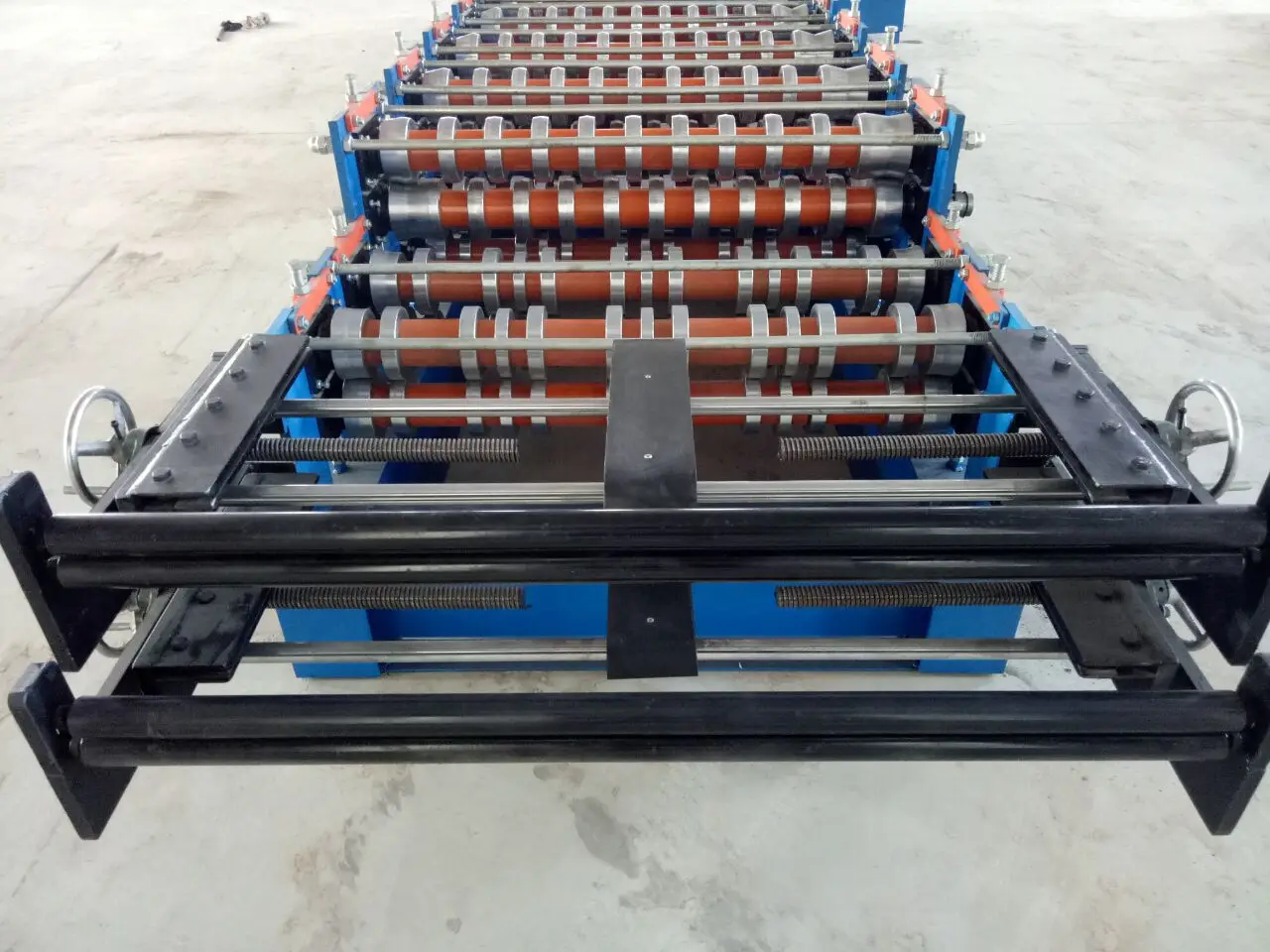

forming steps	up layer:14rows down layer:16 stations
productivity	20-25m/min
hydraulic station power	3.7 KW
hydraulic pressure	10-12MPa
appearance size	8700mm*1500mm*1500mm
hydraulic oil	40# hydraulic oil
Electric tension	380V 50 Hz 3 Phase or as your requirement

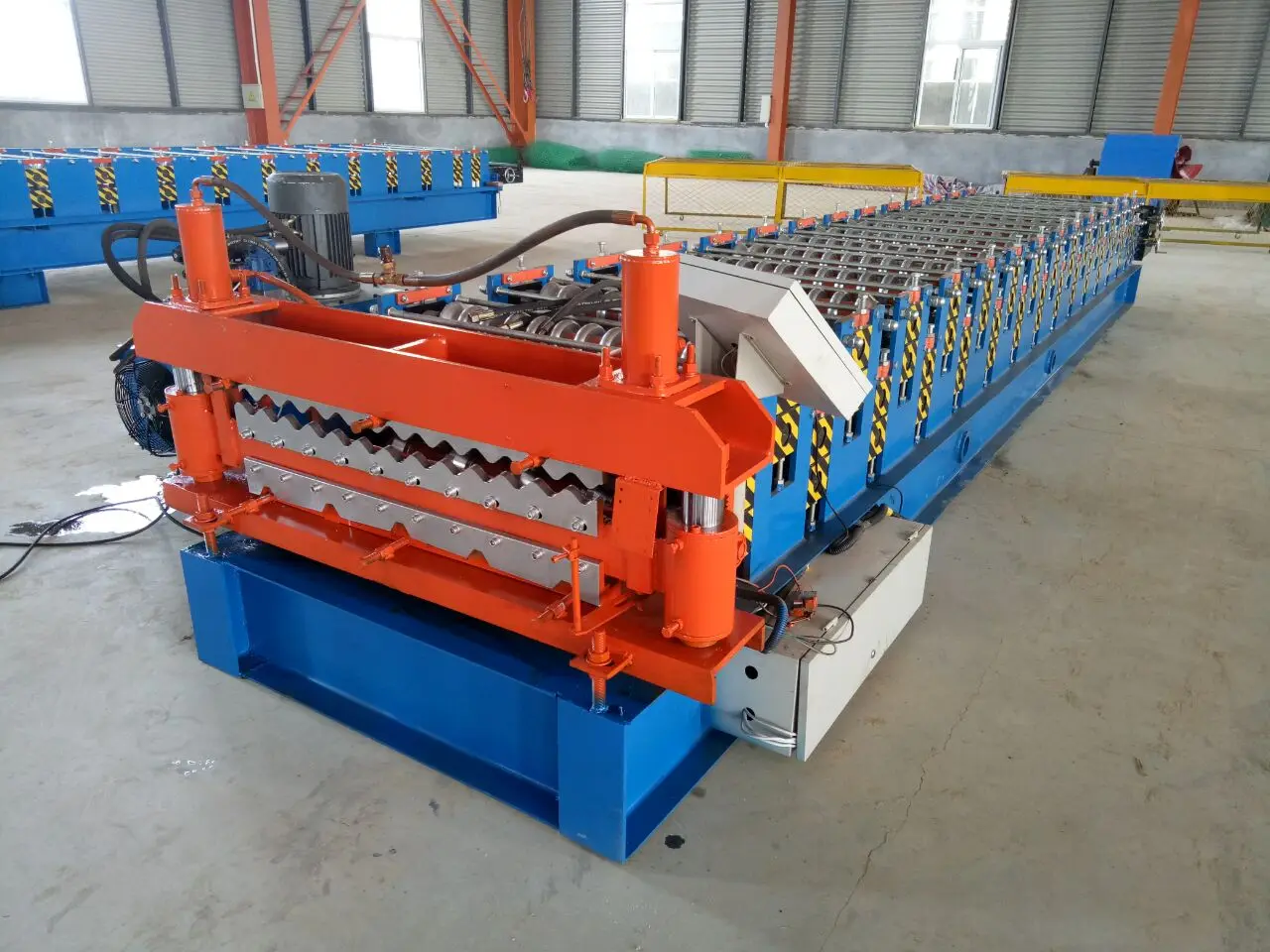

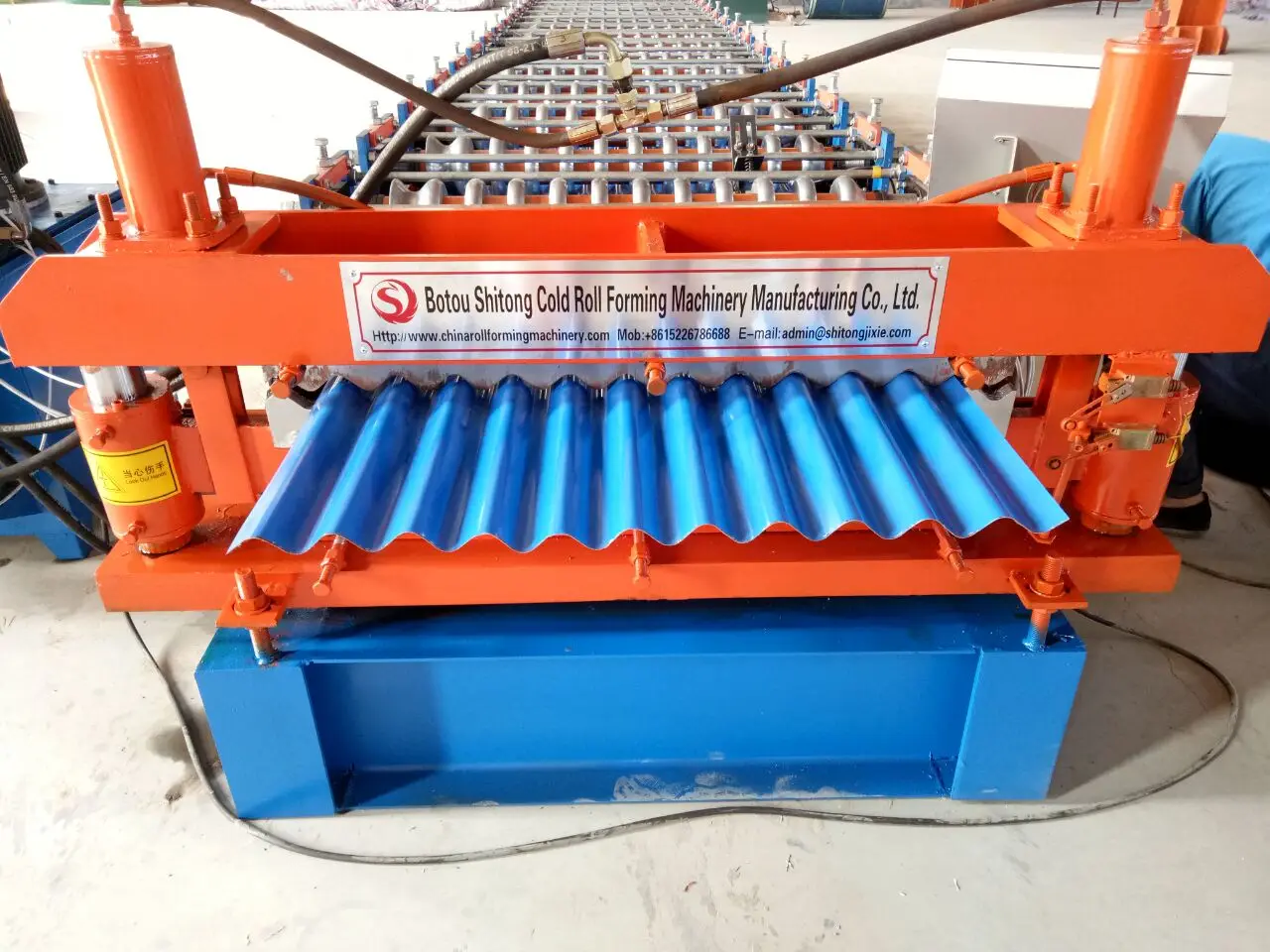

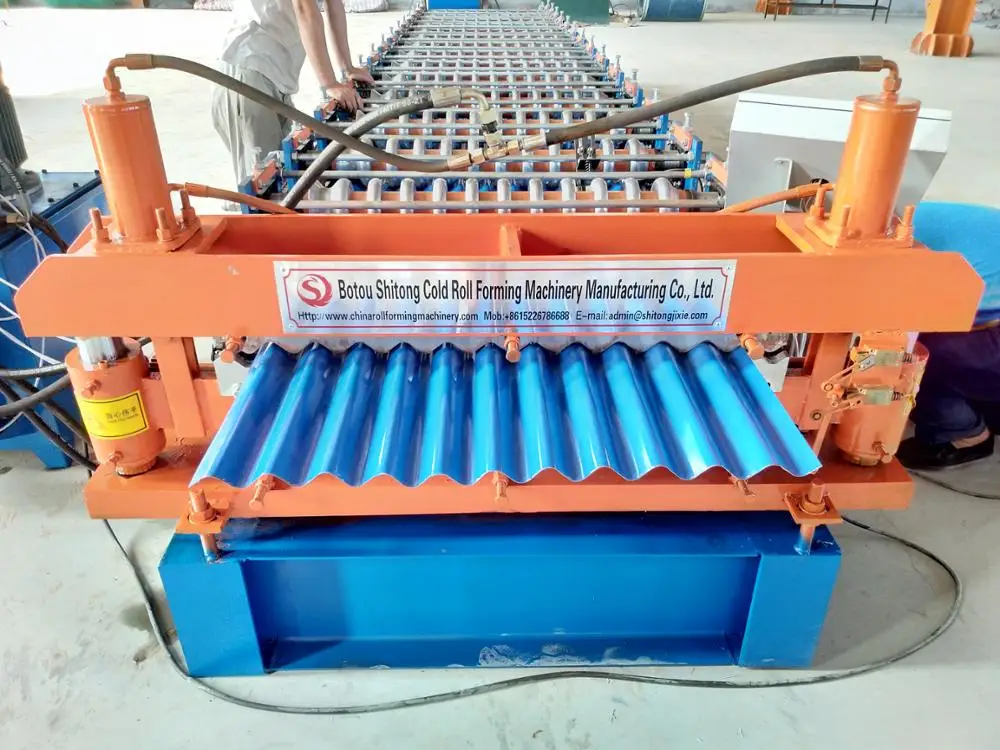

Cut Mode	Hydraulic forming after cutting off
Cutter materia	Cr12 Heat Treatment
Electronic control system	PLC, Touch Screen, Encoding counter
Color	Blue, green or yellow or as your requirement
Rolling material	45# steel,roller surfaces polishing, hard plating



Main Features

1.This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

2.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.



——————  working flow  ——————

3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.two years warranty for free, and beyond two years if any part broken, tell us and pay us we delievery any part u need.  And support technical skills for machine for whole life.
6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7.One roll forming machine only can produce one profile. and we also can produce double or three layer roll forming machine.



1. Installation and training:

A.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,  and also trainyour workers/technician face to face.

B.Without visiting, we will send you user manual and video to teach you to install and operate.

C.If buyer needs our technician to go to your local factory, please arrange board and lodging and  other necessary things.

2. after Service

A.One year guarantee for whole machine.

B.24 hours technical support by email or phone call.

C.If there is any problem found of the machine, we will repair it for free in one year.
