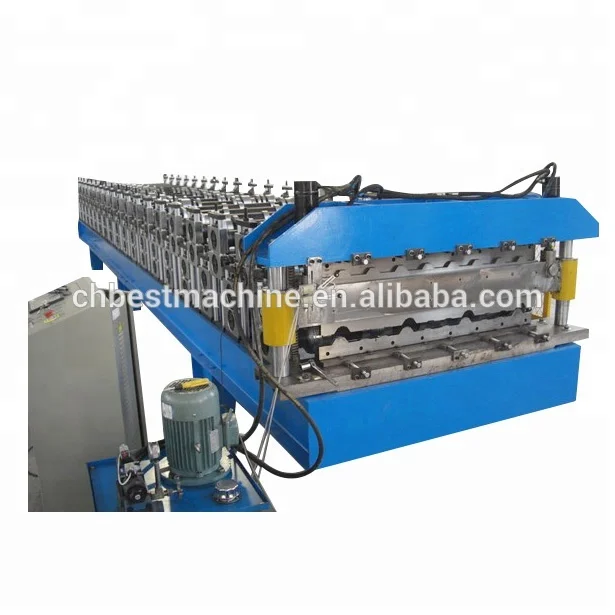

Kenya Metal Trimflute profile roof sheet making roller machine

Kenya Metal Trimflute profile roof sheet making roller machine

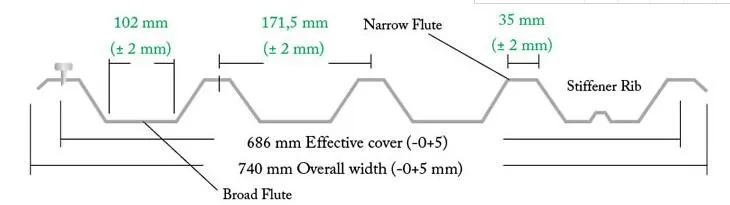

Trimflute profile is a square fluted profile with an effective covering width of 686 mm, designed for use as side cladding or roofing material in commercial, industrial and residential buildings. The name IBR is abbreviated from “Inverted Box Rib” and has become a household name in the South African building industry. The deep, broad flute design offers excellent drainage characteristics combined with optimum weight versus load/span capabilities. IBR can be factory cranked, curved and bullnosed to various radii depending on customer’s requirements.

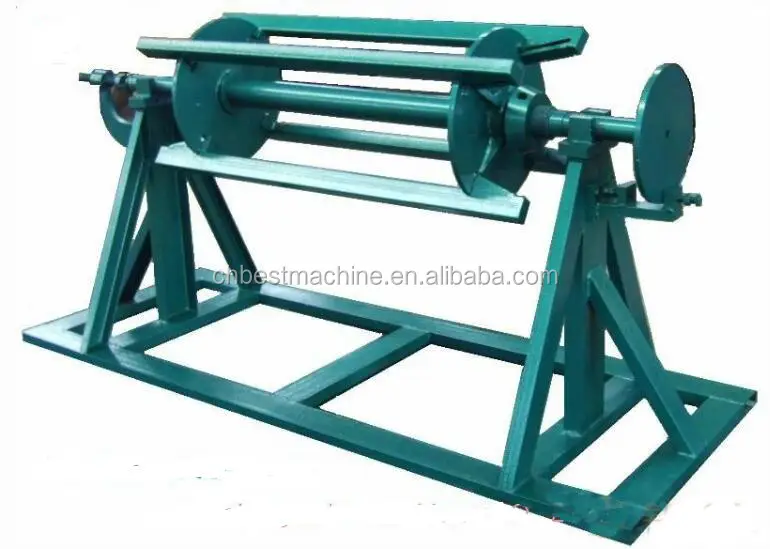

DECOILER

(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

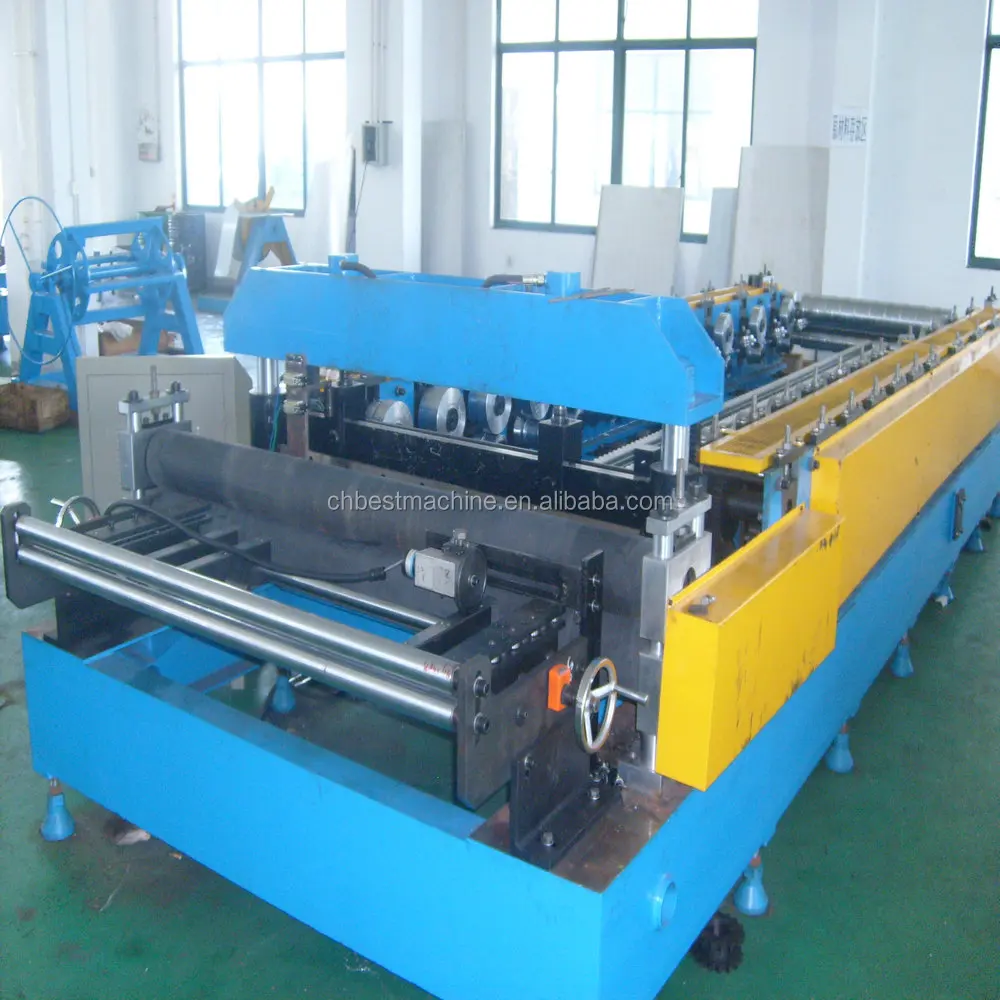

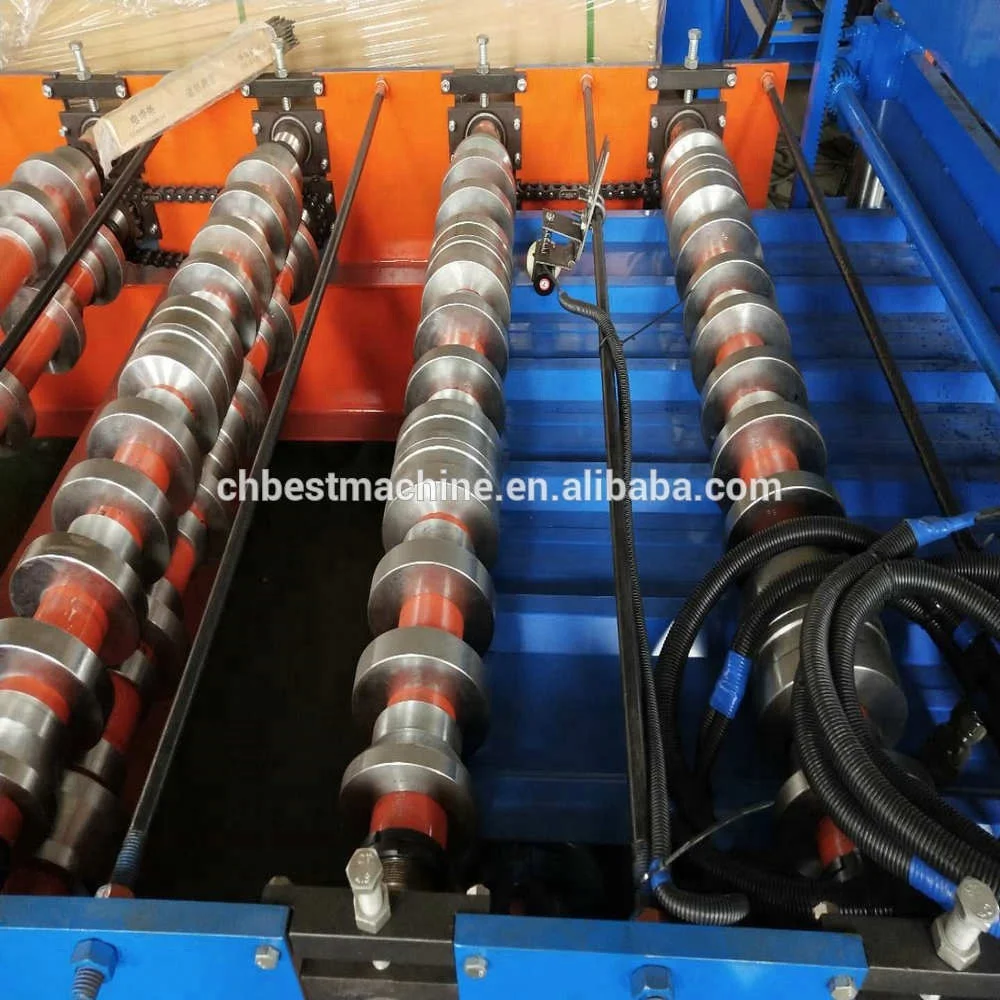

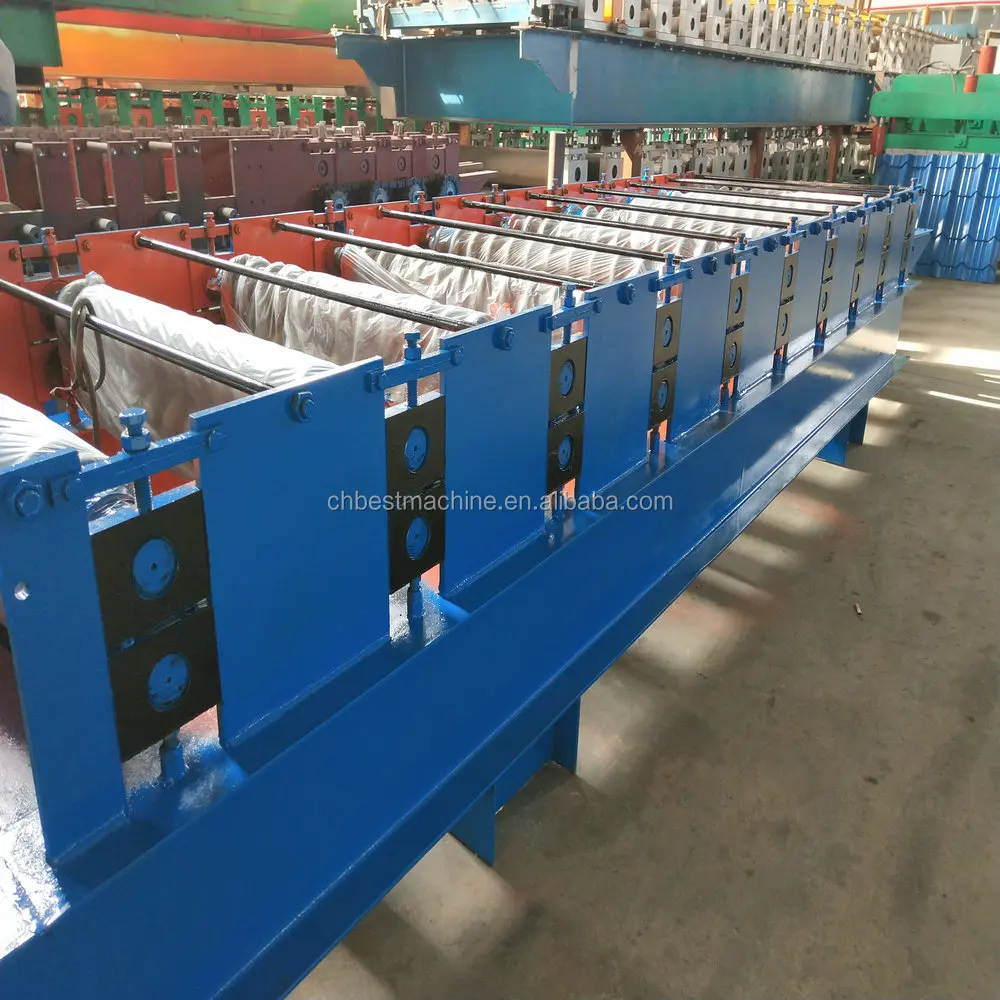

ROLL FORMING MACHINE

(1) Material Thickness: 0.3-0.8mm PPGI and GI

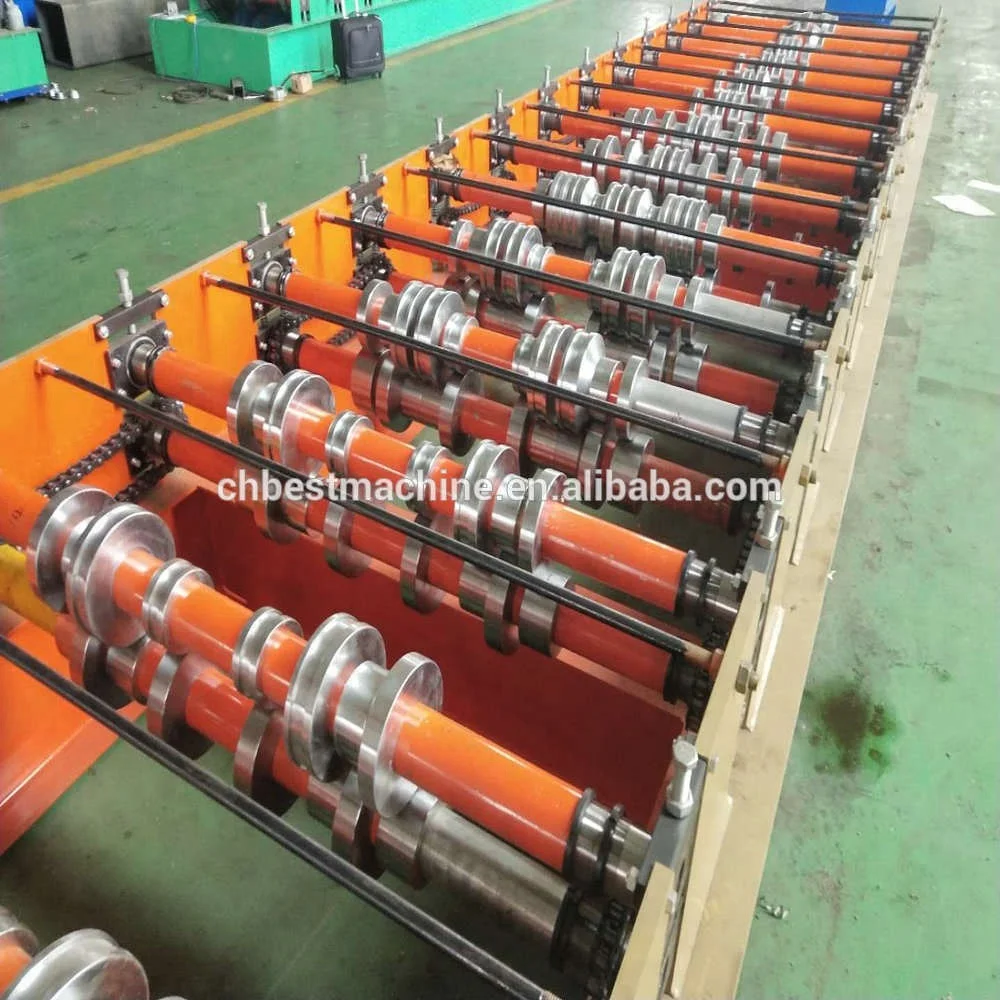

(2) NO. of roller Stations: 16 groups

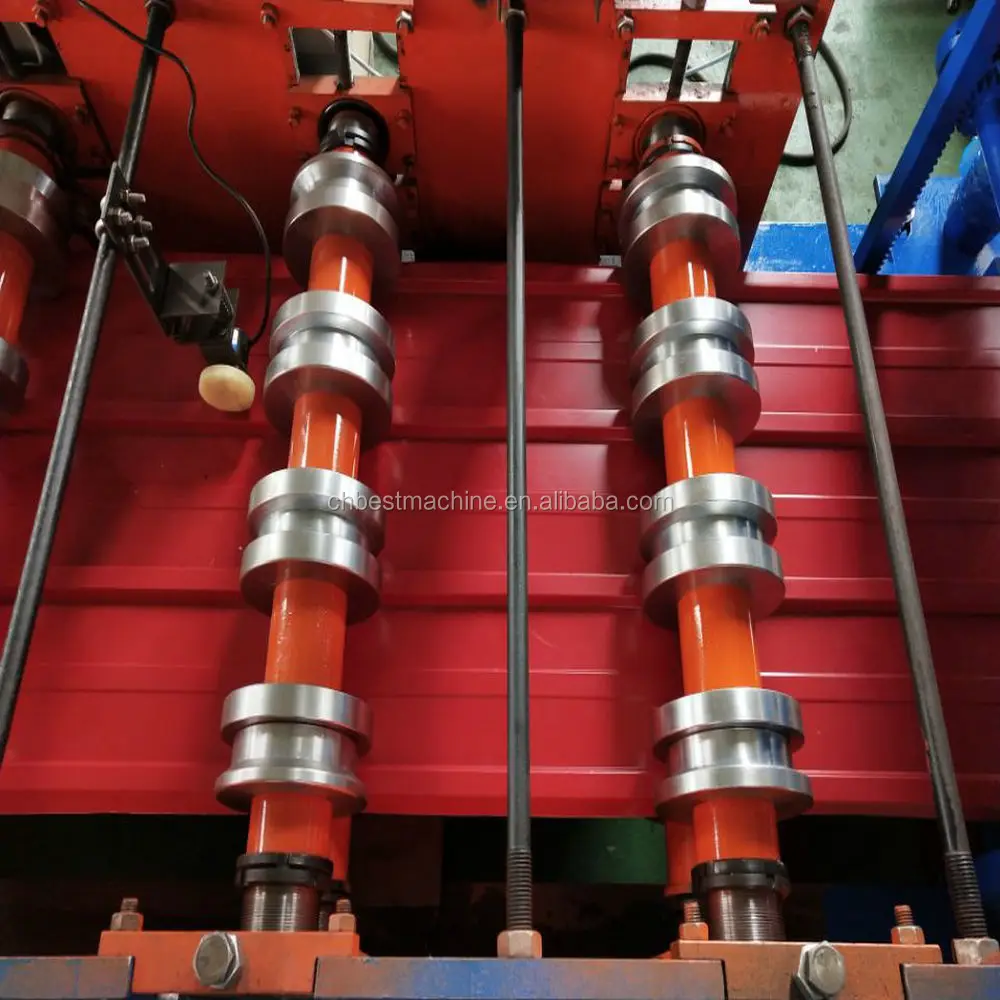

(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm

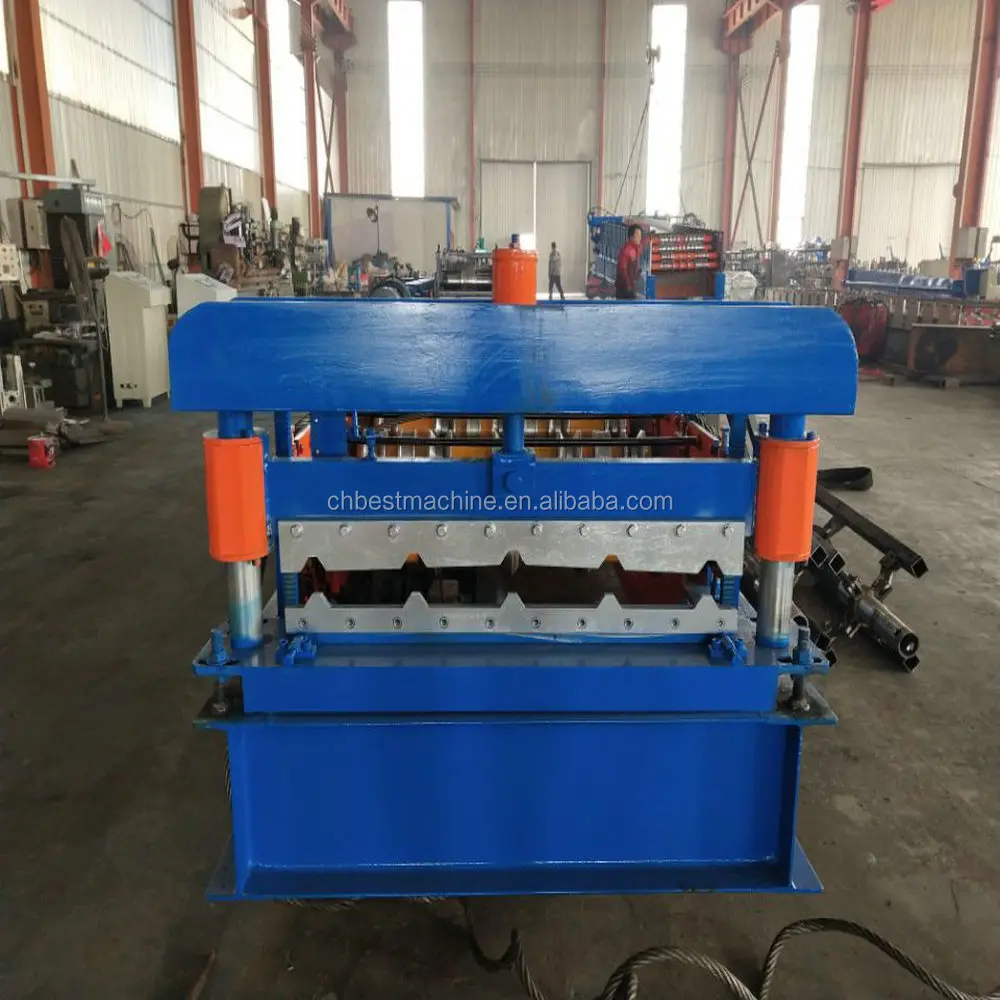

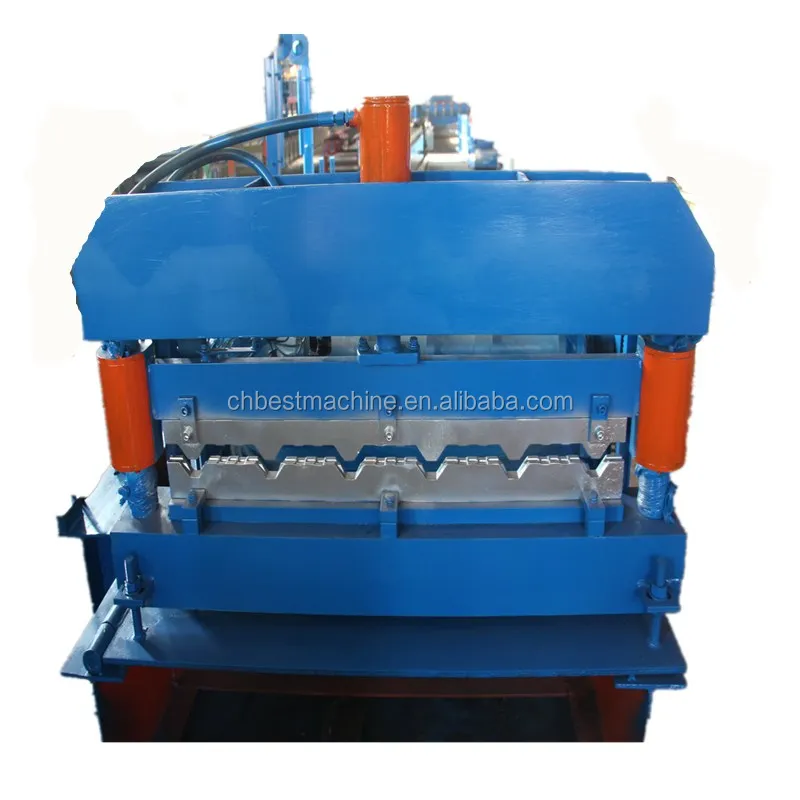

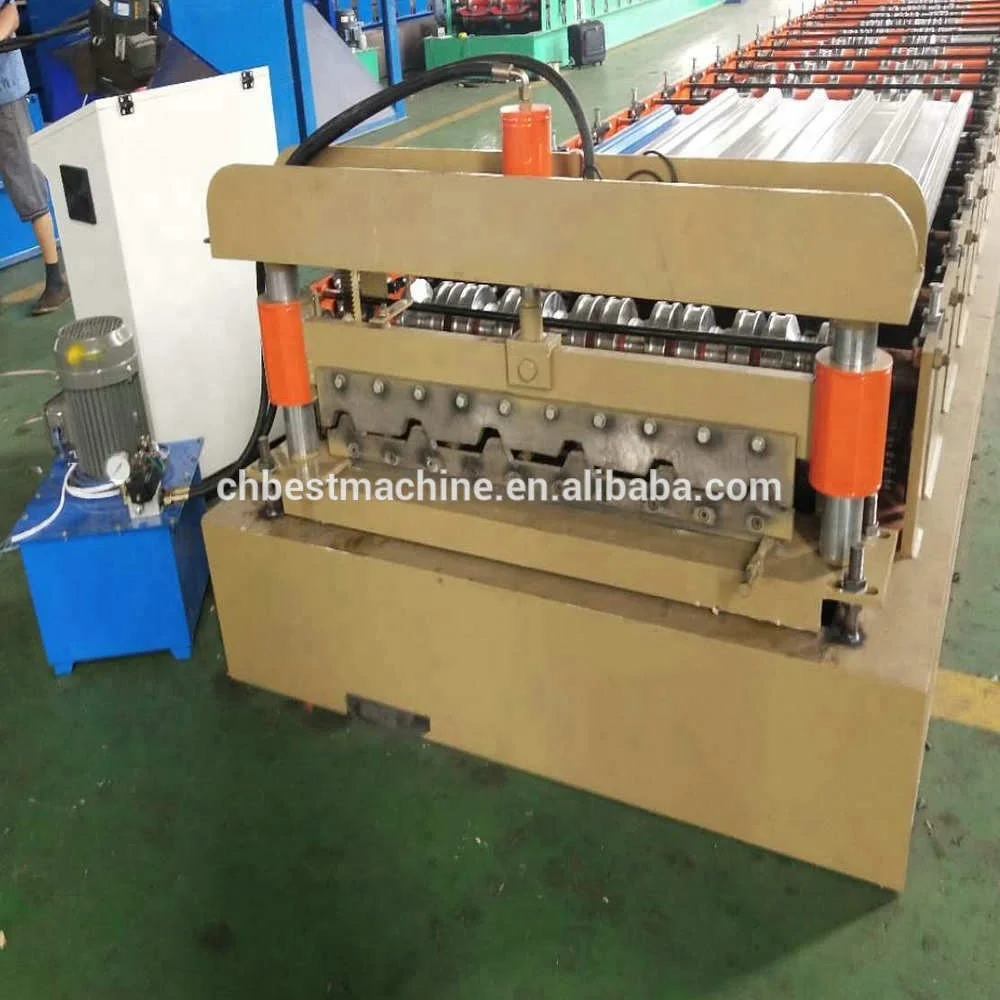

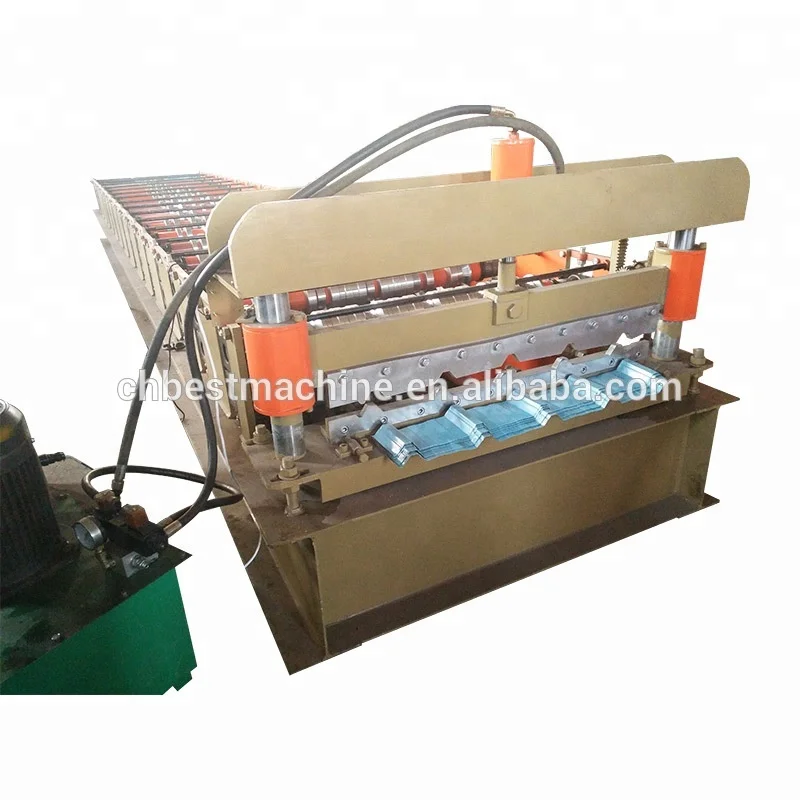

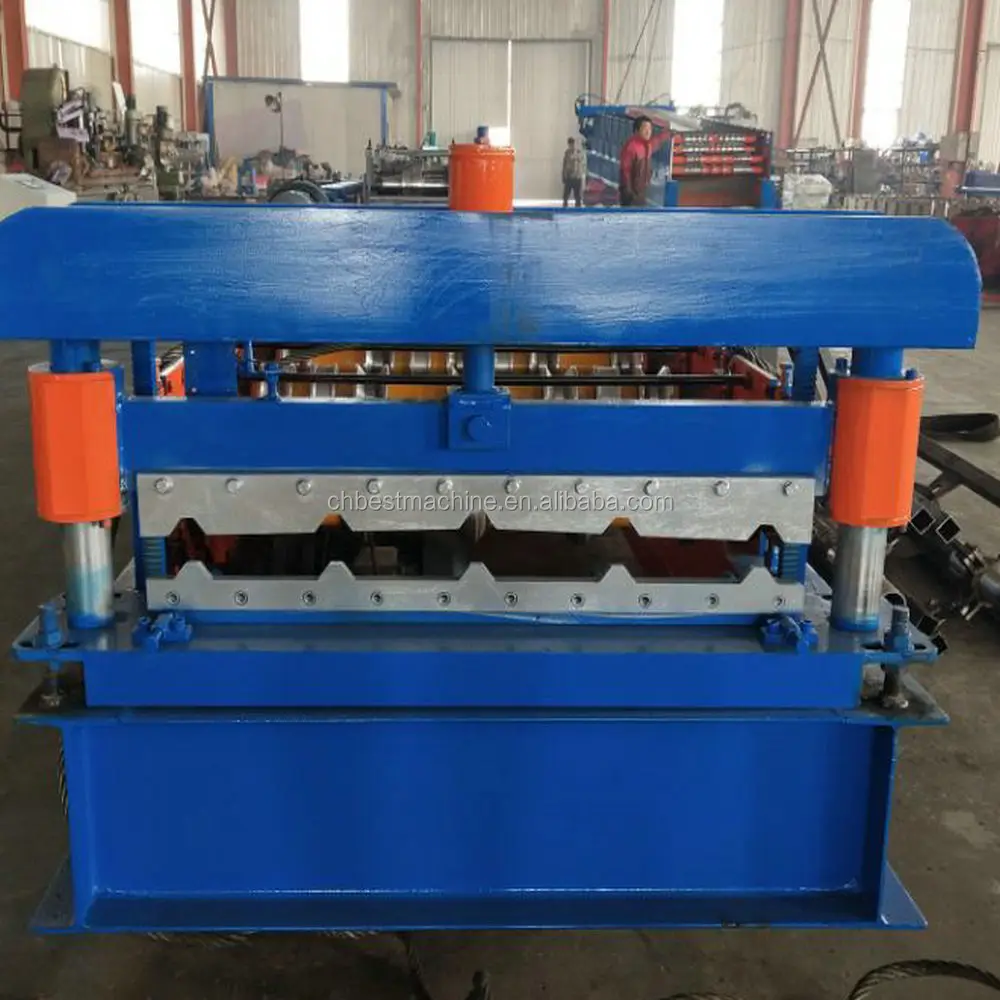

CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment

(2)Hardness for Heat Treatment:HRC55 – 60°

(3)Cut-Off Type: Hydraulic, Automatic Cut-Off

(4) Motor for Hydraulic Stand: 3 KW

PLC CONTROL BOX

(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

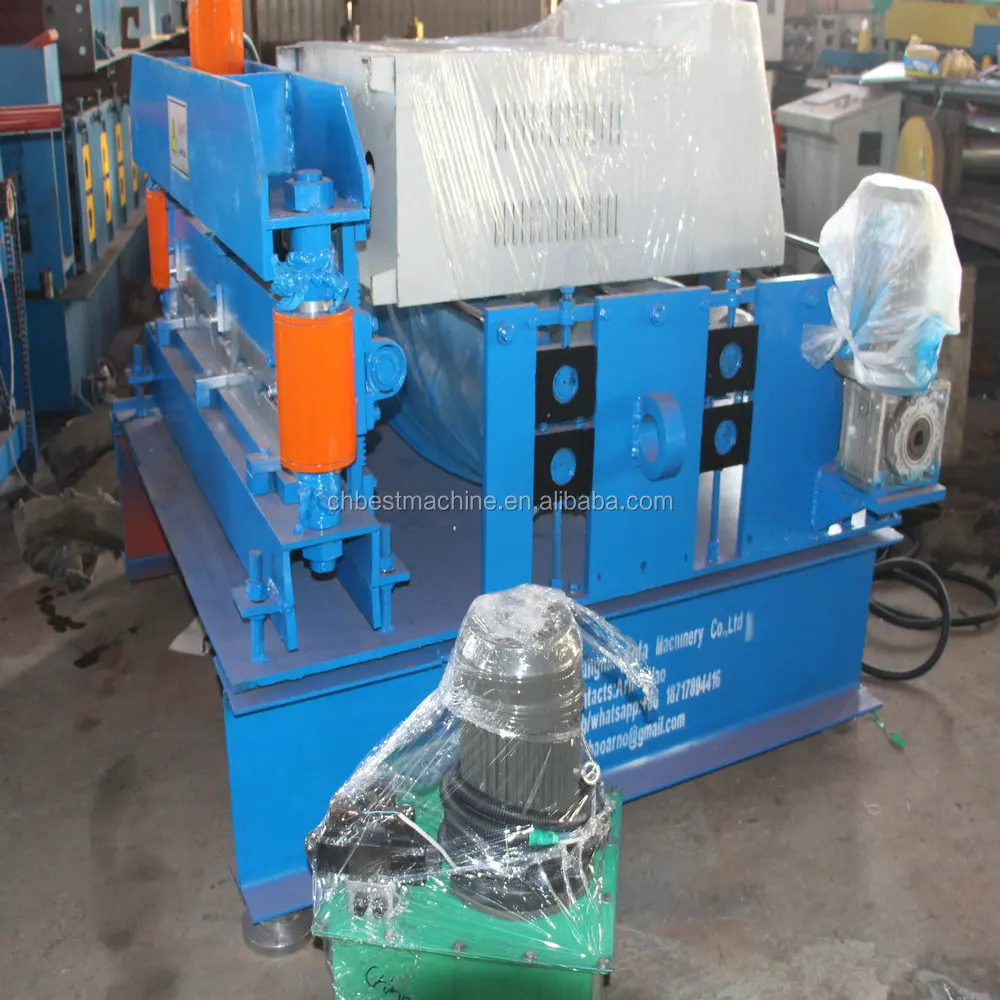

HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand

Finished Product Table

(1)Length: 2m
(2)Type: manual without power

Standard export packing

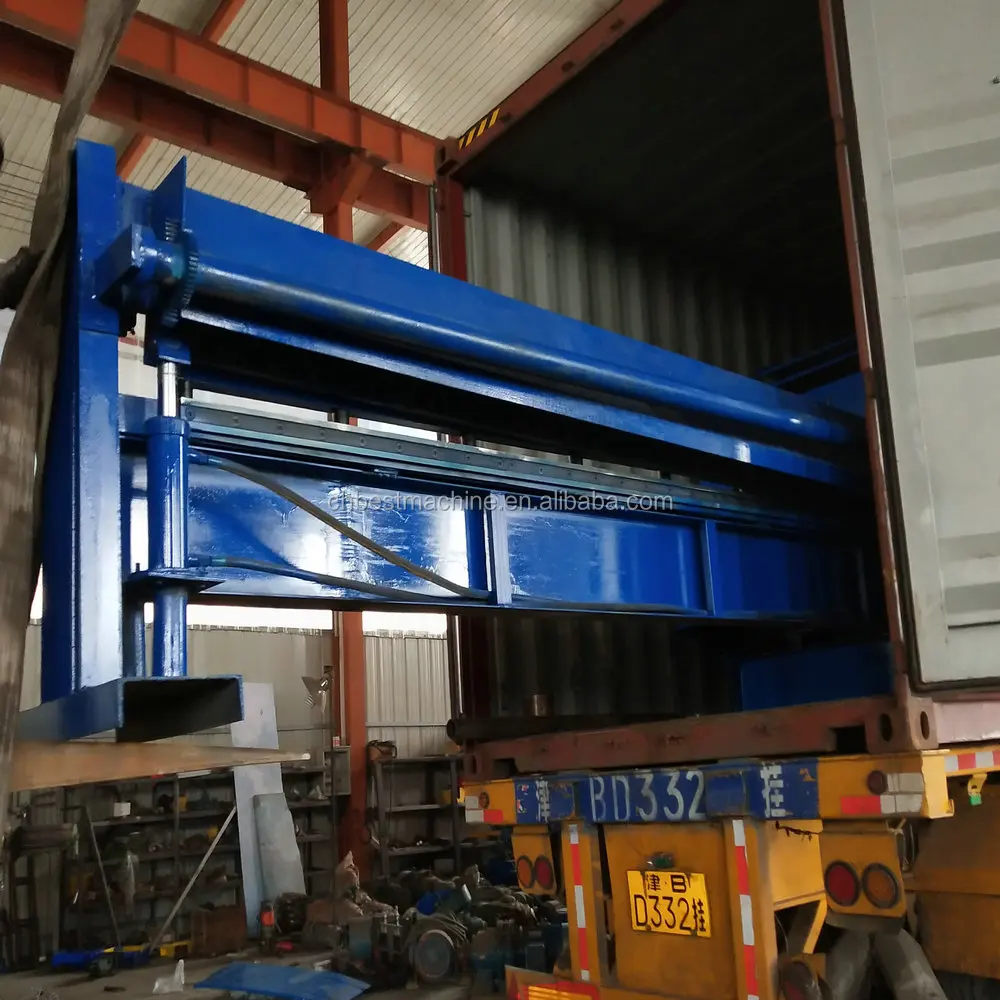

1. 1*40 GP container ; main machine naked and fastened with iron wire in the container.

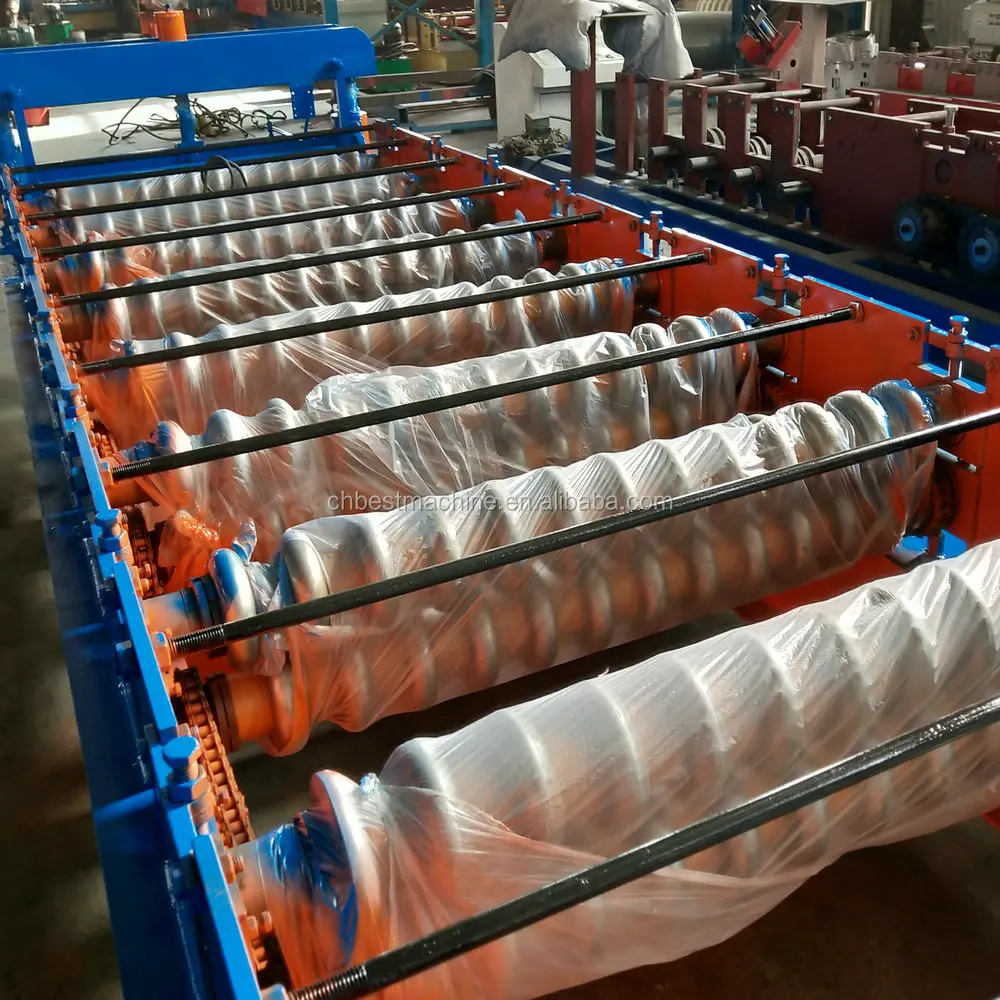

2. Rollers were painted with oil and packed with plastic film.

3. Electrics devices be packed with wooden box.for Standard export packing.

Company Information

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

Main Features

1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
