Mini Slotting Machine with slotting length 160mm B5016

Share on (60780654542):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

\t

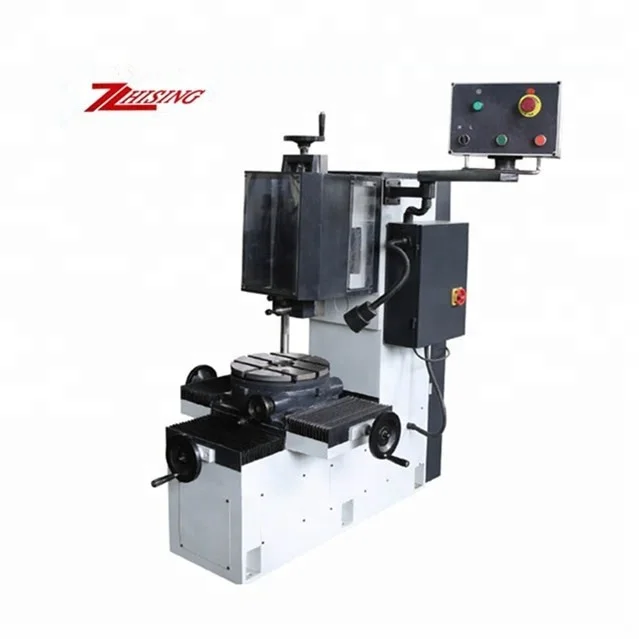

Mini Slotting Machine B5016
\t
Specification
\t
B5016
\t
Max.slotting length
\t
160mm
\t
No of ram strokes per minute
\t
29 40 44 55 61 83
\t
Swing angle of ram
\t
0-8°
\t
Table diameter
\t
360mm
\t
Vertical adjustment of ram
\t
160mm
\t
Distance between tool holding surface and column front
\t
485mm
\t
Distance between table surface and lower end of ram slide
\t
320mm
\t
Max.longitudinal travel of table
\t
360mm
\t
Max.cross travel of table
\t
320mm
\t
Max.rotary angle of table
\t
360deg
\t
Tool shank size
\t
25x40mm
\t
Max.cutting force
\t
4500N
\t
Max.table load-carrying capacity
\t
300kgs
\t
Width of table center T-slot
\t
16+0.005mm
\t
Power of main drive motor
\t
1.5/0.85kw
\t
Rotating speed of main drive motor
\t
1430/960rpm
\t
Overall dimension
\t
1270x1100x1700
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t

Q1: How many year you have been in this machinery exportation industry?

Over 18 years.


02: When can we get answered after give you enquiries?


Your enquiries will be answered within 24 hours efficiently.


Q3: How's quality guanteed from your company?


Before each shipment, we have professional inspection team to inspect each machines we export. All machines are not allowed leaving factories till they are under excellent quality conditions.

\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t

Tengzhou Hising Machine Tools

Tengzhou Hising Machine Tools Co.,Ltd., originated from Tengzhou Hising Industry & Commerce Co.,Ltd., is one of the leading suppliers & exporters of machine tools and machine tool accessories in the south of Shandong Province, China. Our main products have grown to over 10series in recent machine, drilling machines, grinding machine, shaping machines, band saw, shearing machine, press brake machine, garment machine, construction machine machine tool accessories, and hand tools with more than 1000 specifictions, With stable capability and reliable quality, our products has been selling very well and exported to more than 70 countries and regions over the world.


Our corporation's purpose and quality strategy is to establish a famous and high grade brand. Strict management, honest attitude and timely service is our eternal policy. We have the stock of some related factories or investment in related fields, At the same time, we have good and close relationships and connections with over 100 excellent manufacturers in China, which ensures the good selection of our clients by providing quality machine tools and accessories with excellent services.


Tengzhou Hising Machine Tools Co.,Ltd. sincerely wishes to cooperate with friends at home and abroad to realize mutual development!

\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tContact Us \t\t\t\t\t\t\t

Tengzhou Hising Machine Tools

Pei manager

Tel: +86 632 5689986

Fax:+86 6325885186

Wechat: +86 13963270890

Skype:+86 17863260726

www.tz-hising.com
