China Made silver copper bimetal contact rivet machine
- Category: Other Machine Tool Equipment >>>
- Supplier: Rsm Machinery Co. Ltd.
Share on (60781304853):
Product Overview
Description
TECHNICAL DATAS

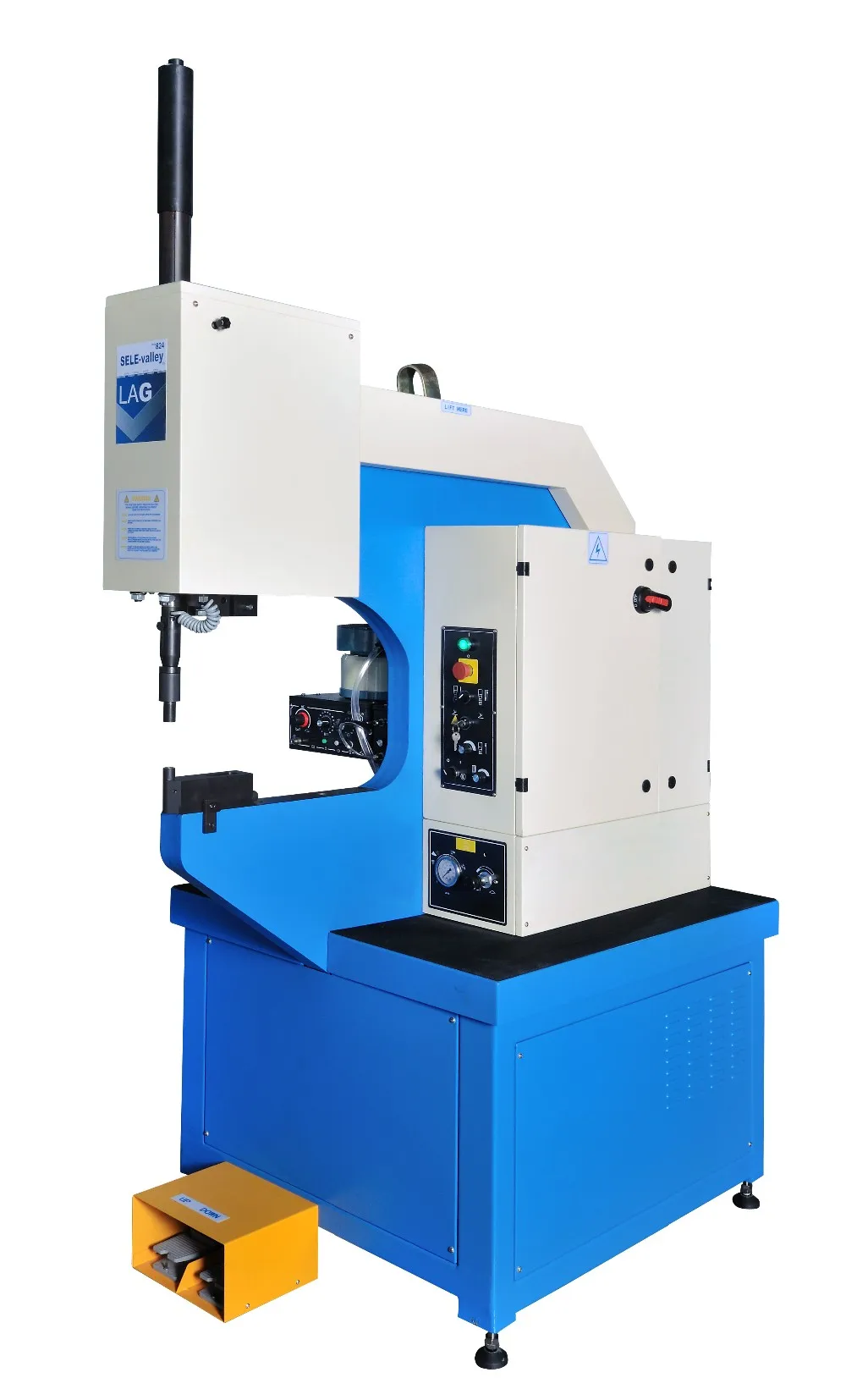

FASTENER INSERTION MACHINE-416 MODEL
Force:44KN
Throat Depth:406mm
Throat Height:340mm
Stroke Length Adjustable:Yes
Number of Inserts Per Hour(Manually)1200
Ram Force Repeat Accuracy:+/-1%
Safety Device:Yes
Manual Turret Insertion System(Optional):Yes
Automatic Feeding System(Optional):No
Clinching Joint System(Optional):Yes
Dwell time:No
Batch Counter(Optional):No
Main Power:1.5KW
Tank Capacity:38L
Power Supply:220V/single phase/50HZ
Dimension(W*D*H)m:1.28*1.1*2.1m
Net Weight:350kg
FASTENER INSERTION MACHINE-618 MODEL
Force:54KN
Throat Depth:450mm
Throat Height:381mm
Stroke Length Adjustable:Yes
Number of Inserts Per Hour(Manually)1200
Ram Force Repeat Accuracy:+/-1%
Safety Device:Yes
Manual Turret Insertion System(Optional):Yes
Automatic Feeding System(Optional):Yes
Clinching Joint System(Optional):Yes
Dwell time:Standard
Forward Limited:Option
Batch Counter(Optional):Yes
Main Power:2.2KW
Tank Capacity:38L
Power Supply:380V/3 phase/50HZ
Dimension(W*D*H)m:1.28*1.1*2.1m
Net Weight:650kg
FASTENER INSERTION MACHINE-824MODEL
Force:72KN
Throat Depth:610mm
Throat Height:421mm
Stroke Length Adjustable:Yes
Number of Inserts Per Hour(Manually)1200
Ram Force Repeat Accuracy:+/-1%
Safety Device:Yes
Manual Turret Insertion System(Optional):Yes
Automatic Feeding System(Optional):Yes
Clinching Joint System(Optional):Yes
Dwell time:Standard
Forward Limited:Standard
Batch Counter(Optional):Yes
Main Power:3.75KW
Tank Capacity:76L
Power Supply:380V/3 phase/50HZ
Dimension(W*D*H)m:1.64*1.12*2.4m
Net Weight:950kg
Product Description

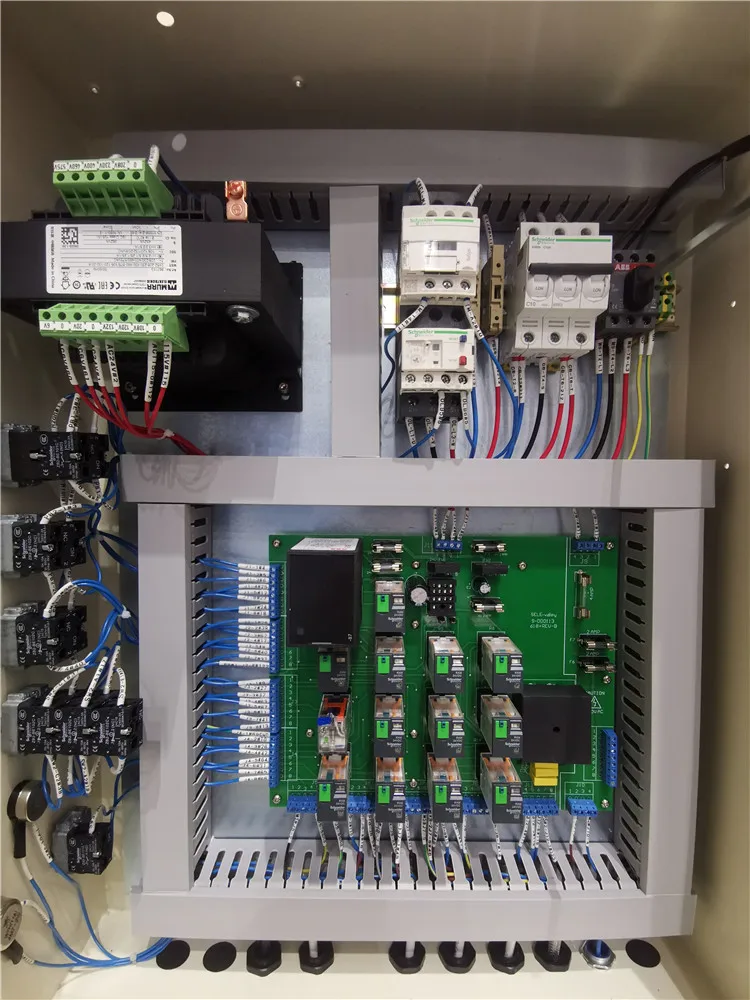

Electric control box with CE certificated famous brand components, such as Schneider, ABB

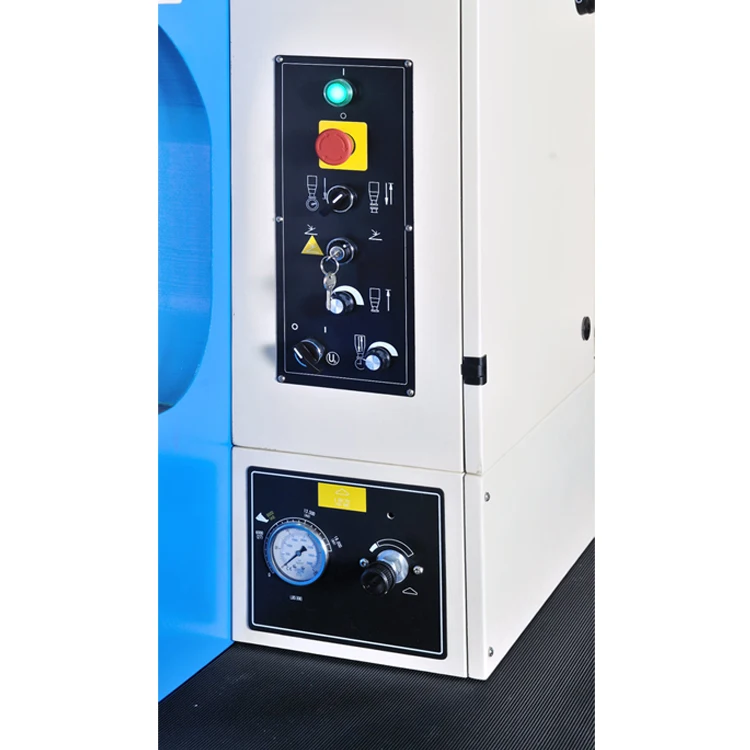

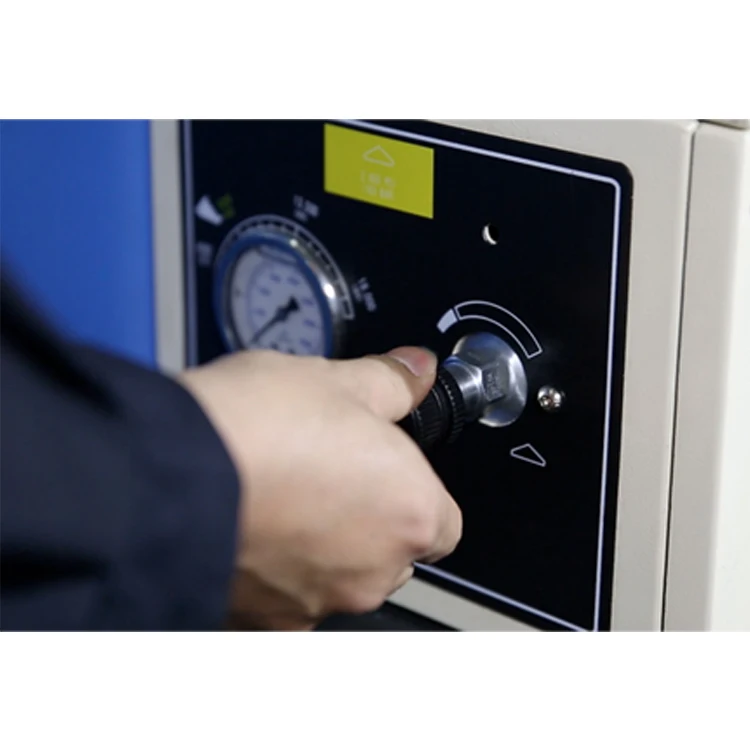

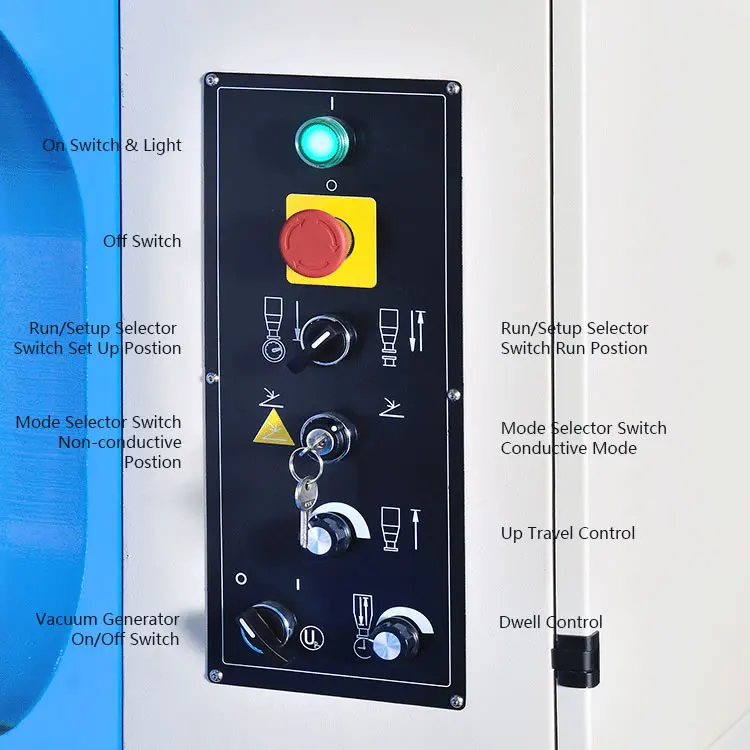

Manual Control Panel
Related Products
Company Profile

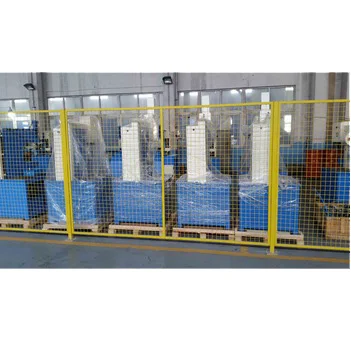

Packing and Shipping
CE STANDARD
FAQ
Fastener Insert Machine
1,What size of nuts could fastener insertion 416/618/824 machine could press?
For the nuts/standoff/stud,we can make the press M3-M12.
2,If we have bought the manual fastener insertion, could we update to automatic machine easily?
Absolutely yes.
3,What is the difference between hydraulic fastener insertion machine and RSM fastener insertion machine?
Hydraulic drive is with energy saving and environment protection, if can reduce energy consumption by about 40% relatively
pneumatic drive.

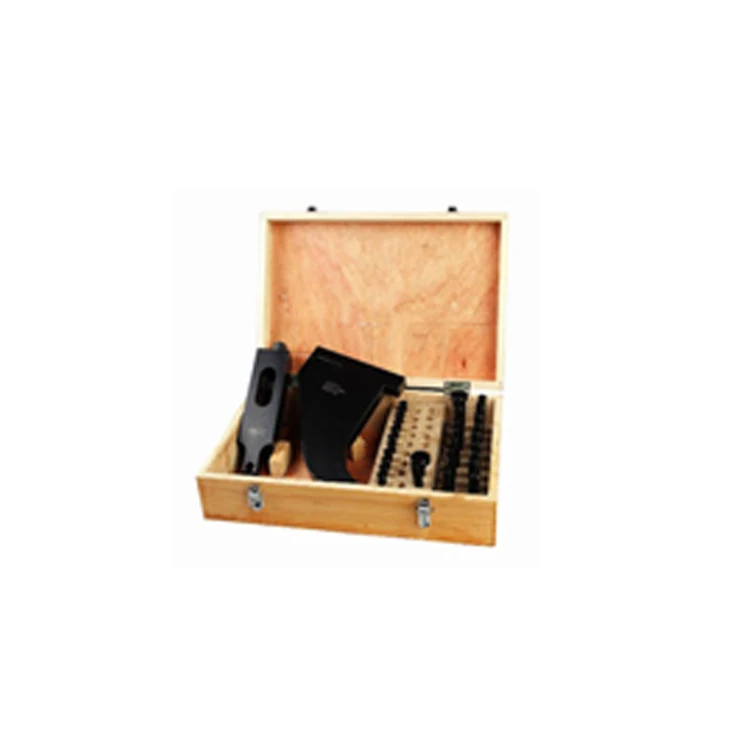

4,What is the Manual tooling package made of? And What is the function of the Manual tooling package?
33 pieces of manual work with nuts/studs/standoff different size of punch and dies M2-M8, length up to 35mm, special insertion
application for small parts flange die holder and Manual J frame.
5,What is the main function of the fastener insertion machine?
Fastener insertion machine with the technology to provide strong, reusable and permanent the threads and mounting points in thin
sheet metal.
6,What quick-wear part does Fastener insertion machine has?
Fuse, safety switch, relay, oil filter, die holder handle.
1,What size of nuts could fastener insertion 416/618/824 machine could press?
For the nuts/standoff/stud,we can make the press M3-M12.
2,If we have bought the manual fastener insertion, could we update to automatic machine easily?
Absolutely yes.
3,What is the difference between hydraulic fastener insertion machine and RSM fastener insertion machine?
Hydraulic drive is with energy saving and environment protection, if can reduce energy consumption by about 40% relatively
pneumatic drive.
4,What is the Manual tooling package made of? And What is the function of the Manual tooling package?
33 pieces of manual work with nuts/studs/standoff different size of punch and dies M2-M8, length up to 35mm, special insertion
application for small parts flange die holder and Manual J frame.
5,What is the main function of the fastener insertion machine?
Fastener insertion machine with the technology to provide strong, reusable and permanent the threads and mounting points in thin
sheet metal.
6,What quick-wear part does Fastener insertion machine has?
Fuse, safety switch, relay, oil filter, die holder handle.

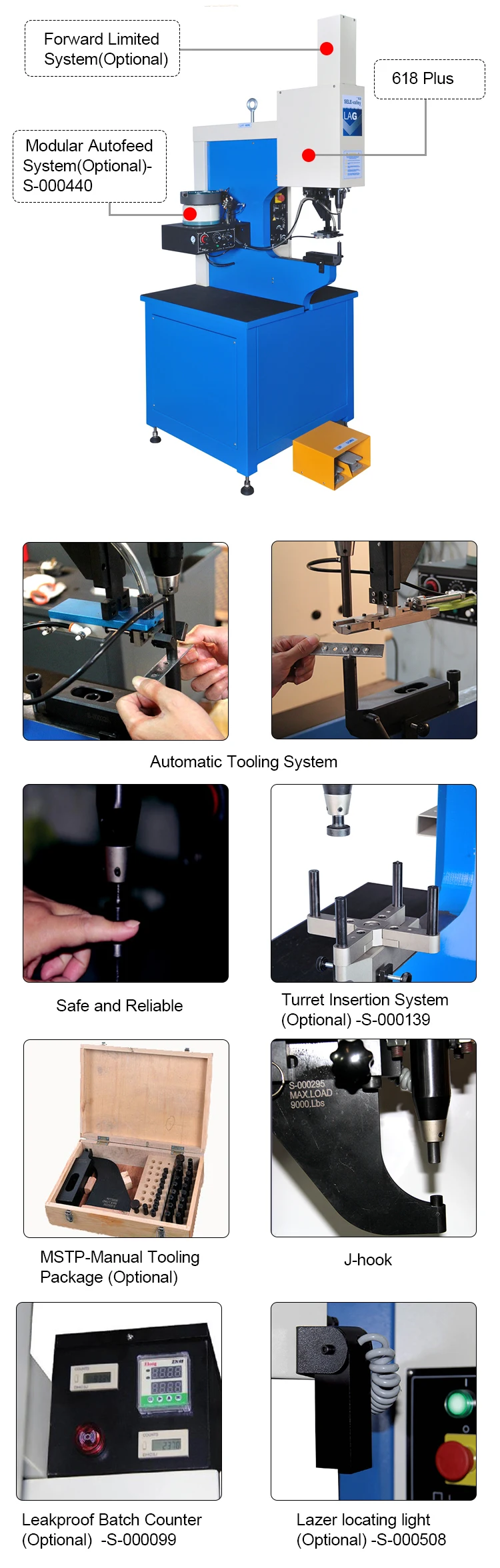

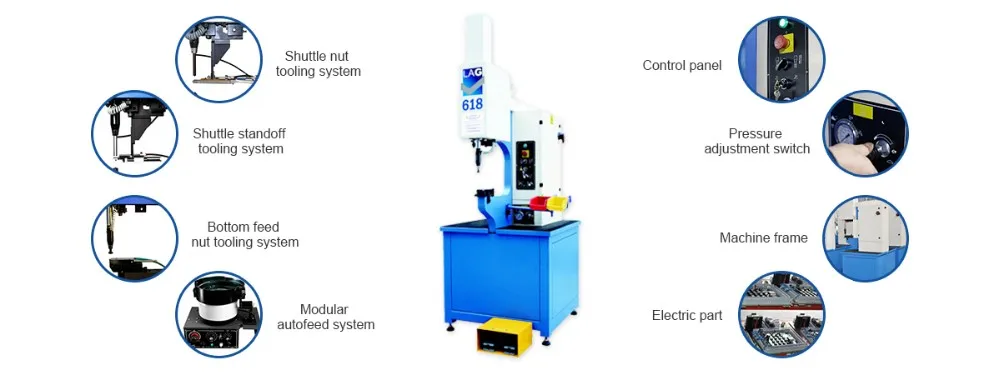

Main Options
1,How to choose BTM tooling?
Specify your joint parts material, thickness, drawing and supply min 10pcs sample to make the testing.

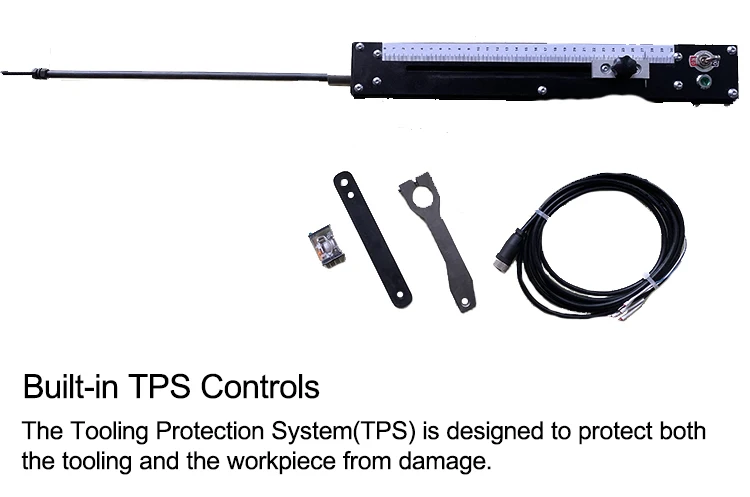

2,What is the function of Forward Limited?
Forward limited function is designed to protect both the tooling and workpiece from damage by positive stop cylinder.
3,How to choose Automatic tooling system?
For nut, either bottom or upper delivery; for standoff/stud, upper delivery. Please send at least 300pcs samples for us to make
the testing.

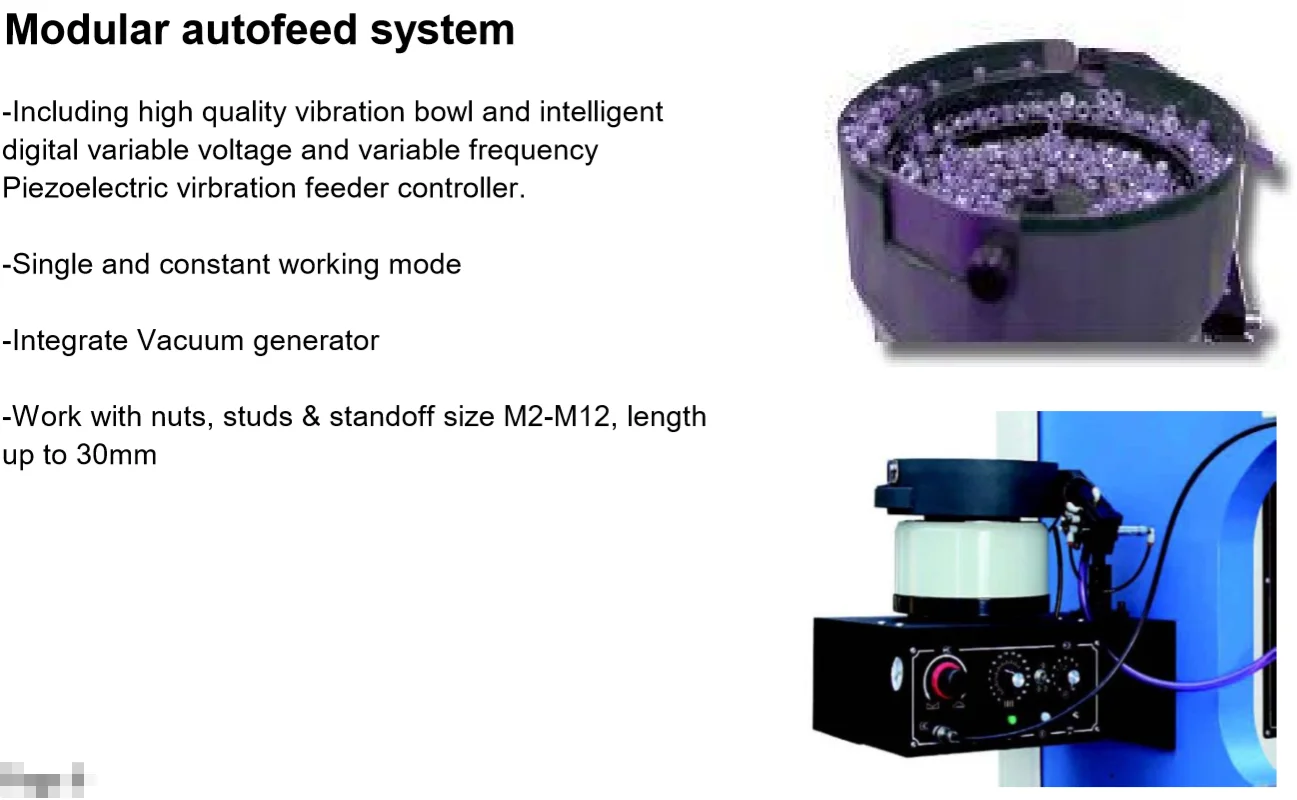

4,Is it Automatic tooling system stable?
Yes, the automatic tooling system include high quality vibration bowl and intelligent digital variable voltage and variable
frequency Piezoelectric vibration feeder controller.
1,How to choose BTM tooling?
Specify your joint parts material, thickness, drawing and supply min 10pcs sample to make the testing.
2,What is the function of Forward Limited?
Forward limited function is designed to protect both the tooling and workpiece from damage by positive stop cylinder.
3,How to choose Automatic tooling system?
For nut, either bottom or upper delivery; for standoff/stud, upper delivery. Please send at least 300pcs samples for us to make
the testing.
4,Is it Automatic tooling system stable?
Yes, the automatic tooling system include high quality vibration bowl and intelligent digital variable voltage and variable
frequency Piezoelectric vibration feeder controller.
