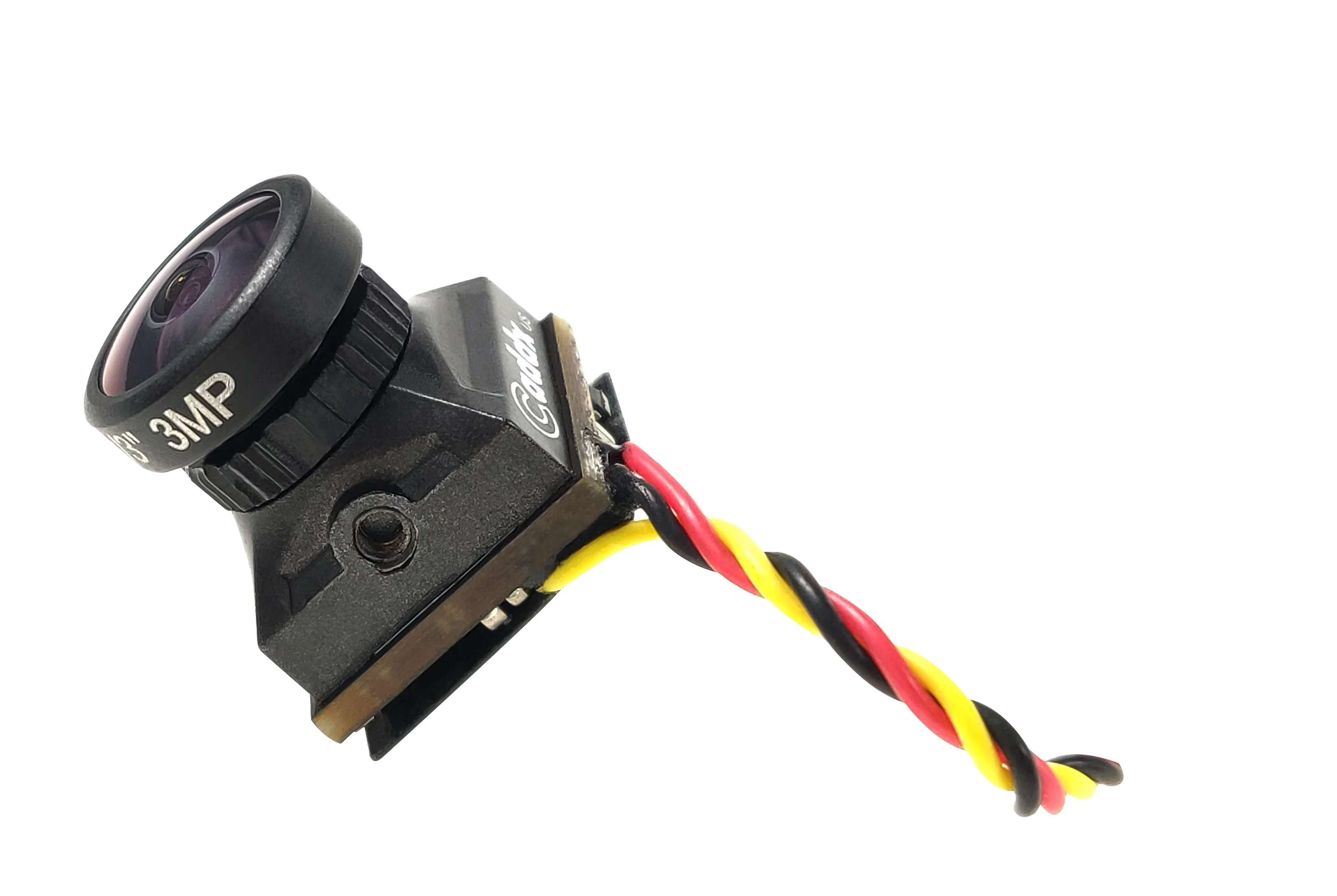

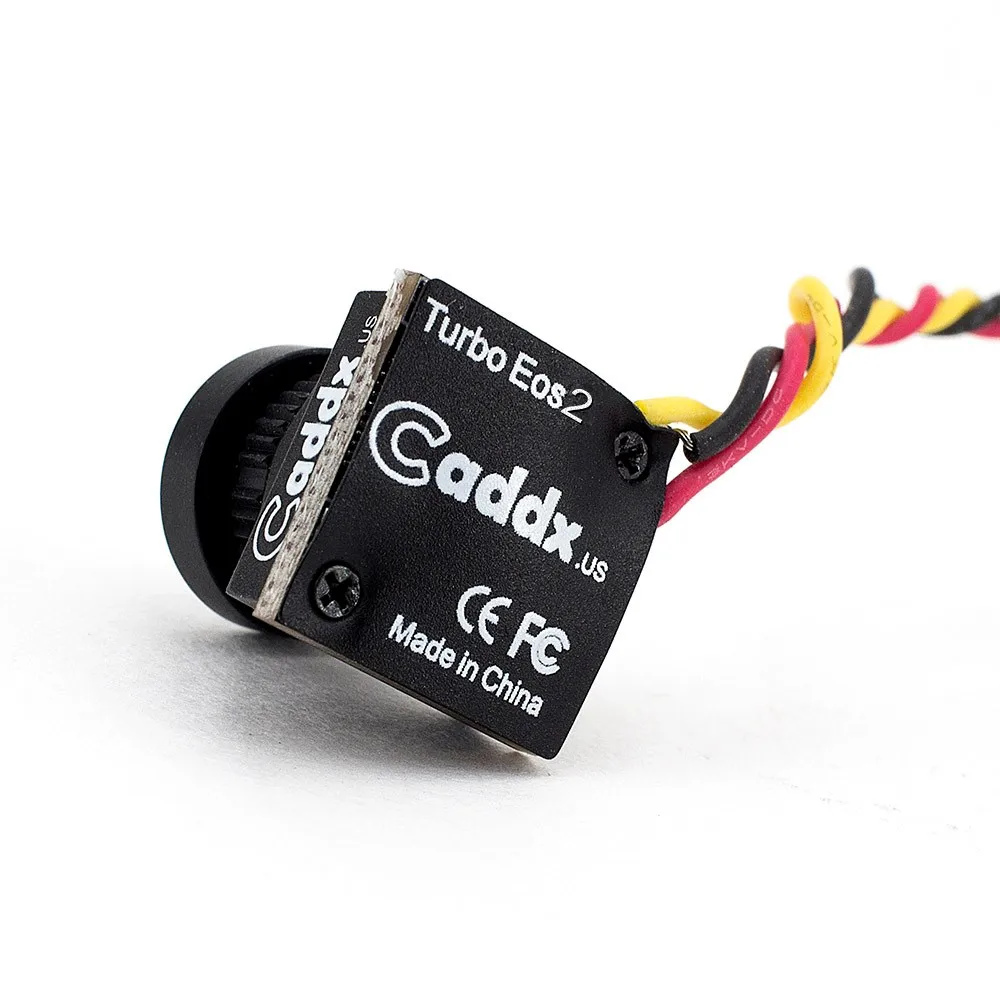

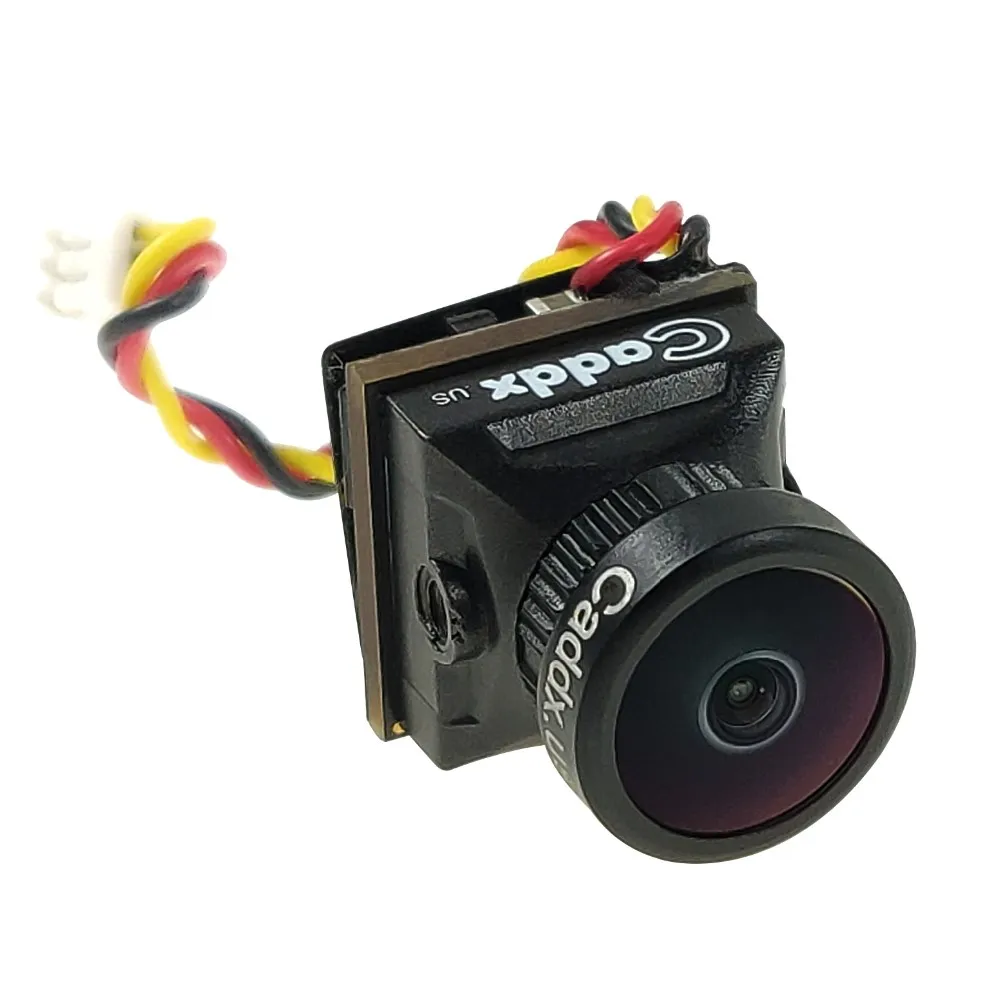

CADDX EOS2 1200TVL CMOS Nano FPV Camera NTSC/PAL Global WDR 2.1mm Lens

CADDX - EOS2 1200TVL CMOS Nano FPV Camera NTSC/PAL Global WDR 2.1mm Lens

New from Caddx.us the EOS2 Nano camera features 1200TVL resolution, an ultra light weight desgin, a Tiny 14m x 14mm form factor, a 2.1mm Lens as standard and Global WDR. The EOS2 Nano FPV camera is a perfect upgrade choice for micro quads and an ideal choice for smaller builds where size and weight are a factor.

Specs:
Model: Turbo EOS2
Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC / PAL option
IMAGE: 16:9
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >52dB (AGC OFF)
Video Output: CVBS
Lens: 2.1mm
Min. Illumination: 0.001Lux @ F1.2
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 2 DNR
Dimensions: 14mm*14mm*16mm
Wide Power Input: DC 3.3-9V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Weight: 3.5g (N.W.)

Packing List:
Camera x1
1x 3pin FPV silicone cable
Screws x1 set
Warranty card x1
