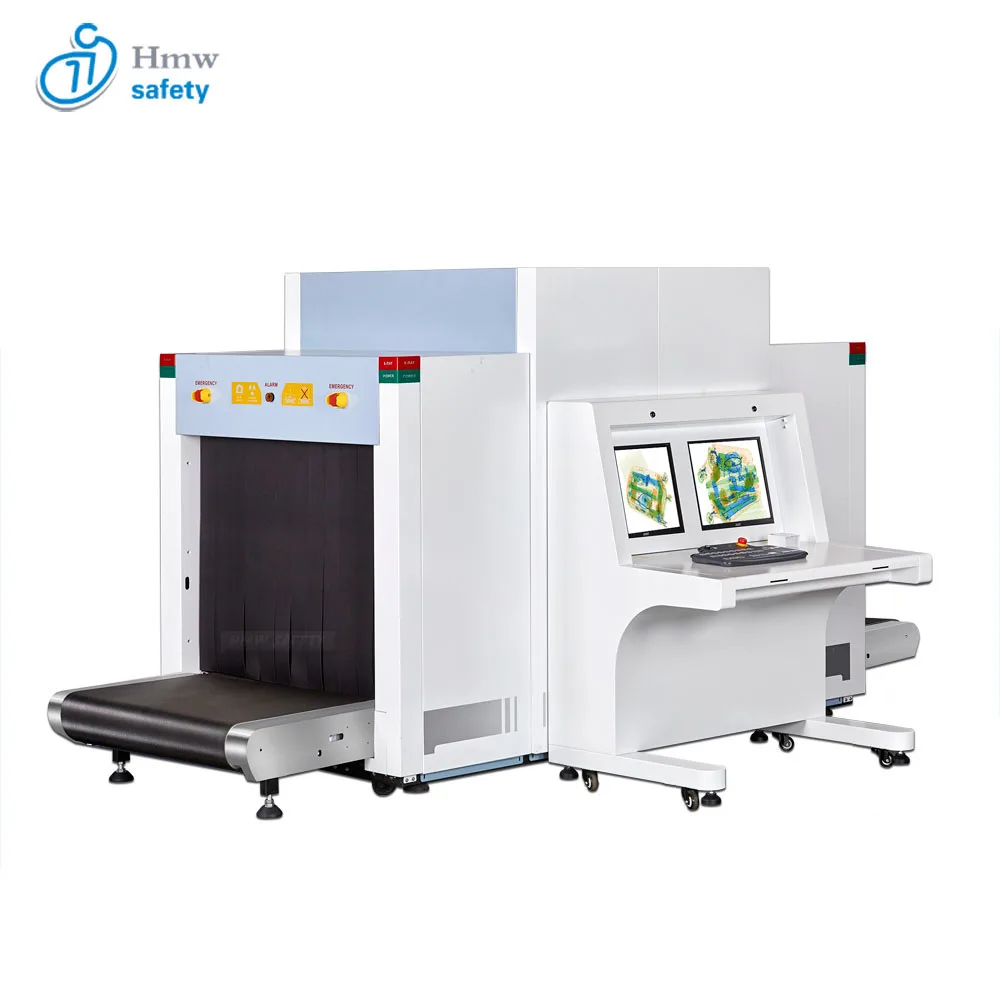

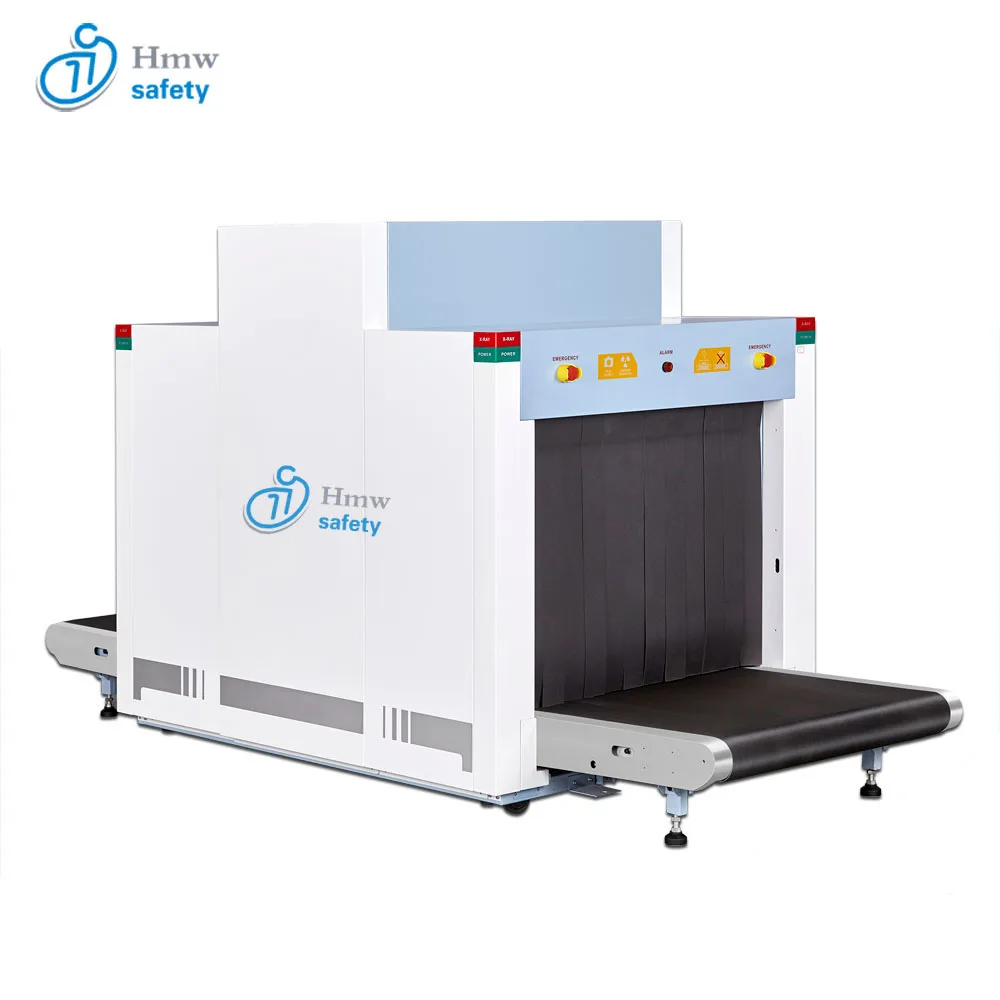

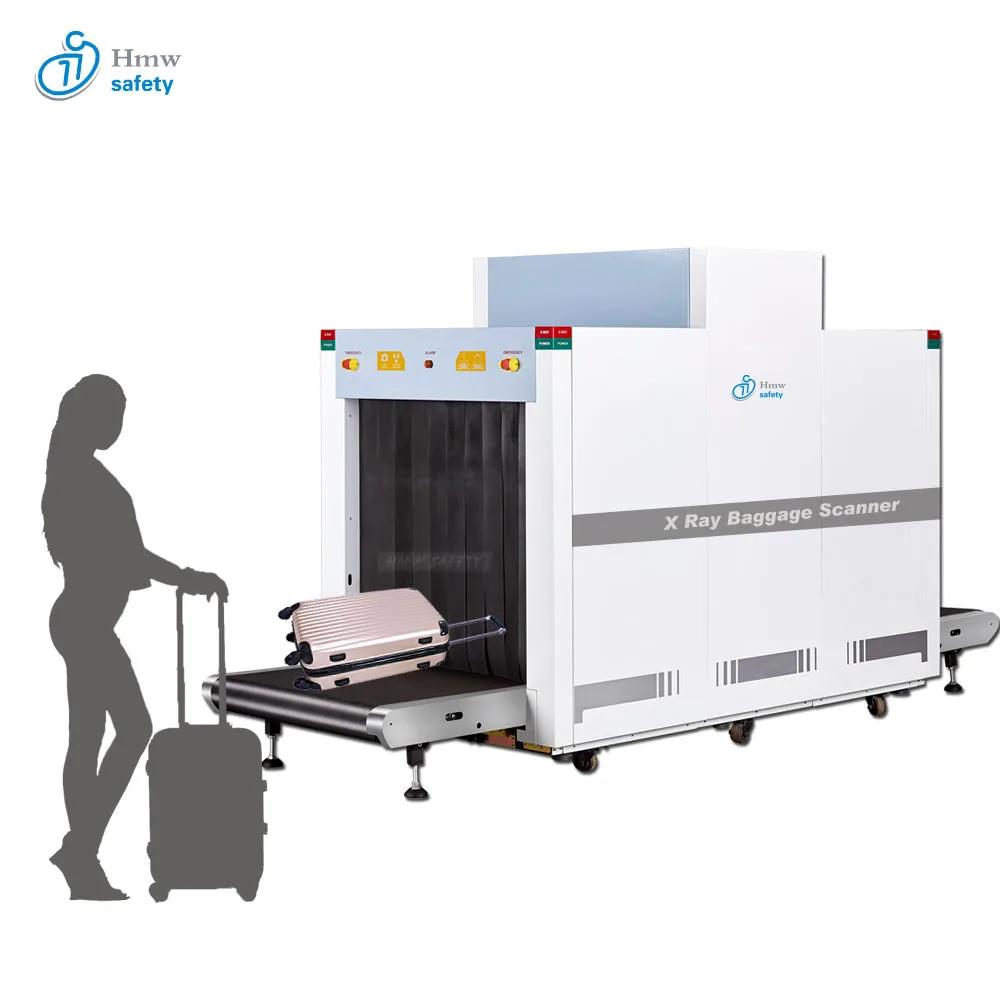

X ray cargo security baggage scanner machine for logistics security
- Category: Other Security & Protection Products >>>
- Supplier: Shenzhen Haimingwei Safety Co. Ltd.
Share on (60782658632):
Product Overview
Description

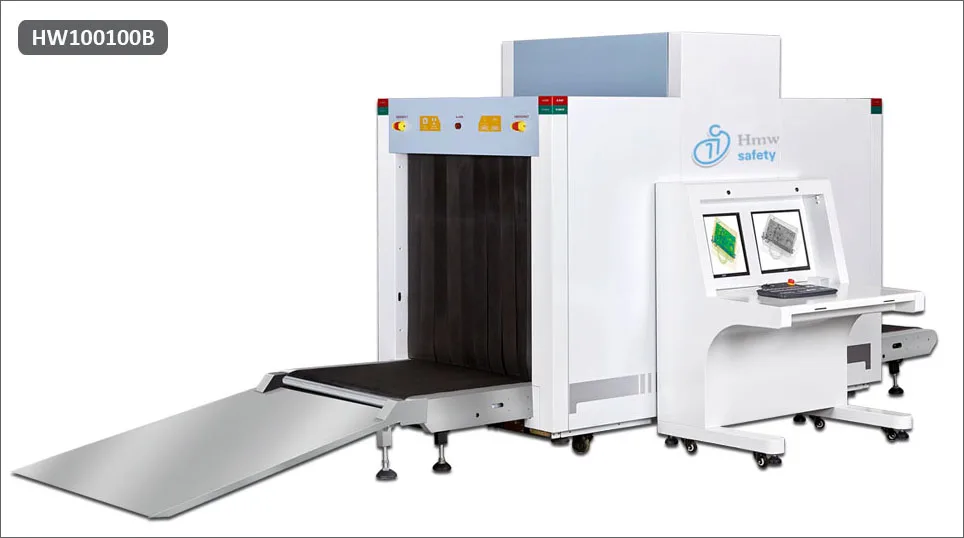

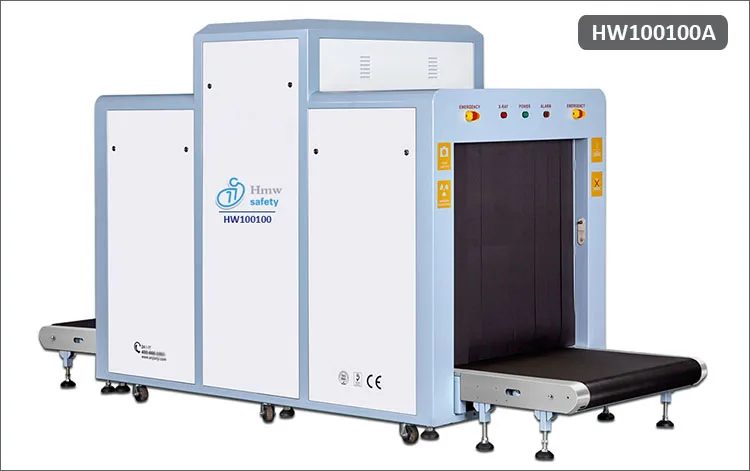

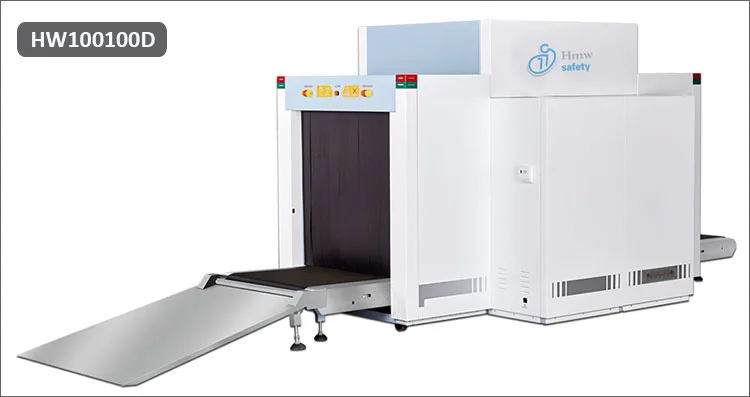

HW-100100 Airport Handbag Scanning Machine
Product Description
General Specification

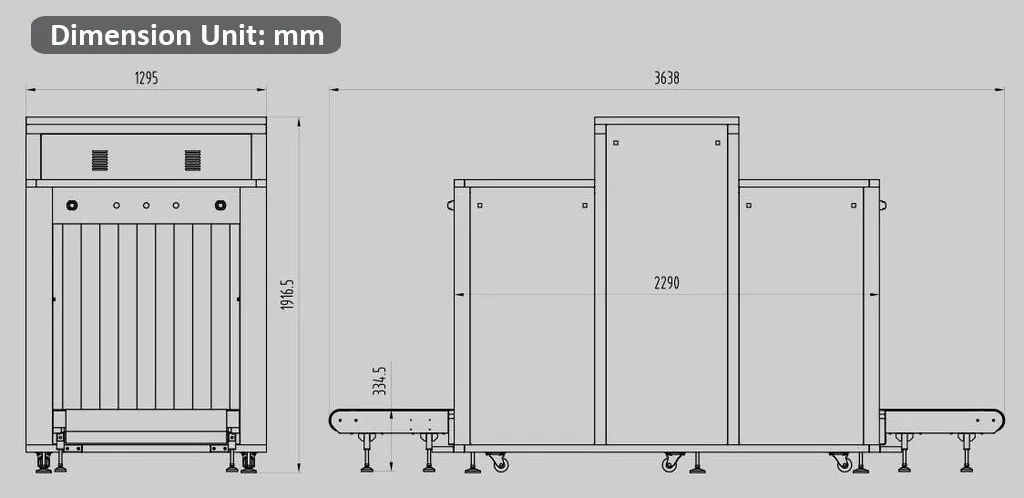

Tunnel Size: 1000(W)*1000(H)mm
Conveyor Speed.......0.22m/s
Conveyor Max Load:270kg
Dose per Inspection< 1.6μGy/h
Resolution< 0.0787mm Copper Wire
Spatial resolution Level: dia1.3mm, Vertical:dia1.0mm
Penetrate resolution Dia 0.511mm
Penetration40mm Steel
Film Safety:Guarantee ISO1600 Film
X-ray Leakage<0.1μGy/h (at a distance of 5cm From external housing)
X-ray Generator
Generate direct: Bottom to up
Generate anger: 80 degree
Anode Voltage140~160Kv
Anode power0.4 to 1.2mA
Cooling / Duty Cycle Oil Cooling /100%
Image System
X-ray Sensor L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Image Processing Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
Image Grey Level4096
Image Max Resolution:1024 * 1280 pixel
Image Processing24bit for processing real time
Image Storage :60000 pictures in real time
Zones & Zoom1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energe: switch from high energy to low energy
Assist to detect drug and explosive powder
Installation Data
| Operation temperature/Humidity | 0-45/20%-95%(non-condensing) |
| Storage Temperature/Humidity | -20-60/20%-95%(non-condensing) |
| Operation Power | 220VAC(±10%)50±3Hz |
| Power Consumption | 1.0 KW (max) |
| Noise | <58db |

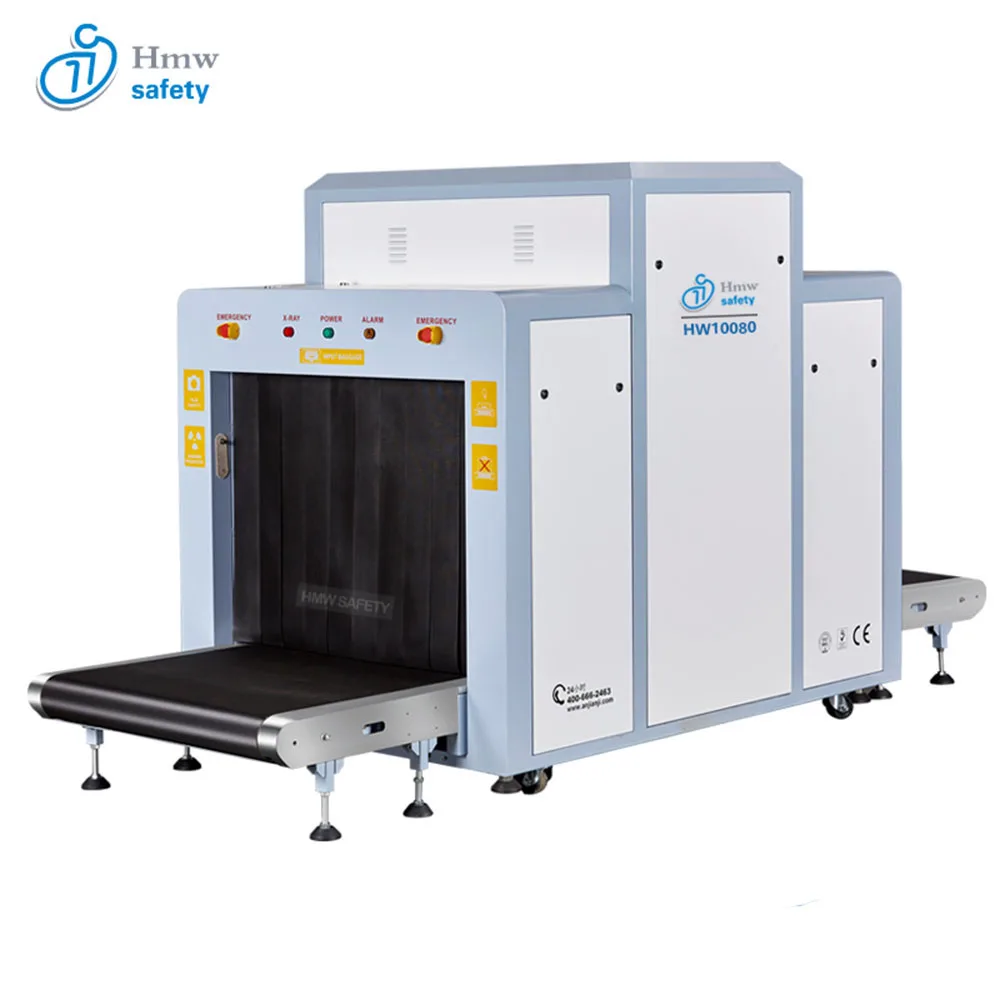

Series Product
