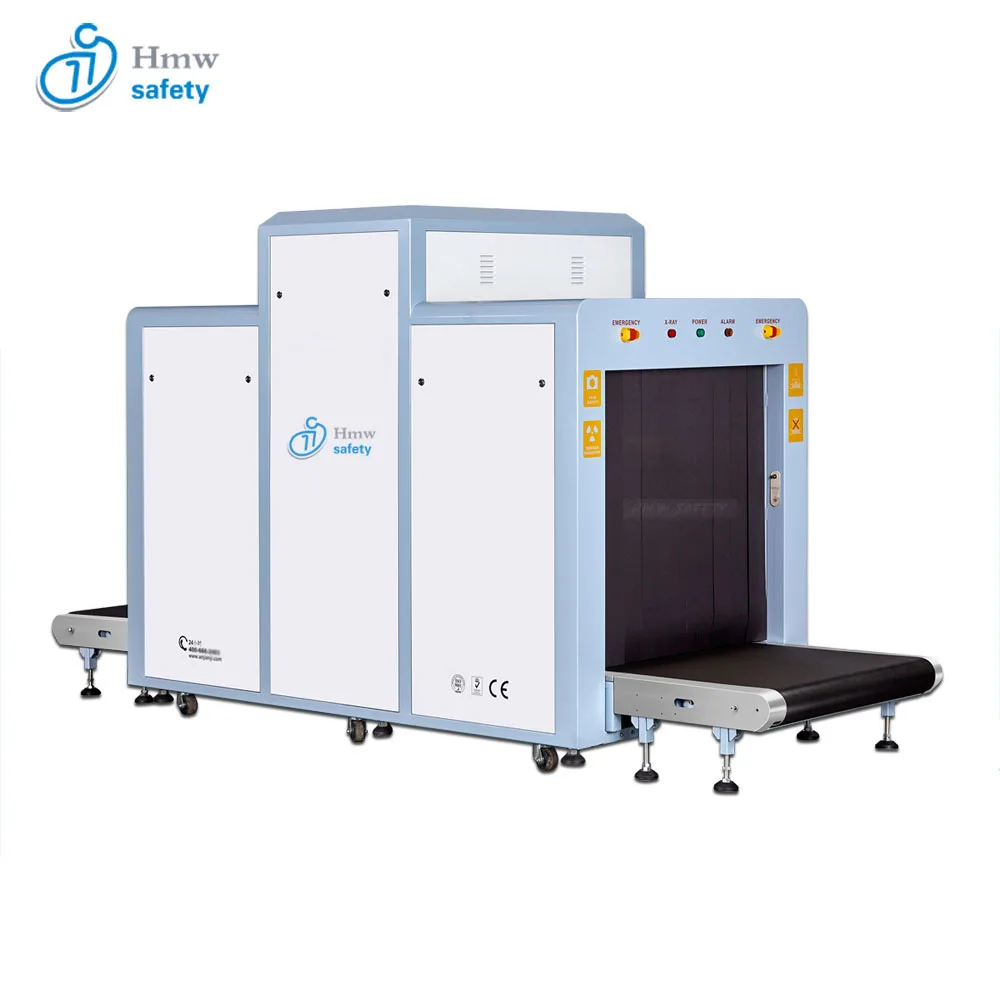

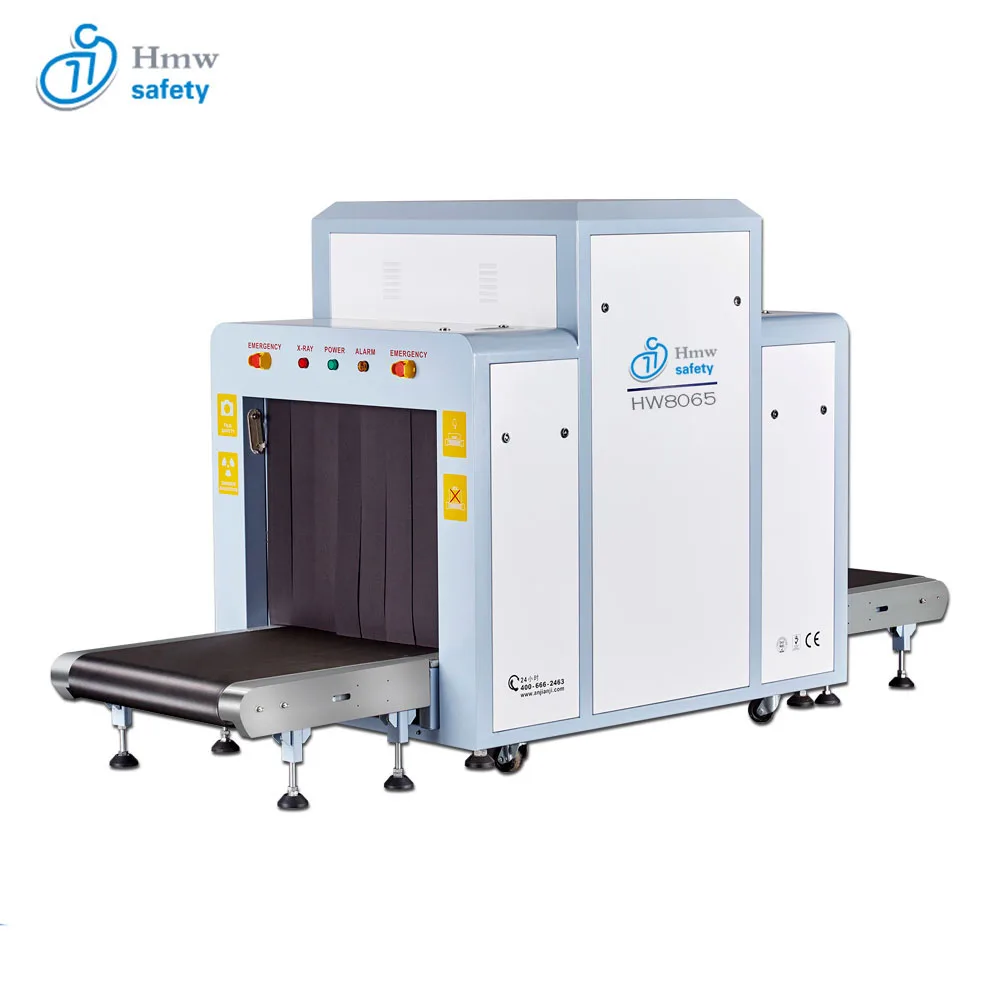

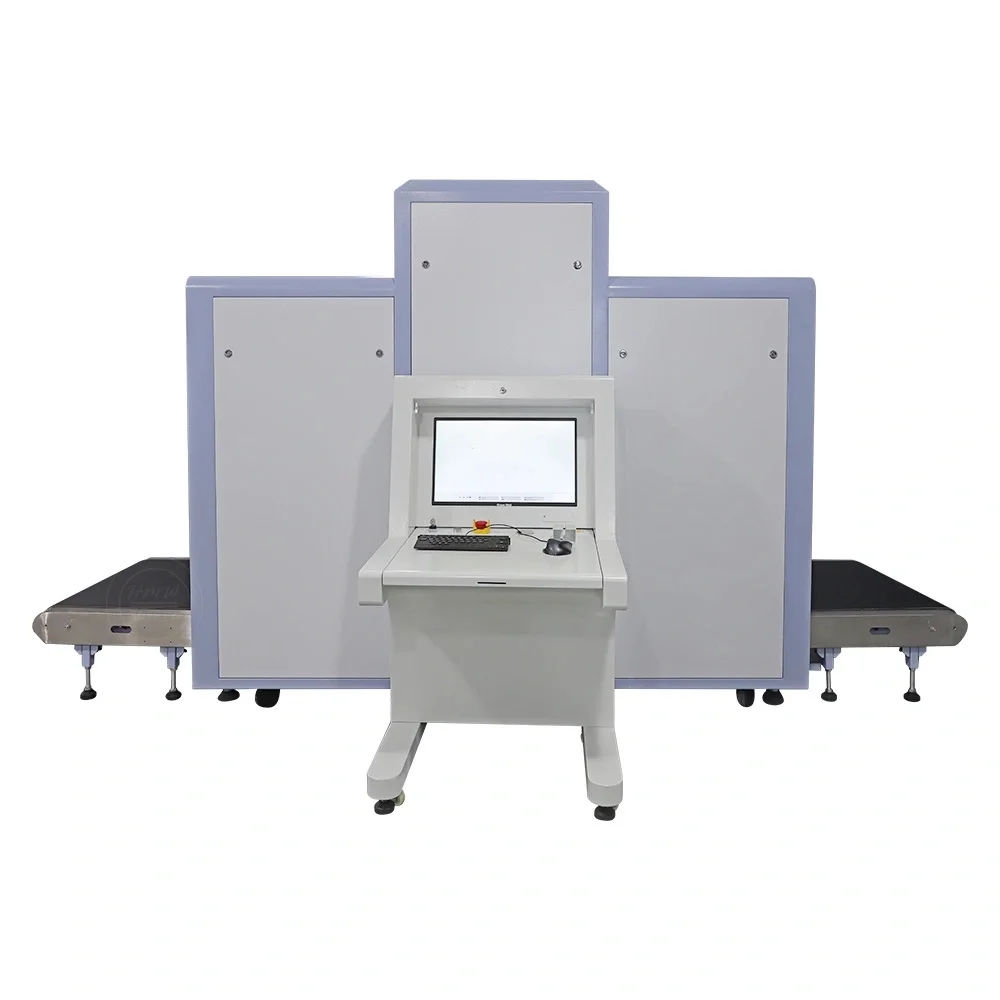

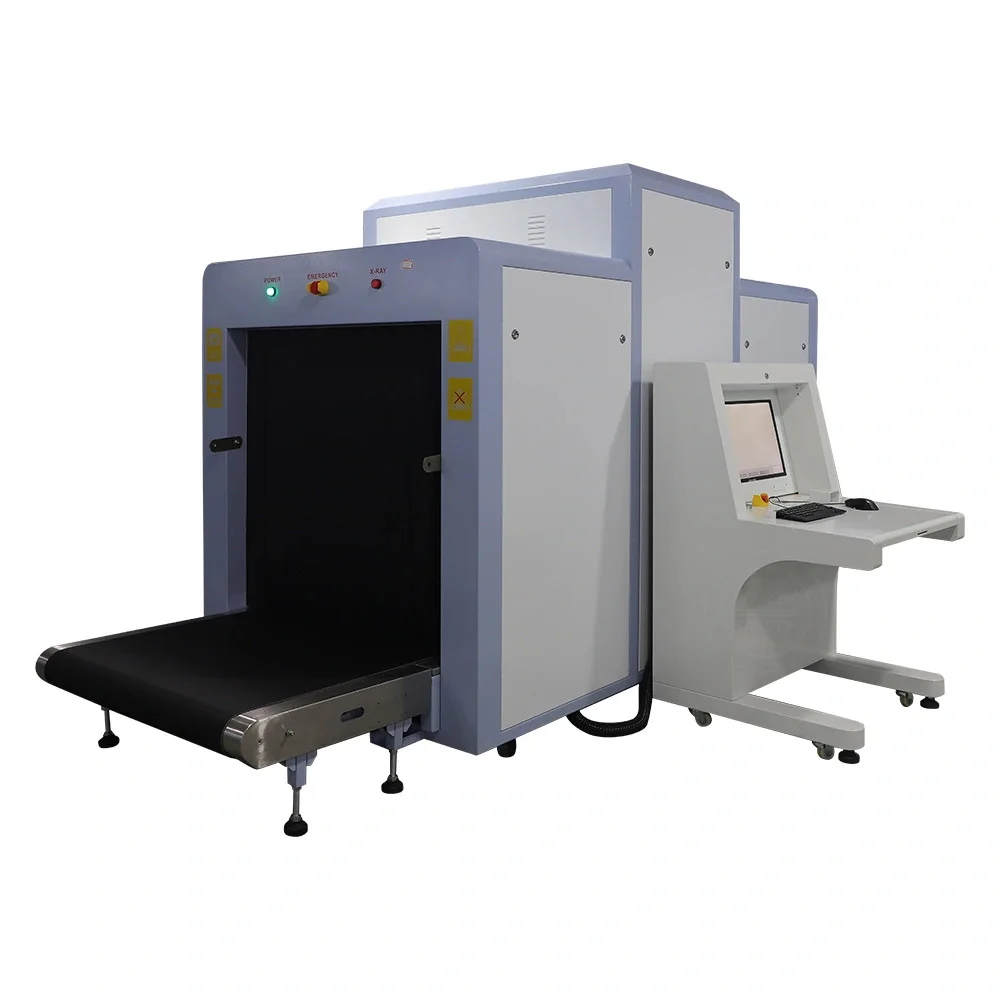

Hot sales 8065 airport x ray luggage scanner baggage inspection system

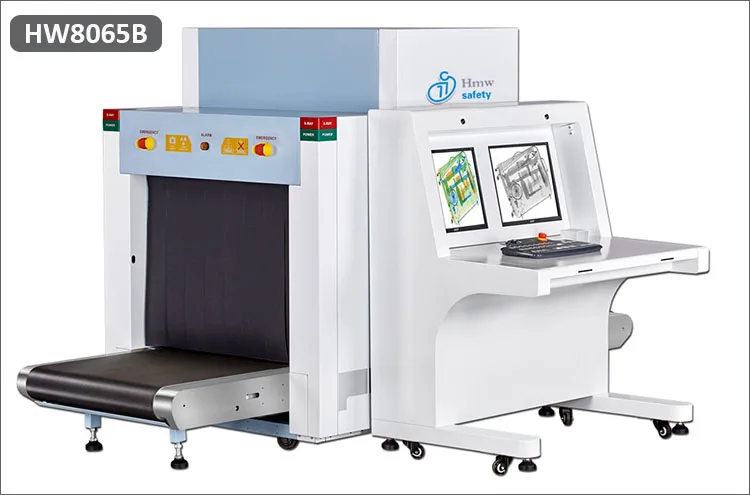

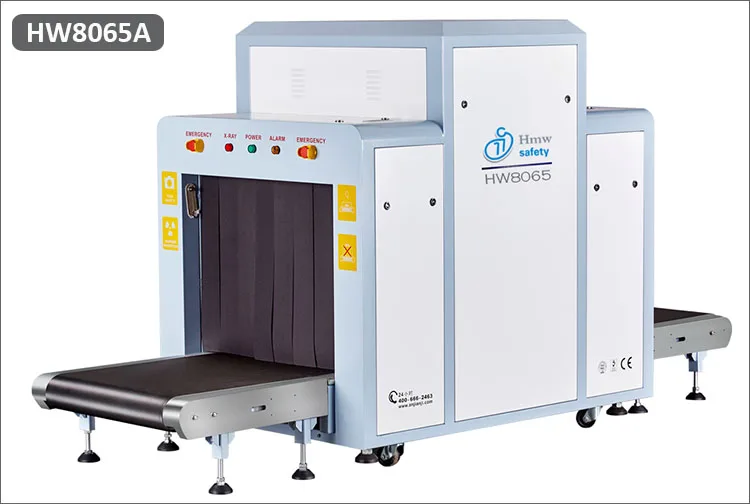

The HW-8065 easily accommodates the inspection of hand baggage and parcels.

HW-8065 uses a high-resolution x-ray detector array that increases detection sensitivity, improves image resolution and optimizes image presentation.

General Specification

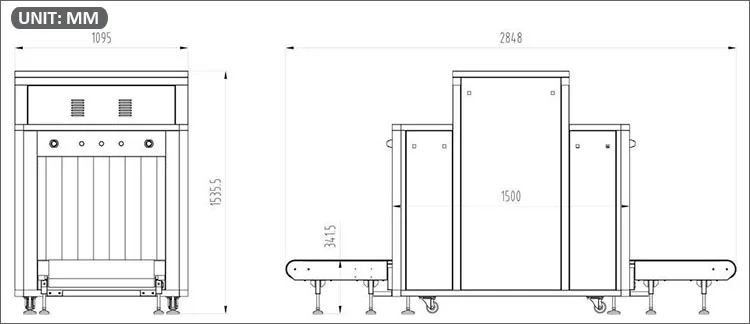

Tunnel Size-------------------800(W)*650(H)mm

Conveyor Speed--------------0.22m/s

Conveyor Max Load----------220kg

Dose per Inspection--------- <1.6 μGy/h

Resolution---------------<0.0787mm Metal Wire

Penetration---------------40mm Steel

Film Safety-------------Guarantee ISO1600 Film

X-ray Leakage---------------<0.1 μGy/h

X-ray Generator

Generate direct--------------downward

Generate angle--------------80 degree

Anode Voltage--------------40-160Kv

Anode power---------------0.4 to 1.2mA

Cooling/Duty Cycle------Oil Cooling/100%

Image System

X-ray Sensor----------------L-Shaped Photodiode Array (multi-energetic) , 12bit Deep

Monitor-------------------------High Resolution Color, LCD Accord, 17 inch

Image Grey Level-------------4096

Image Max Resolution--------1024 * 1280 pixel

Image Processing-------------24bit for processing real time

Image storage-----------------Storage 60000 pictures in real time

Zones & Zoom------------------1-9 Image regions, 2,4,8,16 Times Enlarge,

Whole screen continuous observation

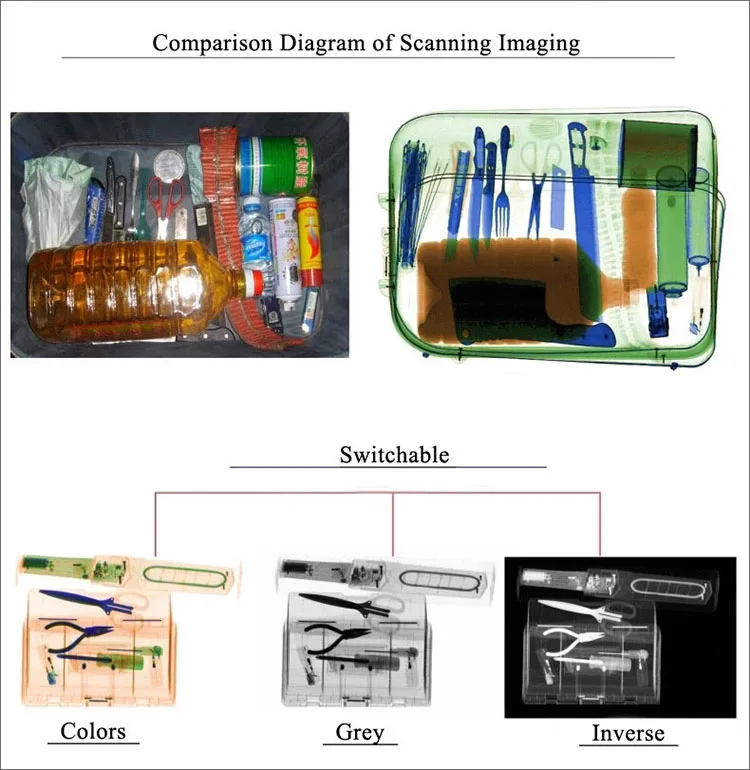

Image Processing-------------Edge enhancement, image strengthening,

image lightening, reducing darkening, image returning, image retrieval

Installation Data

Operation temperature/Humidity----0°C-45°C/20%-95%(non-condensing)

Storage Temperature/Humidity-----20°C-60°C/20%-95%(non-condensing)

Operation Power----------------------220VAC(±10%)50±3Hz

Power Consumption-------------------1.0 KW (max)

Noise------------------------------------<58db

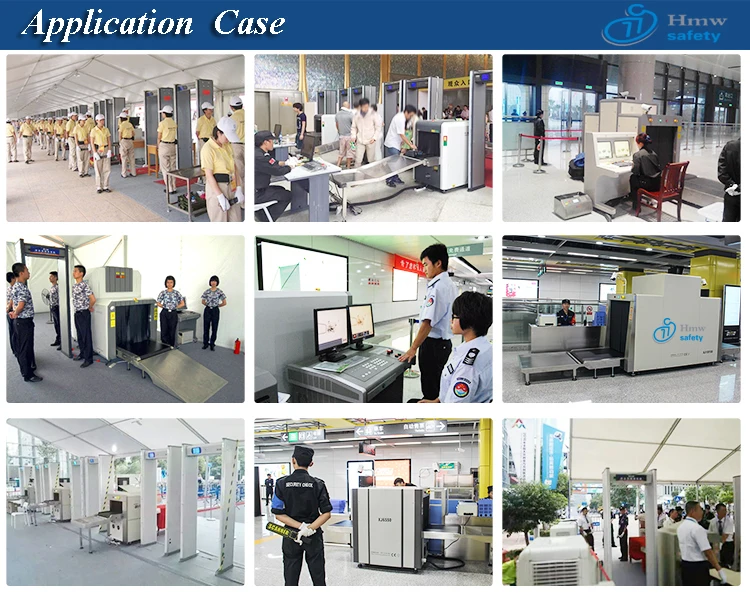

Applications:

Commercial buildings;Factories(to find needle in clothing, shoes,

bags);Courthouses;Embassies;Government buildings;Military

installations;Prisons;Hotels;Schools;Convention centers;Security

checkpoints.
