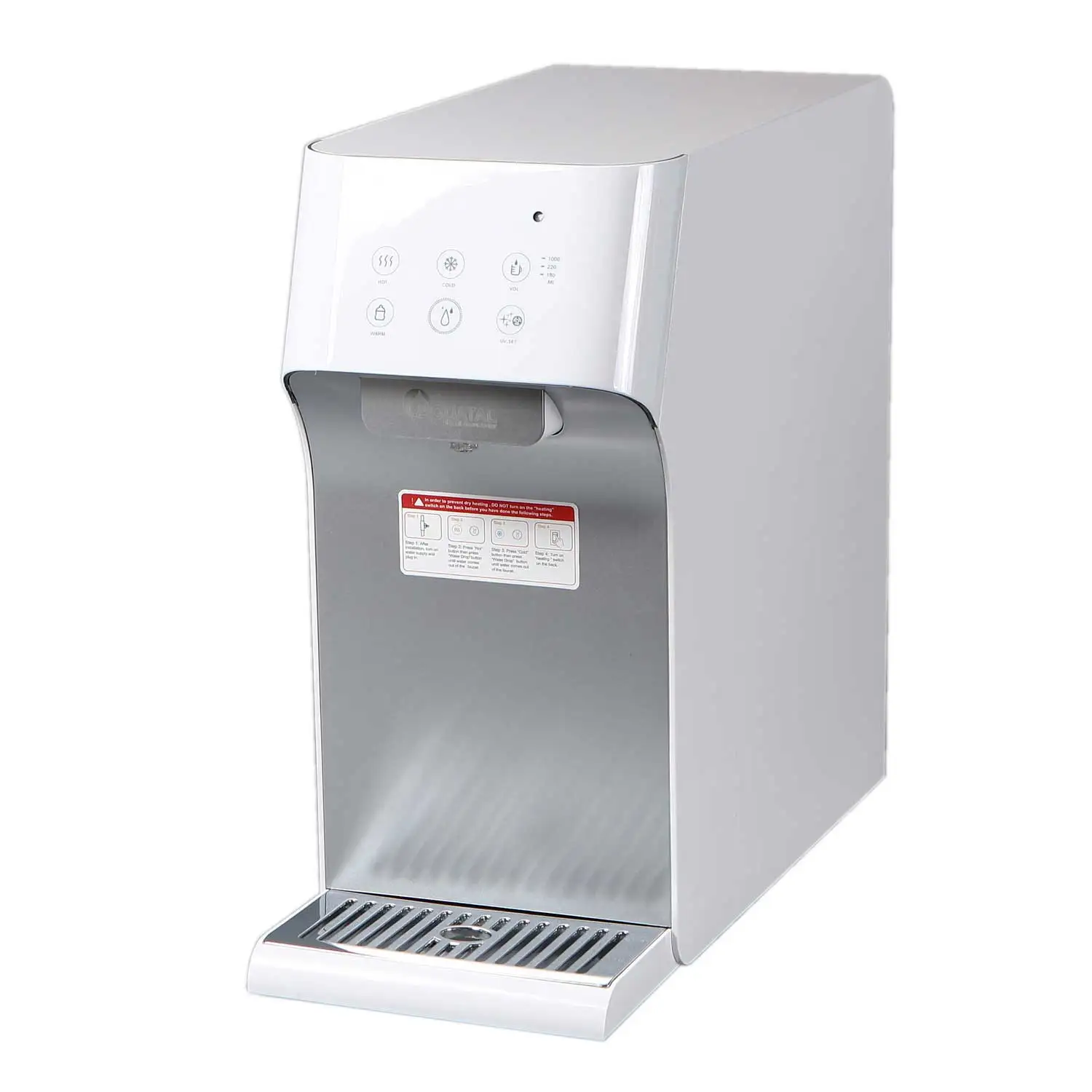

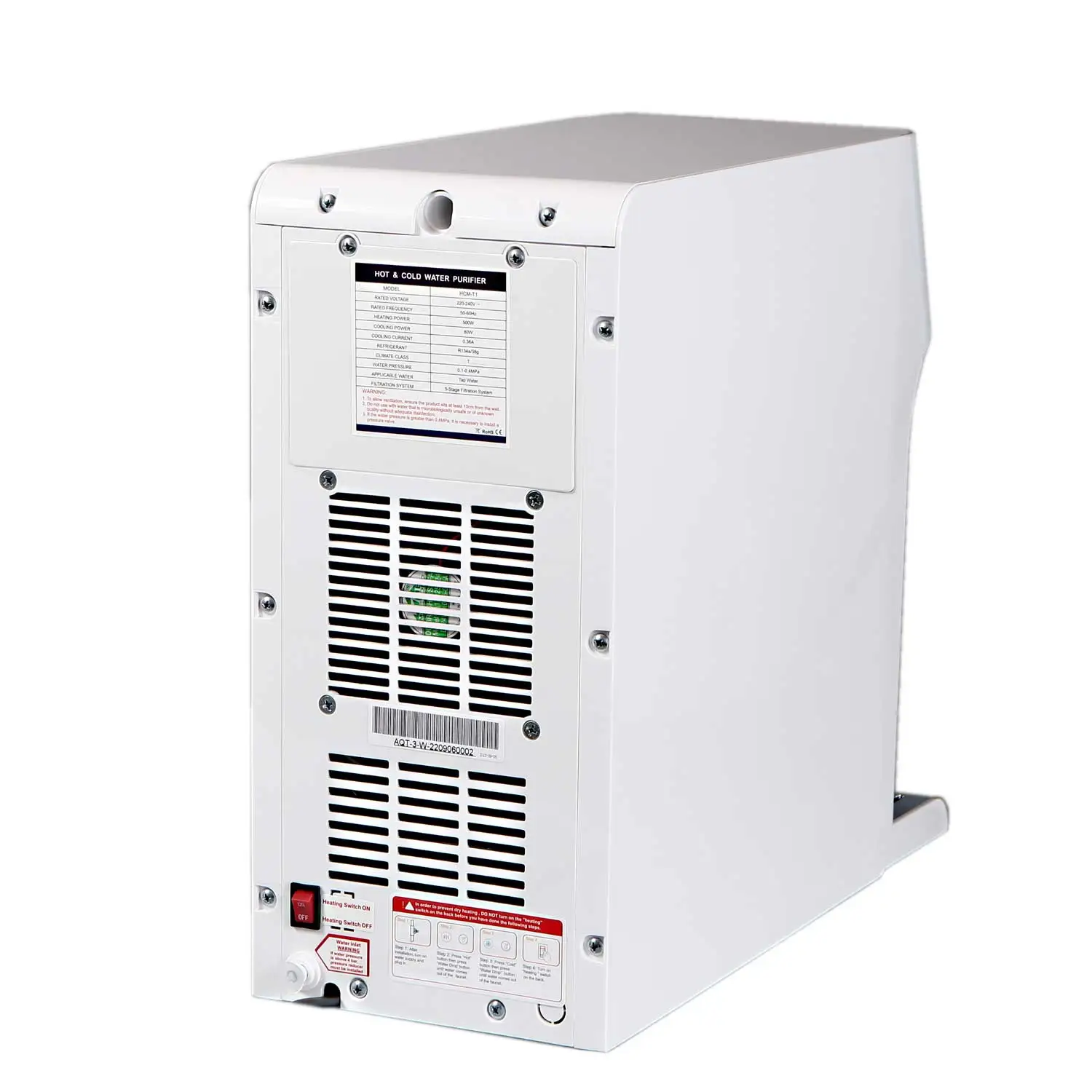

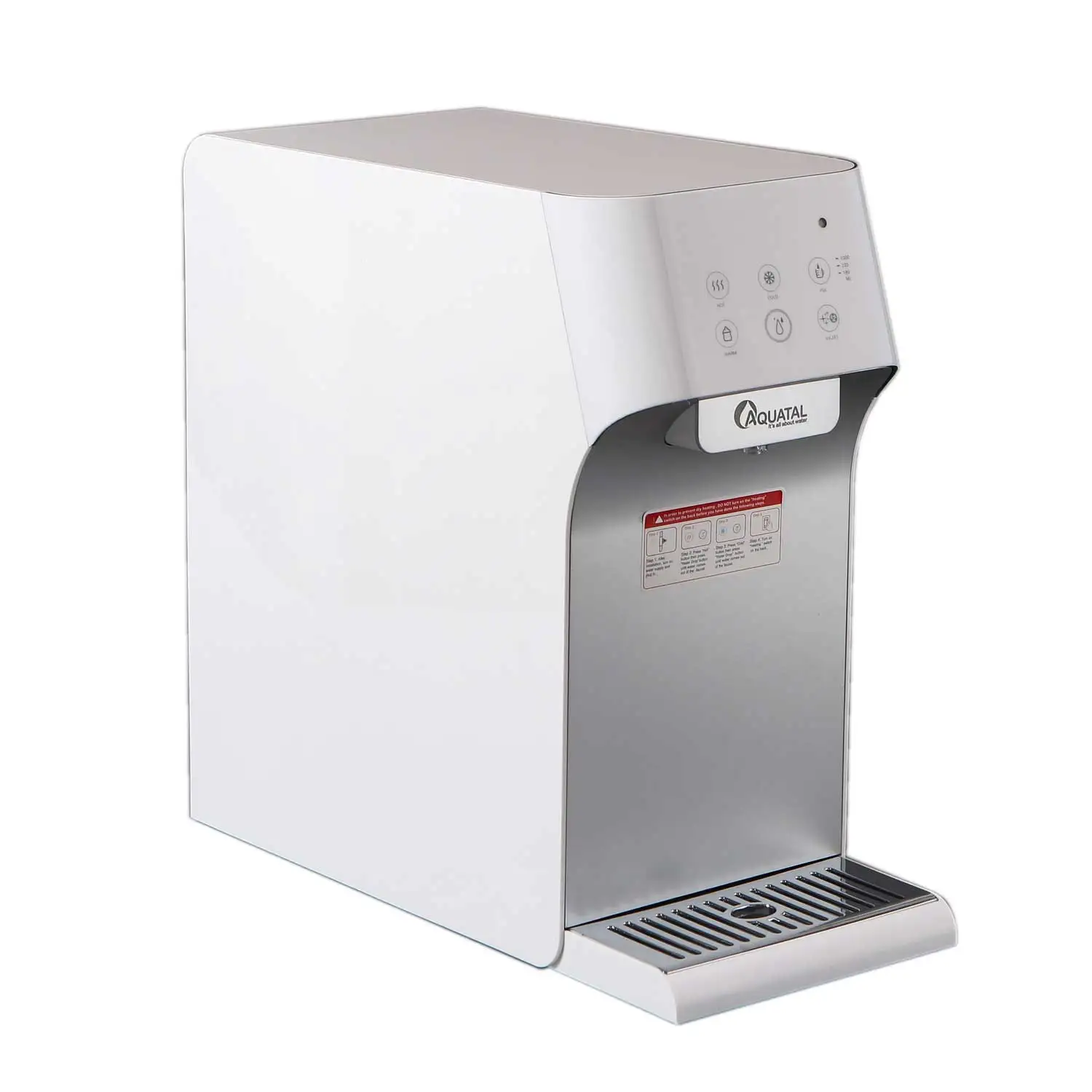

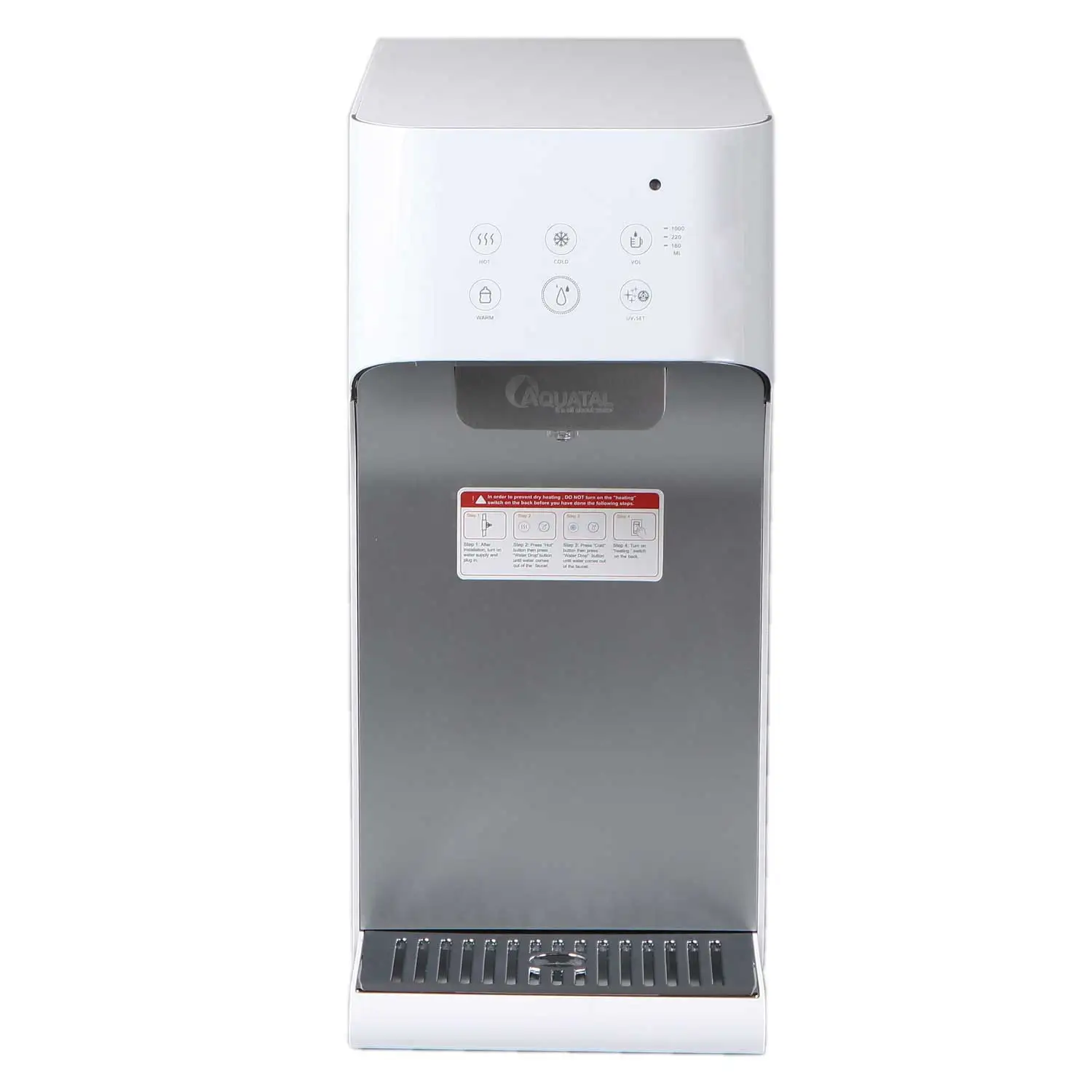

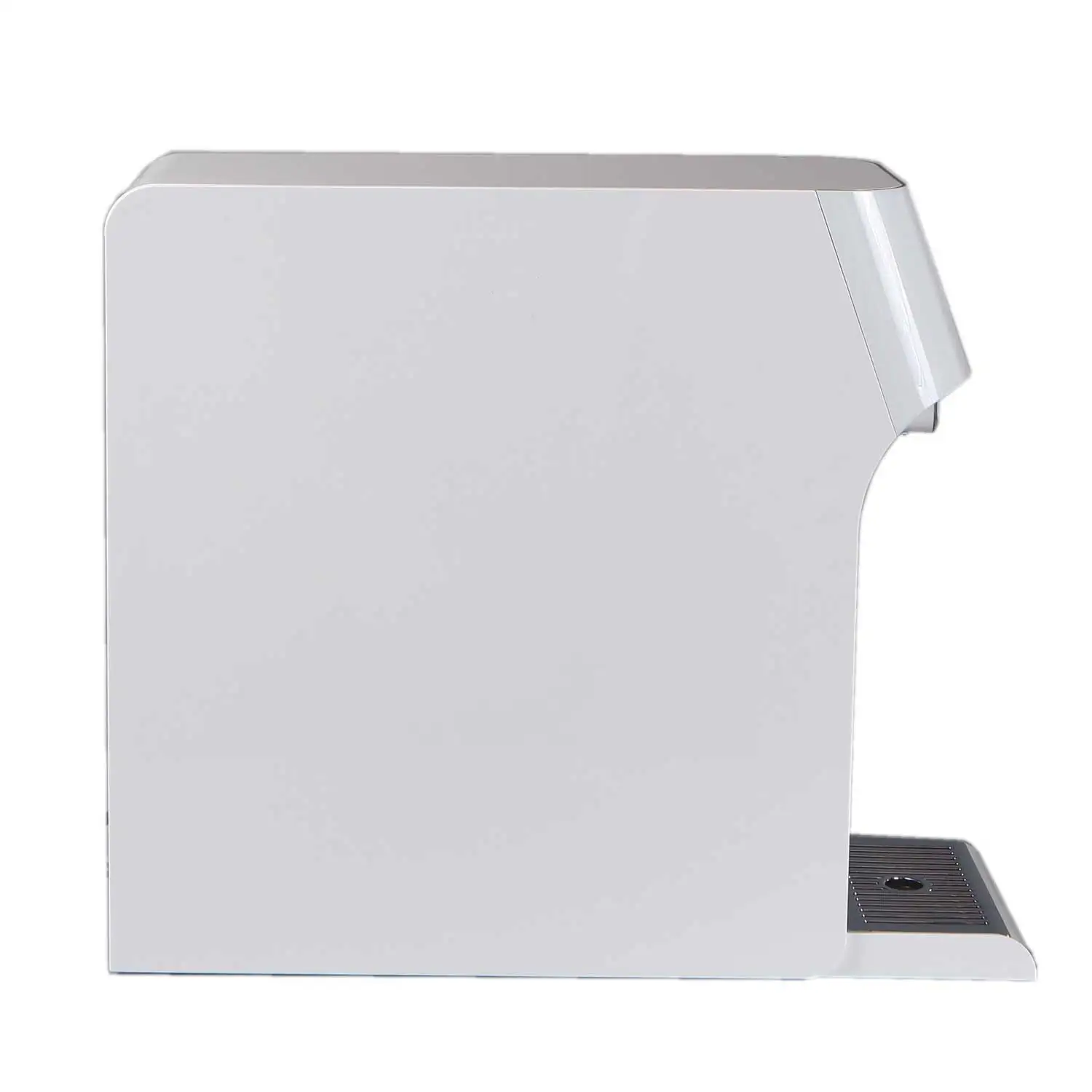

Most popular modern mini POU desktop hot and cold UF filter system water dispenser
Most popular modern mini POU desktop hot and cold UF filter system water dispenser
Most popular modern mini POU desktop hot and cold UF filter system water dispenser
Most popular modern mini POU desktop hot and cold UF filter system water dispenser
Most popular modern mini POU desktop hot and cold UF filter system water dispenser
Most popular modern mini POU desktop hot and cold UF filter system water dispenser
Most popular modern mini POU desktop hot and cold UF filter system water dispenser

Most popular modern mini POU desktop hot and cold UF filter system water dispenser

Share on (60785863351):


Price:$200.00 - $250.00

Quantity:


Product Overview

Description


_01







SPECS &TECHNICAL
DIVERSITY CONFIGURATION OPTION














































































































General Information


PT-1388 UF Purifier-I


PT-1388 UF Purifier-II


PT-1388 UF Purifier-III


PT-1388 RO Purifier-IIII


Heating and Cooling Technology


Tank Heating&Cooling


Instant Heating&Tank Cooling


Instant Heating&Direct Cooling


Instant Heating&Regulor Cooling


Color option


Silver.White .Black.Blue.Red.....


Silver.White .Black.Blue.Red.....


Silver.White .Black.Blue.Red.....


Silver.White .Black.Blue.Red.....


Voltage


(220-240V ,50Hz)/ (115V ,60Hz)


(220-240V ,50Hz)


(220-240V ,50Hz)


(220-240V ,50Hz)


Power


Total 590W
Heating:500W Cooling:90W


Total 2300W
Heating:500W Cooling:90W


Total 2300W
Heating:500W Cooling:90W


Total 2340 W
Heating:500W Cooling:90W


Tank capacity


2.5L(1.5L cold tank;1.0L hot tank)


1.5L cold tank;Hot water Unlimited supply


1.5L cold tank;Hot water Unlimited supply


3.5L (2.5L cold tank;1.0L hot tank)


Purification System


1st :PAC- (Sediment + Pre-Carbon Fiber)
2nd:UF Membrane /Alkaline (UFMembrane+Carbon)/ Option for Alkaline Filter
3rd :LED UV Sterilizer


1st :PAC- (Sediment + Pre-Carbon Fiber)
2nd:UF Membrane /Alkaline (UFMembrane+Carbon)/ Option for Alkaline Filter
3rd :LED UV Sterilizer


1st :PAC- (Sediment + Pre-Carbon Fiber)
2nd:UF Membrane /Alkaline (UFMembrane+Carbon)/ Option for Alkaline Filter
3rd :LED UV Sterilizer


1st :PAC- (Sediment + Pre-Carbon Fiber)
2nd: RO Membrane
3rd :LED UV Sterilizer


Cooling Performance


≥3L/H ≤10℃


≥3L/H ≤10℃


≥3L/H ≤10℃


≥3L/H ≤10℃


Heating Performance


5L/H ≥85℃


5L/H ≥85℃


4L/H ≥85℃



Machine Net Size (D*H*W)mm


447(D) * 392(H) * 185(W)


447(D) * 392(H) * 185(W)


447(D) * 392(H) * 185(W)


447(D) * 392(H) * 185(W)


Package Size (D*H*W)mm


447(D) * 419(H) * 212(W)


447(D) * 419(H) * 212(W)


447(D) * 419(H) * 212(W)


447(D) * 419(H) * 212(W)


Machine N.W (KGS)


13.5


13.5


13.5


13.5


Machine G.W (KGS)


14.5


14.5


14.5


14.5


Loading QTY 20GP/40GP/40HQ


500/1000/1300 PCS


500/1000/1300 PCS


500/1000/1300 PCS


500/1000/1300 PCS






_03_04


_05_06_07_08_09_10_11


Purification Exception:


The purifier will be in purification exception state if the machine can not make water for a long time, the display interface (see Figure two) shows "ER1", and the maintenance symbol flashes.



Processing Method
after troubleshooting, long press (5 seconds) the middle of the knob and then the machine will restart to work and inspect the water situation.


Dry Burning Alarm:


When the machine's heater is dry (temperature exceeds the set value), the machine enters the dry state, the display interface (see Figure two) shows the "ER2", and the maintenance symbol flashes. So you can take room temperature water but can not take hot water.



Processing method
please contact customer service center for help.
