3m3 concrete truck mixer with pump
US $2000-$4000
4,0 куб. М., новый миниатюрный мобильный бетоносмеситель, самозагружающийся небольшой бетоносмеситель
- Category: Concrete Truck >>>
- Supplier: Shandong China Coal Industrial & Mining Supplies Group Co. Ltd.
Share on (60786327359):
Product Overview
Description
Product Description
Introduction Of factory price 4.0 CBM mobile auto discharging cement concrete mixer truck
The mixing drum can rotate hydraulically through 270 degrees for high discharge over 2.0m on the four sides of the vehicle.
The drum can also be lifted up 20° by two hydraulic cylinders at bottom for the convenient discharge of concrete.
The panoramic color display is near the steering wheel. Color display can clearly show the running situation behind the machine, improve driving safety.
Parameter Of factory price 4.0 CBM mobile auto discharging cement concrete mixer truck
Mixing Drum | |
Mixing volume | 4.0 M3 |
Geometrical volume | 6.0 M3 |
Concrete output | 4 M3 / batch, 16 M3 / hour |
Drum rotating speed | 18 rpm |
Drum slewing angle | 270° |
Adjust up and down | 20° |
Engine | |
Brand | YUNNEI(YUCHAI Engine optional) |
Model | YN48GBZ |
Type | 4-Cylinder inline,direct injection |
Rated power | 92KW |
Max torque | 445-455/1400-1600 |
Chassis | |
Structure | Integrated rigid chassis |
Transmission system | Adopt 280 split torque converter gearbox,with hing ang low speed |
Wheelbase | 2400 mm |
Axles | 20-Ton reduction driving axle |
Tyre size | Off road steel cord type, 1670-20 |
Cabin | |
Type | type closed front cab |
Joystick control | Double-joystick control the hydraulic system |
Weighing system | The loading cells are acting on the drum, and technical data are displayed on the shovel loader weigher inside the cabin. |
Air conditioning system | Cooling & heating air conditioner |
Water supply sysytem | |
Max. water suction capacity | Self-priming hydraulic water pump |
Water tank capacity | 2*250L |
Electric system | |
Battery: | 2x12V-100AH |
Vehicle | ||
Operating weight | 8000Kg |
|
payload | 96000Kg |
|
gross weight | 176000Kg |
|
Overall size (L×W×H) | 7520 mm × 2550 mm × 3350 mm (4300 mm full height) |
|
Service refill capacities |
| |
Fuel tank | 125L |
|
Total hydraulic system capacity | 125L |
|

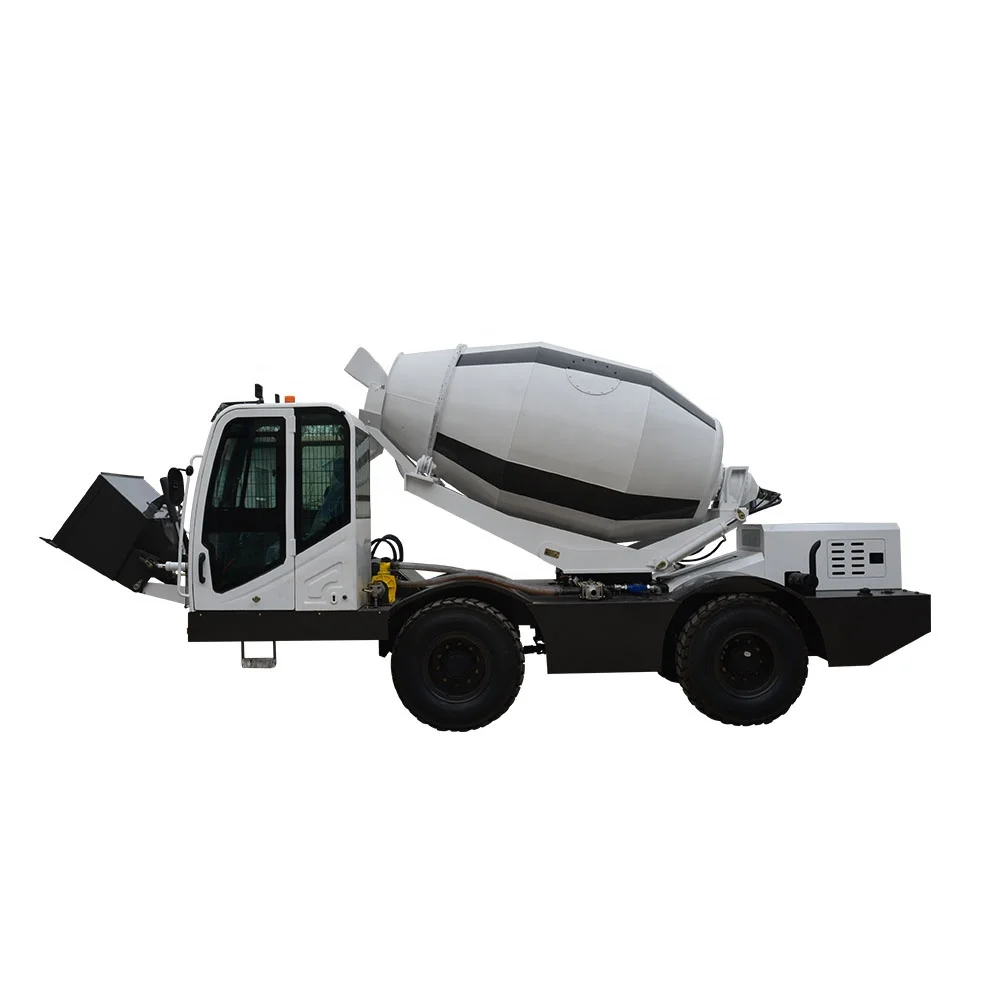

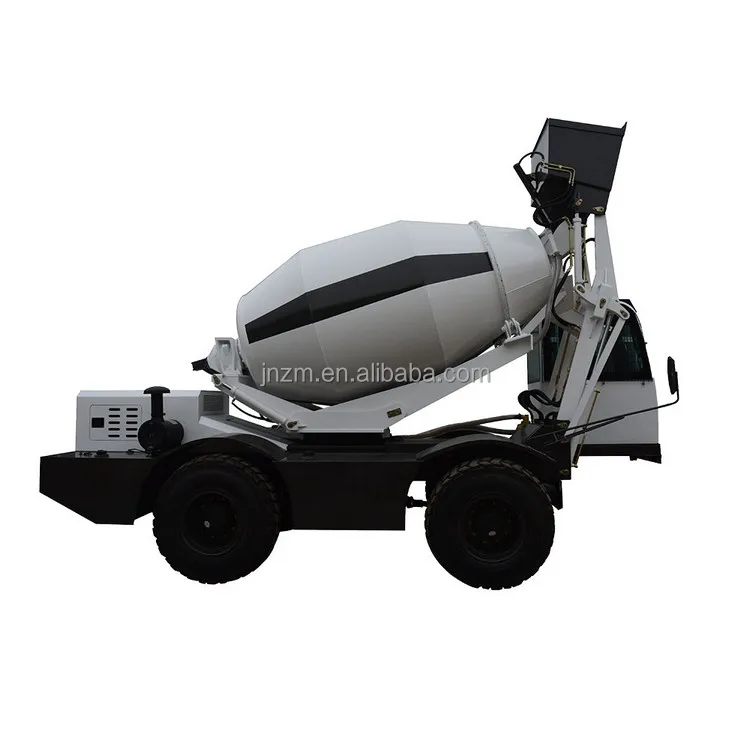

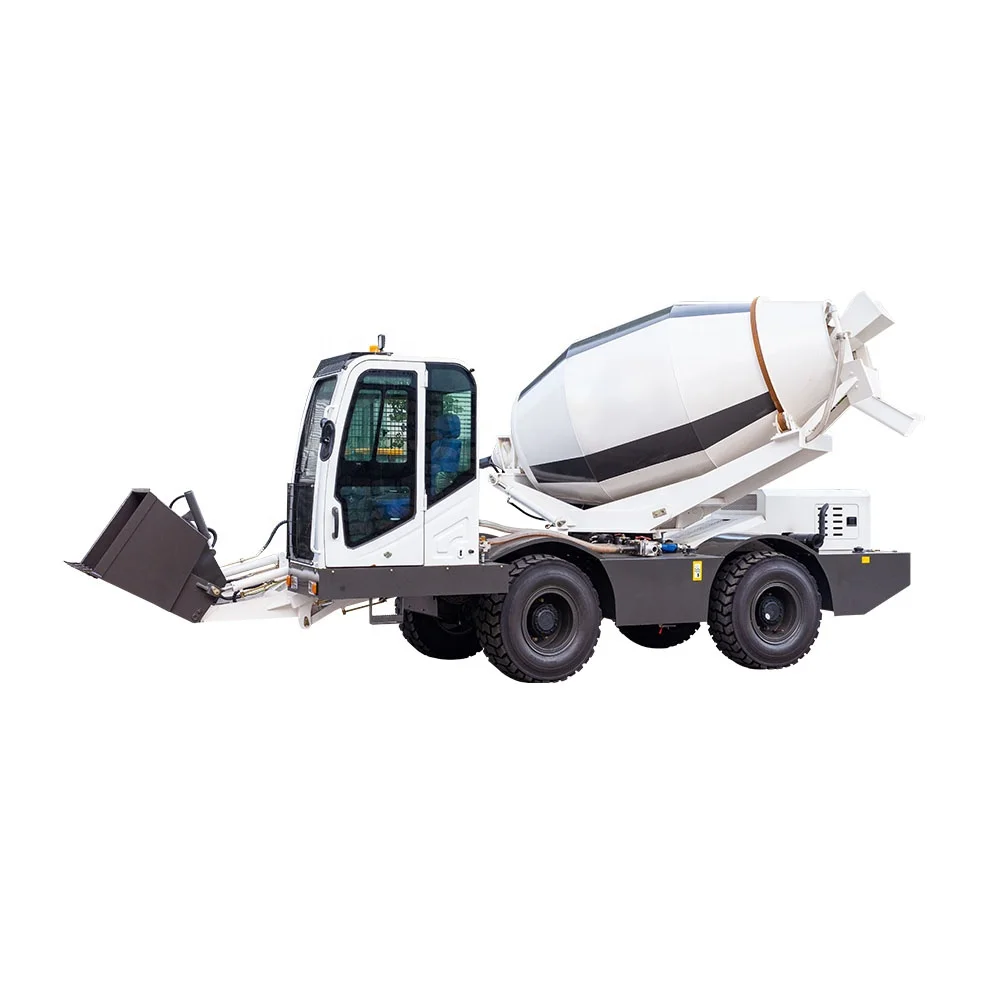

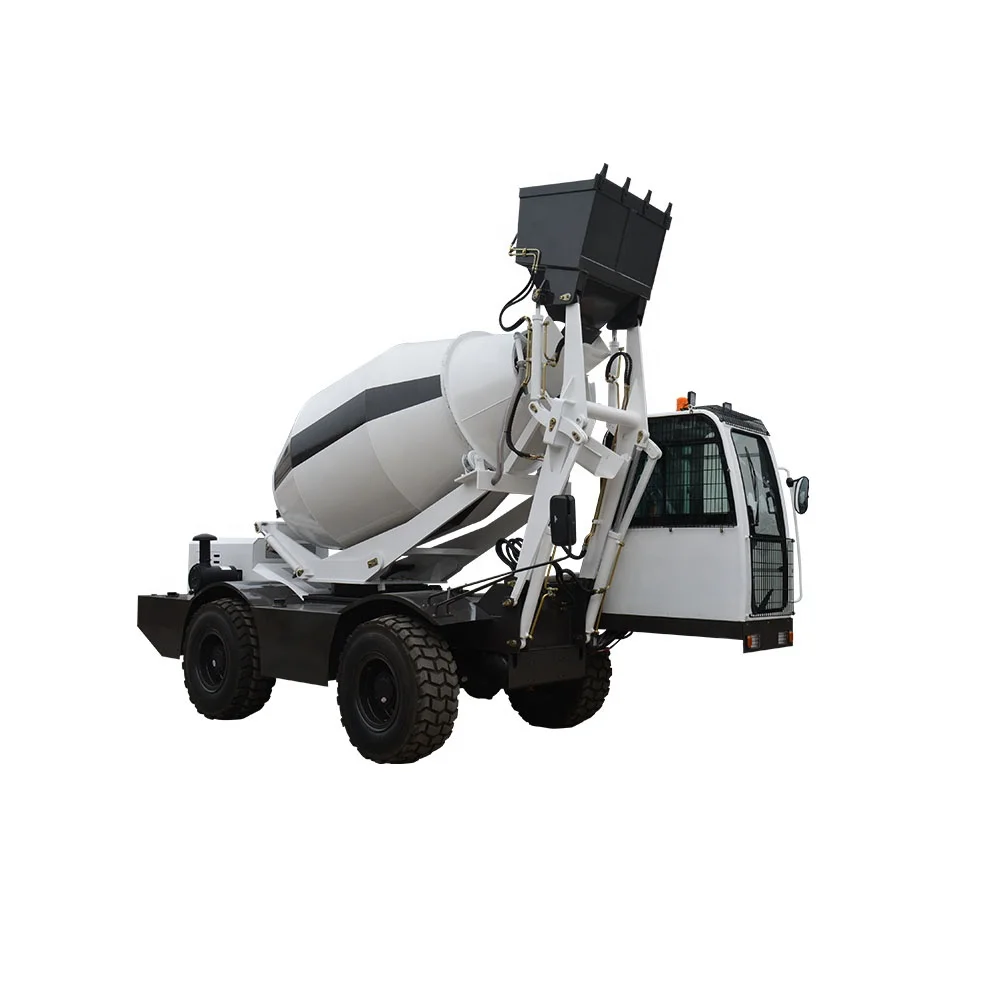

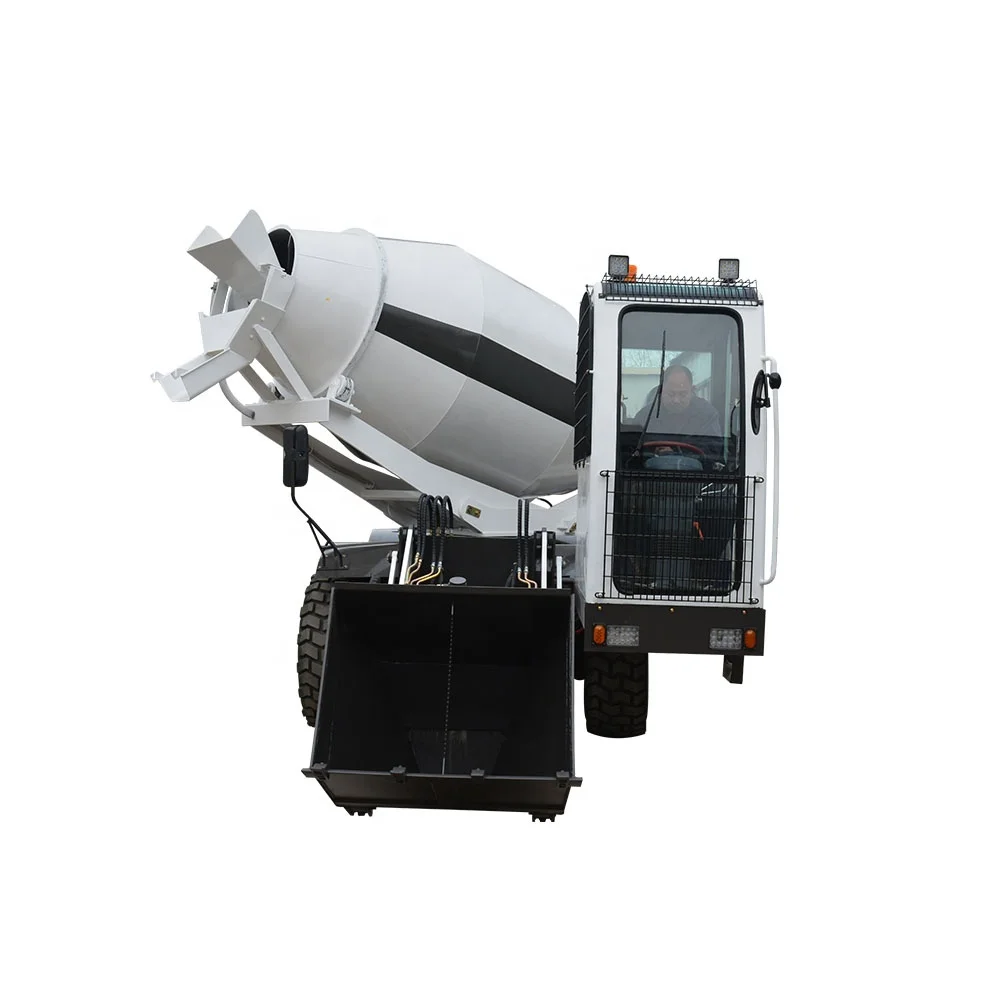

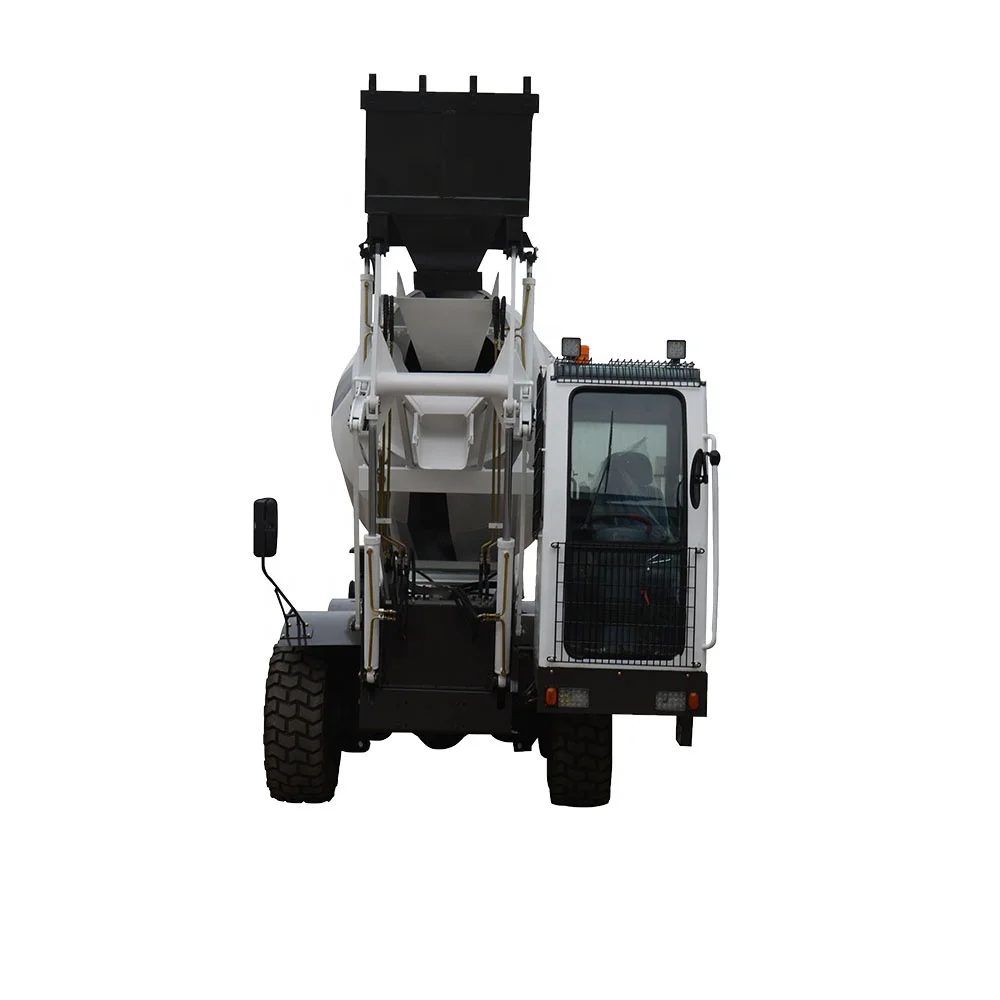

Photos Of factory price 4.0 CBM mobile auto discharging cement concrete mixer truck
