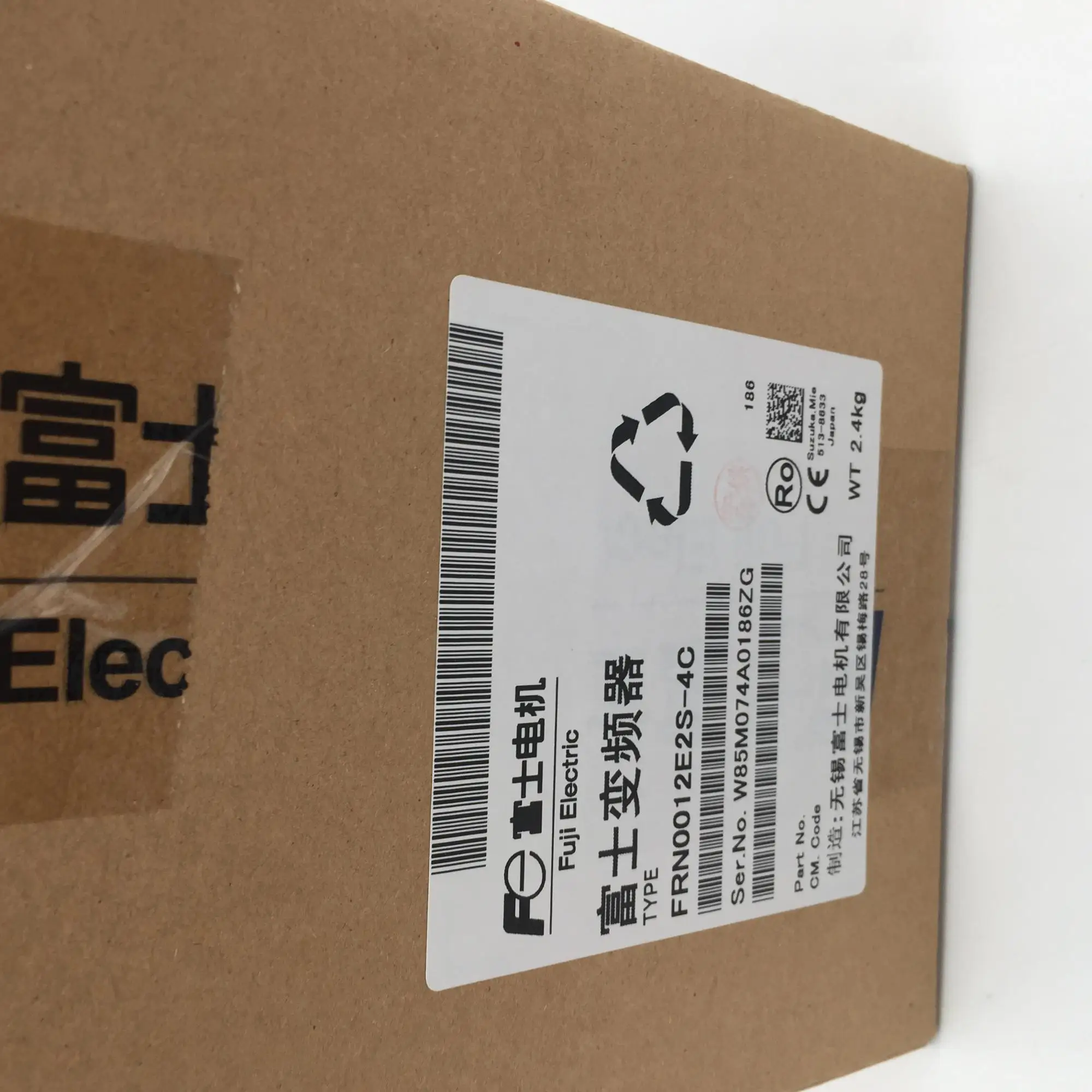

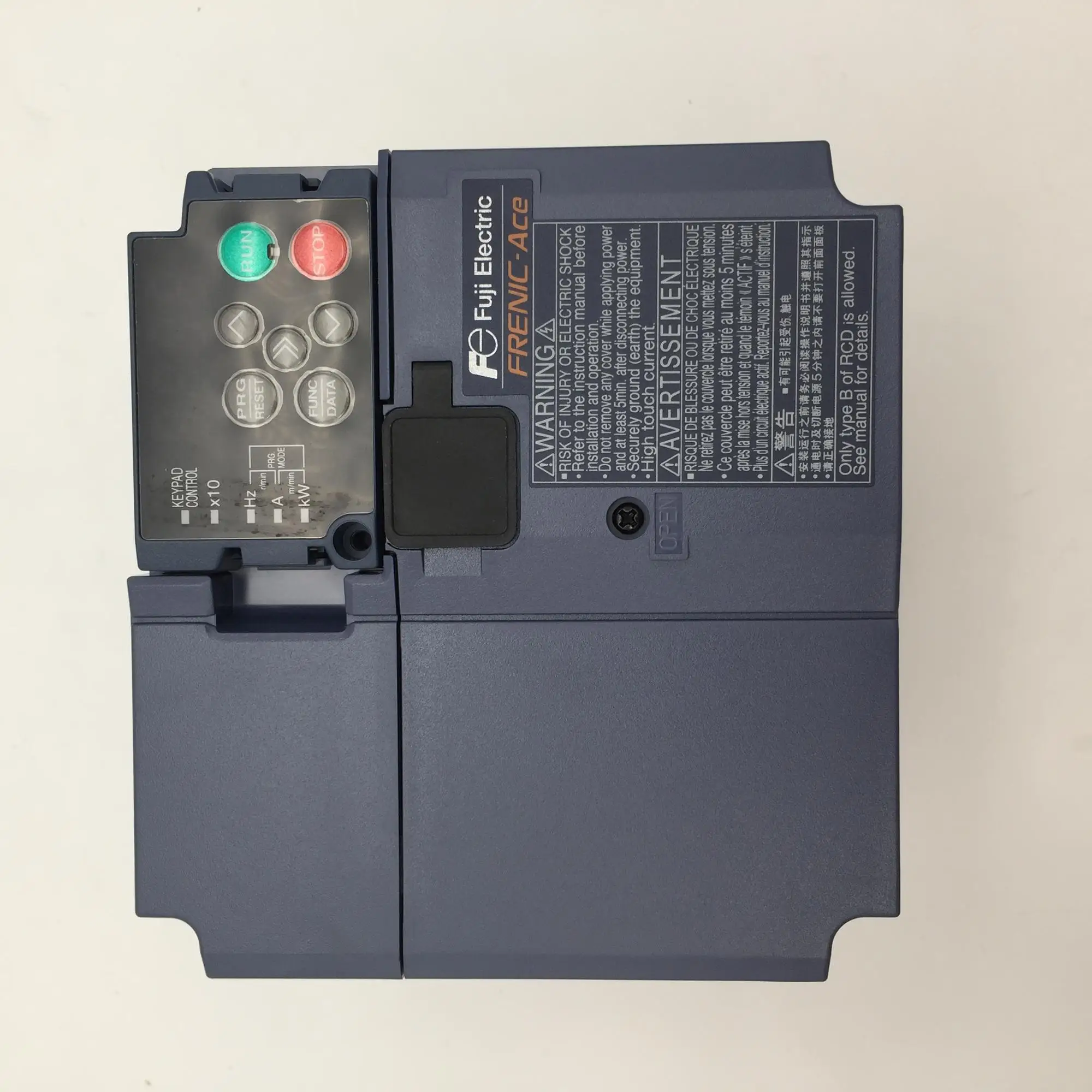

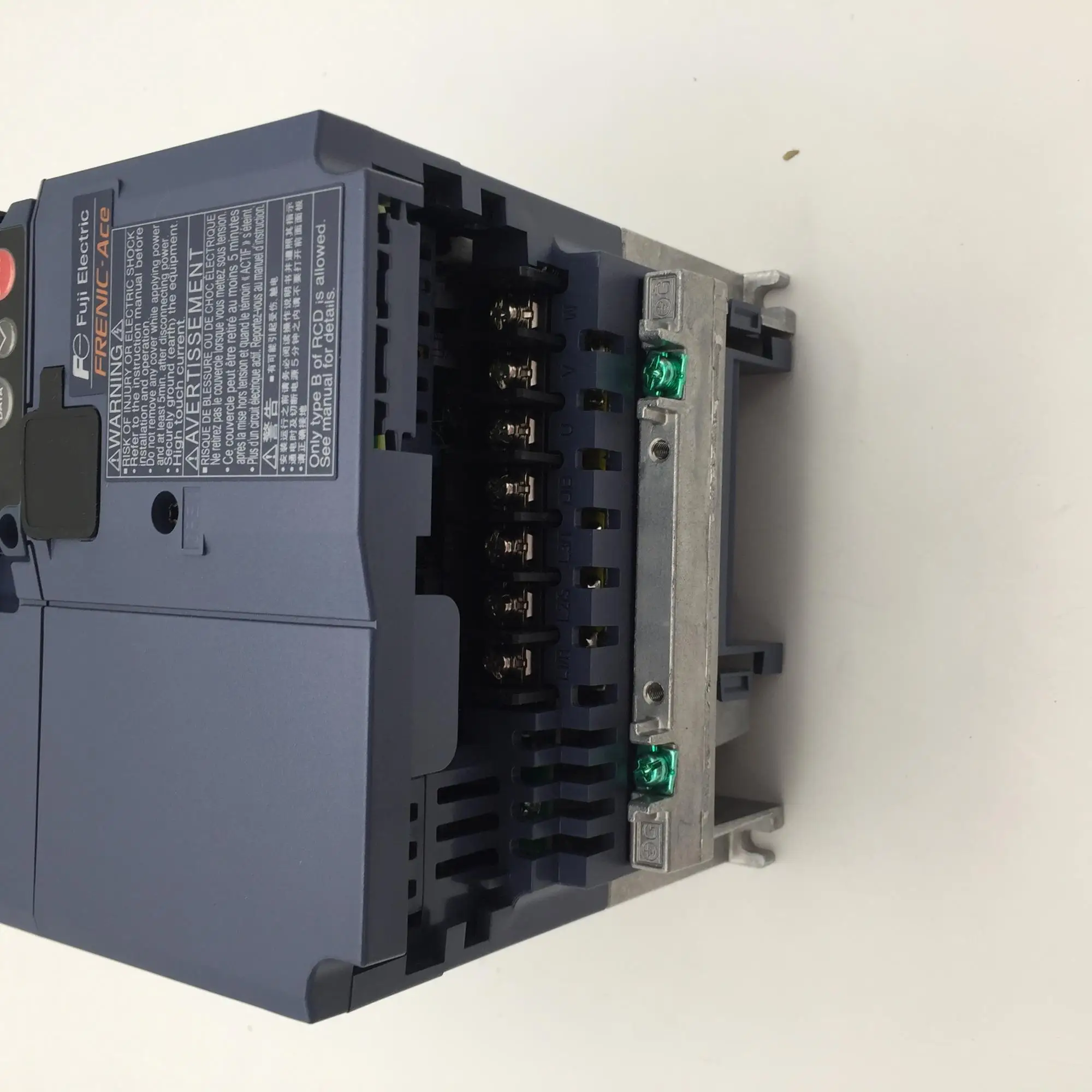

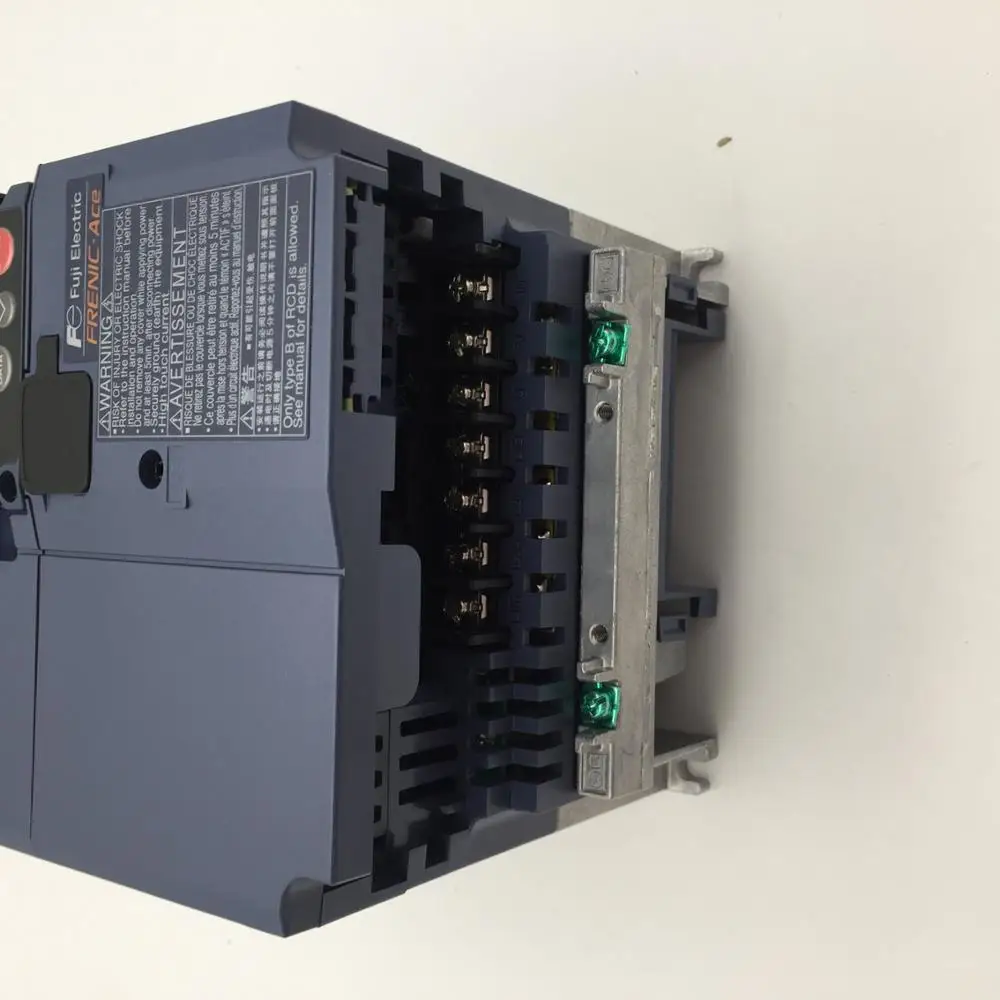

FRN0012E2S 4C инвертор

Product Overview

Description

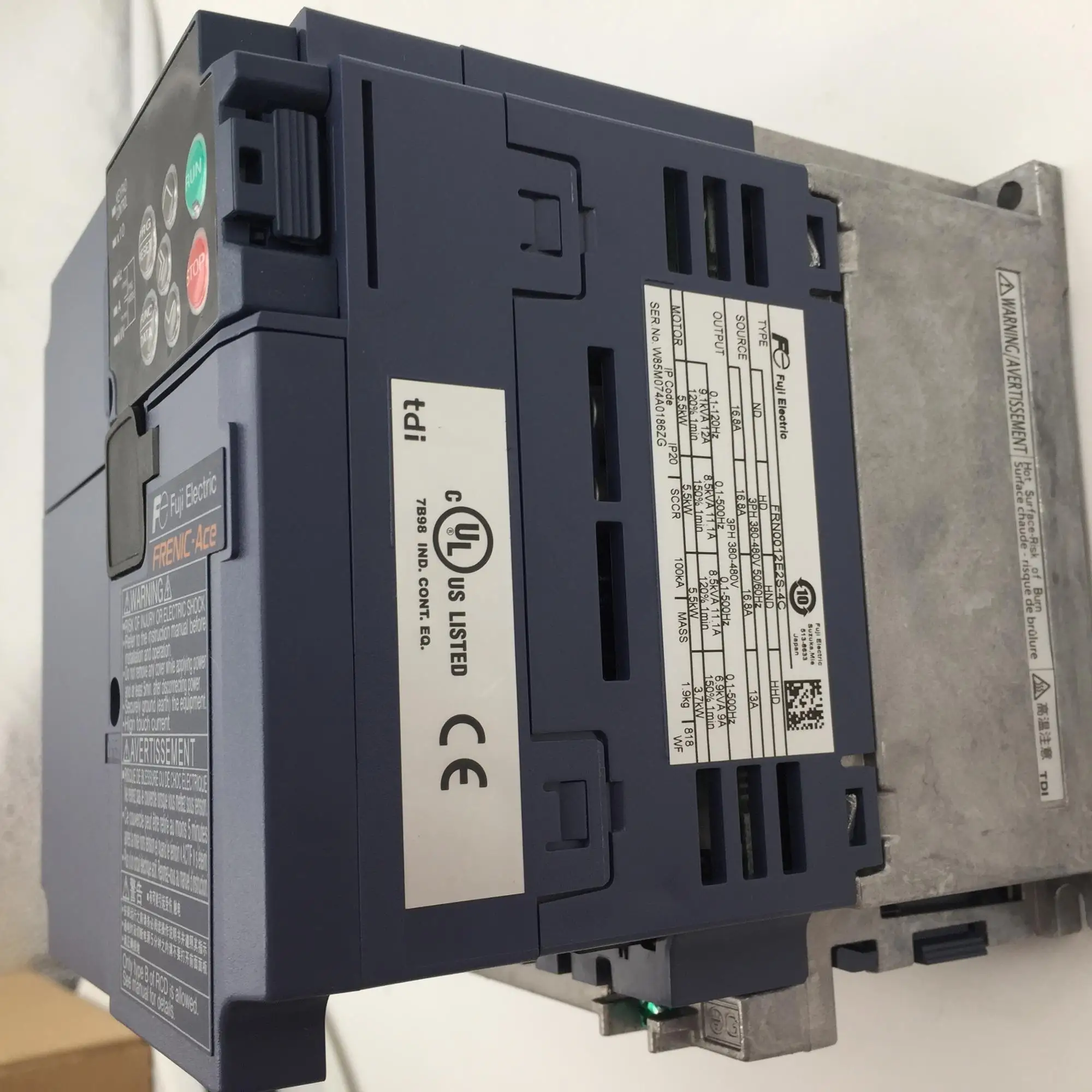

FRN0012E2S-4C   inverter

General information
HW functional status		01
Firmware version		V2.6
Engineering with
Programming package		STEP 7 V5.4 SP2
Supply voltage
Rated value (DC)		24 V
24 V DC		Yes
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
external protection for power supply lines (recommendation)		2 A min.
Input current
Current consumption (rated value)		650 mA
Current consumption (in no-load operation), typ.		100 mA
Inrush current, typ.		2.5 A
I²t		1 A²·s
Power loss
Power loss, typ.		3.5 W
Memory
Work memory
integrated		256 kbyte; For program and data
expandable		No
Load memory
Plug-in (MMC)		Yes
Plug-in (MMC), max.		8 Mbyte
Data management on MMC (after last, min.		10 yProduct Description
