Product Overview

Description

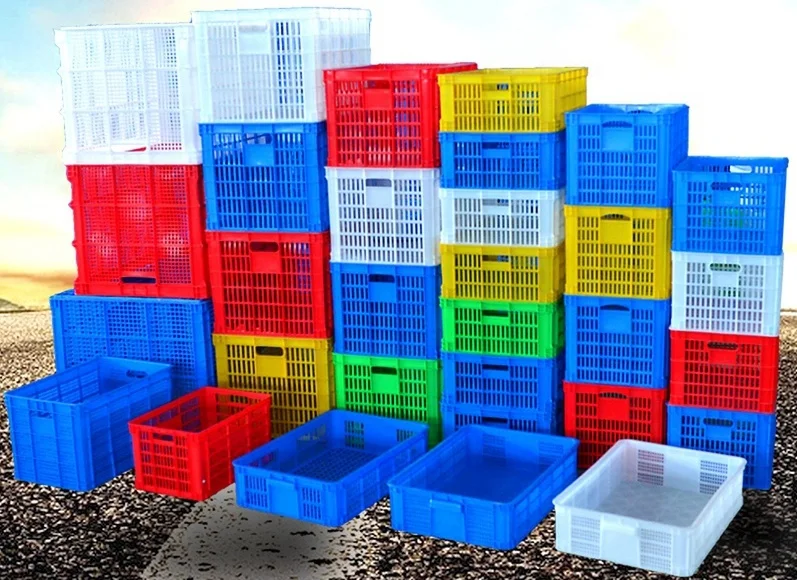

Plastic vegetable fruit crate bucket handle making injection molding machine price



Company Introducation:
  Zhangjiagang Ostar Machinery Co. Ltd, one of the professional manufacturer for plastic injection molding machine in China, focus on machine manufacturing, developing and sales. Company founded in 2000, mainly on plastic injection molding machine, mold and related auxiliary, our main purpose is to offer top quality machine, professional service, growing together with our customers.

  Ostar Machinery manufacture machines from 70T to 2000T, injection weight from 50g to 10000g, more than 30 different model machines, over 1500sets machine output ability yearly. Due to continually developing innovation and technological improvement, our machines has exported worldwide, with a good reputation all around world.



 Machine Features:

1) Optimized machine mechanical designe, for better products quality.
2) Imported brand hydraulic component, electrical component, for machine stability.
3) Professional PLC controller, fast response system, high precision operation.
4) High hardness tie bars, durable Ceramic or cast aluminium heaters.
5) Large torque oil motor, guarantee good plasticizing for all kinds of plastic material.
6) Balanced double cylinders injection system, enlarged tie bar space and toggle stroke.
7) Servo motor energy saving system, reduce over 60% electricity consumption.
8) Safety device on hydraulic, electric and mechanical, avoid any potential damage.

 Machine Specification:

MACHINE MODEL	UNIT	OST-1000
INJECTION DEVICE
SCREW DIAMETER	MM	36	40	42
SCREW DOAMETER RATIO	L/D	24.3	21.9	20.3
THEORETICAL SHOT VOLUME	CM3	162	201	221
INJECTION WEIGHT ( PS)	G	148	182	201
INJECTION RATE ( PS)	G/S	78	97	107
INJECTION PRESSURE	MPA	222	180	163
PLASTICIZING CAPACITY( PS)	G/S	13	15	16
SCREW SPEED	RPM	185
CLAMPING UNIT
CLAMPING FORCE	KN	1000
TOGGLE STROKE	MM	340
SPACE BETWEEN TIE-BARS	MM	360X360
MIN-MAX MOULD THICKNESS	MM	150-350
EJETION STROKE	MM	105
EJECTING FORCE	KN	38
EJECTOR NUMBER	PC	5
OTHER
MAXIMUM SYSTEM PRESSURE	MPA	16
OIL PUMP MOTOR POWER	KW	13( 13)
HEATER POWER	KW	8.8
OIL TANK CAPACITY	KG	200
OVERALL DIMENSION (ROUGH )	MM	4360X1100X1885
MACHINE WEIGHT ( ROUGH )	TONS	3.4

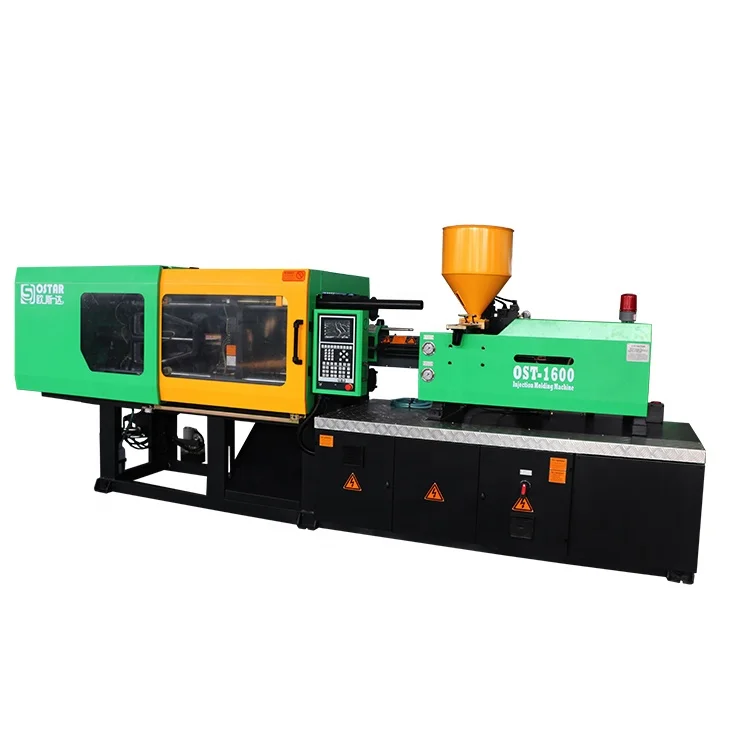

  Machine  Photos:
