Led Touch Dimmer,Mini Button Switch For Led Strip Light

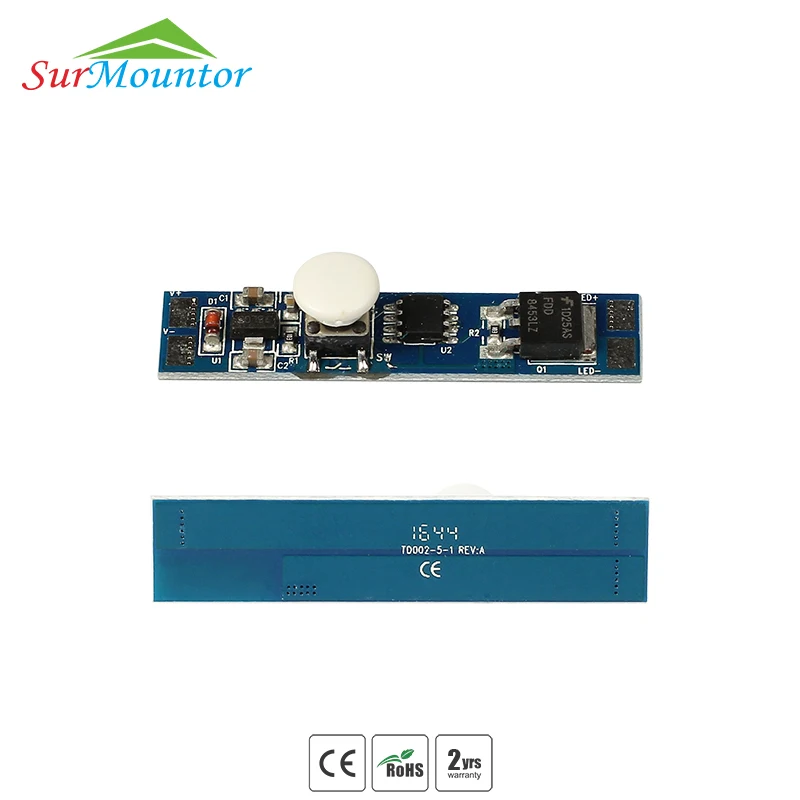

BS001 (7).jpg

Product Description

Mini Button Switch For Led Lighting,Led Strip Button

Button Micro Switch function description:

1) Originally"Off" when the power is connected.

2) Quick press(time is less than 550ms) can turn the light on and off. One press to tun on; another press to off. The lamp is 100% bright when it is on.

3) Hold on pressing(time is above 550ms) can adjust the brightness endlessly. It will reduce the brightness endlessly to the minimum in 3 seconds holding on when the light is on. It will increase the brightness endlessly to 100% in 3 seconds holding on when the light is off.

4) Quick press and hold on pressing can be chosen anytime without any colision

Note:The function/program can be customized made upon different needs,such as with/without memory,longer time for stay on,etc

Item	Parameters	Item	Parameters

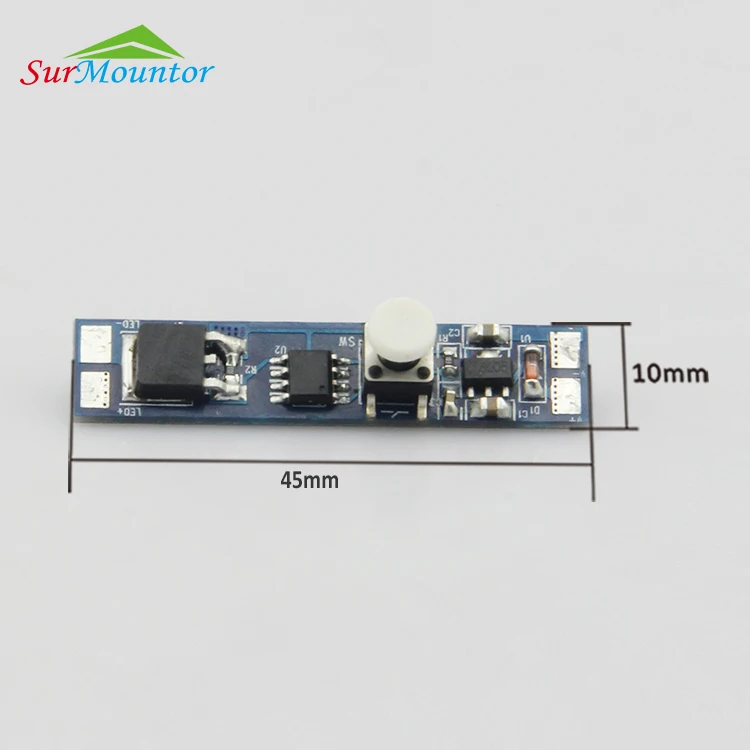

Input Voltage	12 V ~ 24 VDC	Diamesion	45*10 mm
Current	Max. 8 A	Load.	96w for 12v, 192w for 24v
PCB thickness	1.3mm	Material	PCB+IC+Plastic

BS001 Sensor Switch	Function
First press	the light will turn on
Press again	the light will turn off
Above steps can be repeatable.

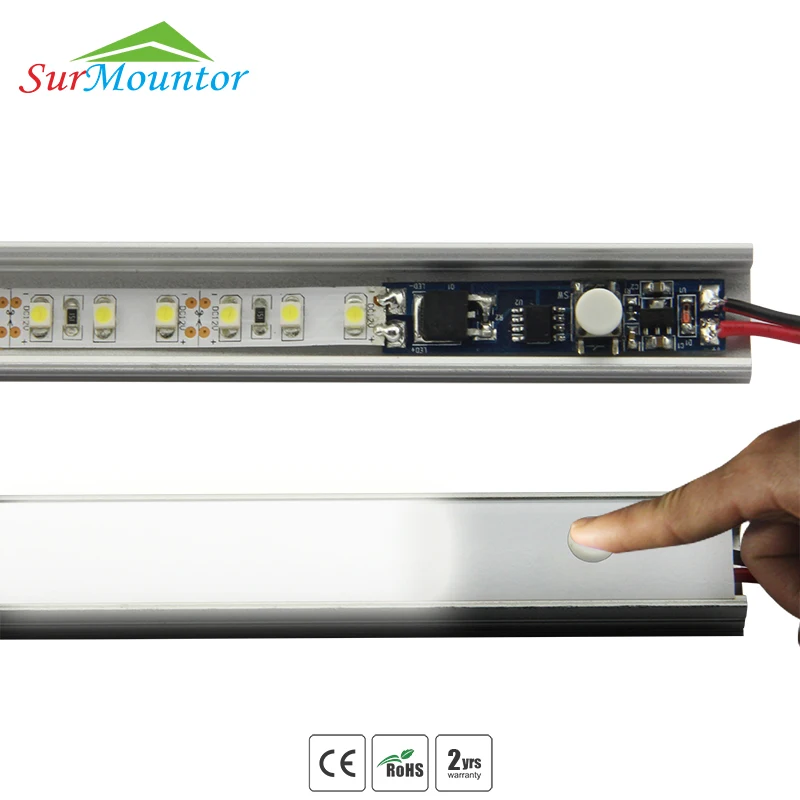

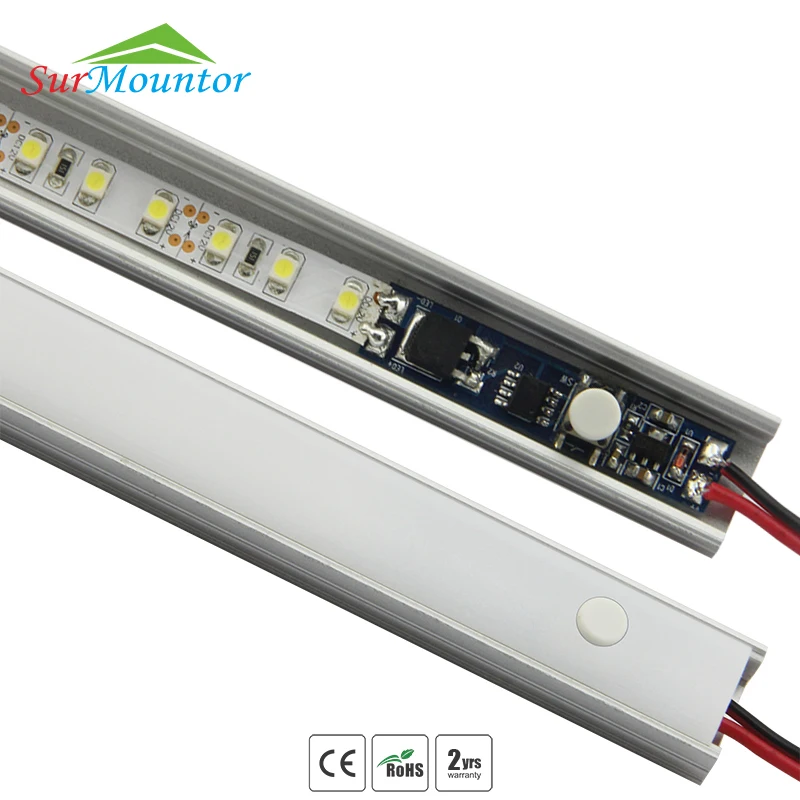

Led touch dimmer switch application :

- suitalbe for LED Profiles . Such as A1616, A1506, A2507, A1715, A2515, A2114, D001, D002, B1919, C1919 , F001 , F002 and other LED profiles which it wider than 10 mm.

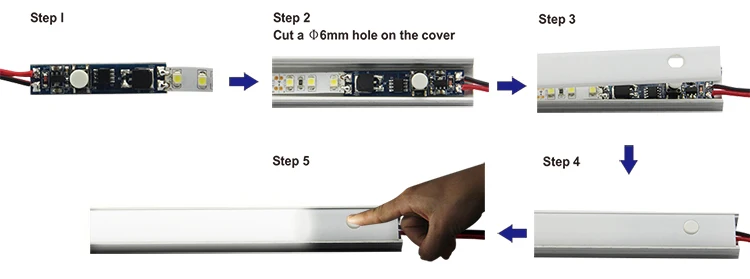

Button Micro Switch wire diagram :

BS001 (1).jpg
