Blast Freezer Semi-hermetic Screw Two Stage Compressor Refrigeration Equipment System Condensing Unit
Product Description

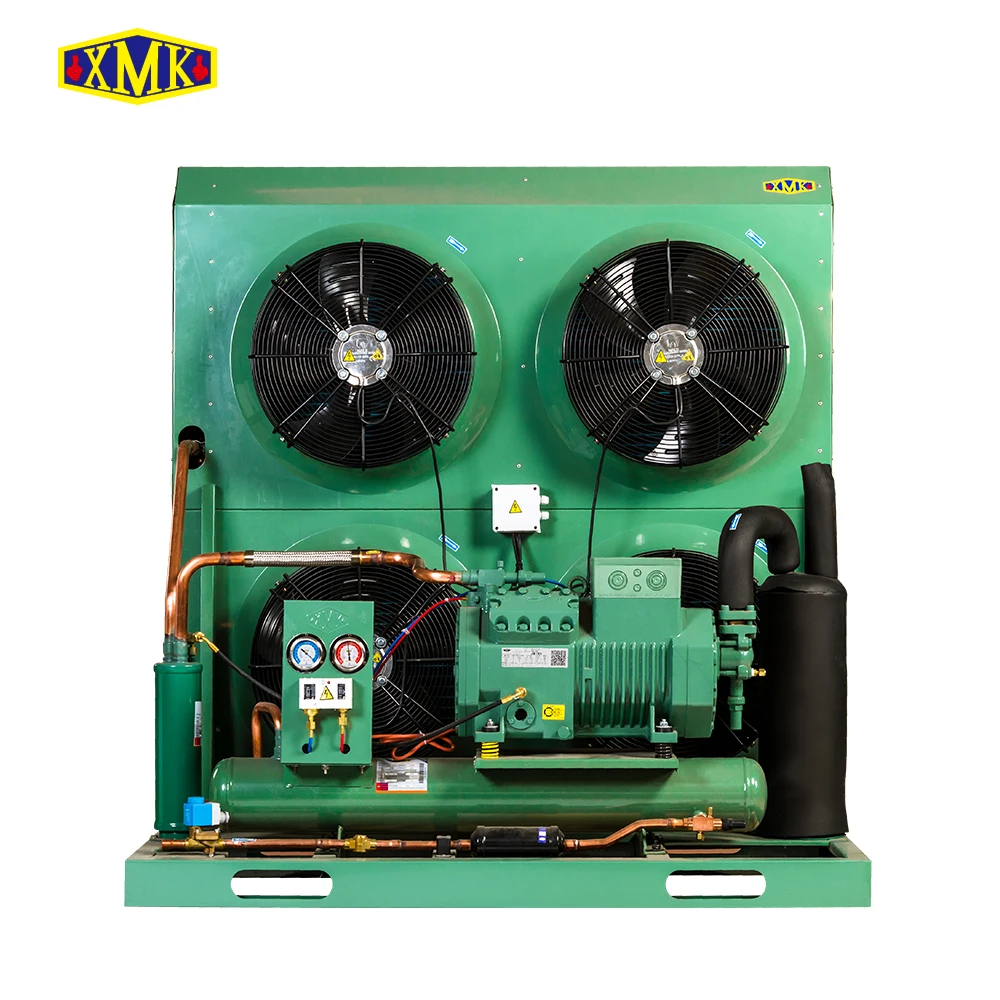

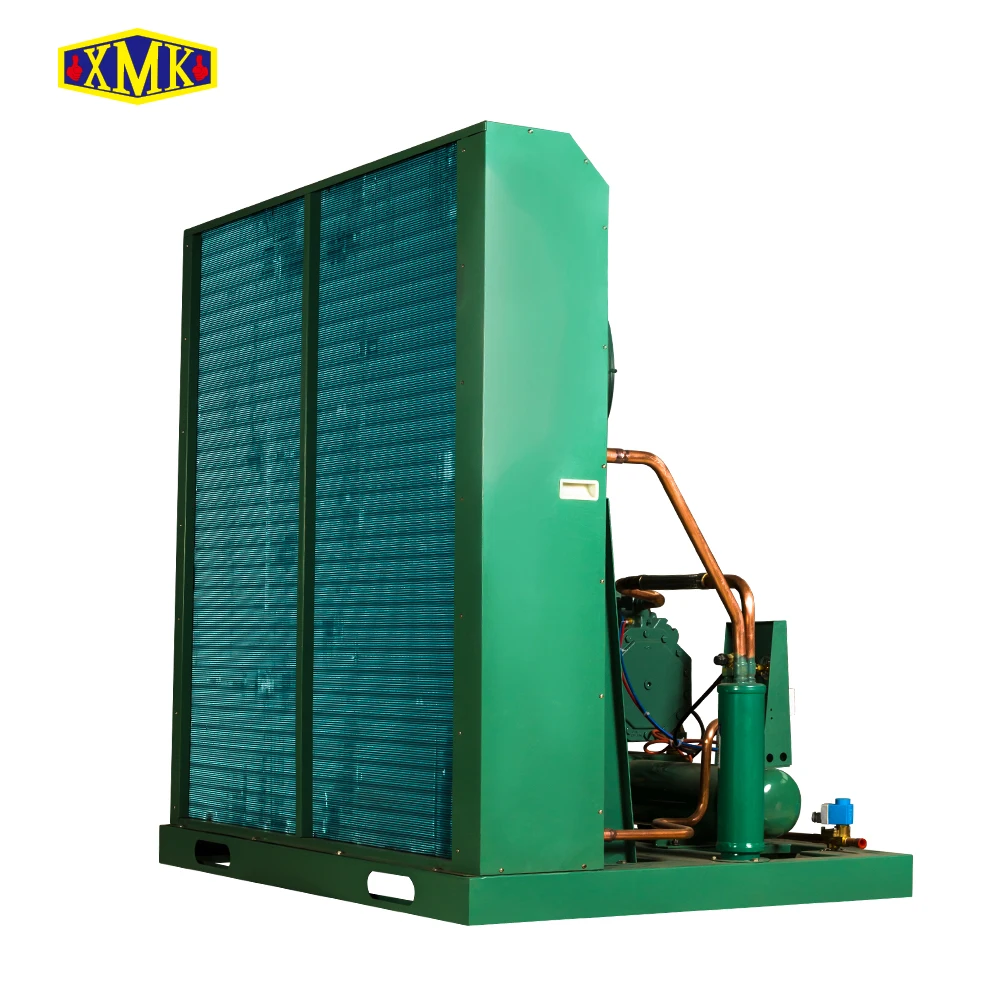

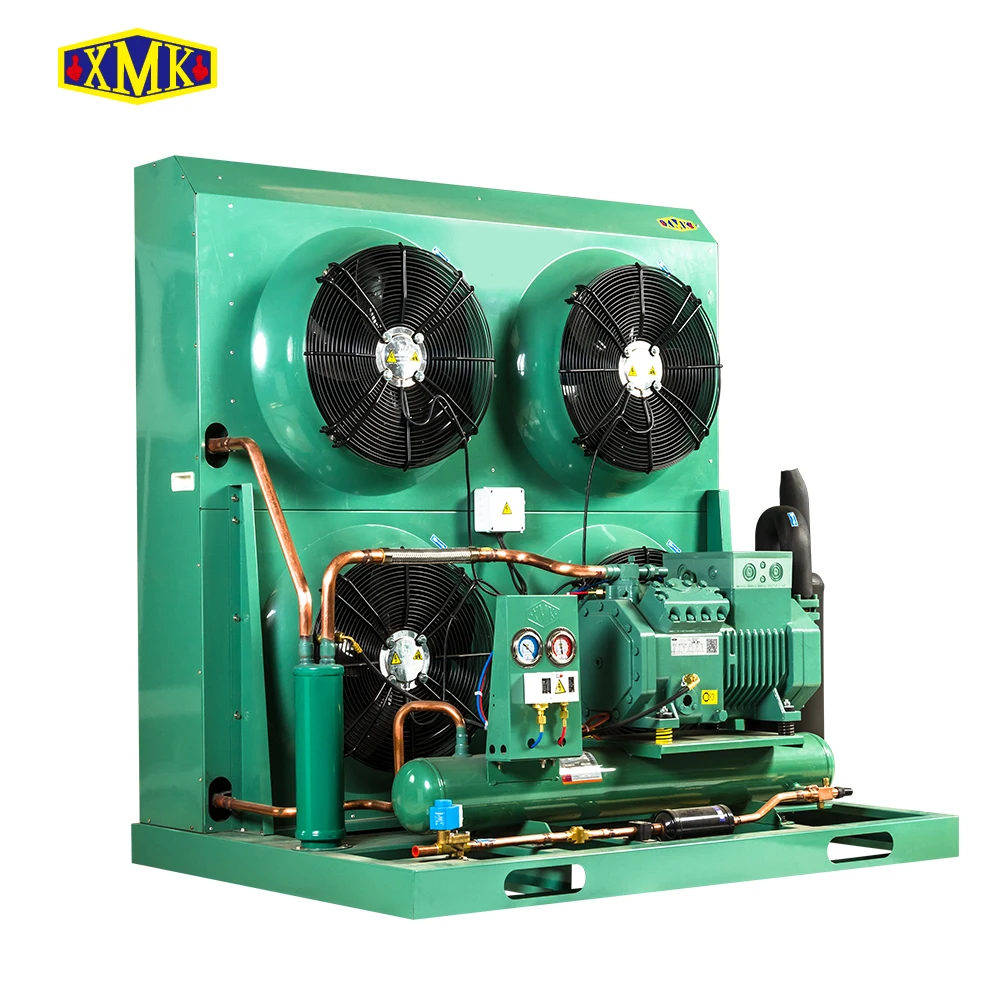

This open type condenser unit is mainly assembled with semi-hermetic compressor, other brand compressors are also optional.
1. Open-type style makes it easier for moving, installation and maintenance.
2. High and low pressure controller are designed to protect the whole compressor system when the equipment breaks down or overloads.

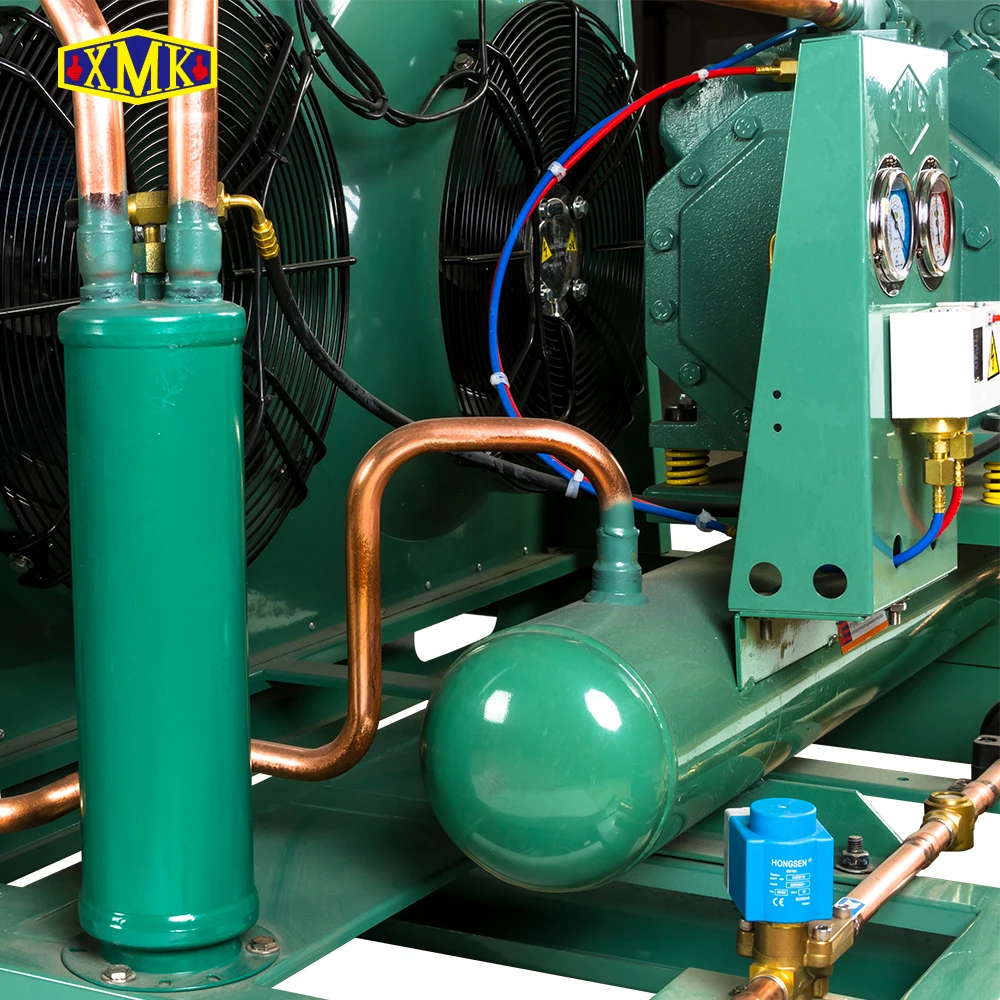

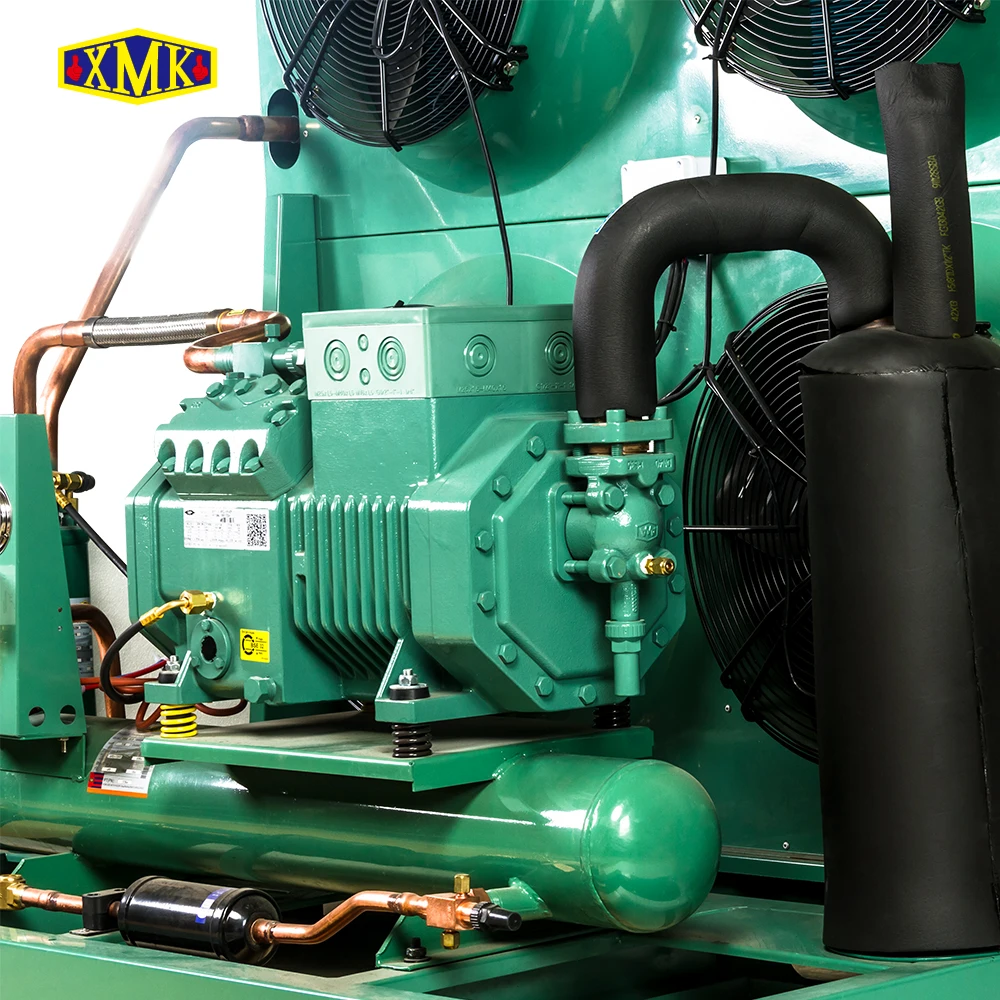

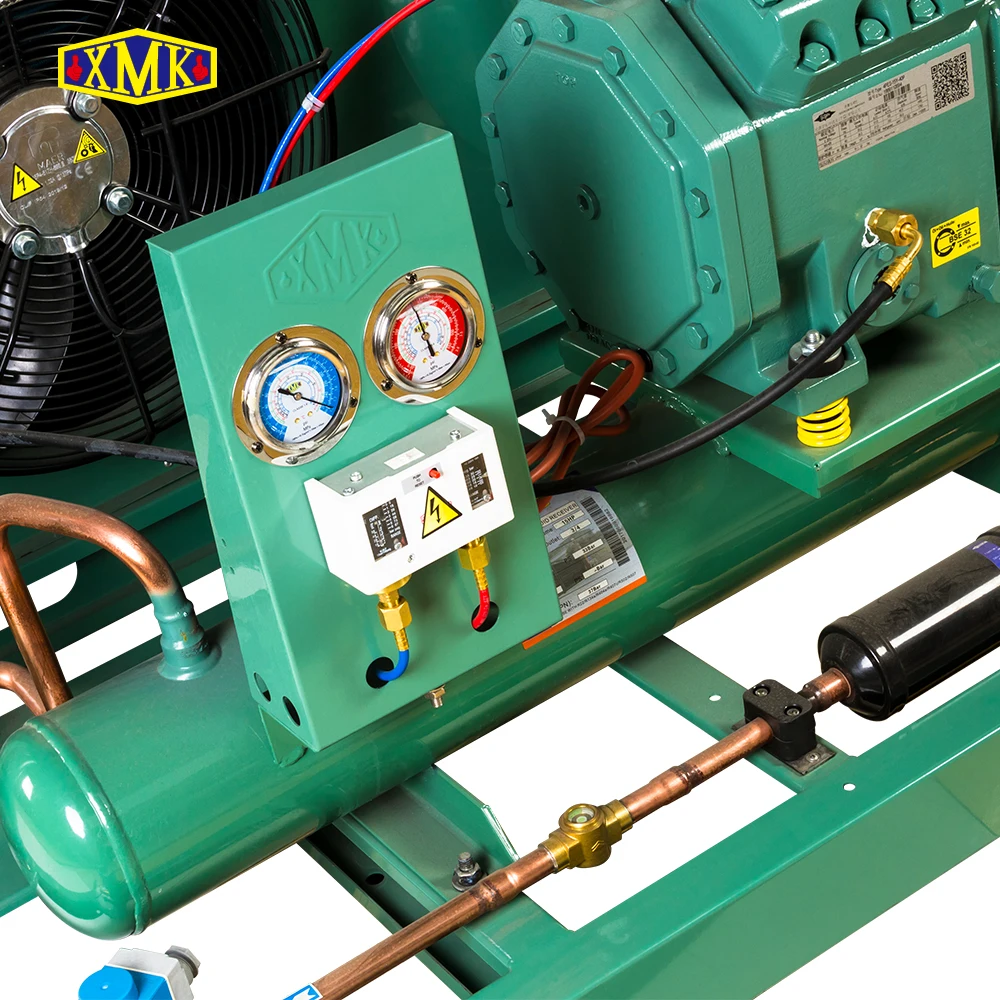

3. Main components are compressor, condenser, receiver tank, filter drier, solenoid valve, pressure controller, pressure gauge, connection box and electrical controller box etc.
Technical Parameters
| Condensing Unit Catalogue | ||||||
| Model | HCU06MYB | HCU07MYB | HCU09MYB | HCU12MYB | HCU15MYB | |
| Power Supply | 380V/50Hz/3phase | |||||
| Applicable Temp | (-5degree to 5degree) | |||||
| Compressor | Model | 4EES-6Y | 4DES-7Y | 4CES-9Y | 4TES-12Y | 4PES-15Y |
| Max.current(A) | 13.6 | 16.5 | 20.2 | 25.2 | 28.2 | |

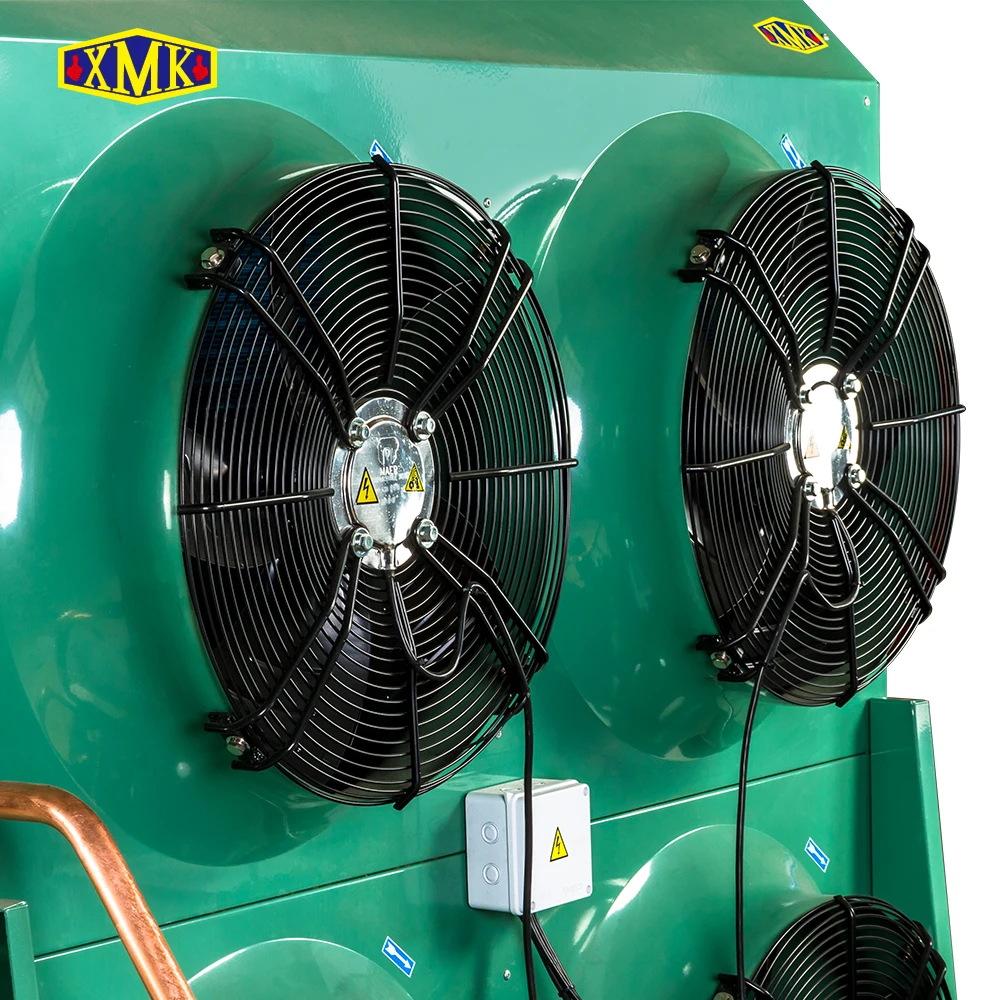

| Fans | Voltage(V) | 380V/50Hz/3phase | ||||
| Current(A) | 2.1 | 2.1 | 2.1 | 2.1 | 4.4 | |
| Power(W) | 4*240 | 4*240 | 4*240 | 4*240 | 4*548 | |
| Rev.(r/rin) | 1330 | 1330 | 1330 | 1330 | 1380 | |
| Capacity /Power(KW) | Evap. 5degree | 18.6/6.4 | 22.6/7.6 | 27.5/9.5 | 35/11.7 | 40.1/13.3 |
| Evap. 0degree | 16.2/5.9 | 19.6/7 | 23.8/8.7 | 30.2/10.6 | 34.5/12.1 | |
| Evap. -5degree | 13.7/5.4 | 16.5/6.5 | 20/8 | 25.3/9.7 | 28.8/11 | |
| Suction Line(mm) | 28 | 28 | 28 | 35 | 42 | |
| Liquid Line(mm) | 16 | 16 | 16 | 16 | 22 | |
| Size | A(mm) | 1435 | 1435 | 1435 | 1435 | 1550 |
| B(mm) | 1000 | 1000 | 1000 | 1000 | 1150 | |
| C(mm) | 1430 | 1430 | 1430 | 1430 | 1630 | |
We are a manufacturer, we can customize products for you according to your requirements.If you don't know which model is suitable for you, you could send message to us.We have several professional engineers to make a customized solution for you.
We can provide a complete set of cold storage equipment.
