Android RK3288 Pos материнская плата развивающая плата Lvds Pcba производство торговый автомат управляющая плата

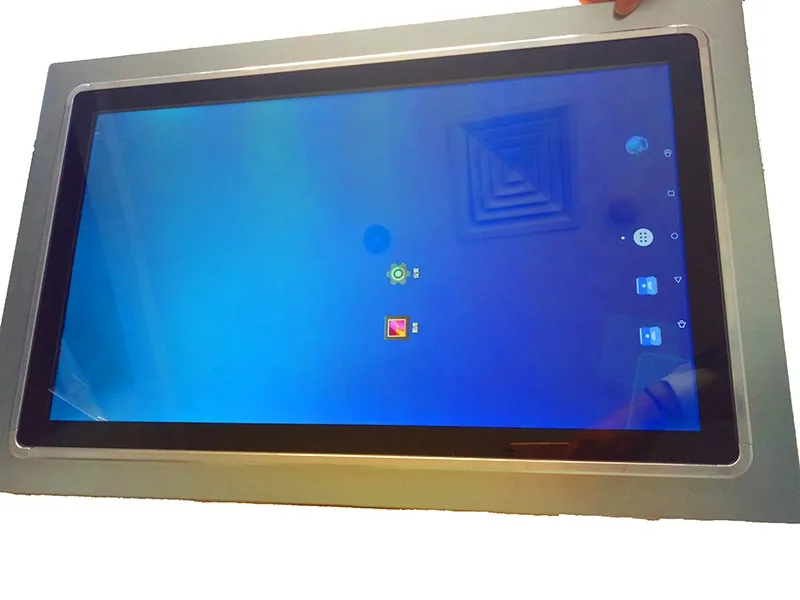

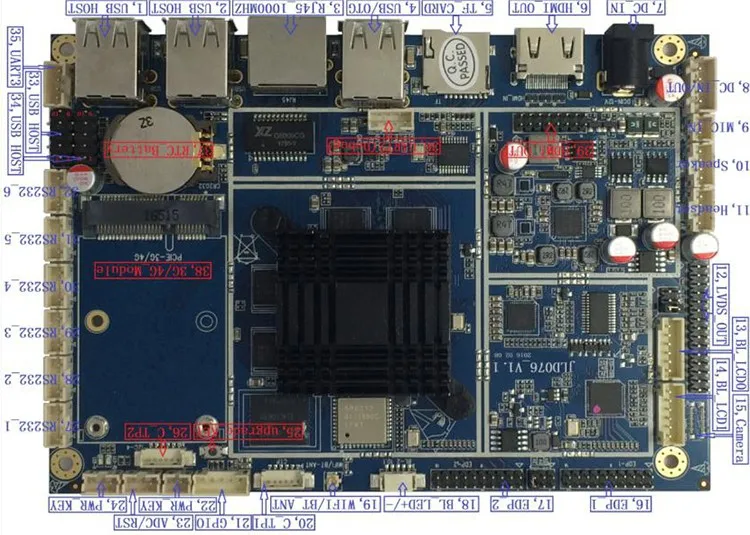

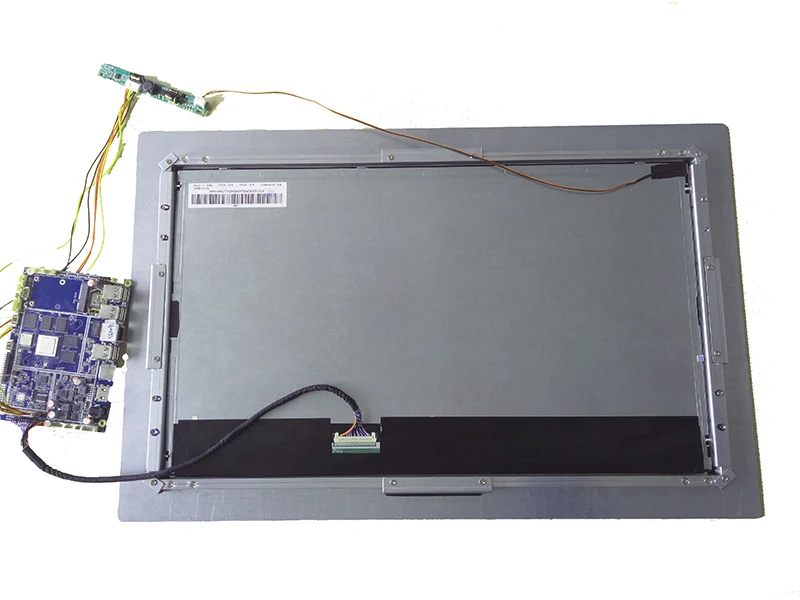

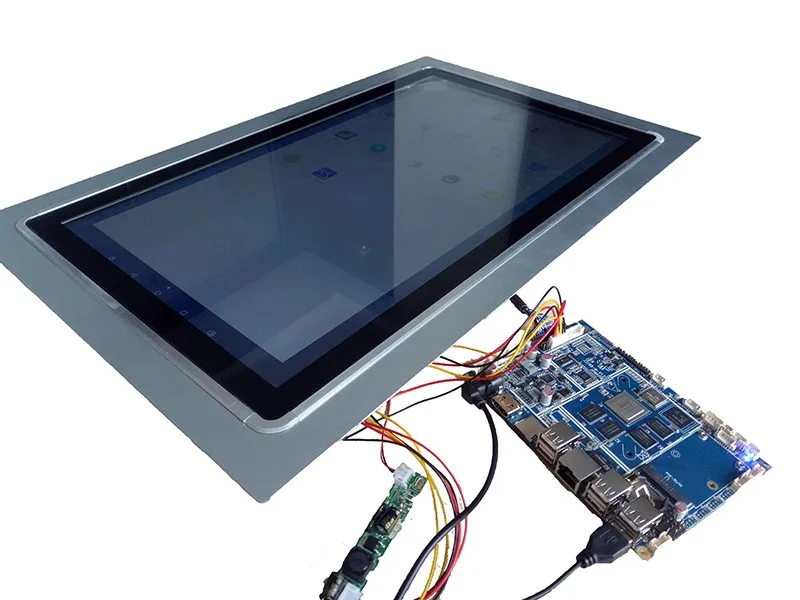

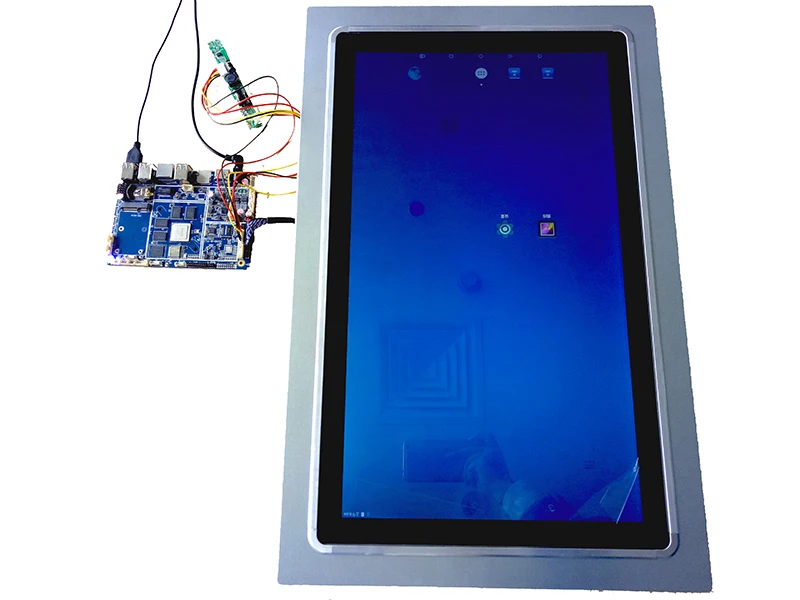

Model No.: JLD076 (Vending Machine Solution with Android Board and 21'' Display)

Product Features
1.Main IC :RK3288 Maximum Frequency 1.8GHZ

2.Memory：2G DDR3

3.Flash：4G ~16G NANDFLASH(EMMC Support 32G )

4.Video output :support LVDS, EDP and MIPI video output and the highest resolution 3840X2160.

5. Audio output: stereo, supporting Dolby sound

6. Network :Support 10/100/1000 MHZ LAN and wireless WIFI 2.4 or 5G.

7.Operating System:ANDROID 5.1.1.

8.PCB size:145mmX100mm

9.Power supply mode：support 12V /3A input

10.Touch panel:support multi point capacitive touch screen.

11.Memory CARD types: support TF CARD --- highest 32G disk.

12. USB Interface：Can support USB OTG & USB HOST

13.RTC:support clock memory when it is power off, support automatic restart and shut down.

14.Watchdog:support crashes suddenly to automatic restart.

15.Adaptive temperature:-20 - 80 centigrade.

POS TERMINAL

Android LCD Player

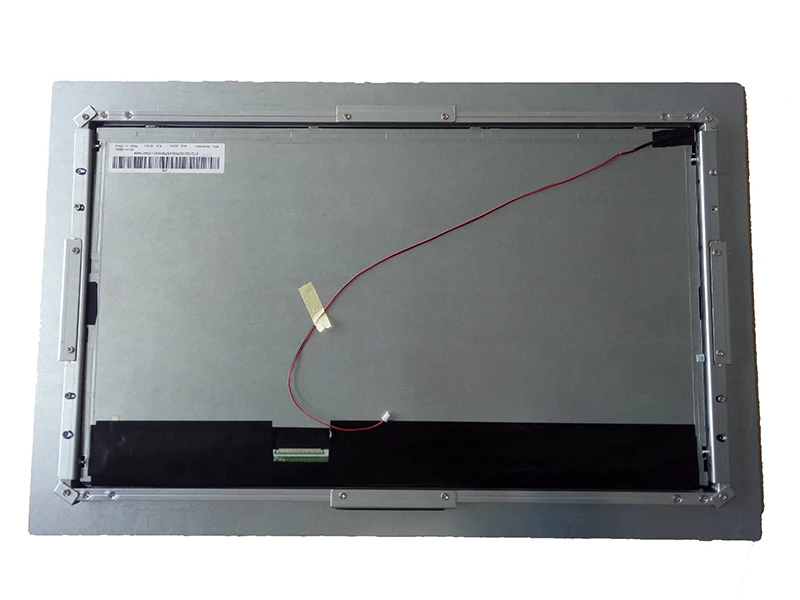

100% new grade A LCD panel

Shenzhen JLD Technology Co.,Ltd was established in 2009. We are specialized in the development and design of the differential intelligent terminal project, which are application of the Android operating system.\tWe offer customized development board and Android systems PCBA board bash on Rock Chip and AMLOGIC chip solutions. We also develop and sell the IOT & smart city products bash on Qualcomm 4G LTE chips solutions. Our company offer services of solution development, PCBA board production , sales and the customized development to the global customers.

Since Shenzhen JLD Technology Co.,Ltd establishment, we have established long-term cooperative relationships with customers in Europe, North America, South Korea, Southeast Asia and so on. Our customers cover many provinces of China too.Our solution projects include the design development and sales the smart device such as smart city, mobile internet of things, digital signage, POS machines, self-service terminals, educational terminals, video telephony, intelligent barrier, Face Recognition System ,Smart home, Smart transportation, medical equipment and so on. We have serviced some brand customers such as BENZ BUS, MAN, Panasonic, Haier, GRG BANKING, Neusoft, Chevalier of HongKong and Ministry of defense of Korea etc,. Our products are widely used in finance, education, hospital, media, car, industrial control, military, real estate, New Retail and so on.

Reliable OEM/ODM
Exw factory Shenzhen, FOB HK.
50% deposite, 50% balance before deliver.
Leadtime: 3-4weeks.
Courier: DHL, Fedex, UPS, TNT. we also have our own cooperated forwarder agent.

1. Sample and mini order will be delivered within 2/3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 4weeks after the receipt of payment.
Please contact our sales to make sure the current inventory.
