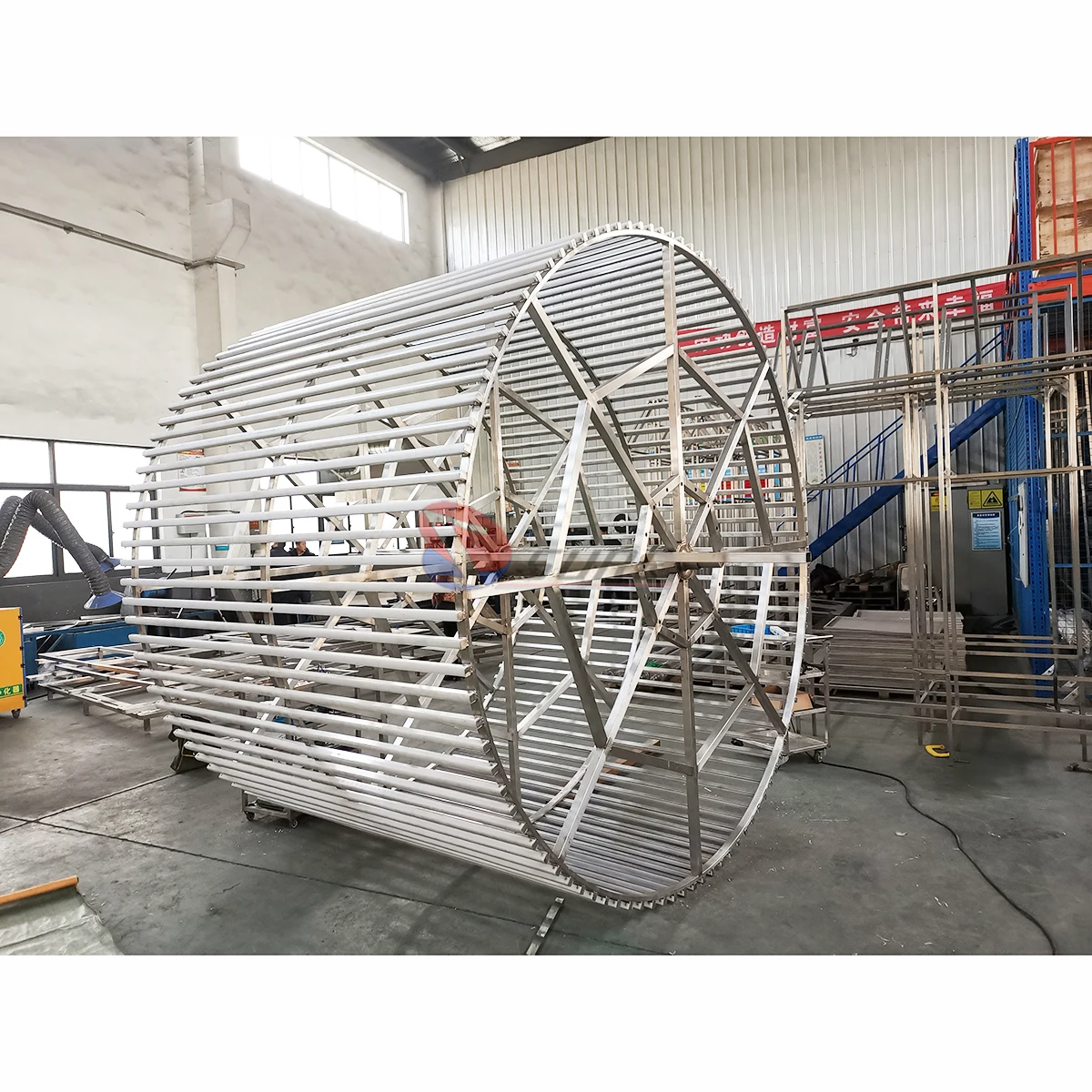

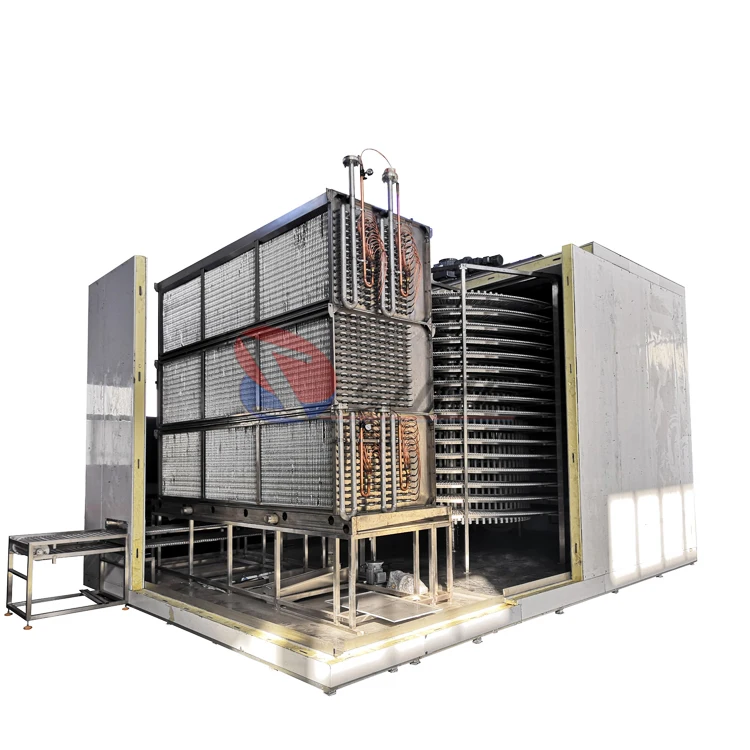

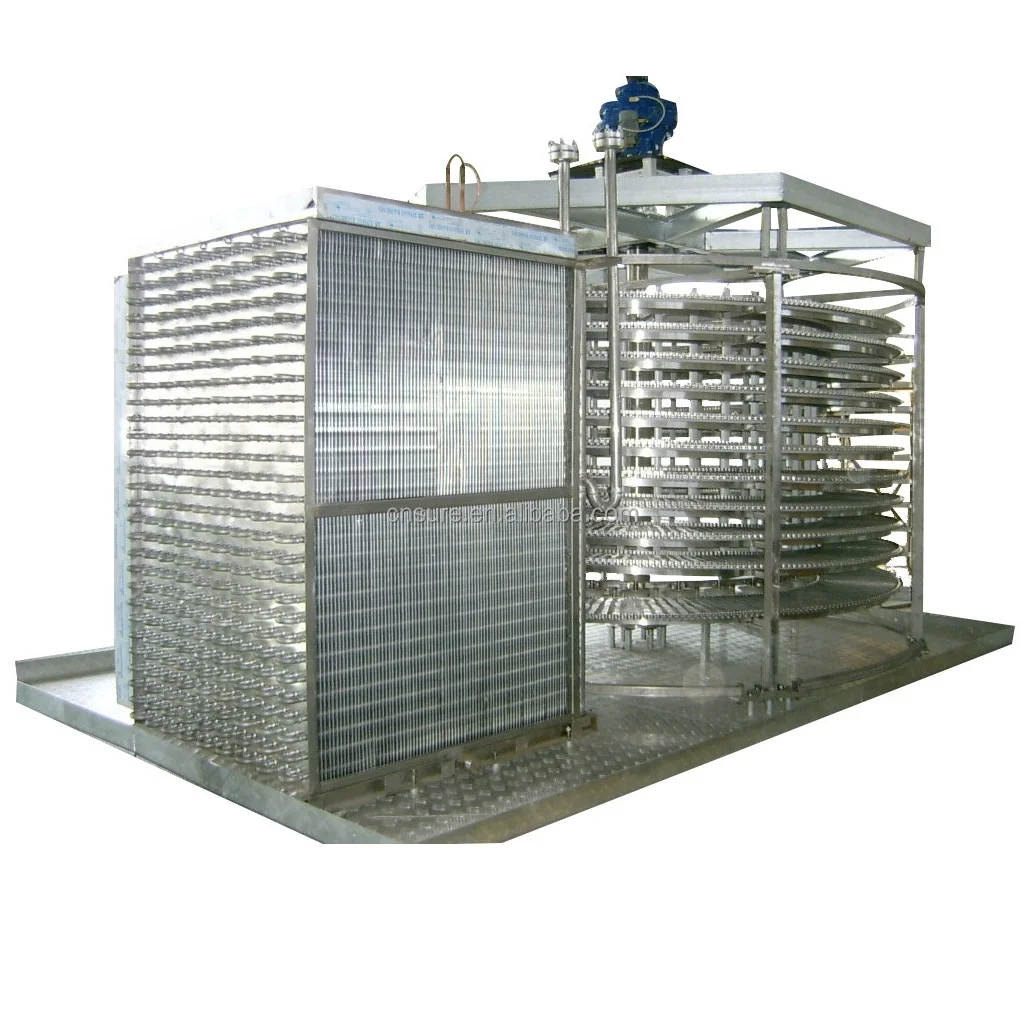

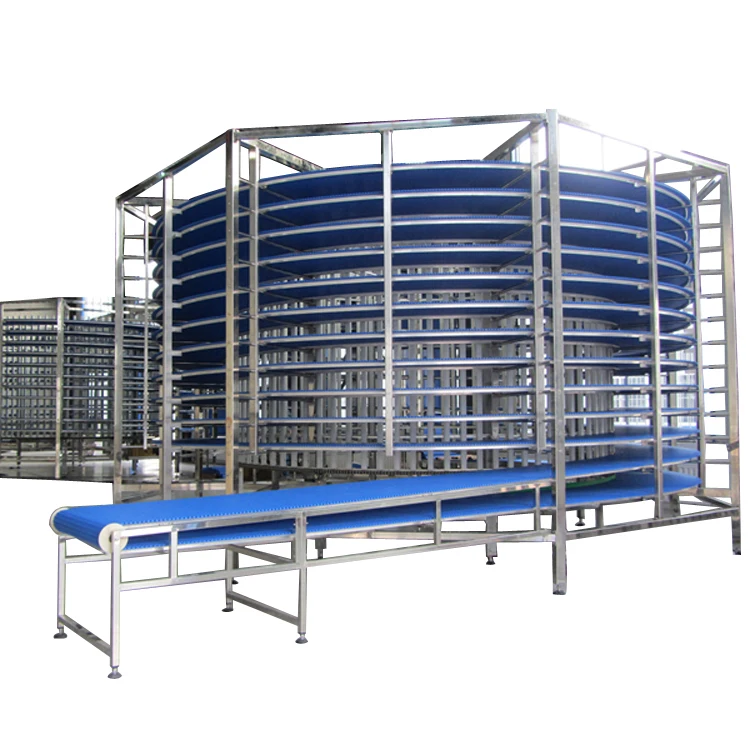

ice cream continues spiral freezer/industrial blast freezer/double drum spiral iqf shock freezer
- Category: Freezing Equipment >>>
- Supplier: Tianjin Sure International Trading Co. Ltd.
Share on (60787238108):
Product Overview
Description
Product Description
The spiral freezer ia an engergy-saving fast freezing device with compact structer, wide application range , small occupied space
and large freezing capacity. it is widely used fir quick freezubg if seafood , pastry , meat products,dairy products and prepared
food. The freezer can be designed and manufancted accourding to customer's needs.Freezing capacity can be 100kg/h-3000kg/h.
and large freezing capacity. it is widely used fir quick freezubg if seafood , pastry , meat products,dairy products and prepared
food. The freezer can be designed and manufancted accourding to customer's needs.Freezing capacity can be 100kg/h-3000kg/h.
model | output | installed power | refrigeration consumption | dimension | belt width |
sf200 | 200kg/h | 3.55kw | 30kw | 4.0*3.3*2.1m | 300mm |
sf300 | 300kg/h | 5.15kw | 43.5kw | 4.9*4.1*2.5m | 450mm |
sf500 | 500kg/h | 11.2kw | 75kw | 5.6*4.0*2.9m | 450mm |
sf1000 | 1000kg/h | 22.0kw | 145kw | 6.8*5.0*3.3m | 600mm |
sf1500 | 1500kg/h | 31.0kw | 225kw | 6.8*5.2*4.5m | 600mm |
Main Features
1.Conveyor Belt:
We adopt food grade stainless steel as the material of conveyor belt. The surface of belt is flat and neat.
2.Driving System:
The working speed of conveyor belt can be adjusted by frequency inverter and speed reducer.
3.Electric Controlling System:
We adopt food grade stainless steel as the material of conveyor belt. The surface of belt is flat and neat.
2.Driving System:
The working speed of conveyor belt can be adjusted by frequency inverter and speed reducer.
3.Electric Controlling System:
We adopt Siemens or Schneider electric components .
Detailed Images

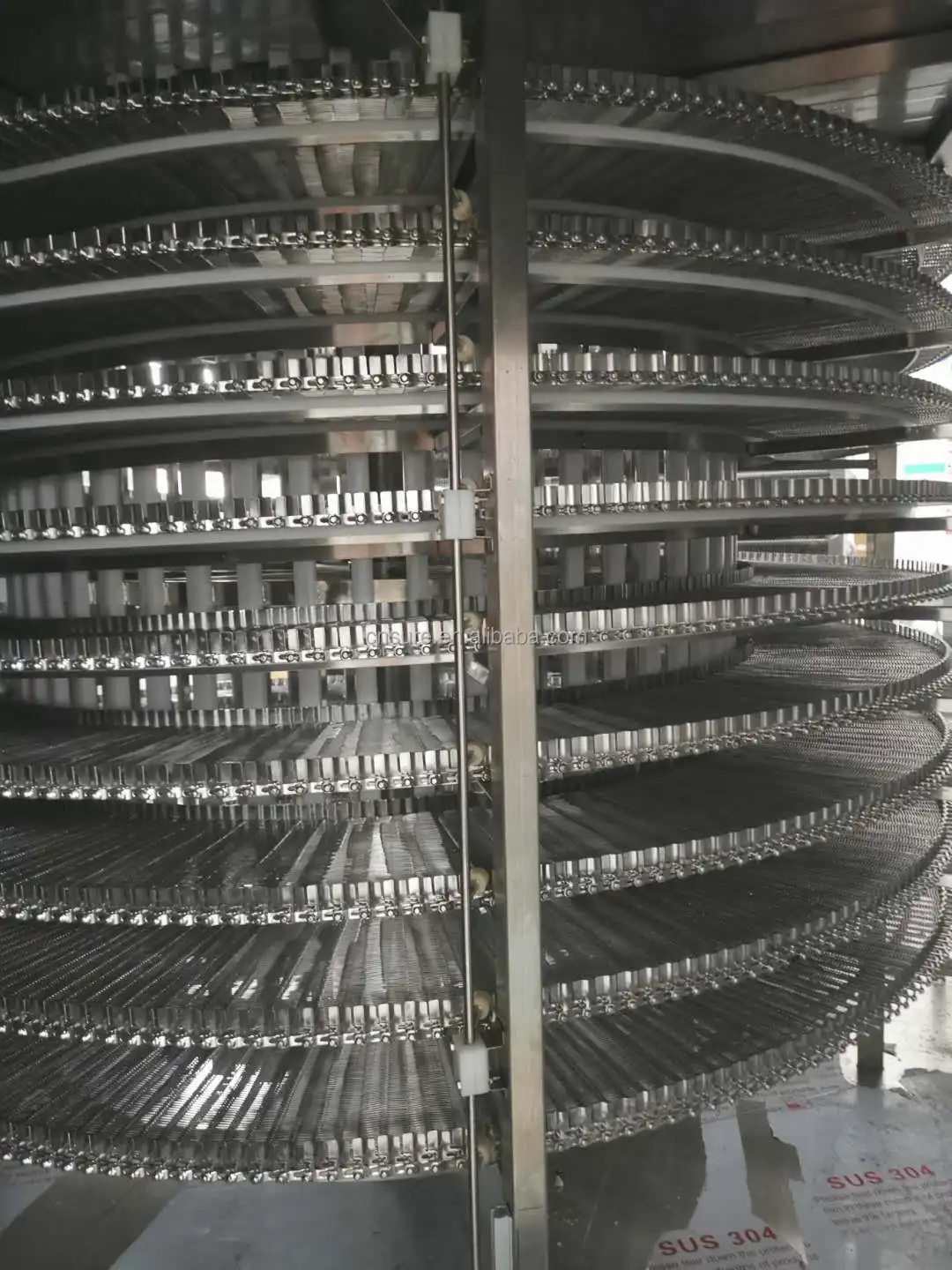

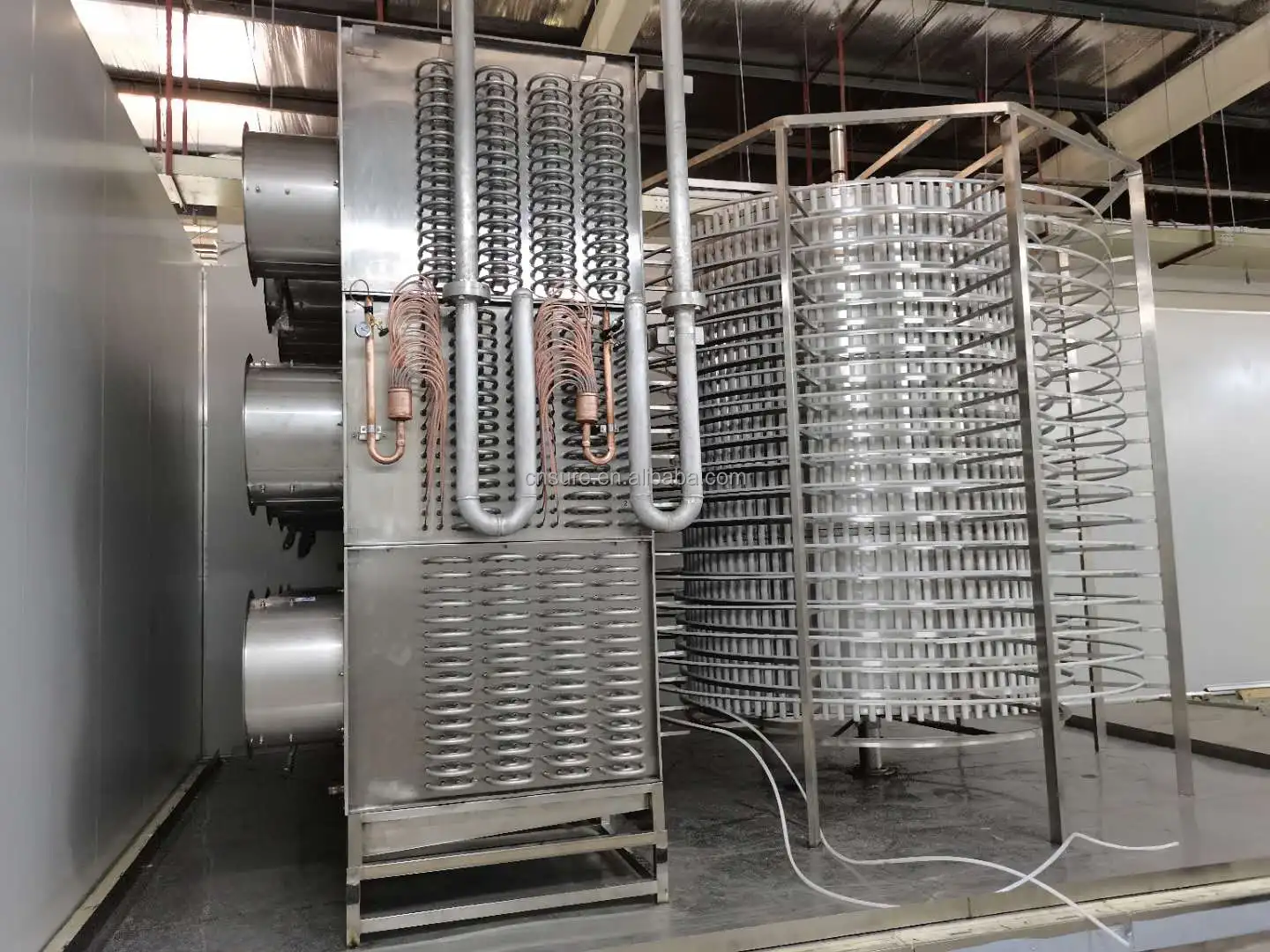

1.internal components using high-quality
stainless steel SUS304, easy cleaning.
Using water frost, ensure clean sanitation. 2.Inverter control to realize infinitely adjustable-speed, frozen goods frozen time is
adjustable 3.Safety device: mesh belt prevention device, heavy hammer protection, emergency stop device

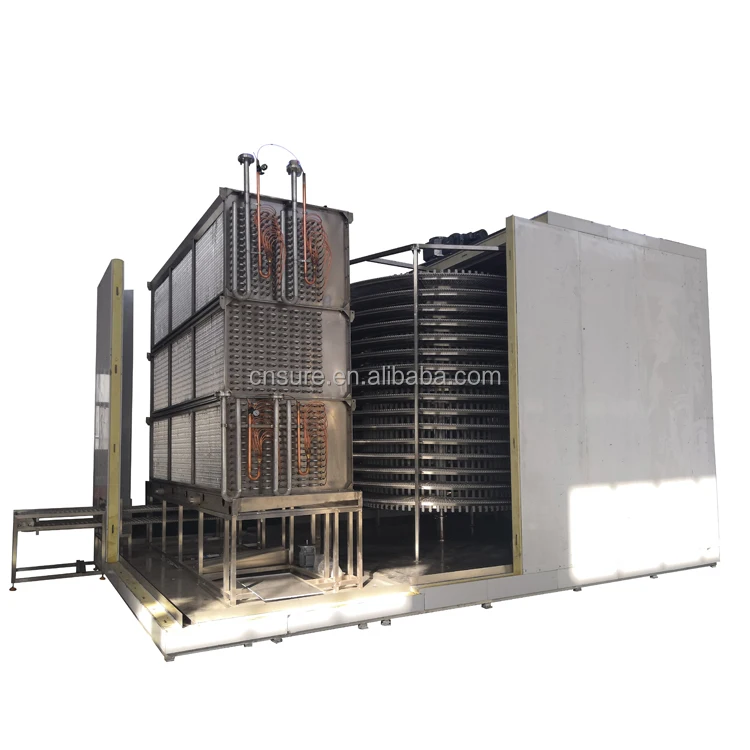

2. high output: multi-layer structure, large storage capacity.
3. easy to use, flexible choice of inlet and outlet
