Push Pull Orthodontic Clamping Digital Force Gauge

Product Overview

Description

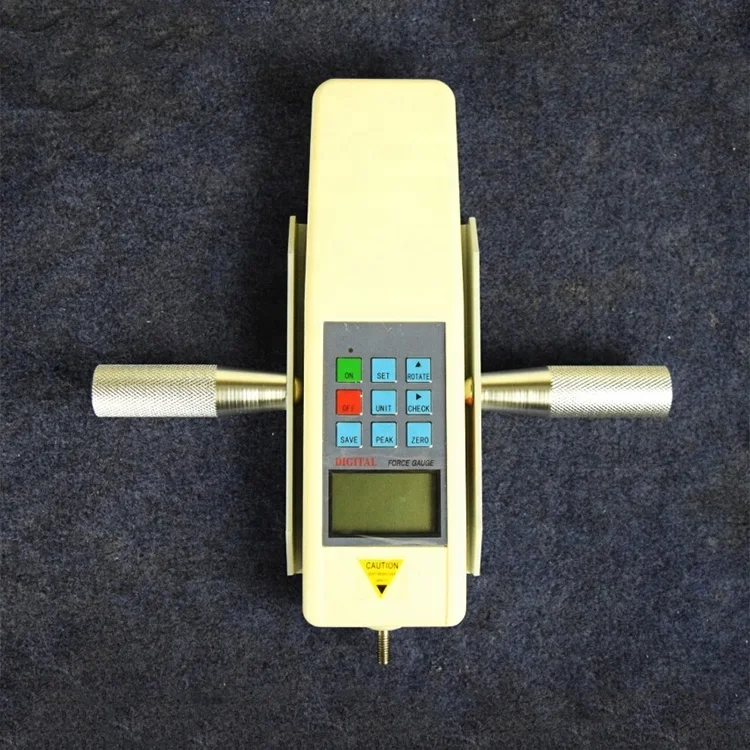

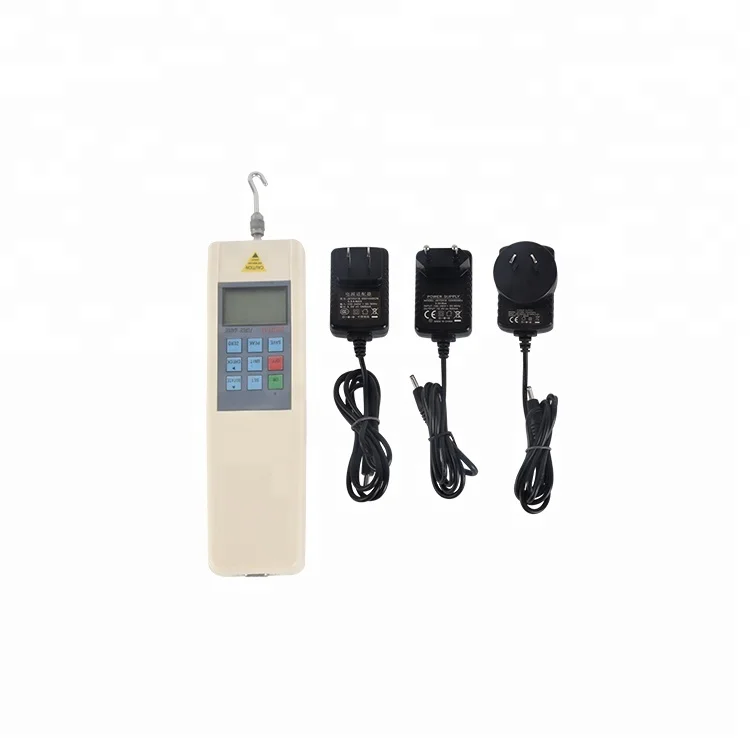

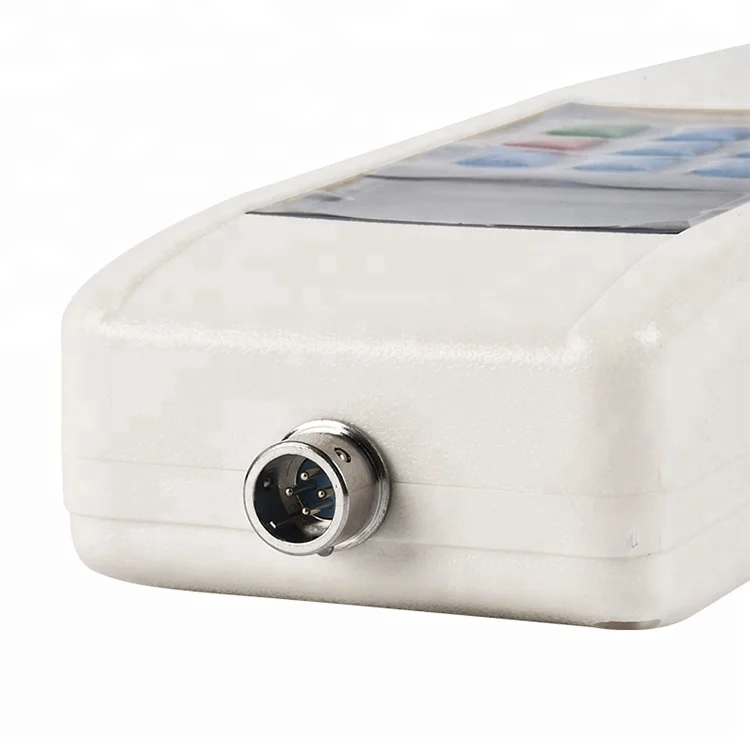

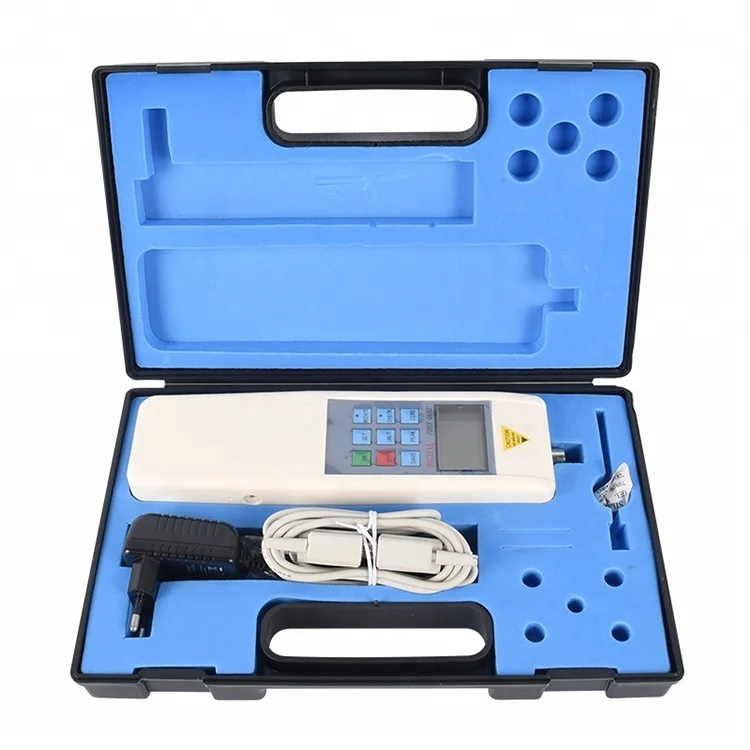

Push Pull Orthodontic Clamping Digital Force Gauge

force gauge

1.Purpose:



The digital force gauge with compact size, high accuracy, they are easy to operate and handy to carry out. Widely applied in electron, high & low voltage electrical appliance, hardware, automobile parts, lighter and ignition system, light industry, mechanical, textile, and so on industries for testing of pull or push load test, insertion force or pull and destructive experiment. This digital force gauge is new generation pulls the pressure measuring instrument.



2.Functional characteristics:

1).High precision and high resolution.
2).Five testing modes and three display methods for selection(enhance testing efficiency to the maximum extent).
3).N(Newton),Kg (Kilogram) and Lb (Pound) three measuring units for selection and conversion.
4).Setting function of gravity acceleration----User can input at your option the accurate value of gravity acceleration at the using place so as to make the testing and unit conversion be more accurate.
5).Function of peak value maintaining. Maintain the display of peak value until manual zero clearing.
6).Automatic PEAK function:can set up automatic PEAK time,from 1-9999 seconds.
7).Max. and min. and comparison value can be set for statistic analysis. The buzzer will alarm if exceeding comparison value.
8).Data storage function. 447 testing values can be stored.
9).Data output function. The data can be input into computer through data line for various analyses.
10).Environmental protection. The device will automatically stop if no operation within 10 minutes.If the automatic shutdown is set to 0,the instrument will not shut down.
11).High quality chargeable power supply. The charging voltage is available from 100V to 240V, which can accommodate most areas in domestic and at abroad. It has also protection functions for short circuit, leakage and overload.
12).Special testing function of make-break ability of switch contact to make the make-break testing be more accurate.
13).6 digits large screen display.
14).Low battery detection shutdown,when the battery is running low,the instrument will automatically put-off,it can prevent the low battery caused by Inaccurate measurement.

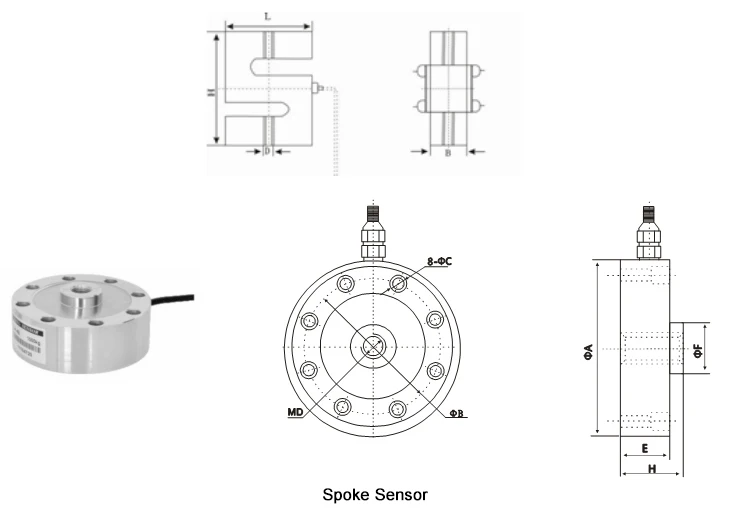

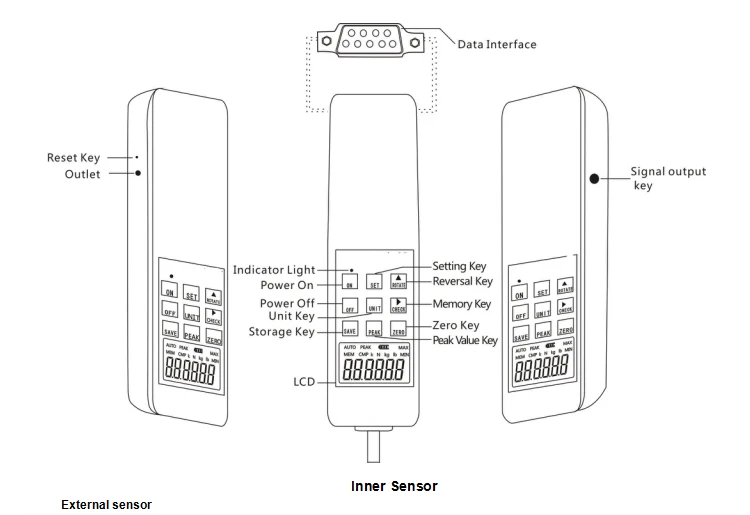

3.Structure chart:

Range		Size/mm
	Equivalent	D	L	H	B
50~500N	5~50Kg	M8	51	64	12.7
1K~5KN	100~500Kg	M12	51	76	19.1
10KN	1t	M12	51	76	25.4
20~50KN	2~5t	M20	76	108	25.4
100KN	10t	M30	127	178	51
200KN	20t	M36×3	140	188	60





Range		Size/mm
	Equivalent	ΦA	ΦB	ΦC	ΦF	MD	H	E
5000N~50KN	500Kg~5t	105	88.9	6.5	32	M16×1.5	37	34
100,200KN	10~20t	125	101.6	8.5	39	M32×1.5	52	48
500KN	50t	145	116.8	10.5	50	M40×1.5	58	54
1000KN	100t	205	162	12.5	80	M60×2	85	78





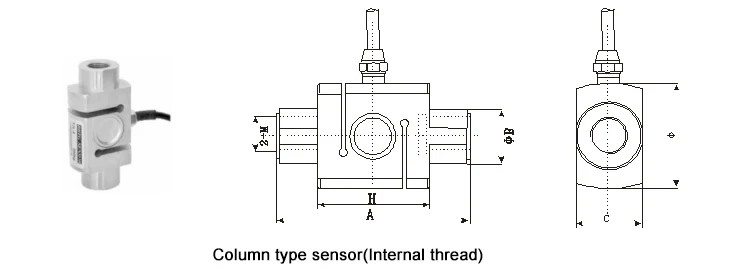

Range		Size/mm
	Equivalent	A	H	φB	φ	M	C
1000~5000N	100~500Kg	88	58	28	44	16×1.5	26
10~50	1~5t	120	68	51	63	22	48
100	10t	138	94	60	76	30	56
200	20t	156	108	68.5	88	36×3	76





KN	Equivalent(T)	A	ΦB	C	M
100~200	10~20	214	86	124	M42×4.5
500	50	276	106	156	M56×5.5
1000	100	380	142	180	M90×6
2000	200	500	175	220	M140×10



3.Force gauge model specification sheet:

Model

2

3

5

10

20

30

50

100

200

300

500

1000

Peak load value

2N

3N

5N

10N

20N

30N

50N

100N

200N

300N

500N

1000N

0.2kg

0.3kg

0.5kg

1kg

2kg

3kg

5kg

10kg

20kg

30kg

50kg

100kg

0.45Lb

0.65Lb

1.1Lb

2.2Lb

4.5Lb

6.5Lb

11Lb

22Lb

45Lb

65Lb

110Lb

220Lb

load division value

0.001N

0.01N

0.1N

0.0001kg

0.001kg

0.01kg

0.0001Lb

0.001Lb

0.01Lb

Sensor structure

Inner sensor

Inner/outside

Accuracy

±0.5%

±1%

Power

7.2V  1.2V×6  NiMH batteries

Data interface

RS 232 nine-hole socket

Charging time

4~6 hours

The battery of continuous use of time

About 15 hours

Battery Life

≥300 times

Charger

Input:AC 100-240V 50HZ    Output:DC 12V 500mA

Working temperature

5℃~35℃

Transport temperature

-10℃~60℃

Relative humidity

15%~80%RH

Working conditions

No hypocenter and corrosive medium



Model

1000

2000

3000

5000

10k

20k

30k

50k

100k

200k

300k

500k

1000k

2000k

Peak load value

1000N

2000N

3000N

5000N

10KN

20KN

30KN

50KN

100KN

200KN

300KN

500KN

1000KN

2000KN

100kg

200kg

300kg

500kg

1Kkg

2Kkg

3Kkg

5Kkg

10Kkg

20Kkg

30Kkg

50Kkg

100Kkg

200Kkg

220Lb

450Lb

650Lb

1100Lb

2.2KLb

4.5KLb

6.5KLb

11KLb

22KLb

45KLb

65KLb

110KLb

220KLb

450KLb

load division value

0.1N

1N

0.001KN

0.01KN

0.1KN

1KN

0.01kg

0.1Kg

0.0001KKg

0.001KKg

0.01KKg

0.1KKg

0.01Lb

0.1Lb

0.0001KLb

0.001KLb

0.01KLb

0.1KLb

Sensor structure

Inner/External Sensor

External sensor

Accuracy

±1%

Data interface

RS 232  nine-hole socket

Power

7.2V  1.2V×6  NiMH batteries

Charging time

4~6 hours

The battery of continuous use of time

About 15 hours

Battery Life

≥300 times

Charger

Input:AC 100-240V 50HZ    Output:DC 12V 500mA

Working temperature

5℃~35℃

Transport temperature

-10℃~60℃

Relative humidity

15%~80%RH

Working conditions

No hypocenter and corrosive medium
