ABA ABC 3m 4m 6m 8m 10m 12m 3/5/7 Layers Agricultural greenhouse cover Co extruder HDPE LDPE LLDPE Plastic Film Blowing Machine

Product Overview

Description

ABA ABC3/5/7 Layers Agricultural greenhouse cover Co-extruder HDPE LDPE LLDPE Plastic Film Blowing Machine

Characteristics:
1,Newtech of extrusion, large capacity(more than 30% capacity increase), good plasticizing performance.
2,Advanced technique of central-fed compact die head,cmpact structure, quick-change formula, saving raw materials.
3,IBC(internal bubble cooling) system to improve the output, reduce energy consume, get better product quality.
4,Horizontal type reversing haul-off system to improve film quality, avoid edge wrinking,be suitable for the process of high-speed printing and multi-operation.
5,It adopts full-automatic double-station winding system, automatic roll changing, automatic cutting, meter counting functions.
6,Precise double-lip air ring.
7,The surface of the machine frame is processed by advanced paint technology with long using life and superior anti-rust performance,
8,Incorporating many latest technologies to get higher output, better film thickness tolerance, and lower power consumption, and gain more value for the customers.

Technical Parameter:

Type	MB-1300Q	MB-1500Q	MB-1700Q	MB-2200Q	MB-2700Q	MB-3200Q
Max. Lay flat Width mm	1200	1400	1600	2000	2500	3000
Thickness mm	0.012-0.2	0.012-0.2	0.012-0.2	0.012-0.2	0.012-0.25	0.012-0.25
Max. Output kg/h	140	180	240	280	350	450
Raw Material	140	180	240	280	350	450
Screw Diameter mm	Φ55×3	Φ60×3	Φ65×3	Φ75×3	Φ80×3	Φ90×3
Screw L/D Ratio L/D	30:1	30:1	30:1	30:1	30:1	30:1
Screw Max. Rotation Speed	100r/min	100r/min	100r/min	100r/min	100r/min	100r/min
Extruder Driving Power kw	22x3	30x3	37x3	45x3	55x3	75x3
Screen Changing of Extruder	Quick machinery screen change or auto Hydraulic screen change
Die Structure	With or Without IBC(Internal Bubble Cooling System)
Air-ring Structure	Dual-vent or single
Reversing Haul-off System	±360°
Take-off Wind-up Speed	80m/min	80m/min	80m/min	80m/min	80m/min	80m/min
Total Power kw	85	110	140	160	180	220
Overall Dimensions(L×W×H) M	10×4×9	10×4.5×9.5	11×5×10	12×5.5×12	13×6×12	15×7×13
Weight T	10	12	14	16	18	20

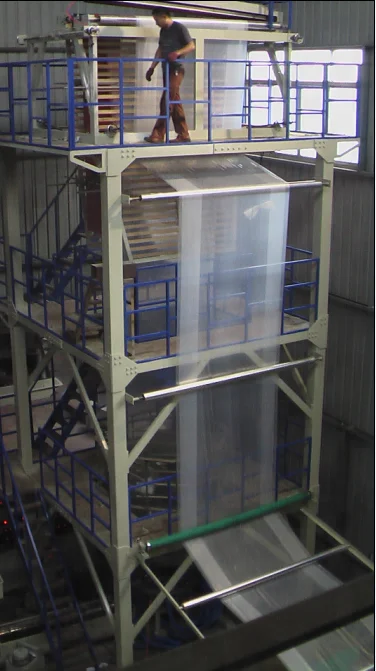

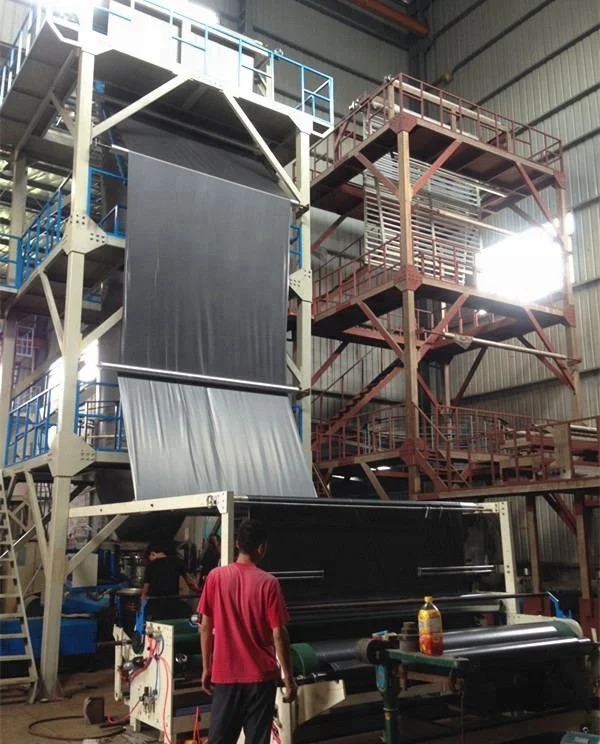

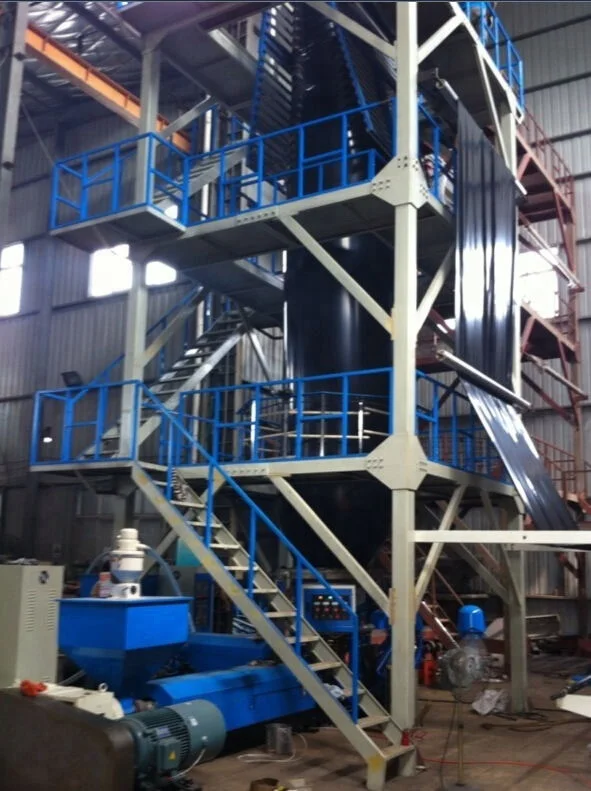

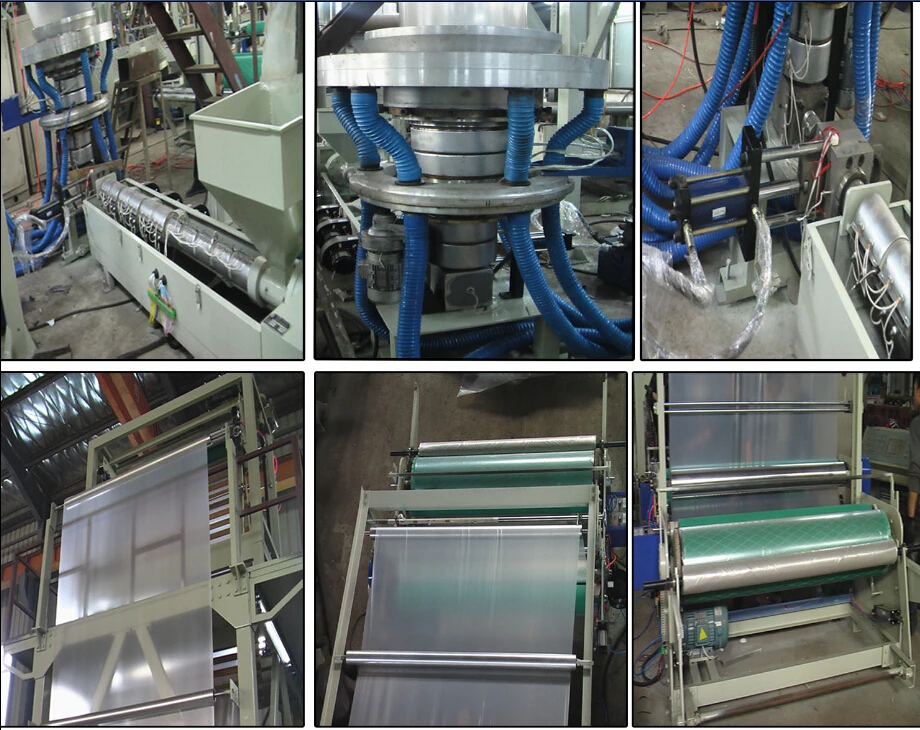

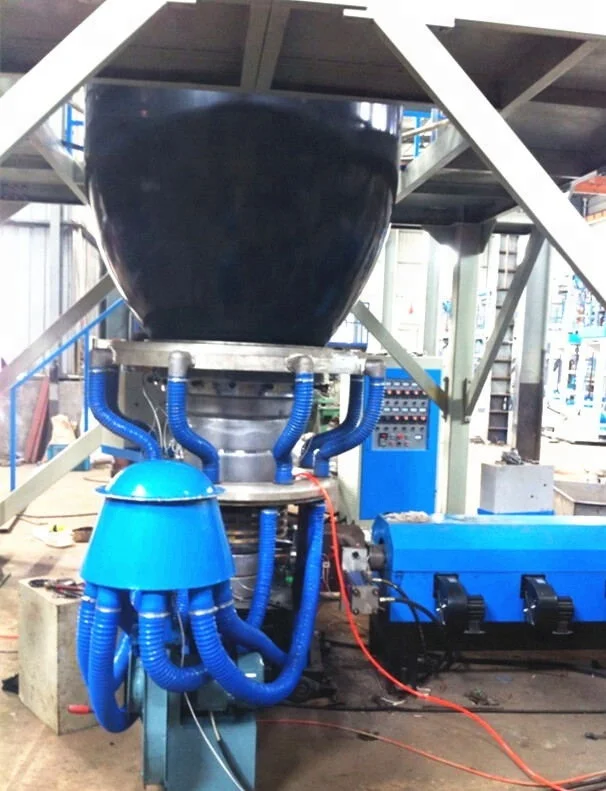

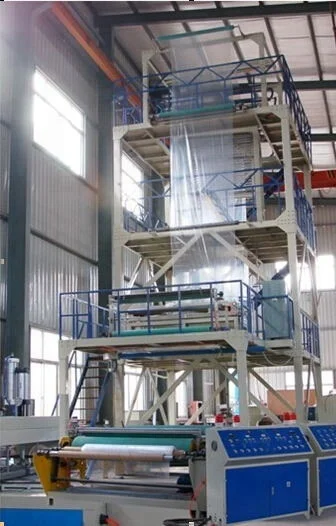

 Machine Details Pictures :





Package And Shipping :



Our Service :



Our Company :

FAQ :

1.Q;Are you a Professional Factory or Trading Company ?
 A:We are a factory with 10years machine technique experience .

2.Q:Where is your factory located ?how can i visit there?
A:Our factory located in Ruian city ,Zhejiang Province ,China.
The nearest airport is Wenzhou airport.
All our clients are warmly welcomed to visited us.

3.Q:Can i get some samples ?how can i get it?
A:Yes, we can send you some free samples ,but you are responsable for delivery charges of TNT or  DHL.
4.Q:How does your factory do the quality control?

A:“QUALITY IS FIRST ", we give importance to the quality controling from the very begining to the end ,Our factory has gained CE&SGS certificte.
