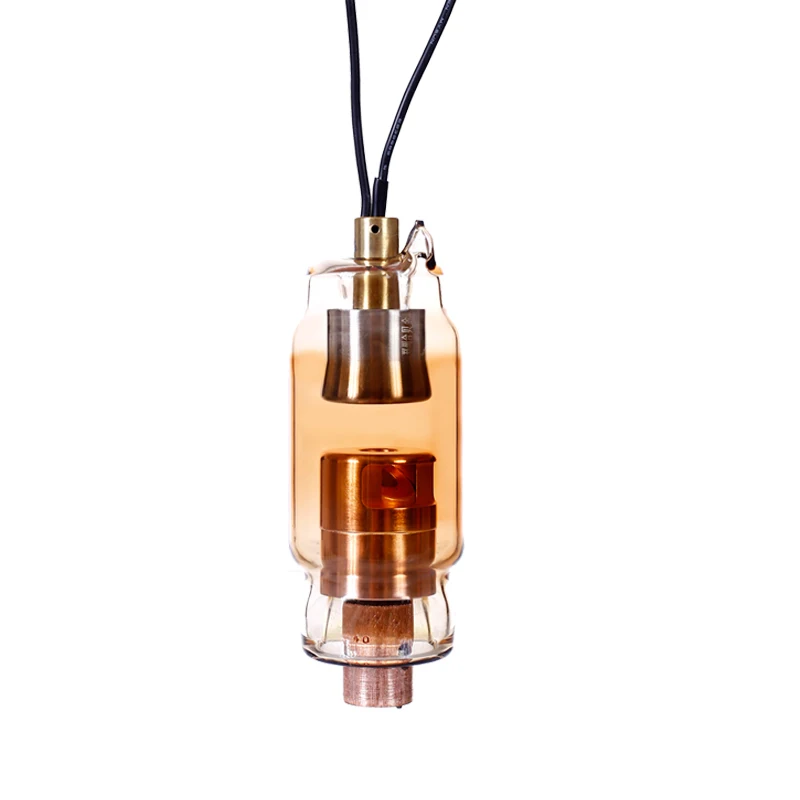

100kv X ray Tube sensor xray table detector viewer

Product Overview

Description

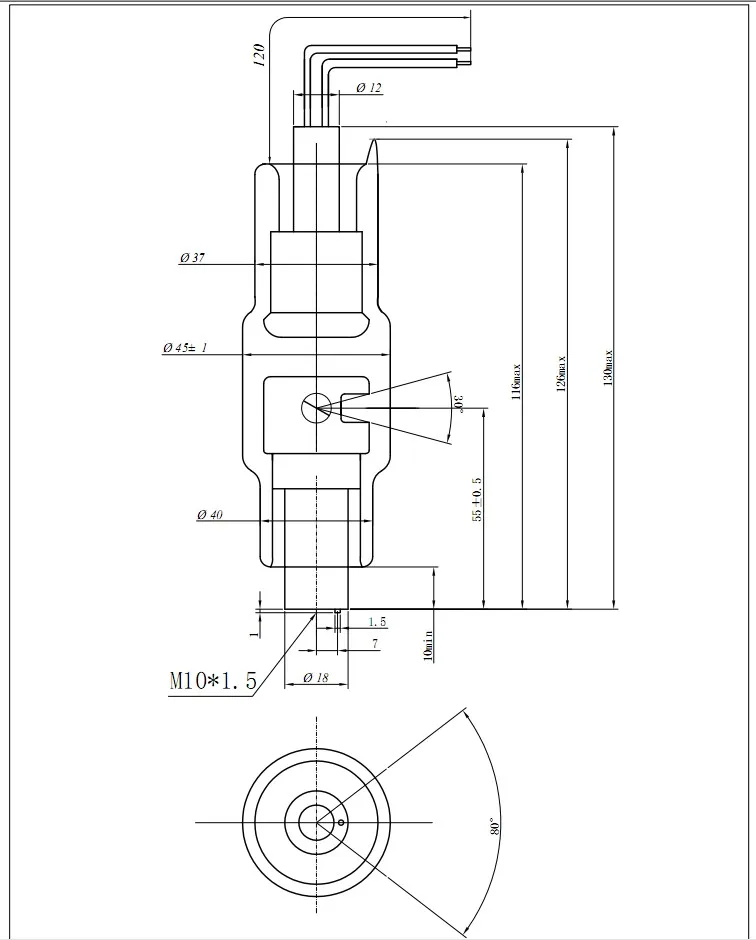

              Technical data                                                     Type:hbj100A

Property	Specification	Standard
Nominal x-ray tube voltage	100KV	IEC60613-2010
Operating tube voltage	30-100KV
Max tube current	1mA
Max anode input power	100W
Max filament current	3A
Filament voltage	4±0.2V
Focal spot size	0.8mm	EN12543-1999
Inherent filtration	1.5-2.0mm glass
Target material	Tungsten
Target angle	30°	IEC/TR 60788-2004
Radial maximum radiation  angle	80°
Cooling method	Oil immersed(70℃ Max)and Convection oil cooling
Weight	365g







Limits	Operation Limits	Transport and Storage Limits
Ambient temperature	From 10°C to 70°C	From -40°C to 70°C
Relative humidity	/	From 10% to 90%
Barometric pressure	From 70kPa to 106kPa	From 50kPa to 106kPa
