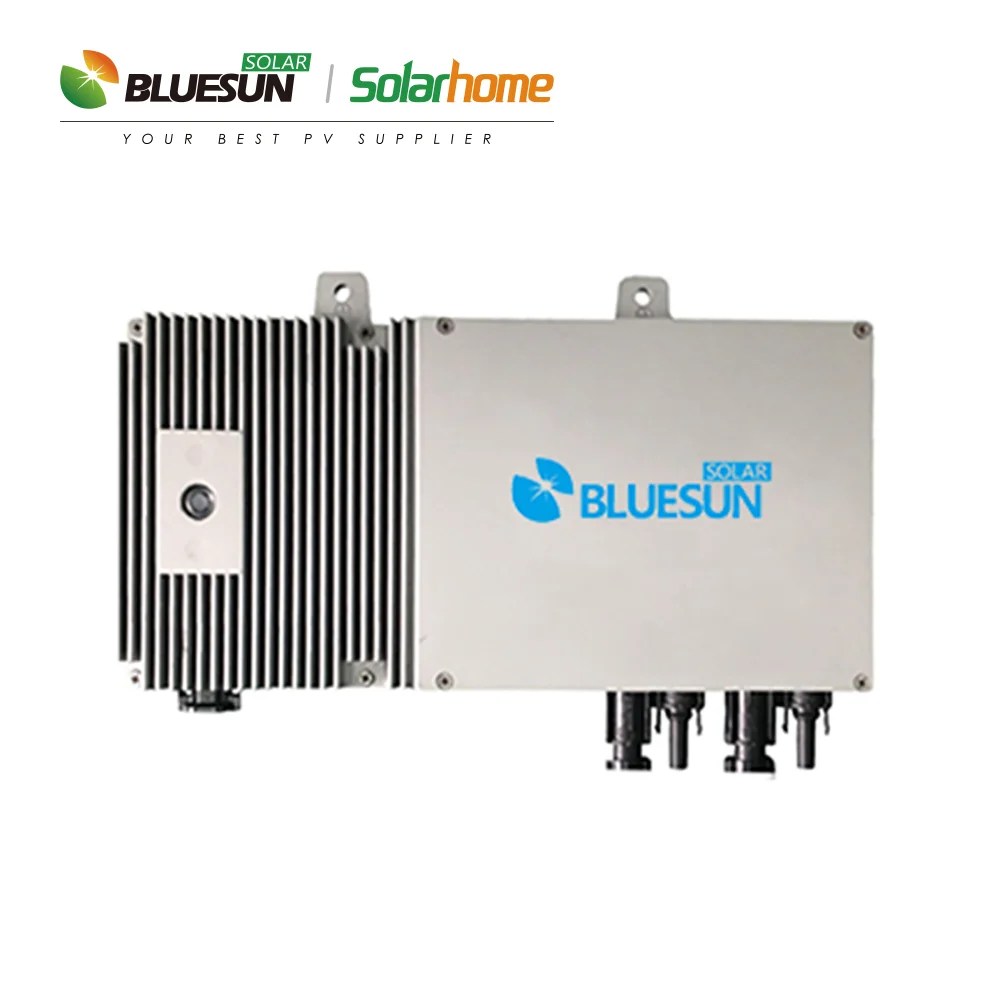

Electric Power solar system 600w Nep Solar Micro Inverter 250W 300W 1200W 1500W Grid Tie Inverter For solar panel inverter
- Category: Solar Inverter >>>
- Supplier: Bluesun Solar Co. Ltd.
Share on (60788818581):
Product Overview
Description
Products Description
Grid-tie Micro Inverter System
A solar micro-inverter is a device used in photovoltaics that converts direct current (DC) generated by a single solar module to alternating current (AC). Microinverters contrast with conventional string and central solar inverters, which are connected to multiple solar modules or panels of the PV system.
Microinverters have several advantages over conventional inverters.
1.Small amounts of shading, debris or snow lines on any one solar module, or even a complete module failure, do not
disproportionately reduce the output of the entire array.
2.Each microinverter harvests optimum power by performing maximum power point tracking for its connected module.
3.Simplicity in system design, lower amperage wires, simplified stock management, and added safety are other factors introduced with the microinverter solution.
Microinverters have several advantages over conventional inverters.
1.Small amounts of shading, debris or snow lines on any one solar module, or even a complete module failure, do not
disproportionately reduce the output of the entire array.
2.Each microinverter harvests optimum power by performing maximum power point tracking for its connected module.
3.Simplicity in system design, lower amperage wires, simplified stock management, and added safety are other factors introduced with the microinverter solution.
Details Images

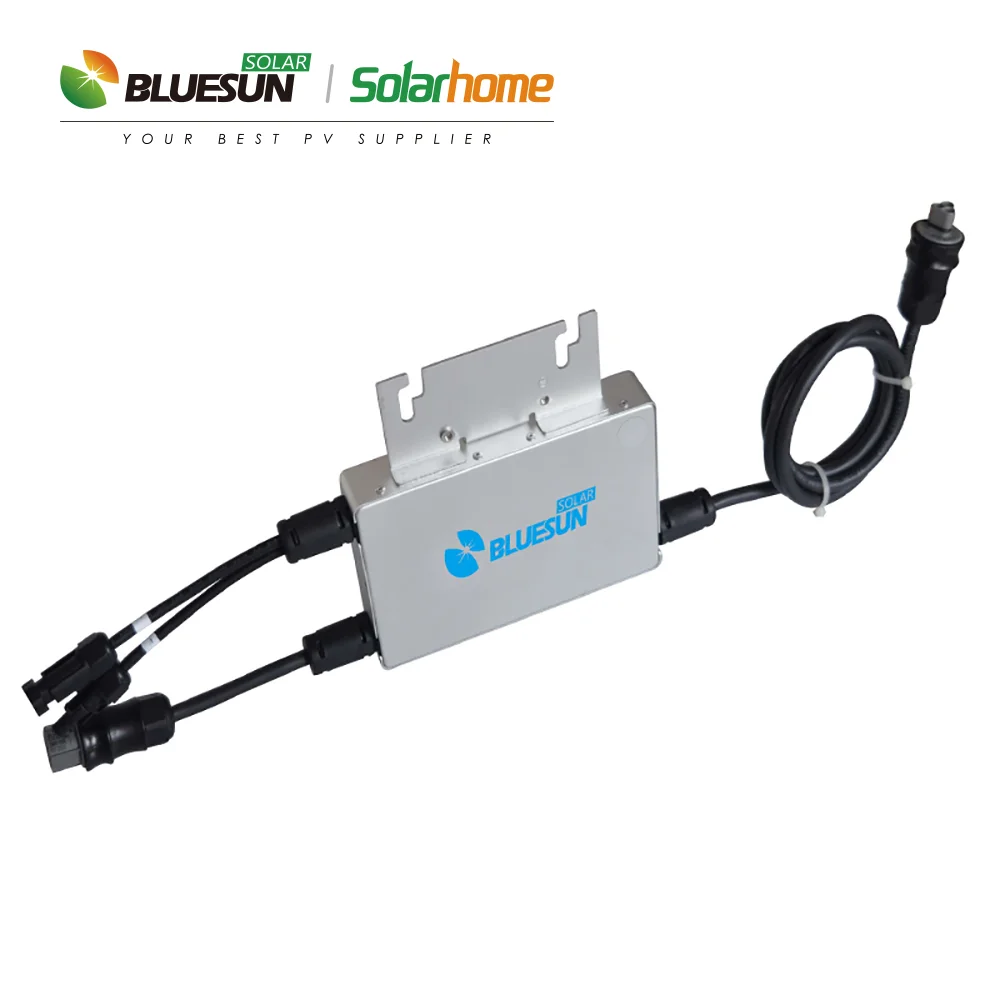

BDM-250
>Designed to connect individual PV modules and perform DC to AC conversion
>High efficiency with 96.3% max

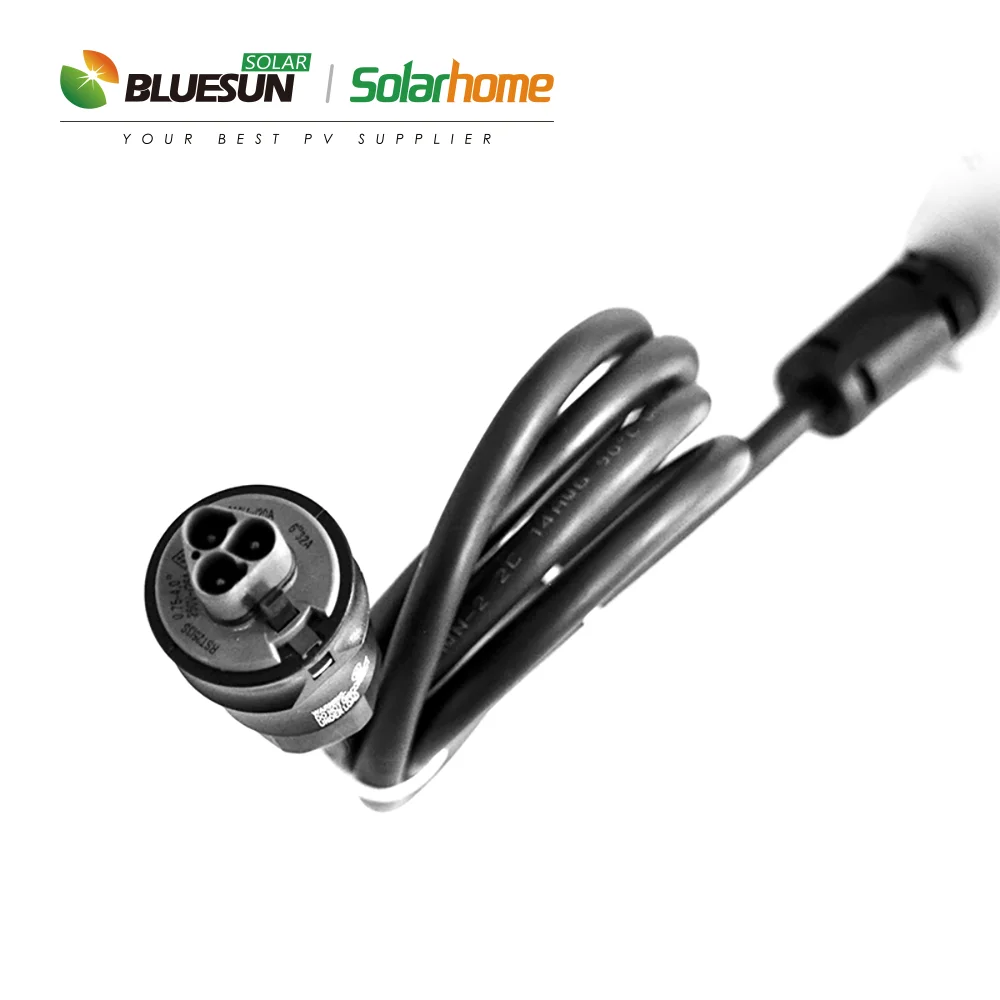

>Very simple installation with built‐in cables and connectors
>14 AWG integrated AC cables
>Very simple installation with built‐in cables and connectors
>14 AWG integrated AC cables
BDM-300
>U.S. California Rule 21 Certified
>Thinnest micro inverter in world, 25mm in thickness
>High efficiency with 95.5% CEC
>High continuous output power up to 250Wac, recommended for max 330W solar panels
>Thinnest micro inverter in world, 25mm in thickness
>High efficiency with 95.5% CEC
>High continuous output power up to 250Wac, recommended for max 330W solar panels

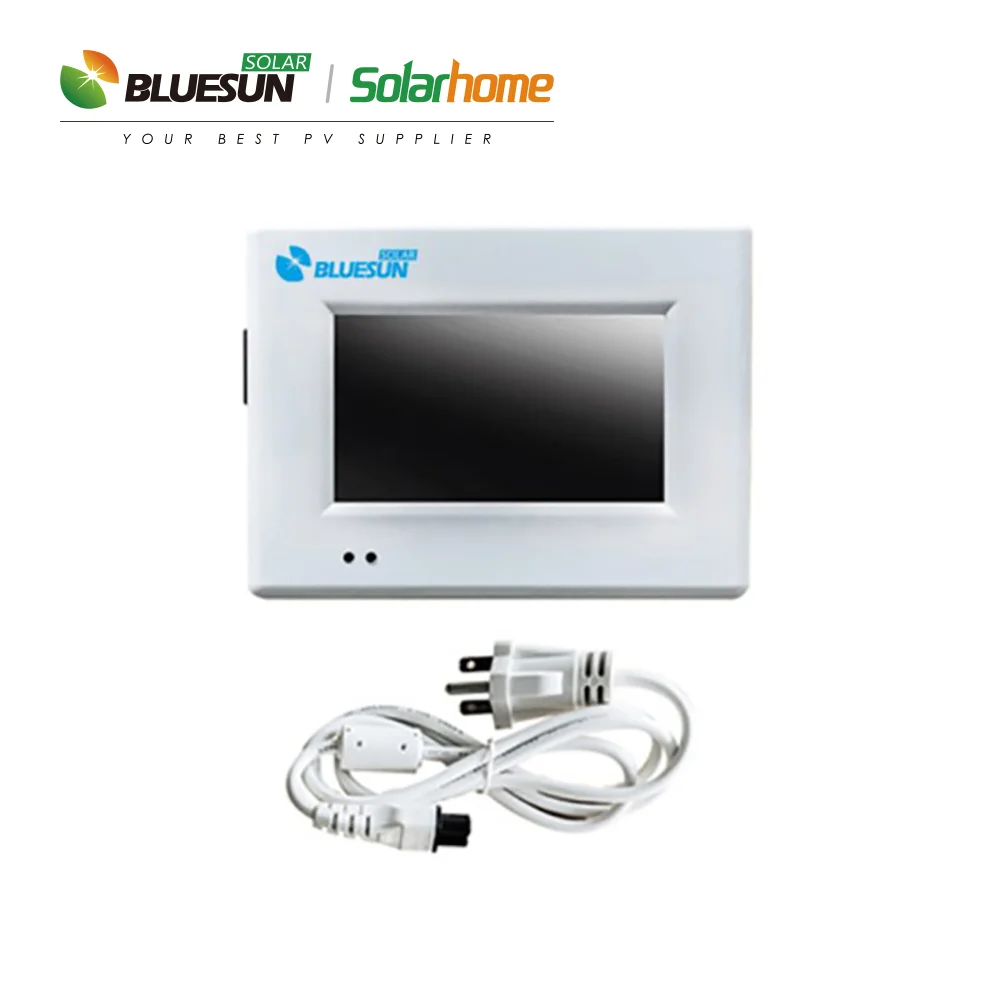

Monitoring Equipment
Features
> Touch screen for user friendly interface.
> Web portal interface for configuring BDM micro inverters.
> Support NEPVIEWER remote monitoring from anywhere at any time on any smart devices.
> Touch screen provides instant readings on each individual inverters for trouble shooting.
> Dual voltage and frequency (110/230 Vac,50/60Hz).
> Web portal interface for configuring BDM micro inverters.
> Support NEPVIEWER remote monitoring from anywhere at any time on any smart devices.
> Touch screen provides instant readings on each individual inverters for trouble shooting.
> Dual voltage and frequency (110/230 Vac,50/60Hz).
Ethernet | 10/100 auto-sensing, auto-negotiation |
USB | USB 2.0 interface, auto-sensing, auto-negotiation |
Monitoring capacity | 255 micro inverters (depending on interference on power grid) |
AC inlet | 100 - 240 Vac, 50/60 Hz, 60mA |
Dimensions (W x H x D) | 6.69" x 4.33" x 1.46" (170 mm x 110mm x 37mm) |
Weight | 5.29 oz (150g) |
Ambient temperature range | -40˚C to +55˚C (-40˚ to 131˚F) |
Cooling | Natural convection – no fans |
Product packaging
By Sea | Delivery from Shanghai or Ningbo seaport |
By Air | Departure from Shanghai Pudong Airport |
By Express | By TNT/DHL |
Our Company
Global Exhibitions
Project
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CNF | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
Delivery Time | 7~10days after receiving payment for one container | ||||
