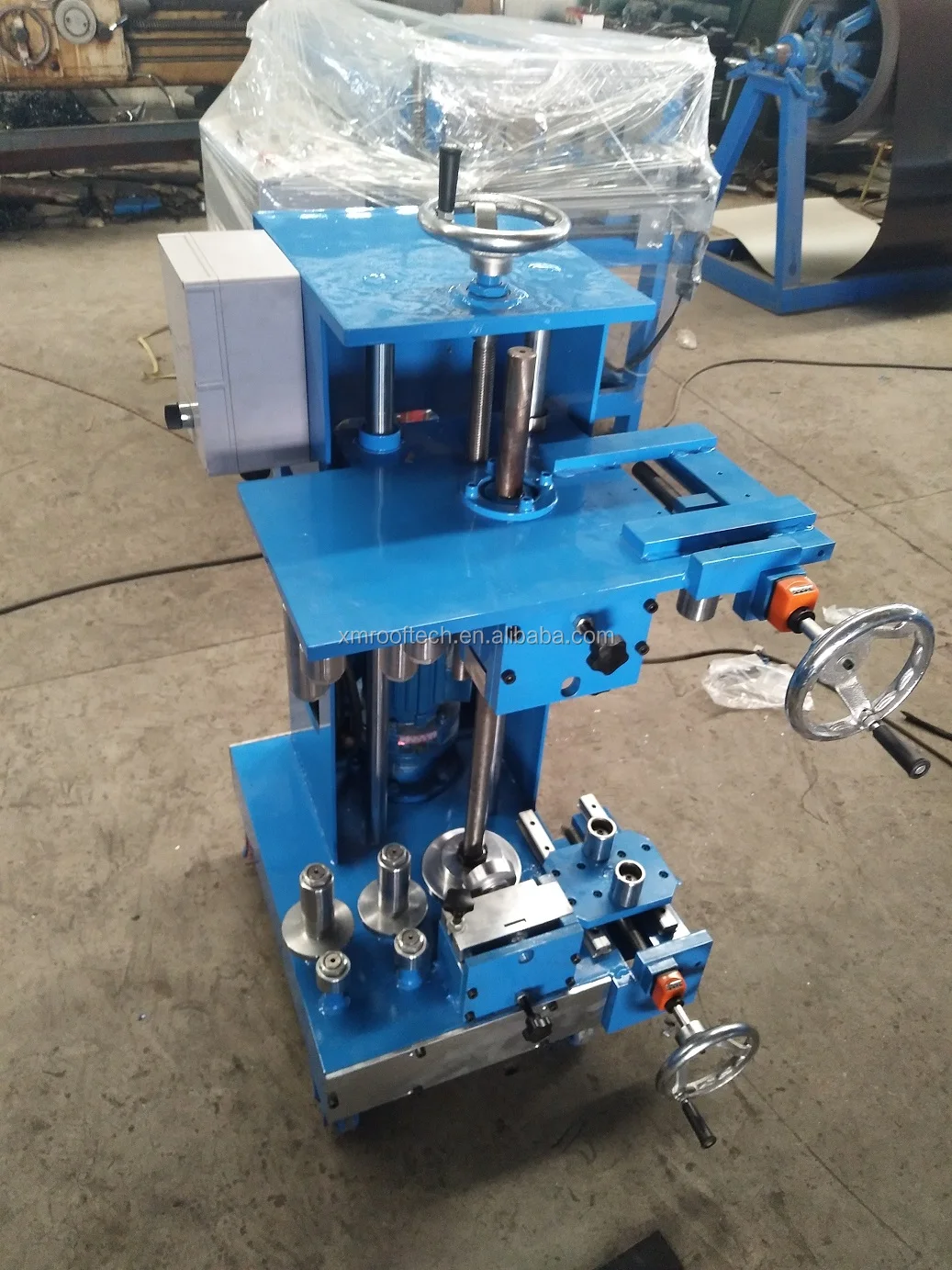

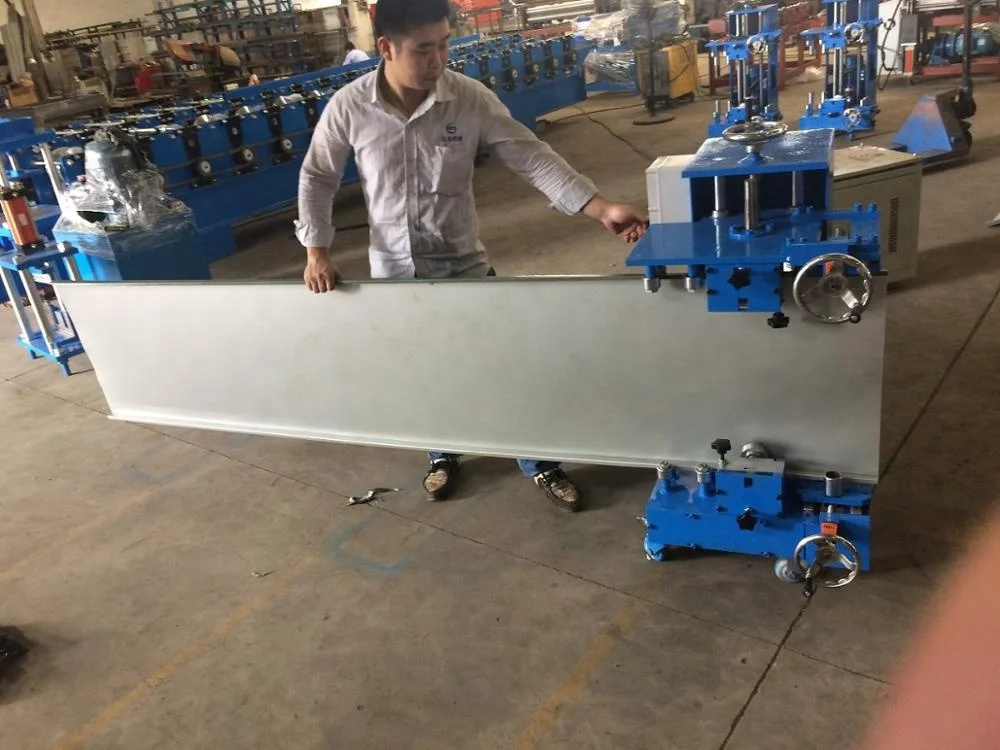

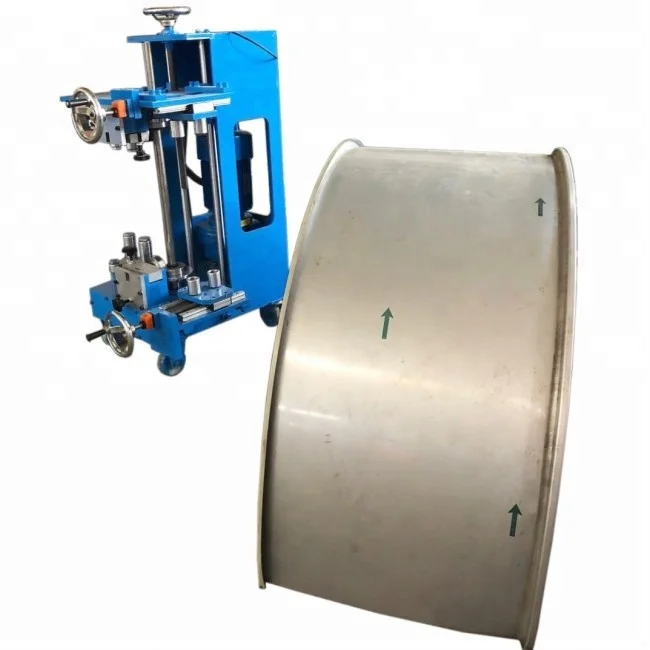

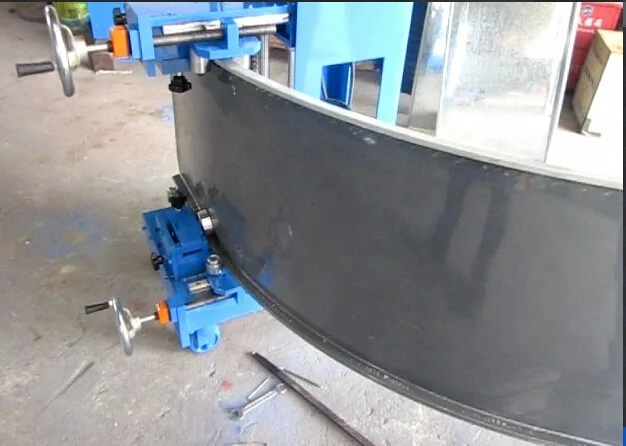

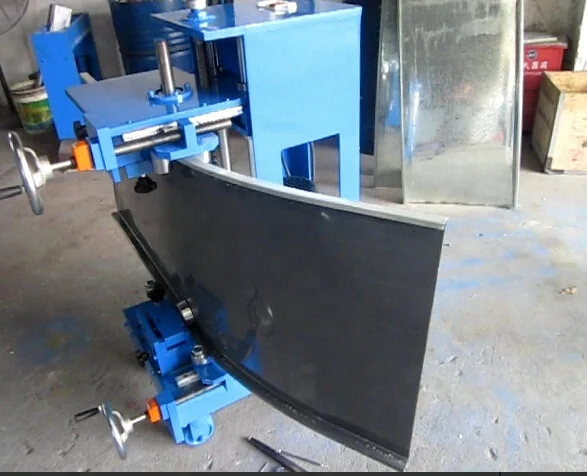

Good quality curving machine for standing seam roof arch metal roof bending machine

 Size

 800*600*1200mm

 Weight

 150-200KGS base on desgin

 Voltage

 380V/50HZ/3PH or base on customer

 Motor Power

 1.5KW

 Working Speed

 0-10m/min

 Thickness of steel roofing

 0.5-1.0mm

 Thickness of Aluminum roofing

 0.7-1.2mm

 Thickness for Steel

 0.6-1.0mm

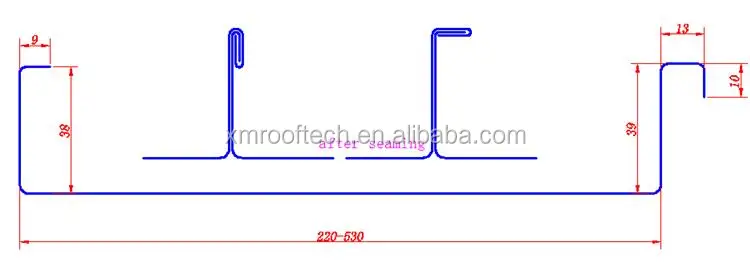

 Width of Roofing for Curving

 220mm-610mm

 25mm or 38mm height Min Curved Convex

 Radius of Al

 1.5m

 25mm or 38mm height Min Curved Concave

 Radius of Al

 3m

 25mm or 38mm height  Min Curved Convex

 Radius of Steel

 3m

 25mm or 38mm height Min Curved Concave

 Radius of Sheel

 6m

 other standing seam curving machine we can design also,welcome to customized
