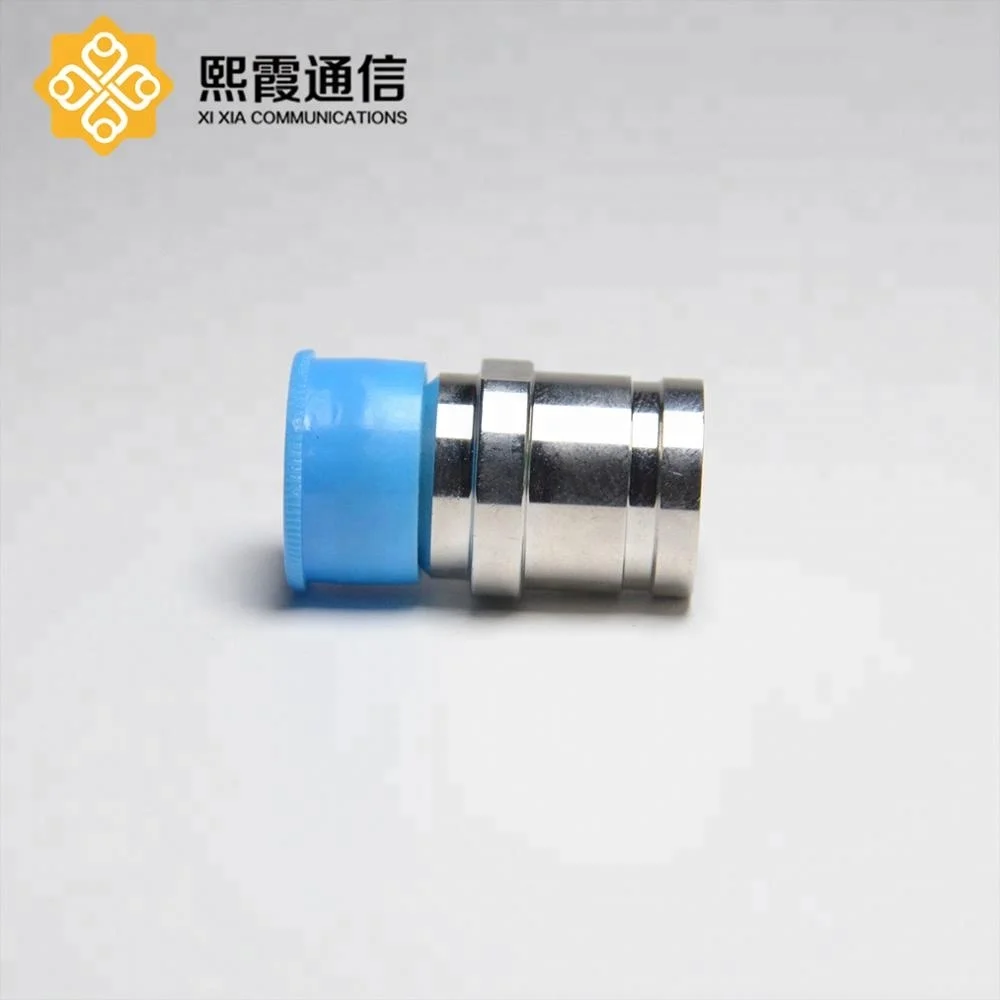

N Female Solder Connector RF Coaxial cable 1/2' Flexible cable
N Female Solder Connector RF Coaxial cable 1/2' Flexible cable

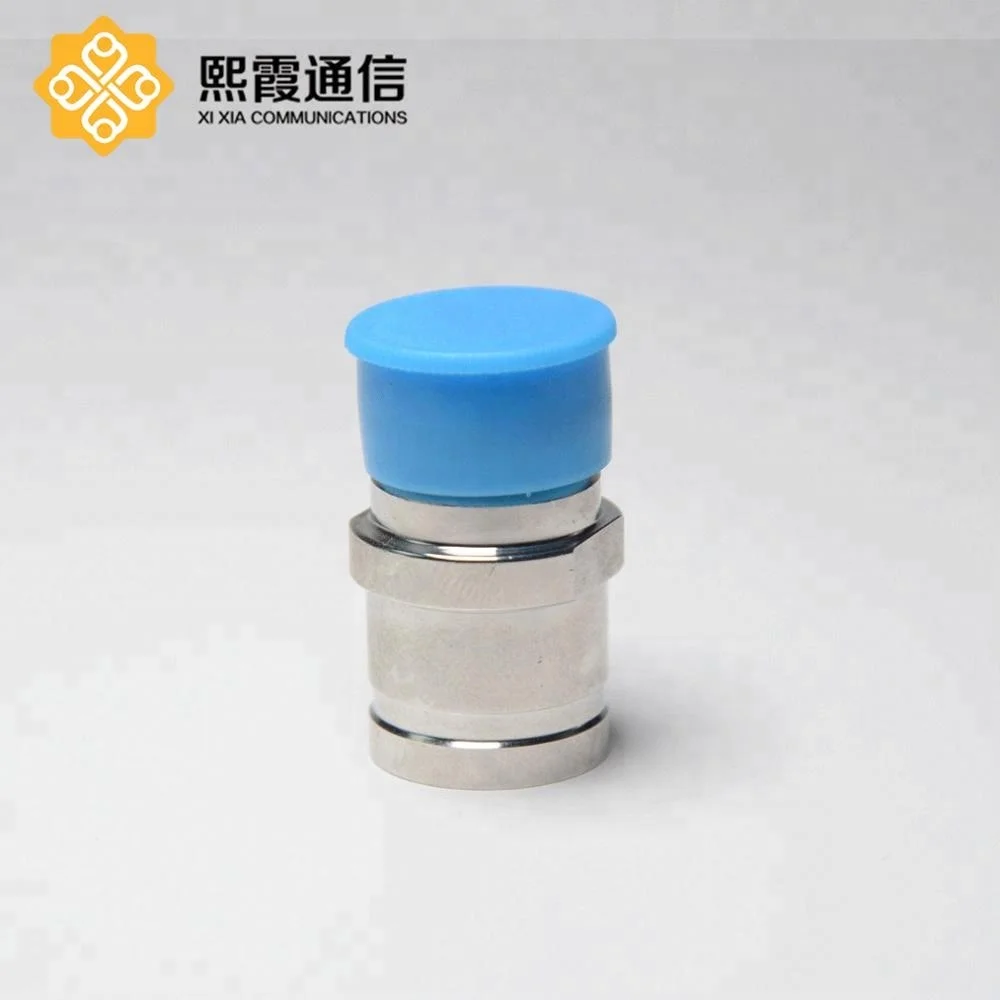

N Female Solder Connector RF Coaxial cable 1/2' Flexible cable
N Female Solder Connector RF Coaxial cable 1/2' Flexible cable
N Female Solder Connector RF Coaxial cable 1/2' Flexible cable

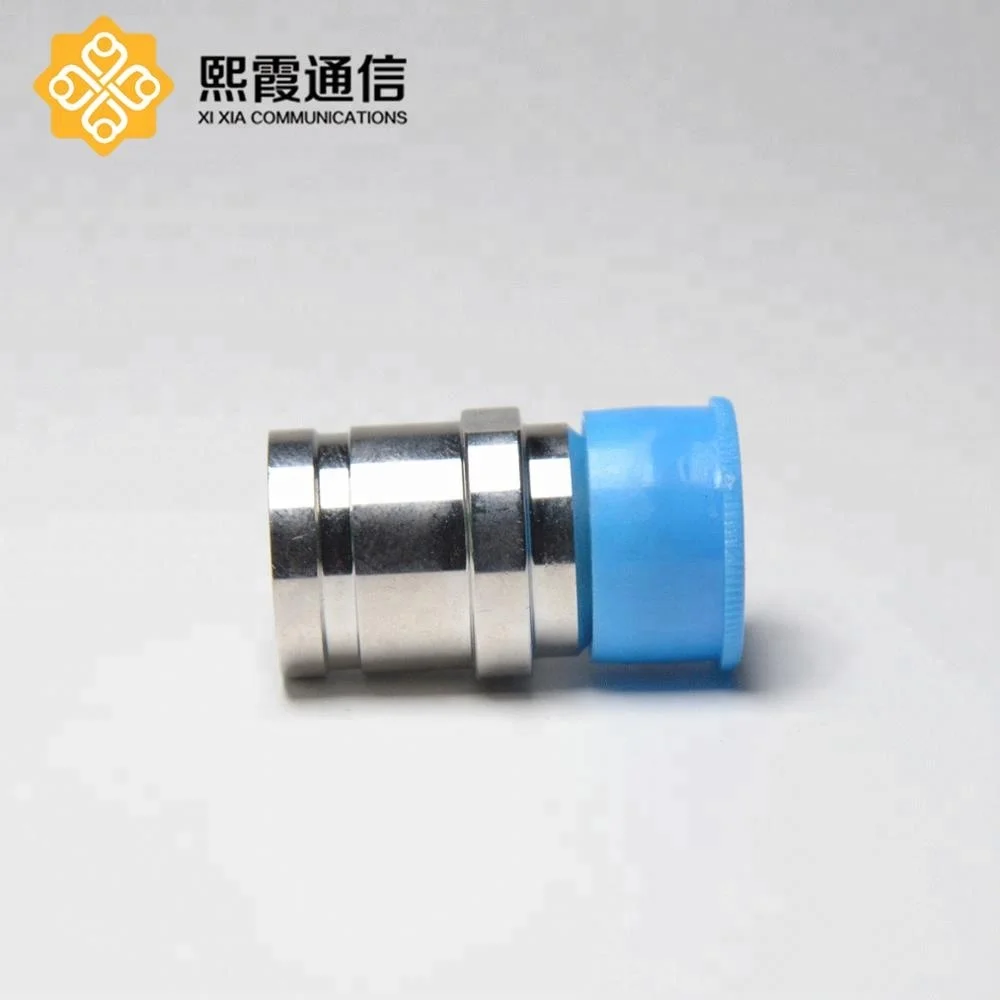

N Female Solder Connector RF Coaxial cable 1/2' Flexible cable

Share on (60790256269):


Price:

Quantity:


Product Overview

Description


OVERVIEW

Quick Details

\t
Place of Origin:
\t
Jiangsu, China (Mainland)
\t
Brand Name:
\t
XIXIA
\t
Model Number:
\t
N
\t
Type:
\t
N
\t
Application:
\t
RF
\t
Gender:
\t
Female
\t
Product Name:
\t
NF-12
\t
Color:
\t
Argent/Golden
\t
Material:
\t
Brass
\t
Certificate:
\t
ISO9001/CE/ROHS/FCC
\t
Connector type:
\t
N
\t
Plating:
\t
Nickel /Golden Palting
\t
MOQ:
\t
1 Piece
\t
ODM/DEM:
\t
Offered
\t
Insulation Resistance:
\t
≥ 10000 MΩ
\t
Temperature Range:
\t
-40°C to +85°C

Packaging & Delivery

Packaging Details:    1 piece in one plastic bag.
                                    2 100 pieces in one paper carton.
                                    3 Clear Plastic Bag/ Standard Export Carton.
                                    4 According to customers requirement.


Delivery Time:           5-7 days

PRODUCT DESCRIPTION
\t
N Straight Female Solder Connector for 1/2" Flexible RF Cable
\t
Inner Conductor Pin
\t
Brass / Silver Plating
\t
Inner Conductor Socket
\t
Tin Bronze / Silver Plating
\t
Insulator
\t
PTFE/TPX
\t
Body & Outer Conductor
\t
Brass / Trimetal Plating
\t
Gasket
\t
Silicon Rubber
\t
Characteristics Impedance
\t
50 Ohm
\t
Frequency Range
\t
DC~6GHz
\t
Insulation Resistance
\t
≥10000MΩ
\t
Dielectric Withstanding Voltage
\t
2500V rms
\t
Center contact resistance
\t
≤1.0 mΩ
\t
Outer contact resistance
\t
≤1.0 mΩ
\t
Insertion Loss
\t
@3 GHz
\t
≤0.10dB
\t
VSWR
\t
@0.8-1.0 GHz
\t
≤1.10
\t
\t
@1.7-2.5 GHz
\t
≤1.10
\t
\t
@2.5-3.0 GHz
\t
≤1.15
\t
PIM3 (2*20W)
\t
≤-155dBc
\t
Durability (matings)
\t
≥500 cycles
\t
Mechanical Shock Test Method
\t
MIL-STD-202, Method 213, Test Condition D
\t
Vibration Test Method
\t
MIL-STD-202, Meth. 204, Cond. A
\t
Temperature Range
\t
-40°C to +85°C
\t
RoHS
\t
Compliant
\t
Sealing Class
\t
IP68

Note: We can provide other materials and plating specifications according to customers'requirements.

Lowest price N Female electric rf solder connector for 1/2''  flexible coaxial cable

☀ RF coaxial cable assembly (7/16 DIN/N/Mini DIN/4.3-10/OEM/ODM) .

☀ We focus on coaxial assemblies.

☀ Our custom RF cable assemblies are built-in and shipped worldwide.

☀ RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .

☀ RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U

☀ RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.

☀ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.

OUR COMPANY

Company Profile


Jiangsu Xixia Communication Technology Co.,Ltd.was founded in July,2006,located in Yixing City,Jiangsu Province,China.Xixia Communication is professional telecommunication products and devices provider.Products include connector,jumper,RF cable,antenna&accessories etc.

With our quality products,Xixia has already distributed its products to over 15 province in China and 16 different countries all over the world.
Our business philosophy is mutual cooperation and win-win solution.

We are sincere suppliers, by the good faith to win customers' trust in the world, protect the interests of the customers and can have a better and more long-term cooperation.

Factory Overview

Workshop Area:14000㎡
Ware-house Area:3000㎡
Out-door finish product sites Area:5000㎡


Let the quality become the sole measure of company strength.We are using the latest production technology, standardized management, strict censorship, standard packing, in order to meet the maximum needs of customers as the goal.

License & Patents


ISO 9001 Certificate

GJB 9001 Certificate


4.3/10 Connector Authorized Letter


PACKAGING & DELIVERY

Packaging:
The company strictly according to the standard process for packaging products, ensure transportation safety.We support customers a variety of customized requirements, according to customer requirements for packaging.


Delivery:
Our cooperation and professional international logistics company, quick safe, cheap, let the customer trust.


Logistics service:

DHL/TNT/UPS/FEDEX/ARAMEX.ETC.

FAQ

Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.

Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.If use customer brands, we will take a 3-5days to prepare materials and mass production.

Q: Can your company accept customize?
A: Welcome OEM & ODM.

Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair.If do not have engineers, please send back the items, we can repair the items for you.

Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order.
