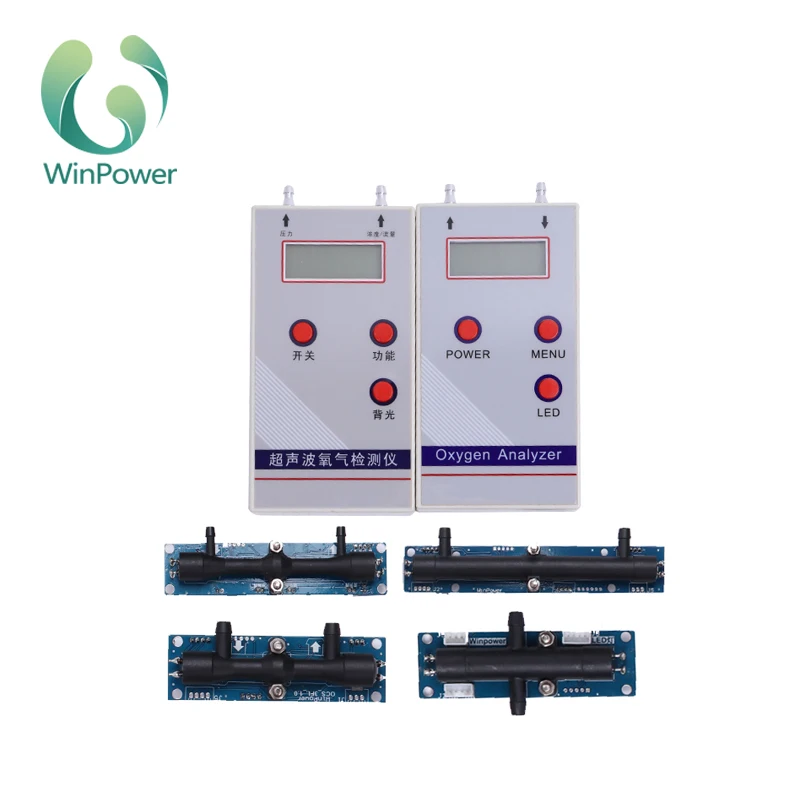

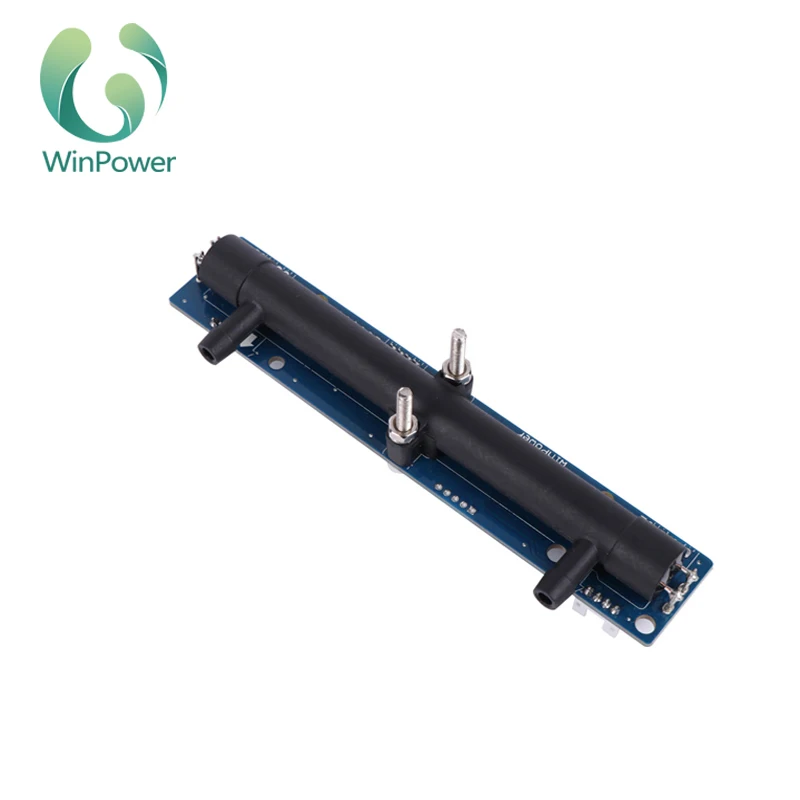

china winpower ultrasonic oxygen sensor in gas analyzers OCS-3F
OCS-3F adopting the ultrasonic technology, is an oxygen sensor to detect oxygen concentration and gas Volumetric Flow Rate. It has been widely used in home and medical oxygen generator, PSA oxygen generator, medical ventilator,etc.
Technical Parameter
Range of Concentration
20%~95.6%
Resolution
0.1%
Accuracy
±1.5%(0 ~ 50) oC
Range of Flow
0~10L/min
Resolution
0.1L/min
Accuracy
±0.2L/min or 5% reading, which is bigger@(25 ± 2) ℃
Response Time
1s
Warm-up Time
Sensor works as soon as power on;
10s to within specified accuracy;
Digital Output
9600bps UART
5V TTL / 3.3V CMOS compatible
Analog Output
0~2.5V (Optional)
LED Output
GREEN:Concentration >82%
YELOW:82%>Concentration>50%
RED: 50%> Concentration
(Settings are adjustable according to customer’s requirement)
Direction
Unlimited
Operating Temperature Range
0~50℃
Operating Humidity Range
5~85%RH Non condensate water
Maximum Pressure
150 kPa
Power Supply
+12V DC/50mA
Dimensions
120.5mm x 22mm x 22mm (L x W x H)
Weight
27g
Size
mm
Detailed Images

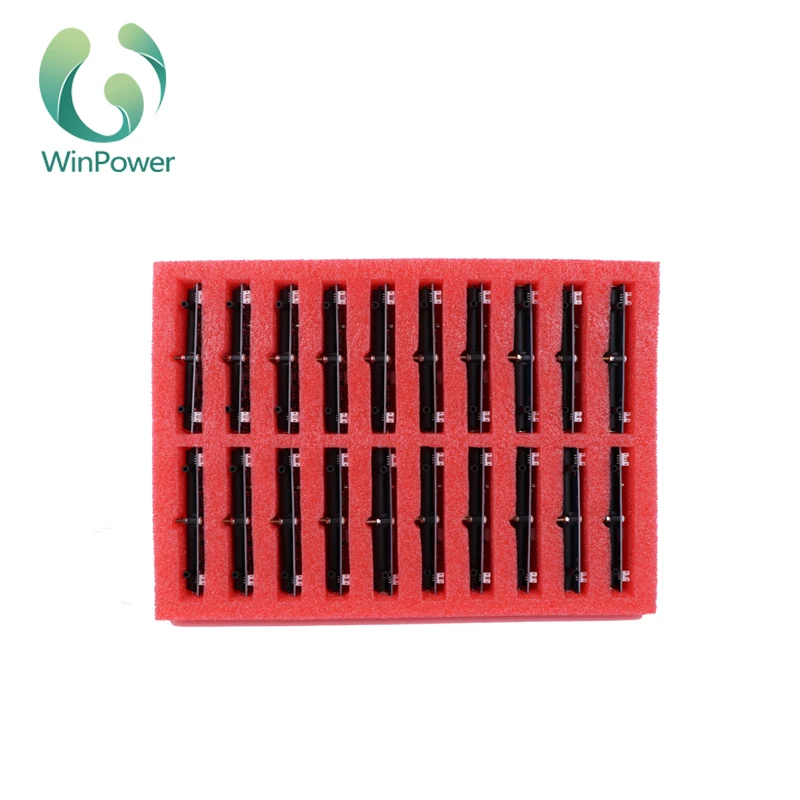

Packaging & Shipping
Related Products
OCS-3L
RP-01
FAQ
Q: Are you a factory or trading company? A:We are a Professional Manufacturer for ultrasonic oxygen sensors.
Welcome to our company, our company, show room and factory in same place.
Q. Where is your company? A: 2nd floor, 6# Building, Zone A, Baosheng Industry Zone, No.6 Tangbian Road, Bainikeng Village, Pinghu, Longgang District, Shenzhen City, Guangdong Province, P.R.China. Welcome to our company.
Q. What is your trading term? A:1. Payment term: T/T, or PAYPAL for small amount . 2. Lead time: normally in 2-30 days after receiving the payment.
3. Sample policy: Samples are always available for each model. Samples can be ready in 2-5 days once payment received. 4. Shipping: send by EXPRESS 5. Discounts: We offer discount for big quantity.
Q: How to purchase your product? A:Quotation → PI → Confirm PI → Arrange payment →Producing → Shipping
