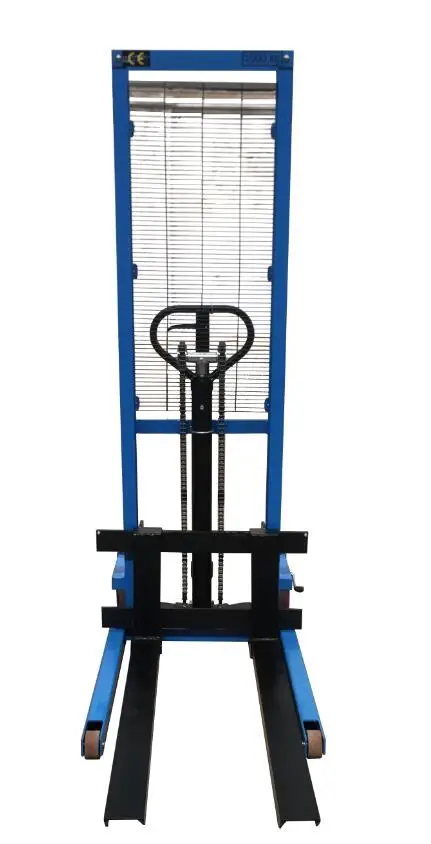

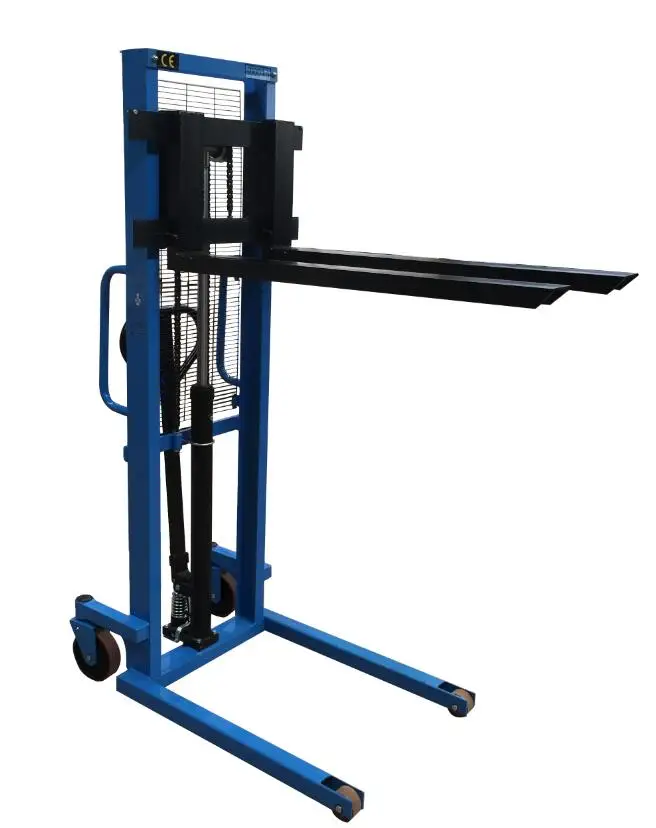

manual hydraulic walk behind stacker truck

This  pallet stacker is designed for manual lifting, lowering, and transporting of loads on firm and level surfaces, including workshops, warehouses, stockrooms, receiving departments, throughout a plant, and wherever aisles and congested areas prevent the use of larger equipment.

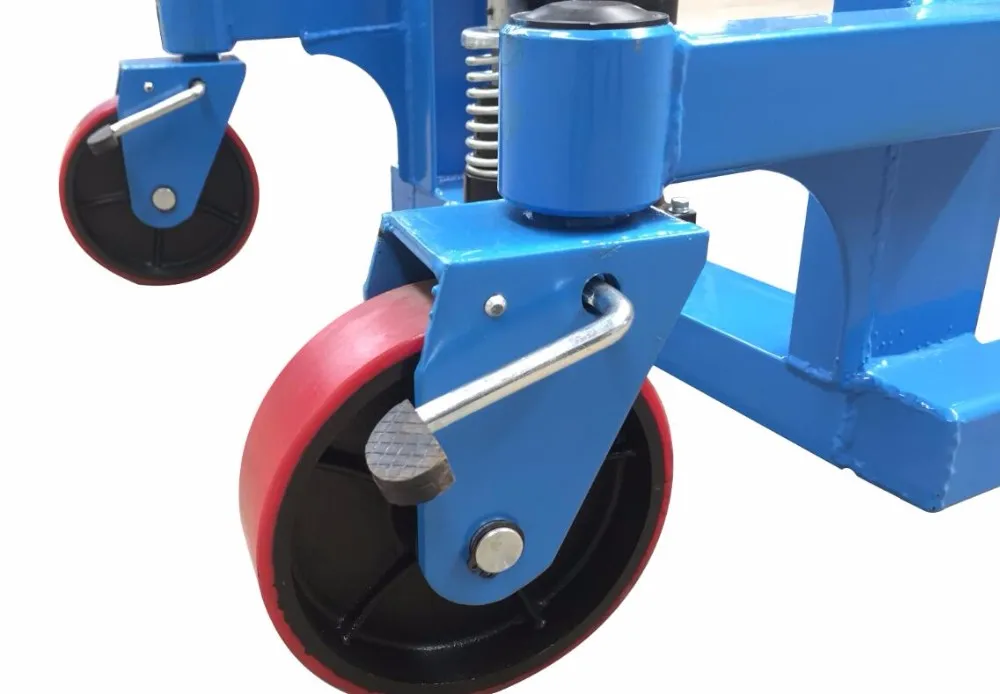

The hand operated hydraulic pump handle is similar to a pallet truck handle, offering easy lifting action and convenient steering in congested areas. All-welded steel chassis, see-through mast, heavy duty lift chain, durable mast rollers and wire mesh safety guard are standard features. Forks are adjustable on a pin style fork carriage. Rolls smoothly with 7" diameter polyurethane steer wheels with brakes and 3" polyurethane load rollers.



Note: Fixed Straddle Leg style is for use with Single Faced Pallets, Skids and Bulk Containers only.

Main Features

1. Top quality German seal kit 2. Optional adjustable fork width 8.8"-28.7" for wider applications 3. 2200lbs Capacity

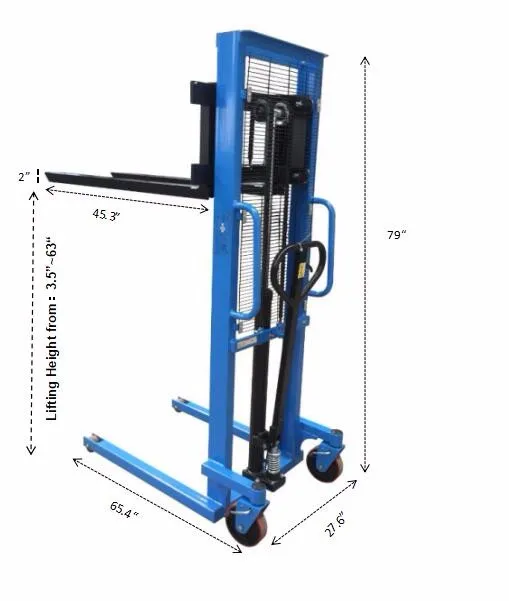

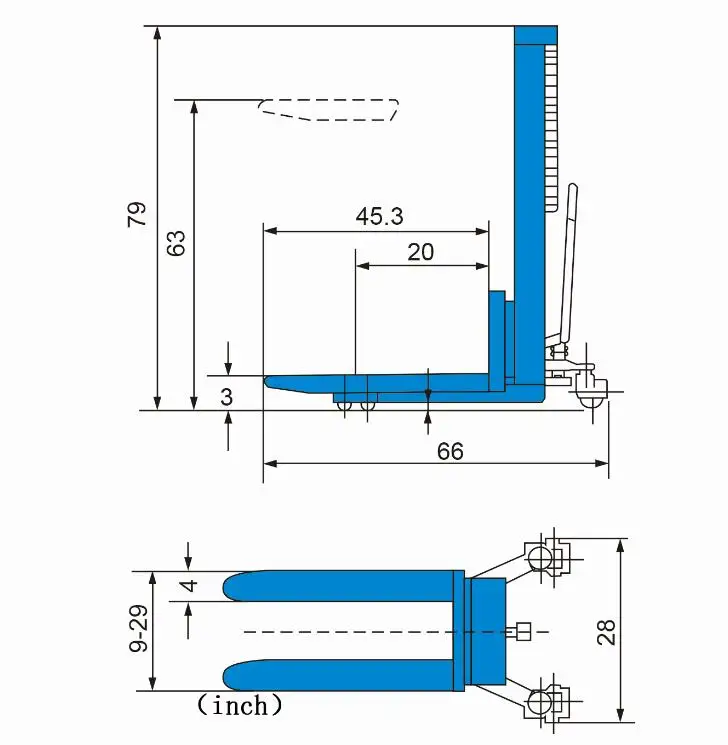

4. 3" lowed and 63" height raised

5. All-welded steel chassis

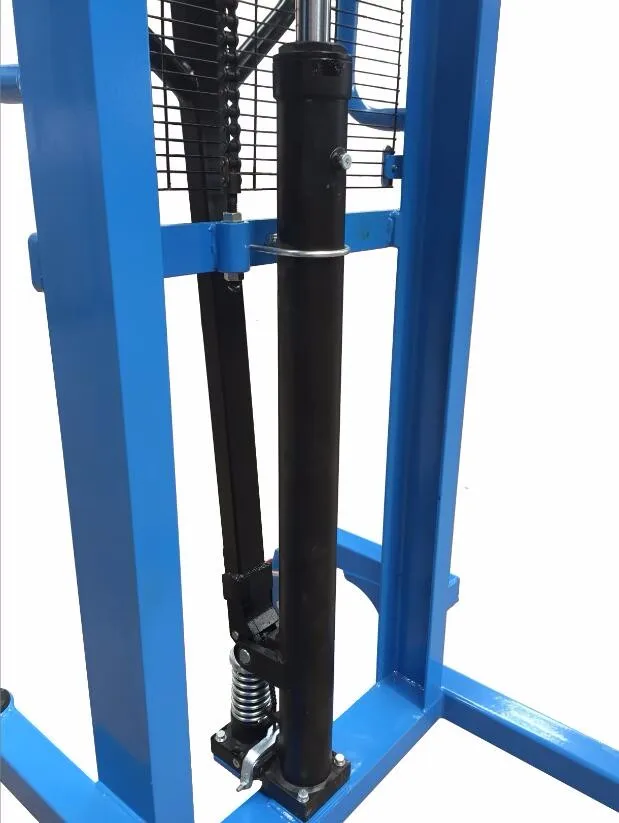

6. Heavy duty lift chain

7. Durable mast rollers and wire mesh safety guard

8. Fixed straddle legs

Packing & Delivery

Packaging
Size	63 (L) * 31.5 (W) * 78.7 (H)
Weight	396LBS
Packaging Details	The normal package is 2 pcs to a pallet.and also can be packed according to customers special request.

Company Review

I-LIFT EQUIPMENT

As a leading supplier of material handling equipment in China. I-lift Equipment Ltd. has its own R&D and after-sales team.All of I-lift's material handling equipments are supplied brand new, product ranges include hand pallet truck, electric pallet truck, manual stacker trucks, electric stacker, lift tables,weighing scale trucks and fork-truck fork extensions, drum handling equipment, platform truck, utility cart and skates.



All equipments are produced under ISO9001 certification and carry the CE, GS & TUV quality ratings and a full guarantee.
