10-15 M / Min Automatic Rain Gutter Roll Forming Machine With Panasonic PlC Control System

Product Description

Main features

Steel rain gutter machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished panel. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

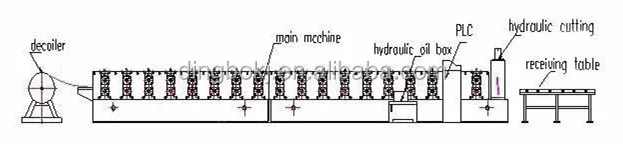

Working flow

working flow.jpg



Main parameters

Article No.

Item Name

Specification

1

Width of feeding material

As the profile

2

Thickness of feeding material

0.3mm-0.8mm coil sheet

3

Roller station

About 15 stations

4

Shaft Diameter

75-95mm

5

Productivity

8-15m/min

6

Rollers'material

45#steel forge

7

Shaft material

45#steel

8

Weight

2.5-8 ton

9

length

5.5 m-11m

10

Voltage

380V 50Hz 3phases

11

Control

PLC

12

Decoiler

8 Tons

13

Motor

3kw-15kw

14

Driving way

Chain transmission

15

Chain size

0.6 inch-1 inch

16

Cutting system

Hydraulic cutter

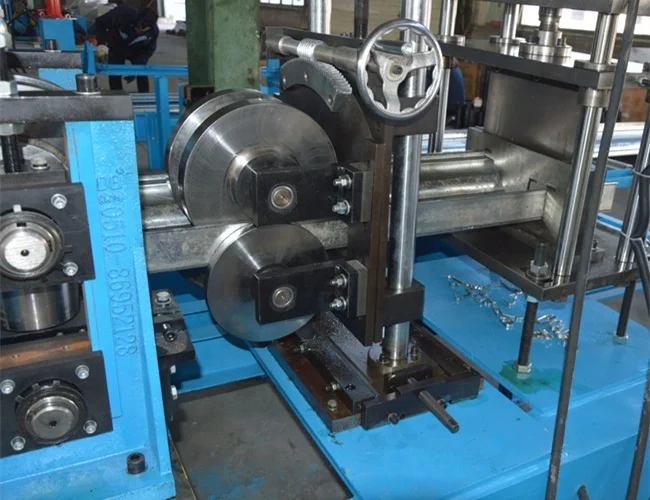

Machine pics

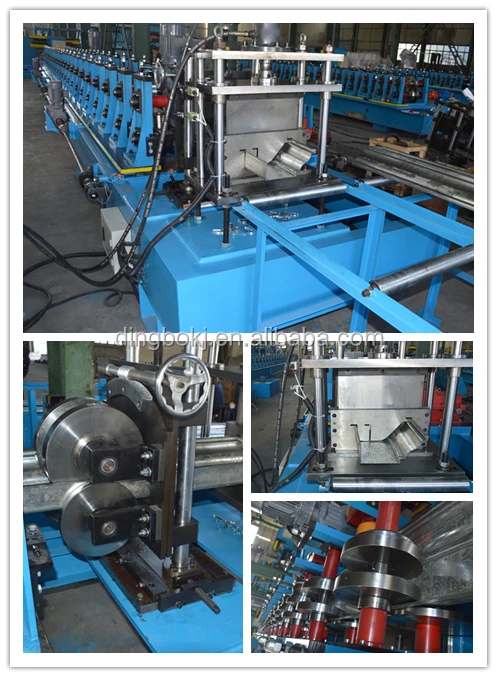

 rain gutter pic2.jpg

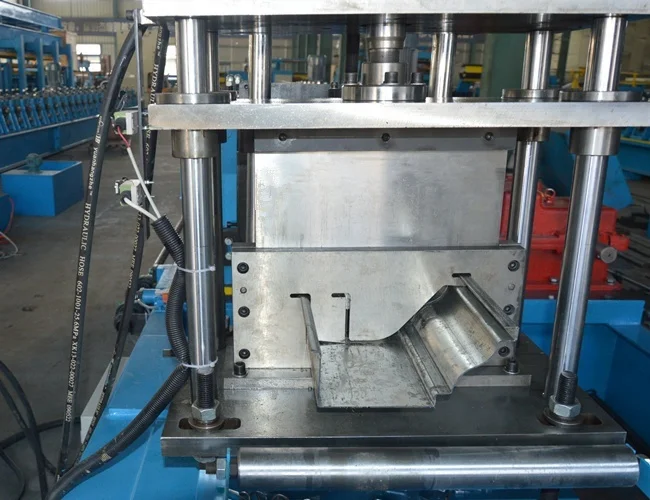

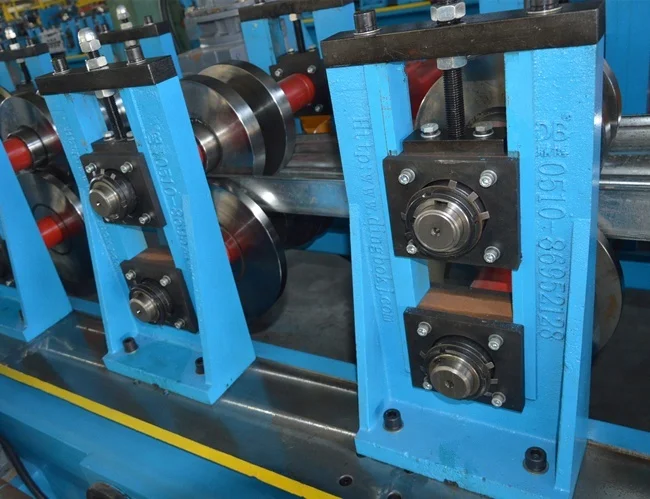

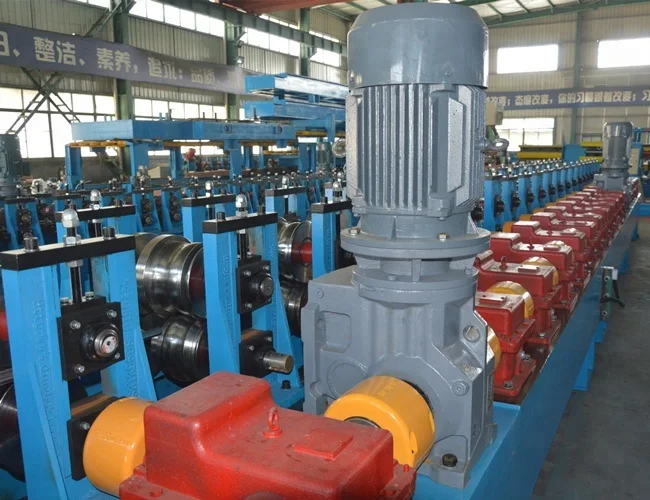

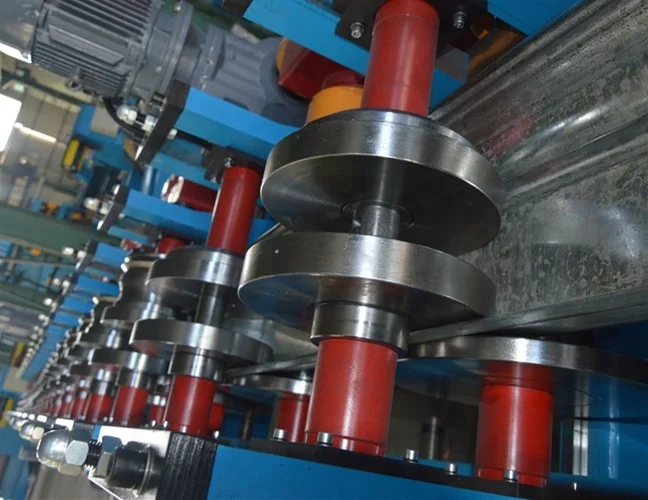

Product pics




Certifications
Full Automatic Panasonic PLC Control Fire Damper Cold Roll Forming Machine

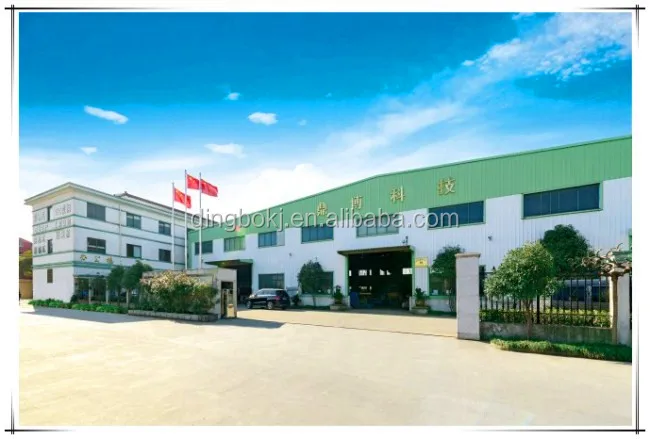

Company Information

 _

Jiangyin Dingbo Technology Co., Ltd. is professional manufacturer and exporter specializing in designing, manufacturing, technology developing, sales and services in building materials machinery whcih mainly include all kinds of roll forming machine, tube making machine, slitting line and cut to length line,and discontinuous PU sandwich panel production line and embossing machine.



The main products of our factory is color steel roofing and wall roll forming machine, pre-painted steel forming machine, floor deck forming machine, automatical C/Z Purlin forming machine, Guardrail forming machine, Racking roll forming machine, cable tray roll forming machine, Glazed Tile forming machine, DownPipe forming machine, Roller shutter door machine,tube mill, steell and aluminum embossing machine,steel slitting and cut to length line, PU sandwich panel line and so on.



The products are widely used in such as building structure, steel structure warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.



Dingbo Technology is located in Wuxi city, Jiangsu province which is very close to Shanghai,  It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.



FAQ



1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2. Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4. How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
6. How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.
7. What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.

8. Can we arrange shipment?

Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
