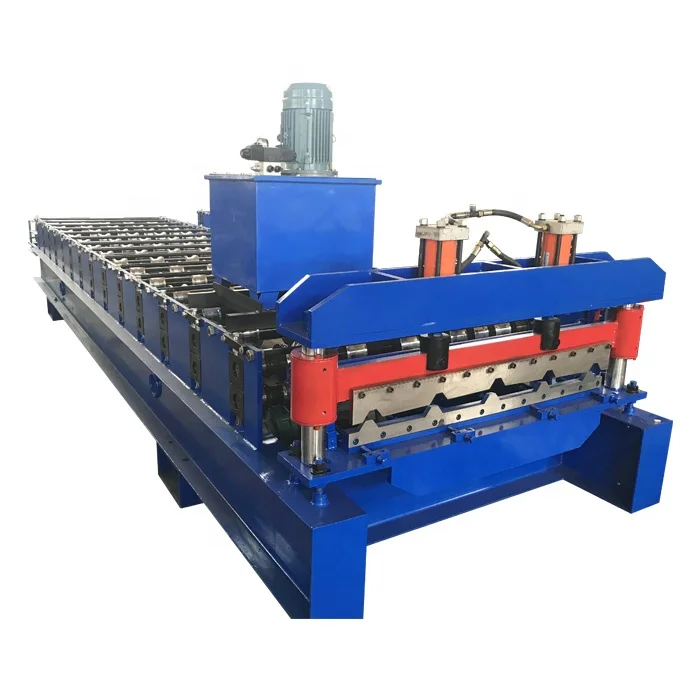

Automatic roof panels tile roll forming making machine
- Category: >>>
- Supplier: Botou Beidi Import And Export Trade Co. Ltd.
Share on (60791606631):
Product Overview
Description
Automatic roof panels tile roll forming making machine
Product Description
1 | material of input sheet | galvanized steel/ colored steel |
2 | feeding width | 1250mm |
3 | effective width | 1000mm |
4 | material thickness | 0.2-0.8mm |
5 | main motor power | 3kw |

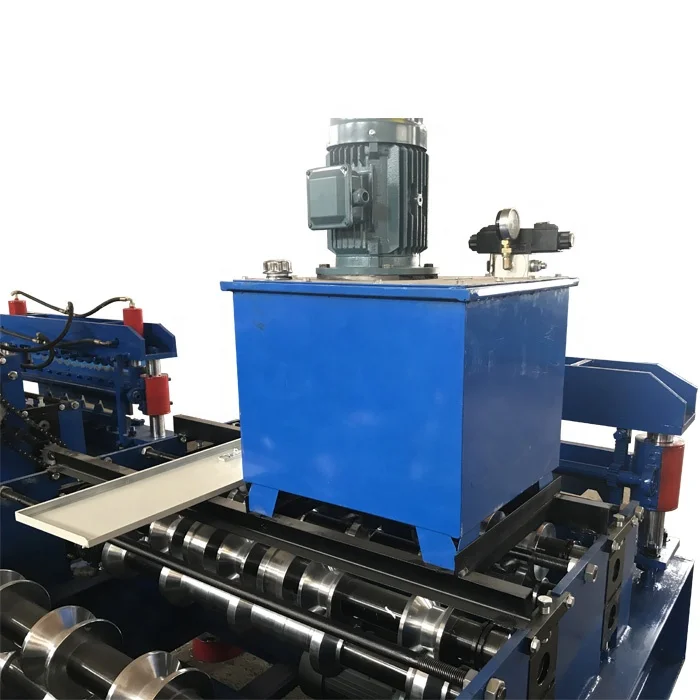

6 | hydraulic pump power | 3kw |
7 | forming step | 16 steps |
8 | diameter of shaft | 70mm, solid shaft |
9 | main frame | 300H steel |
10 | roller material | 45# steel with chrome |
11 | cutting knives material | Cr12 |
12 | control system | PLC control system with inverter (Delta brand) |
13 | working speed | 10-14m/min |
14 | machine size | 7.0*1.5*1.5m |
15 | machine weight | about 4.0 tons |
16 | voltage | 380v 3phase 50hz |
Machine Components | ||
No. | Name | QTY |
1 | Manual uncoiler | 1 set |
2 | Feeding and leveling device | 1 set |

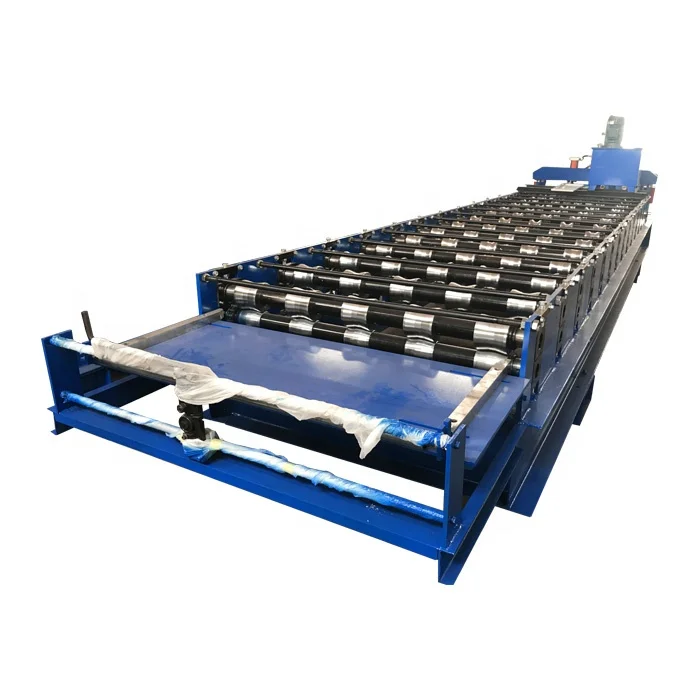

3 | Roll forming system | 1 set |

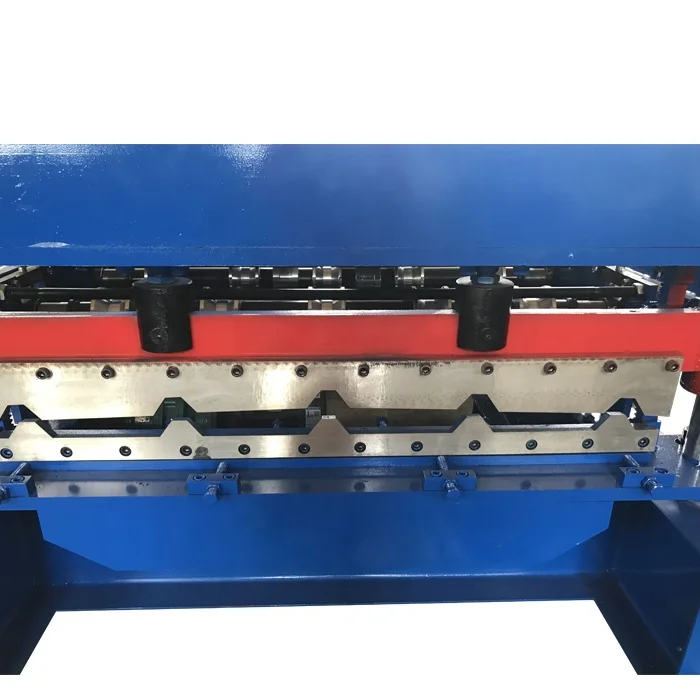

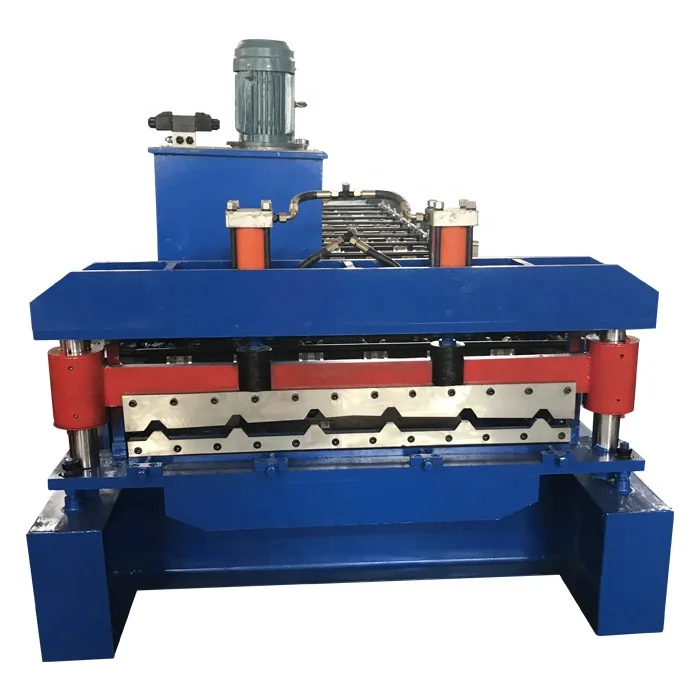

4 | Hydraulic punching and cutting | 1 set |
5 | Product support frame | 1 set |
6 | PLC Control System | 1 set |
We support customization. If you have any
questions, please feel free to contact us.
Related Products
Packaging & Shipping
Company Information
FAQ
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
After-Sales Service
After-sales Service:
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 30 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary 80USD/day.
During warranty: parts are free but buyer pay for the shipping fee
We can provide oversea after sales. Our engineers have been to Chile, Nicaragua, Indonesia, Russia, Saudi Arabia, Singapore, and other countries for installation and training. Considering the time difference, we can offer online instant viedo to help customer to solve problems.
