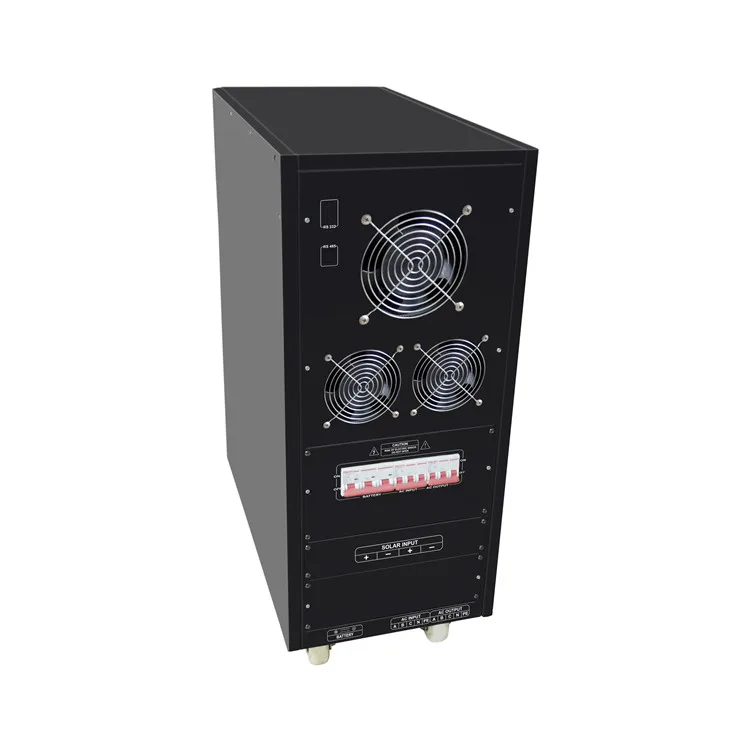

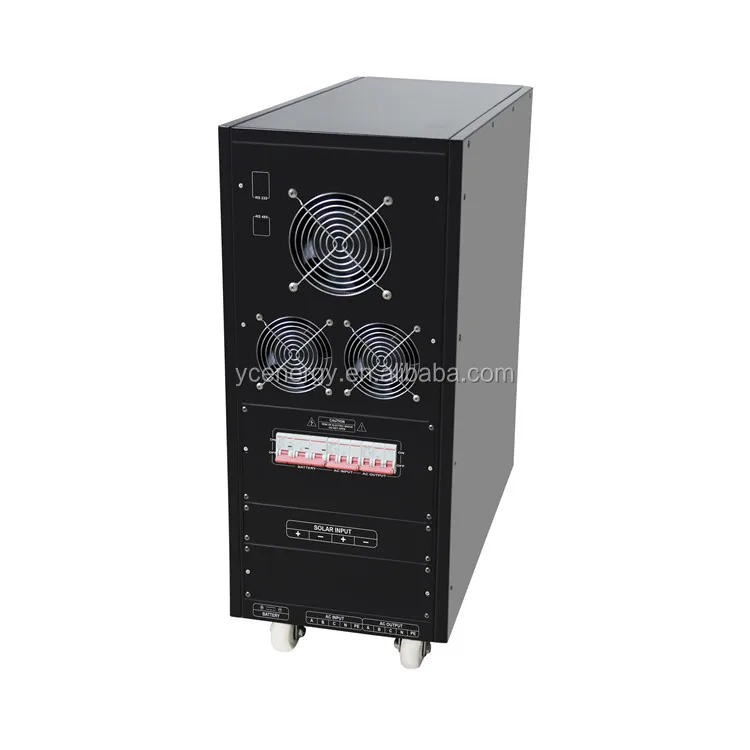

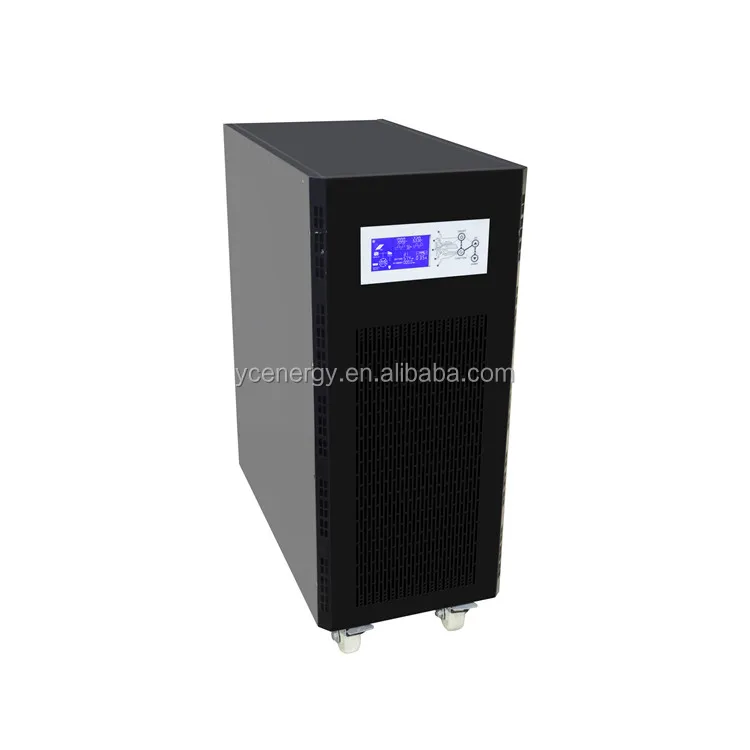

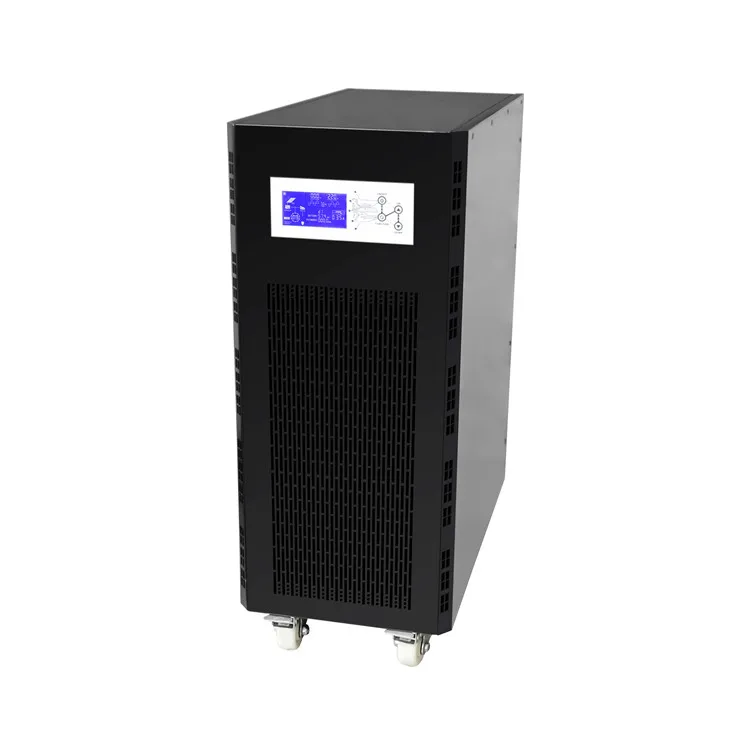

10KW 15KW 20Kw Solar PV DC To AC Power Inverter Three Phase Off Grid Solar Inverter
- Category: Solar Inverter >>>
- Supplier: Yunnan Yaochuang Energy Development Co. Ltd.
Share on (60791961932):
Product Overview
Description
10KW 15KW 20Kw Solar PV DC To AC Power Inverter Three Phase Off Grid Solar Inverter
Product Description

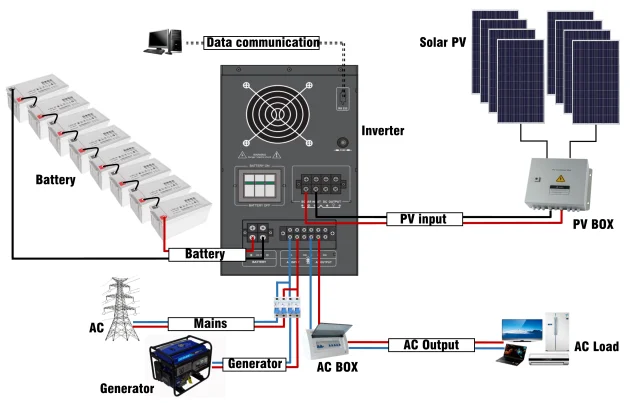

Off grid solar inverter – converts DC output of PV panels into a clean AC current for AC appliances or fed back into grid line. It is one of the solar energy system's main elements, as the solar panels generate dc-voltage.
10KW 15KW 20KW Three phase/3 phase off grid solar inverter technical parameters
| Rated power | 3kw | 5kw | 8kw | 10kw | 15kw | 20kw | 30kw | 40kw | ||||||
| Battery(VDC) | 48/96/192/216 | 96/192/216/360/384 | 192/216/360/384 | |||||||||||
| Machine size : L x W x H | 565*300*775mm | 725*365*1010mm | 715*575*1275mm | |||||||||||

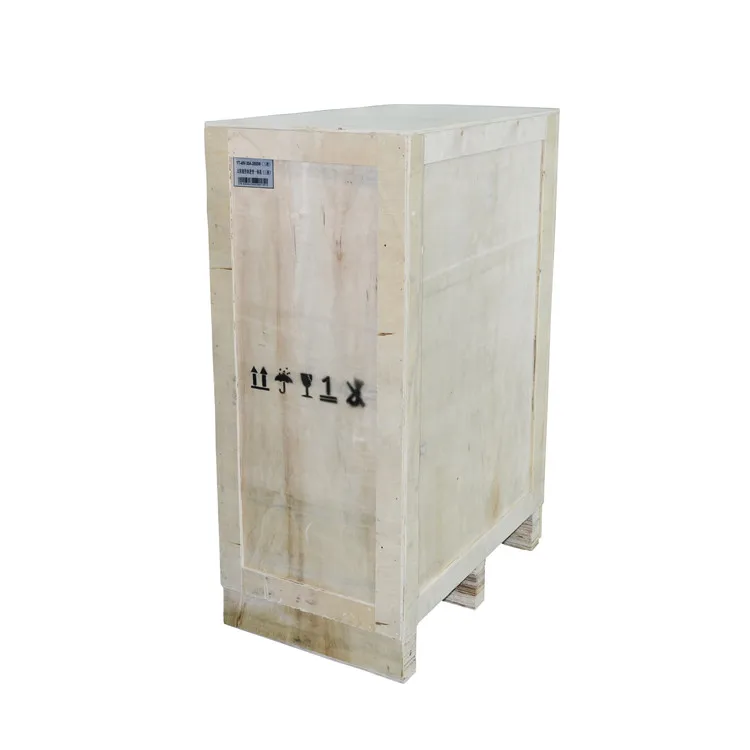

| Package Size : L x W x H | 625*360*895mm | 785*425*1135mm | 775*635*1400mm | |||||||||||
| Net weight | 58kg | 73kg | 80kg | 99kg | 110kg | 145kg | 175kg | 202kg | ||||||
| Gross weight | 71kg | 86kg | 93kg | 126kg | 127kg | 162kg | 198kg | 226kg | ||||||
| Input | voltage range | 3/N/PE:190VAC/200VAC/380VAC/400VAC±10% | ||||||||||||
| Frequency | 45-65Hz | |||||||||||||
| Output | Voltage range | Inverter Output:3/N/PE:190VAC/200VAC/380VAC/400VAC±2%; Mains Output:3/N/PE:190VAC/200VAC/380VAC/400VAC±10%; | ||||||||||||
| Frequency | Inverter Output: 50/60HZ±1% ; Mains Output: Automatic track; | |||||||||||||
| Effciency | ≥85%(80% Resistive load); | |||||||||||||
| Output waveform | Pure sine wave; | |||||||||||||
| AC Charge current | 0-45A(optional) | |||||||||||||
| Conversion time | ≤4ms(Typical load) | |||||||||||||
| Mode | DC Mode / AC Mode/ECO Mode; | |||||||||||||
| Display | LCD | |||||||||||||
| Communication | RS232/RS485/APP | |||||||||||||
| Cooling method | Temperature control fan cooling; | |||||||||||||
| Protection | Overload / overcurrent / short circuit / over temperature | |||||||||||||
| Temperature | -10℃-40℃ | |||||||||||||
| Noise | ≤55dB | |||||||||||||
| built-in PWM controller | ||||||||||||||
| Rated current | 50A/100A/150A/200A | |||||||||||||
| Input voltage range | 48V:60-88VDC; 96V: 120-176VDC; 192V:240-352VDC; 216V: 270-396VDC; 360V:450-660VDC; 384V:480-704VDC | |||||||||||||
| Maximum input power | 48V( 50A:2.5kw; 100A:5kw ) | |||||||||||||
| 96V( 50A:5.5kw; 100A:11kw; 150A:16.5kw; 200A:22kw ) | ||||||||||||||
| 192V( 50A:11kw; 100A:22kw; 150A:33kw; 200A:44kw ) | ||||||||||||||
| 216V( 50A:12.5kw; 100A:25kw; 150A:37.5kw; 200A:50kw ) | ||||||||||||||
| 360V( 50A:20kw; 100A:40kw; 150A:60kw; 200A:80kw ) | ||||||||||||||
| 384V( 50A:22kw; 100A:44kw; 150A:66kw; 200A:88kw) | ||||||||||||||
Feedback from client
Company Information
Yaochuang Energy Co.,Ltd. is a professional solar power system integrator, especially solar water pump system, residence off grid solar power system, on grid solar power plant, solar street light, etc.
Our solar panel & solar pump inverter factory is located in Shanghai, the biggest sea port in China makes transport more convenient.
Sale office is located in Kunming, a very beautiful place be named as Flower city, it is near to Thailand, Myanmar, Vietnam, Laos, and we have installed many solar water pump systems in those countries, and get high praise.On the other hand,those provinces------Yunnan ,Guizhou,Tibet, three provinces are rich of solar radiation, we set our office in Kunming to develop the solar power system in those three provinces.
FAQ
Q: How can i get some samples ?
A: Usually we don't offer free sample,the sample and express fee are required,the sample cost can be deducted from your first large order .
Q: Are you a factory or trading company?
A: We are the factory which focused on solar water pump systems for almost 10 years.
Q: What's your MOQ?
A: MOQ of solar inverter is 1 piece.
Q: Can you make OEM?
A: Yes, we can do laser of your brand on the pump.
Q: What's your payment terms?
A: Alibaba Trade Assurance,T/T,Paypal,Western union
Q: What's your warranty & after sale service policy ?
A: Please check the details on the table, usually,some necessary spare parts are offered free to you.
Welcome to inquiry, catalogue and manual can be sent !
