Product Overview

Description

Introduction OF JOYAL aggregate washing plants for sale Mining Case Minerals Sand Washing Machine Price

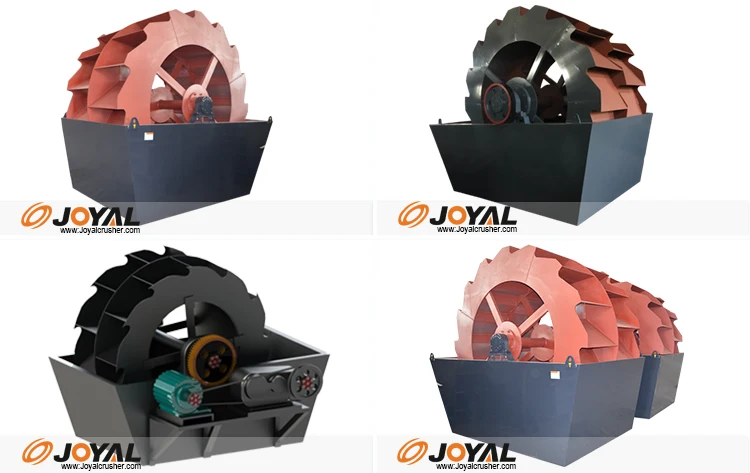

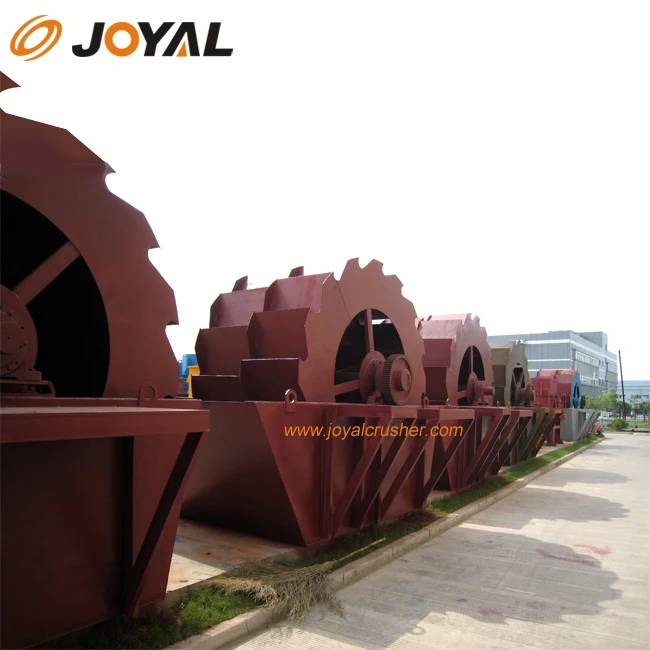

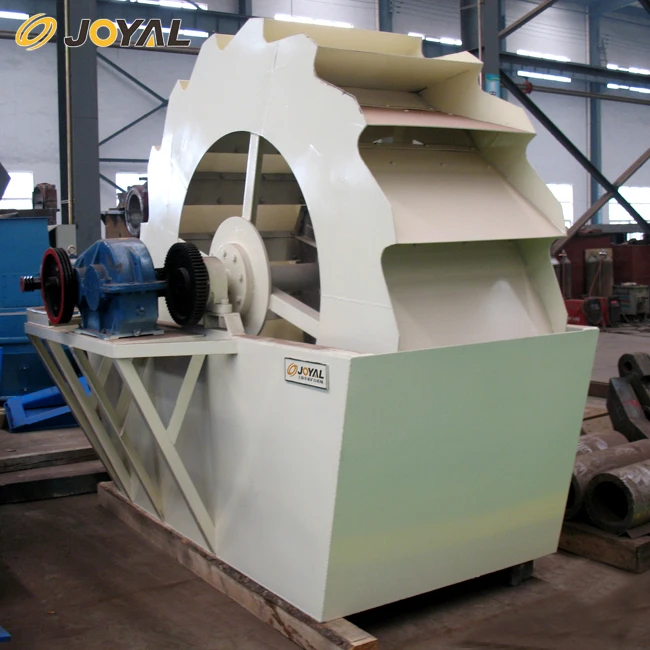

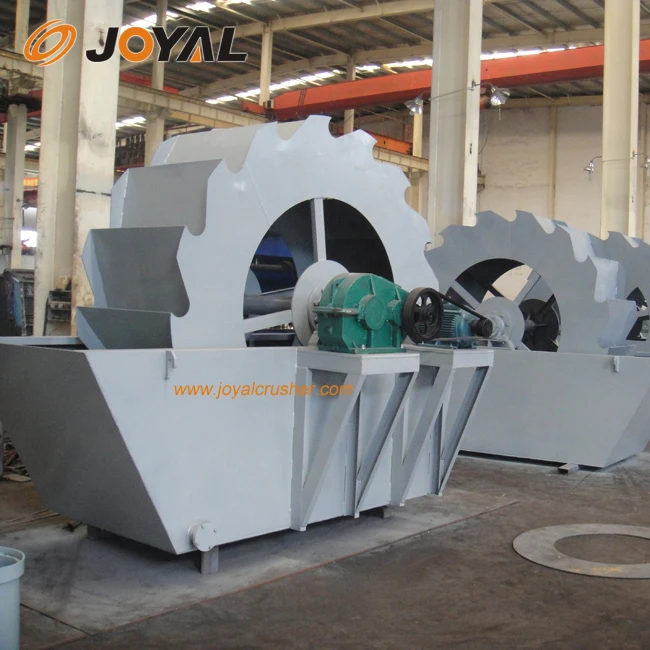

XSD Series High-efficient  sand washing machine equipment , which is used for washing away the stone powder and impurity in the sand made by the Sand Making Machine, to increase the sand quality, is an equipment to wash sand in coordination with the sand making machine. The Sand Washing Equipment is widely used in washing, grading and dehydrating quartz sand in Sand stone factories, Construction site, Glass Factory and so on.





Features

1. High efficiency, reasonable structure, high capacity and low consumption

2. Drive Bearing device is separated by water and materials by water, which is greatly to avoid the bearing damaged due to soaking, sand and pollutants.

3. Compared with the spiral sand washing machine, the loss of medium and fine sand and powder is minimal, and the grade and fineness modulus of washed buliding sand can meet the required standard

4. This machine is with long service life and low maintenance costs.



Main Specifications

Model	Impeller Size (mm)	Feeding Size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Overall Dimension (mm)
XSD2610	ø2600×1000	<10	20-50	5.5	2.68	3255×1982×2690
XSD2816	ø2800×1600	<10	30-60	7.5-11	3.05	3540×3000×2880
XSD3016	ø3000×1600	<10	50-120	11-15	3.26	3845×3000×3080
XSD3620	ø3600×2000	<10	60-150	18.5	4.30	4500×3206×3480
