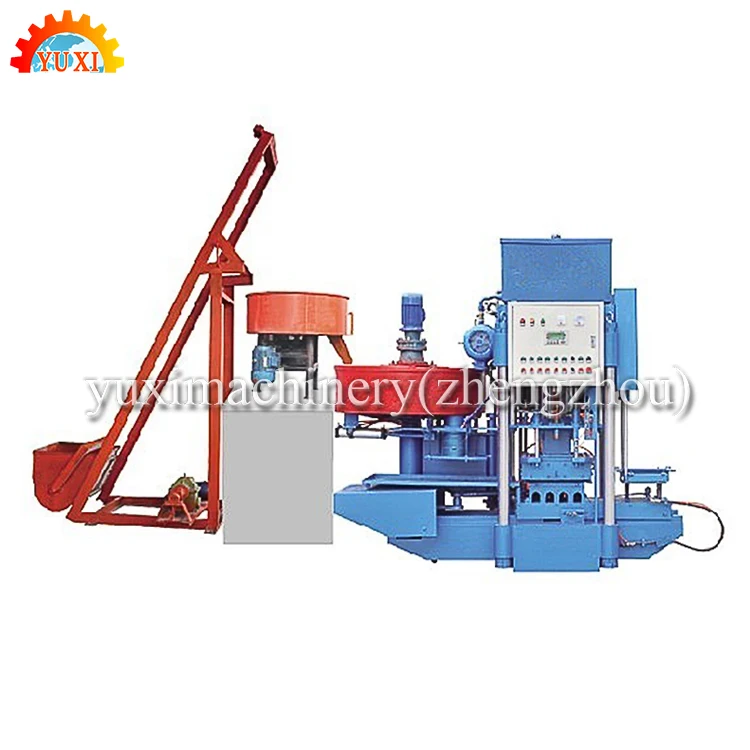

Automatic Marble Chips Floor Tiles Machine 3D Tile Making Machine

Terrazzo machines are widely used in the manufacture of floor tiles and imitation marble tiles.

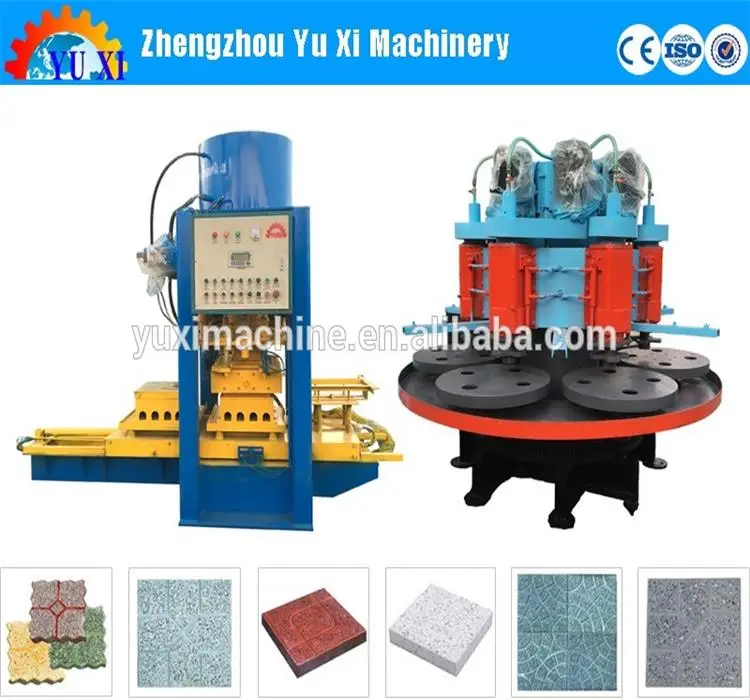

The fully automatic terrazzo production line includes elevators, dosing machines, mixers, brick presses, and polishing machines. The product produced by this equipment has high strength, low water permeability, clear texture and accurate size.

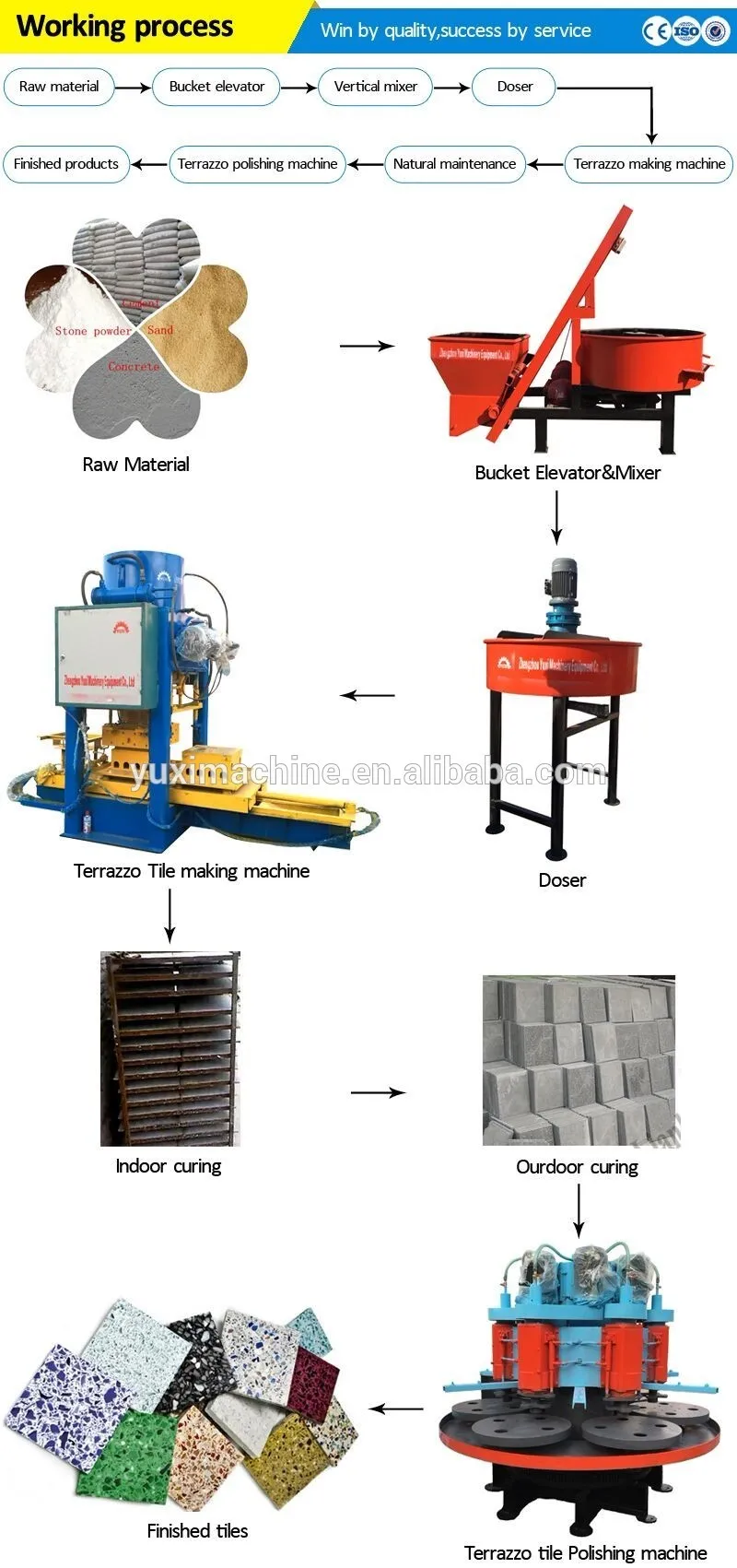

Work flow: Elevating--- Mixing --- Fixed-quantity filling --- Pressure forming --- Mould unloading --- Forming tiles ---Onto the tiles shelf --- --- Stacking --- Curing (24 hours)--- Polishing --- Finished products.

1. At frist,the raw materials are put into the bucket elevator, then deliver to the rolling mixer,at this time,you must add some water into it.

2. After mixing, the mixture come into the dosing feeder,then,measurable mixture that one tile need will put down on the mould below through a small hole.

3. Then,a tile can be formed by high pressure,the pressure is about 125 tons. So the produced tile is very stable and dense.I think the constructor can boldly walk on the paved roof.

4. By the way,the tile need to dry out for about 10 days.Then you can paint.

Mix water, raw material such as cement, stone powder, marble particle, and sand up in proportion and feed the mixture evenly to the main machine of the cement terrazzo tile making machine usage,and then under the high pressure of a hydraulic cylinder and a mould, semifinished concrete terrazzo tiles which become concrete terrazzo tiles after maintenance and painting are produced. If different moulds such as roof tile moulds are applied, roof tiles can be obtained.

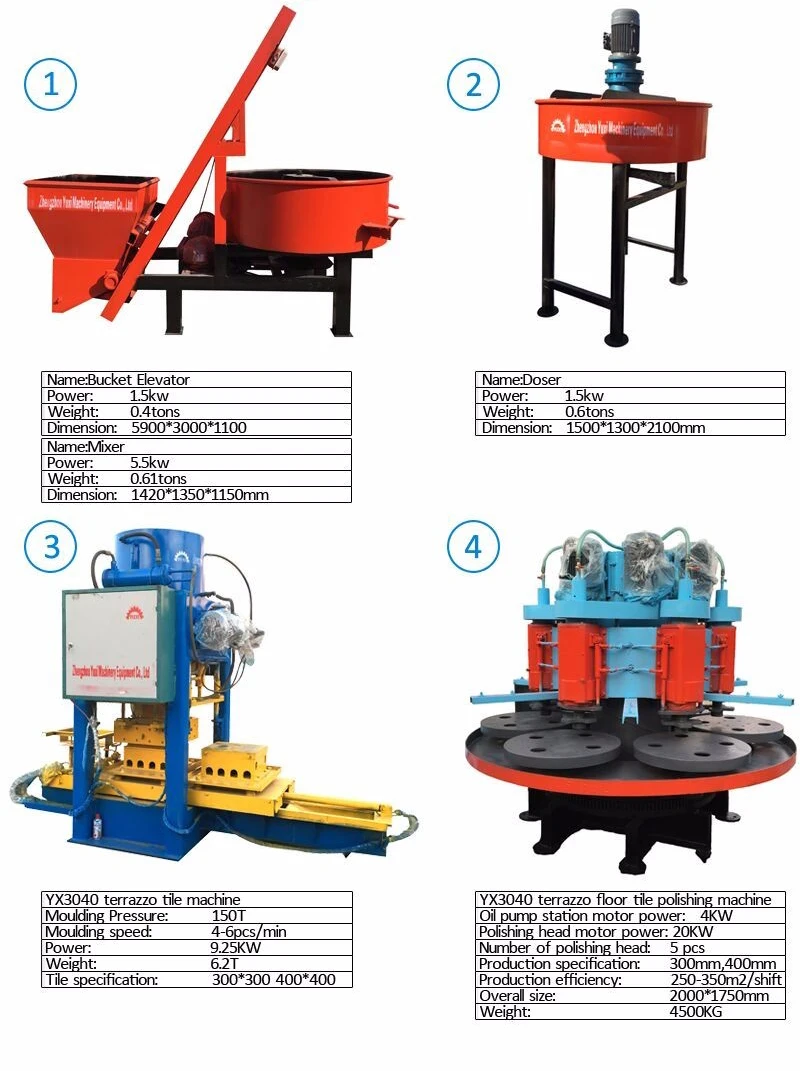

Technical Parameters of Terrazzo machine

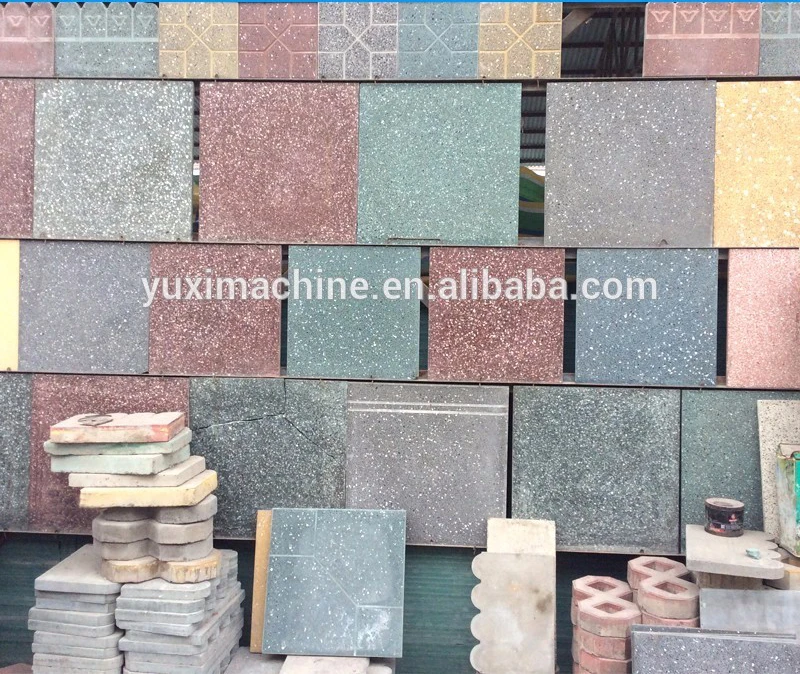

Terrazzo can be cut into pieces, applied in areas such as the toilet partition, windowsill, terrazzo is mainly used in factory workshop, hospital, office decoration, corridor and toilet on the ground, higher requirements for cleanliness or damp places more appropriate, terrazzo and because it has the advantages of wear-resisting, design and color is much and is widely used in space such as railway stations, restaurants, and hotels.

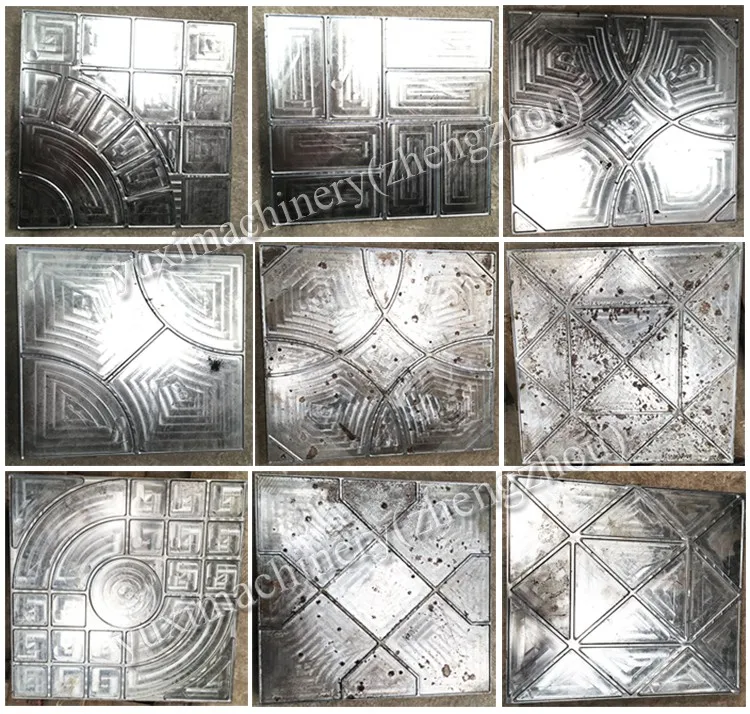

Terrazo Moulds

We can get different patterns by changing the upper moulds(Pressure heads).

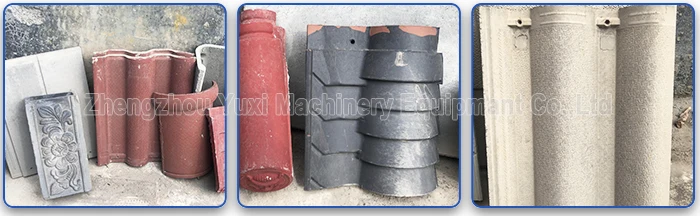

The machine can also produce the roofing tiles by changing molds.

Workshop

Q:Raw material of Terrazzo Tile Making Machine need?
A:Cement,Concrete,Sand,Stone powder,Crushed stone etc.

Q:What's the output of Terrazzo Tile Making Machine Every day?
A:5-7pcs every minute,Around 3000PCS every day.

Q:What's the size of terrazzo tiles I can make?
A:1500*1000,1000*1000,800*800,600*600,500*500,400*400,300*300,250*250,
300*600mm and so on.all of the thickness of terrazzo tiles can be adjustable.

Q:How many workers need in whole production line?
A: 2-3 workers will be ok in the terrazzo tile making machine production line.

Q:How can I get to your company?

A:We are located in Zhengzhou City. You can fly to XINZHENG INTERNATIONAL AIRPORT and we will pick you up there.
